Quick Installation

1 Connect video cable
Make sure both the ViewPanel
computer are powered OFF.
• Remove the bottom rear cover and
lift up the top rear cover.
• Connect the video cable to the
computer, then to the ViewPanel.
Macintosh
E
Macintosh adapter to the video
N
cable, then to the ViewPanel. To order
G
a ViewSonic
L
contact ViewSonic (see the back
I
cover of this guide). You will need to
S
provide your ViewPanel's serial
H
number.
2 Connect DC adapter and
power cord
• Connect the DC Adapter to the
ViewPanel, then to the power cord.
• Connect the power cord to a
properly grounded AC outlet.
3 Power-ON computer and
ViewPanel
Power-ON the computer, then Power-
ON the ViewPanel.
NOTE: At this point Windows
users may receive a message asking
them to install the VG150's INF file.
Insert the enclosed CD-ROM, wait
for it to auto-load, select "Monitior
Drivers" and follow the on-screen
instructions.

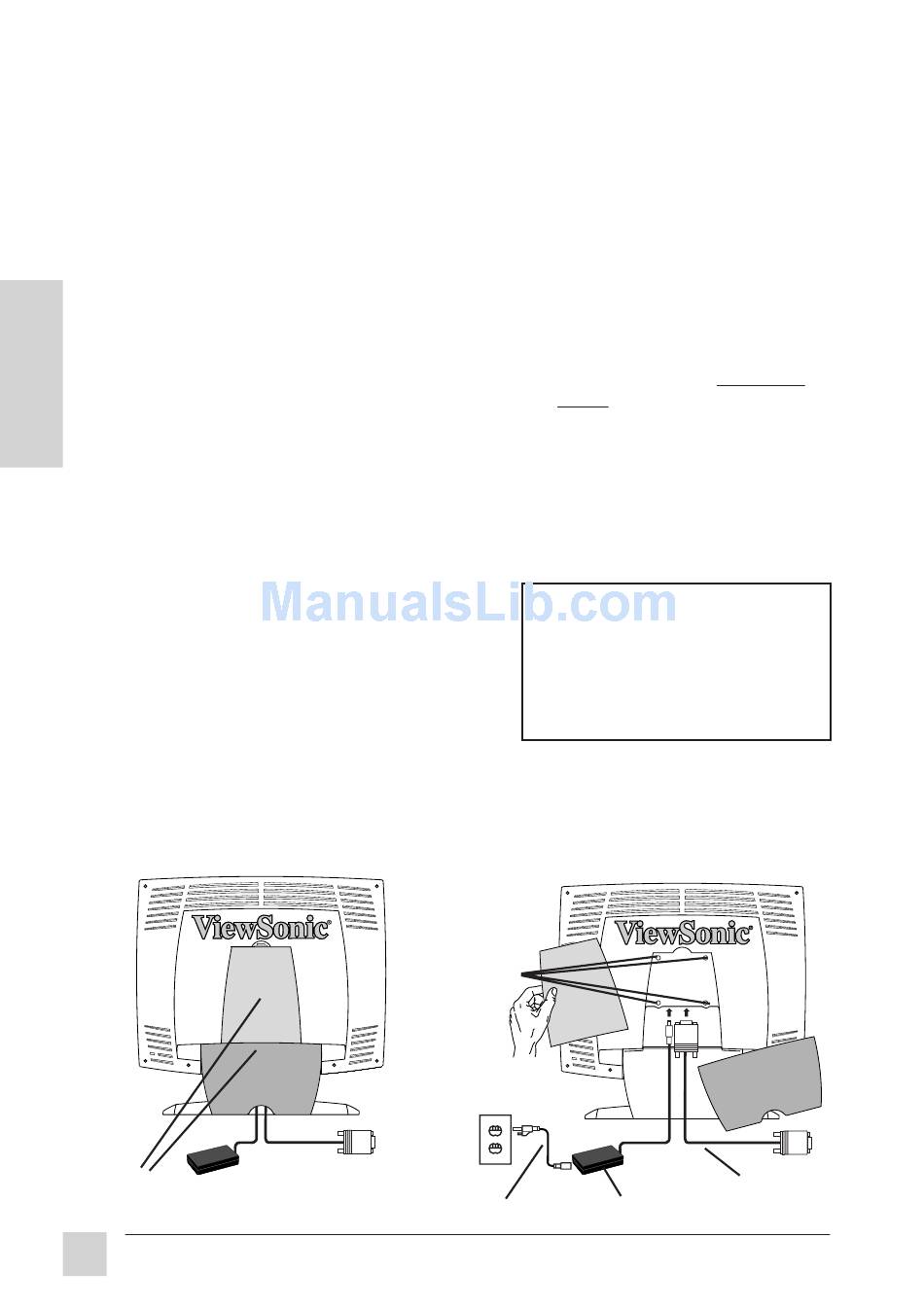

Top and bottom removable
rear covers
Getting Started
6
®
and
®
users: Connect a
®
Macintosh adapter,
®
98
4 For best image quality:
(1) Set your graphic card's timing
(resolution and refresh rate) to
1024x768@60Hz.
(2) Activate AUTO SYNC (see page
10 for more information).
(3) If necessary, make small
adjustments using H POSITION
andV POSITION (Horizontal
Position and Vertical Position) until
the screen image is completely
visible. (The black border around
the edge of the screen should
barely "touch" the illuminated
"active area" of the ViewPanel.)
(4) Adjust FINETUNE until the screen
image looks focused, crisp, and
sharp.
Installation is complete!
Enjoy your new VG150 ViewPanel!
To be best prepared for any future
customer service needs, write the
serial number (see back of this
guide.)
Threaded
holes for
VESA ®
compatible
mounting
units
AC
outlet
Power cord DC Adapter
ViewSonic VG150/VG150B ViewPanel
Video cable
(to computer)
®
