- Page 1 OWNER’S MANUAL COLOR TV/DVD C6513DD (13 inch) C6519DD (19 inch) 13” MODEL ILLUSTRATED This Owner’s Manual is made of recycled paper. ® As an E NERGY Partner, our company has If you need additional assistance for set-up or operating after determined that this product meets reading owner’s manual, please call TOLL FREE : 1-800-287-4871.
-
Page 2: C Important Safeguards
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THIS SYMBOL INDICATES THAT DAN- CAUTION GEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT RISK OF ELECTRIC SHOCK WITHIN THIS UNIT. DO NOT OPEN THIS SYMBOL INDICATES THAT THERE CAUTION: TO REDUCE THE RISK OF ELECTRIC... - Page 3 F IGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECT RICAL CODE ANTE NNA L EAD I N W I R E GROUND C L A M P A NTENNA DI SCHARG E UN I T (NEC SECTION 8 10 -2 0) EL ECT RI C SE RV I CE EQ U I PM EN T...
-
Page 4: C Precautions
PRECAUTIONS IMPORTANT COPYRIGHT INFORMATION LASER SAFETY Unauthorized copying, broadcasting, public perfor- This unit employs a laser. Only a qualified service mance and lending of discs are prohibited. person should remove the cover or attempt to ser- vice this device, due to possible eye injury. FCC WARNING- This equipment may gener- CAUTION: USE OF CONTROLS OR ADJUST- ate or use radio frequency energy. - Page 5 LOCATION SUPPLIED ACCESSORY For safe operation and satisfactory performance of • Remote Control Unit your TV/DVD, keep the following in mind when (PART NO.: N0287UD) selecting a place for its installation: • Shield it from direct sunlight and keep it away from sources of intense heat.
-
Page 6: Table Of Contents
TABLE OF CONTENTS C IMPORTANT SAFEGUARDS ... . .2 C SEARCH FUNCTION ....23 TRACK SEARCH . -
Page 7: C Features
FEATURES TV Mode DVD Mode • ¡ Dolby Digital sound 181 channel capability PLL frequency synthesiz- This player can handle Dolby Digital surround sound er tuner with direct station call having 5.1 channels when connected to a Dolby Digital (A converter may be necessary to view scrambled decoder. -
Page 8: C Operating Controls And Functions

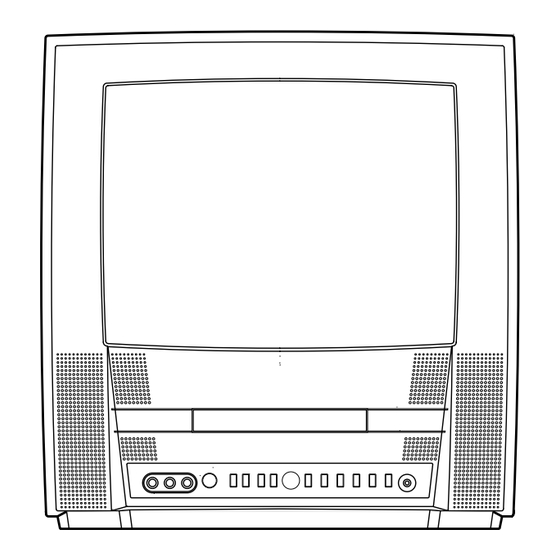

OPERATING CONTROLS AND FUNCTIONS This manual covers 13 " and 19 " . The operation of the two models are exactly the same except the appearance. 13 " model is illustrated in this manual. TV/DVD FRONT PANEL [Fig. 1] VIDEO STOP SKIP PLAY... -
Page 9: Installing The Batteries
TV/DVD REAR VIEW [Fig. 3] ANT. AUDIO OUT COAXIAL 32. Arrow Buttons [page 17] 17. SLEEP Button [page 14] TV Mode: Press SLEEP to display the sleep timer and start the Press to select a setting mode from the menu on the function. -
Page 10: C Preparation For Use
PREPARATION FOR USE ANTENNA/CABLE CONNECTIONS Satellite Box or VHF/UHF Antenna From Cable System or Cable Box (Not supplied) OU T Satellite Dish (Not supplied) VHF Antenna (Not supplied) UHF Antenna From (Not supplied) Cable System ANT. AUDIO OUT VHF/UHF COAXIAL Combiner (Not supplied) ANT. -
Page 11: Connecting To External Input Jacks
CONNECTING TO EXTERNAL INPUT JACKS When you watch a program recorded on an another [Front of the TV/DVD] source (VCR or video camera), use the audio/video input jacks on the front of the TV/DVD. VIDEO AUDIO [Another source] To the audio Connect the audio/video output output jacks jacks of another source to the... -
Page 12: Connecting To A Stereo System
CONNECTING TO A STEREO SYSTEM ANT. AUDIO OUT Stereo system COAXIAL AUDIO OUT COAXIAL To Right (red) and Left (white) To ANALOG AUDIO INPUT jacks AUDIO OUT jacks [Fig. 7] NOTES: • Be sure to turn off the power to all components in the system before connecting another component. •... -
Page 13: Connecting To A Dolby Digital Decoder (For Dvd)
CONNECTING TO A DOLBY DIGITAL DECODER (for DVD) If using this TV/DVD to play a DVD disc in a 5.1 channel Dolby Digital surround format, the TV/DVD out- puts a DOLBY DIGITAL Data stream from its COAXIAL digital audio out jack. By hooking the player up to a Dolby Digital decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound as enjoyed in movie theaters. -
Page 14: Tv Section
TV SECTION SET UP FOR USE You can program the tuner to scan all the channels you receive in your area. NOTE: Channel memory programming is NOT needed when connected to a cable box or satellite box. Just select the TV/DVD channel selector to the output channel of the cable box or satellite box (Ex CH3). Then select the channel to be viewed on the Cable Box or Satellite Box. -
Page 15: Channel Set Up Again
CHANNEL SET UP AGAIN - TV SETUP - Select “CHANNEL SET UP” Press SETUP on the remote control. B CHANNEL SET UP V-CHIP SET UP LANGUAGE [ENGLISH] Press K or L to point to “CHAN- CAPTION [OFF] NEL SET UP”. Then, press ENTER. -
Page 16: C Tv Operation
TV OPERATION WATCHING A TV PROGRAM PICTURE CONTROL The TV/DVD’s picture controls – BRIGHT, CON- Turn on the TV/DVD TRAST, COLOR, TINT and SHARPNESS – are Press POWER to turn on the TV/DVD. preset to factory specifications. Although they are usually the best, you may need to make some further Select the channel number adjustments for a natural looking image. -
Page 17: Sleep Timer
NOTE: SLEEP TIMER If the TV/DVD displays a black box on the TV screen, this means that the TV/DVD is set to the The Sleep Timer function enables you to shut off the power TEXT mode. To clear screen, select without pressing POWER after a desired time period. -
Page 18: V-Chip Set Up
V-CHIP SET UP • When you select a rating category and turn it [BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn V-CHIP enables parents to prevent their children [VIEW] automatically. from watching inappropriate material on TV. •... - Page 19 MPAA RATING SET UP CHANGE ACCESS CODE Make sure ... To change access code, follow the steps. • TV/DVD power must be turned on. Select “V-CHIP SET UP” - TV SETUP - Select “V-CHIP SET UP” Press SETUP on the remote con- - TV SETUP - trol.
-
Page 20: Dvd Section
DVD SECTION ABOUT THE DISCS PLAYABLE DISCS DISC TYPES The following discs can be played back on this TV/DVD. [ DVD ] Data on a DVD is divided into sections called "titles", and ¡ ¡ DVD video DVD-R/RW* then into subsections called "chapters", each of which is ¡... -
Page 21: C Playing A Disc
PLAYING A DISC BASIC PLAYBACK GENERAL FEATURES DVD may contain menus to navigate the disc and DVD-V access special features. Press appropriate numerical key or use Arrow (L/K/B/s) to highlight your selec- Getting started tion in the DVD main menu and press ENTER to con- ¡... -
Page 22: Resume
SLOW FORWARD / RESUME SLOW REVERSE DVD-V DVD-V During playback, press STOP. During playback, press PAUSE. ¡ Resume message will appear on the TV screen. Press FWD or REV Press PLAY, playback will resume from the Press FWD or REV repeatedly to point at which playback was stopped. -
Page 23: C Search Function
SEARCH FUNCTION TRACK SEARCH TIME SEARCH DVD-V There are three ways to begin playback on an Audio During playback, press SEARCH MODE CD at a specific Track. three times (CD: twice) to display the Time Search on the TV screen. Using Number on the remote control Within 30 seconds, enter a desired disc Press Number to enter the desired Track... -
Page 24: C Special Playback Function
SPECIAL PLAYBACK FUNCTION REPEAT PROGRAM REPEAT is available only during playback. REPEAT TITLE / CHAPTER You may determine the order in which tracks will play. DVD-V In stop mode, press MODE. To activate the repeat function, press REPEAT ¡ The PROGRAM screen will appear. during playback. -
Page 25: C Playing A Mp3 Disc
PLAYING A MP3 DISC MP3 PLAYBACK TRACK SELECTION When a CD with MP3 files is in the TV/DVD, the Press SEARCH MODE during playback. MP3 menu will appear on the TV screen in stop mode. ¡ The FILE LIST will appear. In stop mode, press Arrow ( ) to select Select a desired track using Arrow... -
Page 26: C Changing The Settings
CHANGING THE SETTINGS SUBTITLE LANGUAGE CAMERA ANGLE DVD-V DVD-V The DVD allows you to select a language for subtitles Some DVD discs contain scenes which have been shot during DVD disc (if available) playback. simultaneously from various angles. You can change the camera angle when the ( ) icon appears on the screen. -
Page 27: C The On-Screen Information
THE ON-SCREEN INFORMATION DVD-V You can check the information about the current disc by pressing DISPLAY on the remote control. For DVD-Vs For audio CDs Press DISPLAY during playback to show Press DISPLAY during playback to show current Chapter. the current Track. ¡... -
Page 28: C Changing The Dvd Setup Items
CHANGING THE DVD SETUP ITEMS LANGUAGE SETTING Language Code Language Code DVD-V Abkhazian 4748 Laothian 5861 Afar 4747 Latin 5847 Language options are not available with some discs. Afrikaans 4752 Latvian;Lettish 5868 Albanian 6563 Lingala 5860 Amharic 4759 Lithuanian 5866 Press SETUP twice in STOP mode so that Arabic 4764... -
Page 29: Display Setting
DISPLAY SETTING AUDIO SETTINGS Choose the appropriate Audio settings for your equip- DVD-V ment as it only affect during the playback of DVD discs. You can change certain aspects of the DVD display screens and on-screen messages on the TV screen. Press SETUP twice in STOP mode so that the DVD SETUP menu appears. -
Page 30: Parental Control
PARENTAL CONTROL CONTROL LEVELS DVD-V ¡ALL All parental lock is cancelled. Parental Control limits the disc viewing that exceed your settings. (with a password or playback will stop.) ¡Level 8 This feature allows you to prevent discs with alterna- DVD software of any grade (adult/general/children) tive scenes from being played by your children. -
Page 31: Troubleshooting Guide
TROUBLESHOOTING GUIDE If the TV/DVD does not perform properly when operated as instructed in this Owner’s Manual, check the player, consulting the following checklist. Problem Corrective Action • No power. Make sure the power plug is connected to an AC outlet. •... -
Page 32: Dvd Mode
Closed Caption Problem Possible Remedy My TV is showing captions • You are watching a live broadcast and spelling errors made by the that are misspelled. • closed captioning production company may pass through uncorrected. • A prerecorded program will not show any misspelled words because •... -
Page 33: C Maintenance
MAINTENANCE CABINET CLEANING SERVICING • • Wipe the front panel and other exterior surfaces of Should your TV/DVD become inoperative, do not the TV/DVD with a soft cloth immersed in luke- try to correct the problem by yourself. There are no warm water and wrung dry. -
Page 34: C Specifications
SPECIFICATIONS GENERAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS Sound output: 2 speakers, 1W, 8 ohm CRT : 13 or 19 inch in-line gun, OTHER SPECIFICATIONS 90˚ deflection tube Terminals Television system: NTSC-M Antenna input: VHF/UHF/CATV TV Standard 75 ohm unbalanced (F-type) Closed caption system: §15.119/FCC Video input: RCA connector Channel coverage:... - Page 35 MEMO – 35 – 0C28...
- Page 36 SYLVANIA HOME ENTERTAINMENT WARRANTY We appreciate your purchase of a SYLVANIA Home Entertainment product. We take pride in the quality of our products and have manufactured your new Home Entertainment unit to exacting quality standards. We feel confident that in normal use, it will provide you with satisfactory performance. However, should you experience difficulty, you are protected under the provisions of this warranty.
