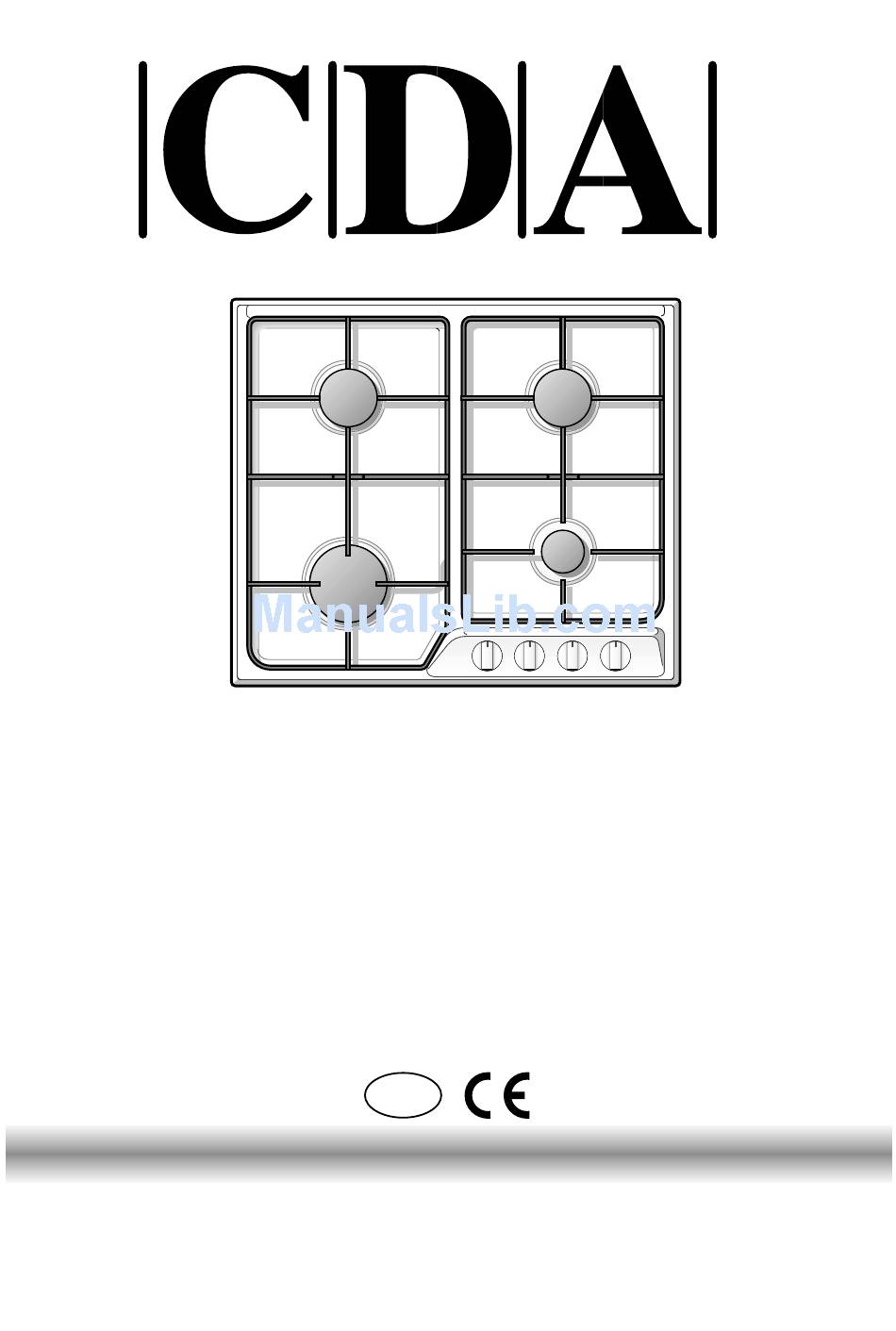

- Page 1 Flush-fitting hob - front controls CD 60 - CD 61 - CD 62 Users Operating Instructions Before operating this hob, please read these instructions carefully...
-
Page 2: Tips For The User
Dear Customer, Thank you for choosing one of our products. The warnings and tips given below are intended to pro- tect your safety and that of others. They will also help you make the most of your appliance. Keep this booklet in a safe place. It will be useful if you, or anyone else, have any questions about use of the appli- ance. - Page 3 IMPORTANT WARNINGS AND TIPS When unpacking the appliance make sure that it is not damaged. If you have any doubts, do not use the appliance but consult your supplier or an engineer. The packing materials (plastic bags, expanded polystyrene, nails, bands etc.) must not be left within easy reach of children, as these may result in serious injury.
-
Page 4: Control Panel
Gas hob Model: CD 60 Figure 1 This appliance is class 3 COOKING POINTS 1. Rapid burner (R) - 3,00 kW 2. Left medium-speed burner (SR) - 1,75 kW 3. Right medium-speed burner (SR) - 1,75 kW 4. Auxiliary burner (A) - Page 5 Gas hob with triple-ring burner Models: CD 61 - CD 62 Figure 2 Model: CD 61 Model: CD 62 This appliance is class 3 COOKING POINTS 1. Triple-ring burner (TR) - 3,30 kW 2. Left medium-speed burner (SR) - 1,75 kW 3.
-
Page 6: Gas Burners
Use Of the Hob GAS BURNERS Gas flow to the burners is adjusted by turning the knob illustrated in fig. 3 which con- trols the safety valves. Turning the knob so that the indicator line points to the symbols printed on the panel achieves the following functions: full circle closed valve... -
Page 7: Choice Of Burner
CHOICE OF BURNER The symbols printed on the panel by the side of the knob indicate which burner you are controlling. Choose a suitable burner depending on the cookware diameter and capacity. The pan diameter should be suitable for the burner power to make the most of the burner's high efficiency and not waste fuel. -
Page 8: Cleaning And Maintenance
Cleaning and Maintenance GENERAL TIPS Before cleaning the hob switch it off and wait for it to cool down. Clean with a cloth, hot water and soap or liquid detergent. Do not use products which are abrasive, corrosive or chlorine based. Do not use steel pads. -
Page 9: Correct Positioning Of The Burners
CORRECT POSITIONING OF THE BURNERS It is very important to check that spreader F and cap C of the burner (see Figure 6) are perfectly in place because if they move out of place serious problems could arise. Make sure that electrode "S" (Fig. 6) is kept clean so that the sparks always strike. TRIPLE-RING BURNER The triple ring burner must be correctly positioned (see fig. -
Page 10: Tips For Installation
Tips for installation Installation IMPORTANT The hob should only be installed by a qualified installer. Failure to observe this rule leads to cancellation of the guarantee. The appliance must be installed correctly, in compliance with the regulations in force and following the manufacturer's instructions. Any repair or maintenance must be performed with the appliance switched off. - Page 11 To fit the hob into the unit make an opening of the dimensions given in Figure 9, remembering that: Inside the unit there must be a space of at least 30 mm between the bottom of the hob and the top of a shelf. Any wall to the side and above the hob must be at least 100 mm away (Fig.
-
Page 12: Fastening The Hob
INSTALLATION ABOVE UNITS WITH DOORS (fig. 11) The unit must be so constructed that the movement of air caused by closing and open- ing, even violent, of the doors does not cause the burners to go out. Leave a depression space of 30 mm between the bottom of the hob and the top of the unit (Fig. -
Page 13: Installation Room
INSTALLATION ROOM The room where the gas appliance is to be installed must have a natural flow of air so that the gas can burn. The flow of air must come directly from one or more openings made in the outside walls with a free area of at least 100 cm If the appliance does not have a flame-failure safety device this opening must have an area of at least 200 cm... -
Page 14: Gas Section
Gas Section TYPES OF GASES There are two types of gas suitable to use with this appliance. G30 / G31 INSTALLATION The appliance is set at the factory to operate with the gas indicated on the rating plate on the appliance. If the appliance must be operated with a gas different than that indicated on the plate, it is necessary to make the following changes: gas connection... -
Page 15: Connection To The Gas Supply
CONNECTION TO THE GAS SUPPLY The gas connection must be made in compliance with the local regulations in force. Be careful when flexible pipes are used that they do not come into contact with moving parts. To maintain the thickness of 3 cm, the hob is fitted with a channel to contain the connection pipe. - Page 16 REPLACING THE BURNER INJECTORS Injectors can be obtained from our After-Sales Department. Choose the injectors to be replaced according to the table below. The injector diameter, expressed in hundredths of a millimetre, is marked on the injector body. To replace the injectors proceed as follows: Remove the gratings, the burner covers and the knobs;...
- Page 17 ADJUSTING THE GAS BURNER MINIMUM For taps with adjusting screw inside the shaft (fig. 18): using a screwdriver max. diameter 3 mm turn the screw inside the tap shaft until the flame setting is correct. For taps with adjusting screw on the body (fig. 19): using a screwdriver turn screw "A"...
-
Page 18: Electrical Connection
Electrical Connection IMPORTANT: The installation must be made following the manufacturer's instructions and in accordance with existing laws. Incorrect installation may be dangerous and the manufacturer can not be held responsible. Warning! This appliance must be earthed A properly earthed three pin plug (fused at 3 amps, to BS 1362 ASTA approved) must be used. - Page 19 SECTION OF THE SUPPLY CABLES - TYPE “H05V2V2-F” resistant to temperatures of 90°C 230 VAC 50 Hz 3 x 0,75 mm2 The electrical cable must be connected to the terminal board following the diagrams of Fig. 21. The appliance must be earthed. The manufacturer declines all responsibility for any problem caused by failure to observe this rule.
- Page 20 1101403.1 ß13 Flush-fitted hob - front controls Continental Domestic Appliances Nottingham NG72SD...
