80102

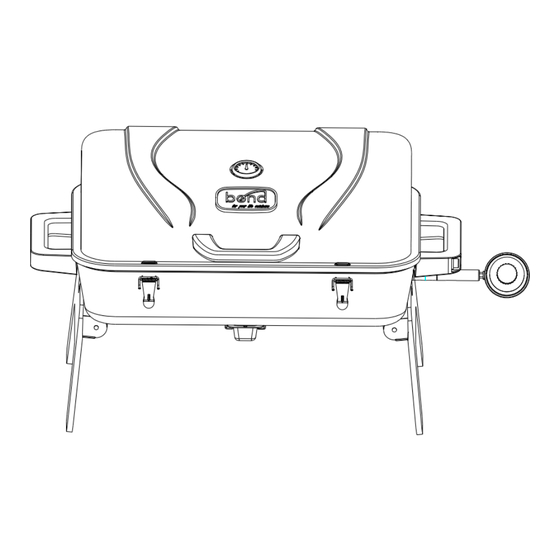

Owner's Manual
Portable Gas Barbecue Grill
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
IF YOU ARE ASSEMBLING THIS UNIT FOR SOMEONE
ELSE, GIVE THIS MANUAL TO HIM OR HER TO SAVE FOR
FUTURE REFERENCE.
e.
FOR CUSTOMER SERVICE, EMAIL TO
customerservice@bondmfg.com
IF YOU HAVE QUESTIONS OR CONCERNS
PLEASE CALL BOND TOLL FREE #
1-866-771-BOND(2663)
1
MODEL# 80102
Printed in China
Advertisement
Table of Contents
Related Manuals for Bond user manual
Summary of Contents for Bond user manual
- Page 1 FUTURE REFERENCE. combustion of propan FOR CUSTOMER SERVICE, EMAIL TO customerservice@bondmfg.com IF YOU HAVE QUESTIONS OR CONCERNS PLEASE CALL BOND TOLL FREE # WARNING 1-866-771-BOND(2663) FOR YOUR SAFETY: For Outdoor Use Only (outside any enclosure)
-
Page 2: Grill Operation
Grill Operation 1-2-3 Before Grilling Step 1 Keep your grill a safe distance away from your property.* Always perform a Leak Test on all connections. * Step 2 Step 3 Keep children away from the grill. During Grilling (To avoid tripping safety valves, please follow these instructions carefully.) Step 1 First open lid and turn gas tank on slowly. -
Page 3: Table Of Contents
Table of Contents For Your Safety ......................4 Illustrated Part List....................6 Hardware List......................7 Assembly Instructions..................8-11 Operating Your Grill....................12 Connecting Gas Cylinder..................12 Checking for Leaks....................12 Lighting Your Grill....................12 Excess Flow Safety Valve Reset Procedure............14 Care and Maintenance...................14 Troubleshooting.....................15 Warranty Program....................16 80102 Owner’s Manual... -
Page 4: For Your Safety
Our expert staff strives to provide you with an easy-to-assemble product. Should you have any questions or problems with this product, please call our customer service department at 1-866-771-BOND (2663) 8:00 am – 4:30 pm (PST), Monday through Friday. - Page 5 WARNINGS Do not use this appliance under overhead combustible surface or covered area (e.g., awnings, umbrellas, porches or gazeboes). Always confirm that this grill is not positioned under the overhang of a house, a garage 6feet 50 inches or other structure before lighting it. An overhang will serve to deflect flare-ups and radiated heat into the structure itself, which could result in a fire.
-
Page 6: Illustrated Part List
Illustrated Parts List Part Description Part Description Part Description Left handle 1 PC Lid handle 1 PC Heat plate 1 PC Right handle 1 PC 1 PC Burner 1 PC Body assembly 1 PC Upper hinge 2 PCS Regulator 1 PC Left leg 1 PC Lower hinge... -
Page 7: Hardware List
Hardware List AA: 1 PC BB: 15 PCS CC: 15 PCS Wrench M5 × 10 Bolt M5 Spring washer DD: 15PCS EE: 15 PCS FF: 1 PCS Flat Washer M5 Nut M6X7Bolt GG: 7 PCS HH: 7 PCS II: 6 PCS M6 Spring washer Flat washer M6 Nut... -
Page 8: Assembly Instructions
Assembly Instructions Remove all contents from the carton packaging. Make sure all parts are present before attempting assembly. Once the grill is fully assembled, go back and check to make certain all the bolts are secure. Tighten again using the screwdriver provided if necessary. - Page 9 Step 3 a) Align the holes on the right side of the body assembly with the holes on the heat plate support b) Insert the pre-installed bolts on the right handle into the holes and seal them with one flat washer （ HH） , one spring washer (GG),and one nut(II).
- Page 10 Step 5 Place the heat plate on the heat plate support. b) Place the cooking grid upon the heat plate and make certain the cooking grid is clipped by the fastener. Step 6 a) Insert the grease cup into the two guides underneath the grill and push forward until it is in place.
- Page 11 Step 8 a) Align the holes of the upper hinges on the back of the lid with the holes of the lower hinges on the back of the body. b) Insert one lid pin (LL) into each hole. Insert one R pin (KK) into the hole on the front of the lid pin.
-
Page 12: Operating Your Grill
Operating the Grill CAUTION: Use only the regulator provided. If a replacement is necessary, call our customer service center. The use of unauthorized parts can create an unsafe condition and environment. Connect gas cylinder The propane gas supply cylinder to be used must be constructed and marked in accordance with the Specifications for LP-gas Cylinders of the U.S. - Page 13 Main Burner Open lid while lighting burners. WARNING: Attempting to light the burner with the lid closed may cause an explosion. Make sure there are no obstructions of airflow to the gas unit. Spiders and insects can nest and clog the burner/ venturi tube at the orifice.
-
Page 14: Excess Flow Safety Valve Reset Procedure
WARNING: Always monitor the grill closely when cooking and turn the flame level down (LOW) or OFF if flare- ups intensify. Shutting off the burner: Always turn the valve knob clockwise all the way to the “LOCK OFF’’ position. Promptly disconnect the propane cylinder. Excess flow safety valve reset procedure A sudden shut off of the gas flow typically occurs if you open the LP tank valve rapidly. -
Page 15: Troubleshooting
Troubleshooting Problem Possible Cause Prevention/Cure Burner will not light using a match. No gas flow. Check if propane tank is empty. If empty, replace. If propane tank is not empty, refer to “Excess flow safety valve reset procedure”. Obstruction of gas flow. Clear burner tube. -
Page 16: Warranty Program
(province) to state (province). If you have any questions related to the product or warranty, please visit our website at www.bondmfg.com , email us at customerservice@bondmfg.com ,or call our customer service center at 1-866-771-BOND(2663), 8:00 A.M. to 4:30 P.M. (PST), Monday through Friday.
