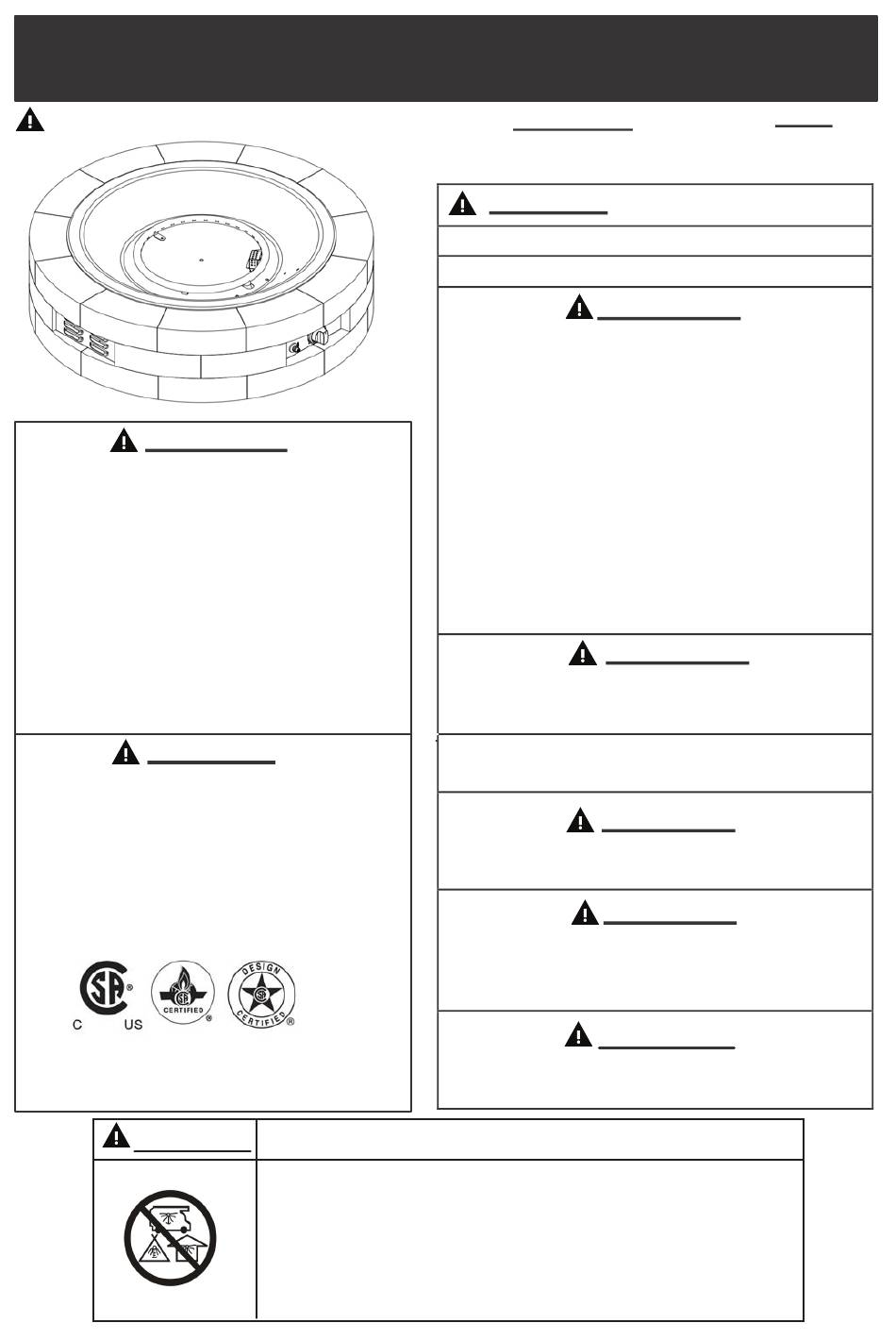

OWNER'S MANUAL
READ BEFORE USE!
WARNING:
• Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
• An LP cylinder not connected for
use should not be stored in the
vicinity of this or any other appliance.
• Service must be performed by a
qualified installer, service agency or
the gas supplier.
DANGER
IF YOU SMELL GAS:
1. Shut off gas to the appliance
2. Extinguish any open flame
3. If odor continues, keep away from
the appliance and call your gas
supplier or fire department
immediately.
Design certified under ANSI Z21.97
• CSA 2.41-(2014) Requirements for
Outdoor Gas Fireplaces
DANGER
Model No.:BHDIY-003
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which
has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or home.
WARNING: For Outdoor Use Only!
Use Liquid Propane Gas (LP-Gas) Only!
Propane cylinders sold separately.
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Read the
owners manual thoroughly before installing
or servicing this equipment. If the
information in this manual is not followed
exactly, a fire or explosion may result
causing property damage, personal injury
or loss of life. Save these instructions for
future use. If you are assembling this unit
for someone else, give this manual to him
or her to read and save for the future.
WARNING:
Turn off gas supply when the appliance
is not in use.
If the appliance is stored indoors, detach
and leave LP-Gas cylinder outdoors.
WARNING:
This appliance must be attended at
all times!
WARNING:
Battery may contain mercury. Do not
deposit in fire or put in trash. Recycle
the battery as hazardous waste.
WARNING:
The propane cylinder must be
disconnected when appliance is not in use.
Item No.: 66926

Advertisement

Table of Contents
loading

Summary of Contents for Bond BHDIY-003

  • Page 1 OWNER’S MANUAL Item No.: 66926 READ BEFORE USE! Model No.:BHDIY-003 WARNING: For Outdoor Use Only! Use Liquid Propane Gas (LP-Gas) Only! Propane cylinders sold separately. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the...
  • Page 2 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. Failure to follow the dangers, warnings and cautions contained in this owners manual may result in a fire or explosion causing damage to property, serious bodily injury or death. WARNING •...
  • Page 3 SAFETY INFORMATION • Never lean over the open fire pit or place hands or fingers on the upper portion of an operational unit. • Keep any electrical supply cords and the fuel supply hose away from any heated surfaces. • Combustible materials should never be within 72 inches of the top, 48 inches of the back or sides of the fire pit.
  • Page 4 Caution: Only use the pressure regulator and hose assembly supplied with this fire pit. Replacement pressure regulator and hose assemblies must be specified or supplied by BOND MANU- FACTURING CO. Inspect the burner before each use of the appliance. If the burner shows signs of damage of any kind, do not operate the appliance.
  • Page 5 20 minutes after it has been ignited. Warranty and Installation Information: The Bond warranty will be voided by, and Bond disclaims any responsibility for, the following actions: ► Modification of the firebowl and/or components including the gas valve assembly.
  • Page 6 ASSEMBLY INSTRUCTIONS *Please keep the owner’s manual for future reference *If you have opened the carton and removed all packages, please disregard STEP 1 and 2. For assembling s ee STEP 3 and 4 directly. STEP 1 Step1 Step2 (1) Open the carton and turn it upside down, and make sure the 4 pieces of the carton are opened up as shown on the right.
  • Page 7 (4) Build the third layer of the ring with 10 common bricks (G). Place the bricks one by one on the second layer ring, except for the two bricks touching the gap in Figure 2. See Figure 3. (5) Install the firebowl (I) in the middle of brick ring, making sure the lip edge of the bowl is on the top of the bricks.
  • Page 8 STEP 4 STEP 4 (1) Check each part before using the product. Make sure the gas supply system is turned "OFF" before assembling. See Figure I. (2) Put the gas tank in the tank seat. Make sure the gas tank sits on the tank seat com- pletely.
  • Page 9: Selecting A Location

    LP (Liquid Propane) gas supply connection  Always confirm that the burner control knob is in the "OFF" position before connecting the gas supply.  Do not obstruct the flow of combustion air and ventilation air to the appliance. To Connect: ...
  • Page 10: Visual Check

    VISUAL CHECK Prior to each use, check the hose and valve for excessive wear, abrasions or any damage. LEAK TESTTTTTTTTTTTTTTTTTTTTTTTTTTT K TES 1.Perform a leak test in a well-ventilated area outside. 2.Make sure any open flames or cigarettes are extinguished. 3.Remove the battery.
  • Page 11 Note: This appliance is 8. Once the pilot is lit, turn the burner control knob to equipped with a Pilot Light "High" and "Low" positions. Main burner will light that allows for safer start- immediately. If not, turn the burner control knob to ups and shutdowns.
  • Page 12: Routine Care

    TO EXTINGUISH 1. Push and turn burner control knob clockwise to the "PILOT" position. (Normally, burner will make a slight popping sound when extinguished). Main burner will extinguish but Pilot flame will remain ON. 2. To extinguish Pilot flame, depress Control Knob and continue to turn it clockwise to OFF.
  • Page 13 IF YOU HAVE QUESTIONS OR CONCERNS PLEASE CALL BOND TOLL FREE # 1-866-771-BOND(2663) OR TO BETTER EXPEDITE YOUR REQUEST FEEL FREE TO EMAIL US Customer.service@bondmfg.com OR VISIT OUR WEBSITE UNDER CUSTOMER SERVICE SUPPORT www.bondmfg.com...
  • Page 14: Manual Del Usuario

    MANUAL DEL USUARIO Mannul del dueño 66926 ¡LEER ANTES DE USAR! No. de modelo: BHDIY-003 No. de artículo: ADVERTENCIA: ¡Solamente para uso en exteriores! ¡Usar Solamente Gas Propano (Gas LP)! Las bombonas de propano se venden por separado. ADVERTENCIA: Una instalación, ajuste, alteración, servicio o...
  • Page 15 INFORMACIÓN DE SEGURIDAD Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el producto. No seguir los avisos de peligro, las advertencias y las precauciones de este manual del usuario podría provocar incendios o explosiones que causen daños a la propiedad, lesiones personales graves o la muerte.
  • Page 16 INFORMACIÓN DE SEGURIDAD • No use el fogón, a menos que todas las piezas estén correctamente instaladas y estén en su lugar. • Preste atención cuando opera el fogón. Se calienta durante el uso y nunca debe dejarse sin supervisión. No lo mueva cuando está funcionando. •...
  • Page 17 Repare o reemplace la manguera según la necesidad antes de usar el aparato. Para obtener ayuda con la reparación o el reemplazo de la manguera, póngase en contacto con Bond Manufacturing al 1-866-771-2663. Utilice sólo piezas de repuesto del fabricante.
  • Page 18 Garantía y Información sobre la Instalación: La garantía de Bond se anulará por Bond y Bond no se hará respensable por los actos siguientes: ►Modificación de la mesa de gas y/o de los componentes, incluyendo la unidad de válvula de suministro de gas.
  • Page 19: Instrucciones De Montaje

    INSTRUCCIONES DE MONTAJE * Por favor quédese con este manual del usuario para referencia futura. * *Si ya ha abierto la caja y retirado todos los paquetes, descarte los PASOS 1 y 2. Para ensamblar, vaya a los PASOS 3 y 4 directamente. PASO 1 PASO 2 (1) Abra el cartón y póngalo al revés,...
  • Page 20 (4) Construya la tercera capa del anillo con 10 ladrillos comunes (G). Coloque los ladrillos uno a uno sobre la segunda capa del anillo, salvo los dos ladrillos que tocan la abertura como se muestra en la Figura 2. Ver Figura 3. (5) Instale el bol de fuego (I) en el medio del anillo de ladrillos, verificando que el borde de labio del bol esté...
  • Page 21 (3) Localice la batería quitando primero el recubrimiento de plástico. Afloje la tapa de goma del Encendedor Eléctrico y coloque una batería AAA dentro del compartimiento de batería. Verifique que el polo positivo (“+”) esté mirando hacia la tapa. Vuelva a ajustar bien la tapa en el compartimiento de batería. Ver Figura II. (4) Abra las cajas de rocas volcánicas y distribúyalas en forma pareja arriba del bol de fuego.
  • Page 22: Seleccionar Una Ubicación

    SELECCIONAR UNA UBICACIÓN Coloque siempre este aparato para exteriores en una superficie firme, nivelada y no combustible como hormigón, roca o piedra. Espacio Libro Mínimo Entre la Unidad y Materiales Combustibles 182.9 cm (72") de la parte superior; 121.9 cm (48") de todos los lados y de la parte trasera.
  • Page 23 1. Ubique la perilla de control del quemador y asegúrese que se encuentra en la posición "APAGADO" [OFF]. 2. Conecte el cilindro de propano (LP). (Consulte las páginas anteriores). 3. Abra lentamente la válvula del tanque LP. 4. Oprima el botón de encendido para crear una chispa en el electrodo y sostenga.
  • Page 24: Para Apagar

    5. Oprima y gire la perilla de control del quemador a la posición "PILOTO" [PILOT]. El piloto se debería prender inmediatamente. 6. Si el piloto no se enciende inmediatamente, cierre la perilla de control del quemador en posición "APAGADO" [OFF], espere 5 minutos hasta que el gas se disipe y repita el procedimiento de encendido.
  • Page 25: Resolución De Problemas

    RESOLUCIÓN DE PROBLEMAS PROBLEMA CAUSA ACCIÓN CORRECTIVA La espiga de encendido y el Séquelos con un paño quemador están mojados La batería de encendido está Compruebe que la batería esté bien mal colocada. colocada. La espiga de encendido está Llame a atención al cliente para pedir un rajada o rota repuesto El piloto...
  • Page 26 SI TIENE PREGUNTAS O DUDAS SE RUEGA LLAMAR A BOND SIN CARGOS al 1-866-771-BOND(2663) O PARA ACELERAR SU PEDIDO NO DEJE DE MANDARNOS UN CORREO ELECTRÓNICO AL customer.service@bondmfg.com O VISITE NUESTRA PÁGINA WEB BAJO ATENCIÓN AL CLIENTE CUSTOMER SERVICE SUPPORT www.bondmfg.com...
