2. Straighten the door and line it up with the center
hinge bracket. Install the center hinge pin with
a 3/4-in. socket ratchet/driver. Turn it until it
extends through the hinge bracket and into the
freezer door.

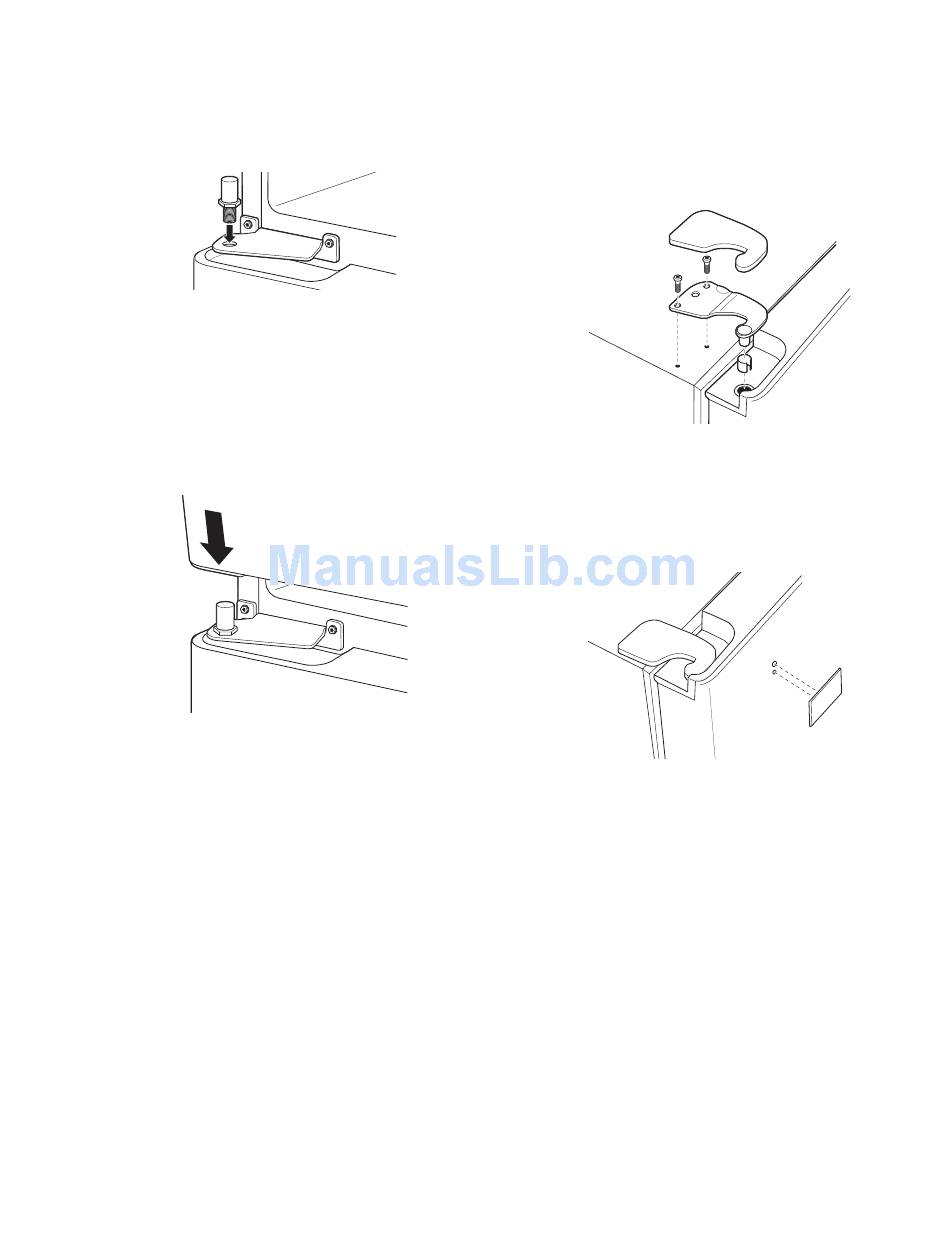

To rehang the refrigerator door:
1. Lower the refrigerator door onto the center
hinge pin. Ensure that the plastic hinge pin
thimble is on the center hinge pin or inside door
hinge pin hole located in the bottom of the door.
2. Insert the door thimble into the hinge hole on
top of the refrigerator door and then insert the
top hinge pin. Make sure the door is aligned with
the cabinet. Attach the hinge to the top of the
cabinet loosely with the bolts.
3. Make sure the gasket on the door is fl ush
against the cabinet and is not folded. Support
the door on the handle side and make sure the
door is straight and the gap between the doors
is even across the front. While holding the door
in place, tighten the top hinge bolts. Replace the
hinge cover.
4. Remove the adhesive backing paper and align
the pins on the back of the badge with the holes
in the door. Apply pressure to the badge to
ensure it sticks to the door.
