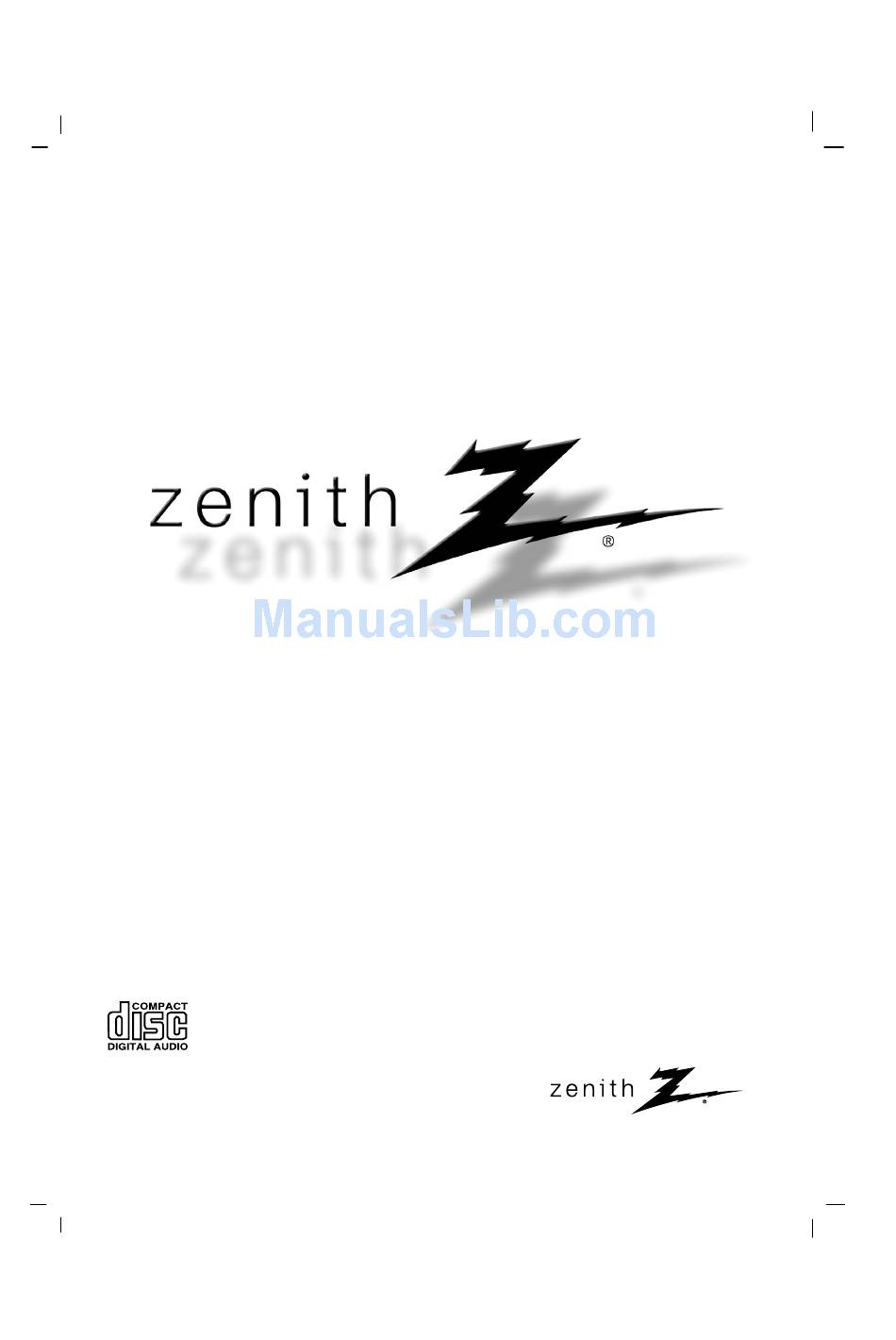

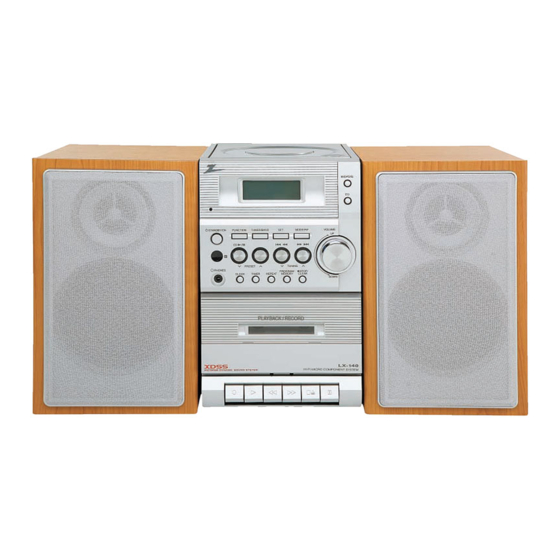

- Page 1 Installation and Operating Guide | Warranty Model Number I LX-140 I Micro Hi-Fi System (Speaker: LXS-M140) © Copyright 2004, LG Electronics U.S.A., Inc.
-
Page 2: Safety Precautions
Model No. LX-140 ground shall be connected to the grounding system of the Serial No. building, as close to the point of the cable entry as practical. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL. AND THOSE MARKED ON THE PRODUCT. RETAIN THIS MANUAL FOR FUTURE REFERENCE. This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. -
Page 4: Table Of Contents
Table of Contents INTRODUCTION OPERATION Safety Precautions ..... .2 Presetting the radio stations ... . . 11 IMPORTANT SAFETY INSTRUCTIONS . -
Page 5: Before Use
Before Use Safety Precautions Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for analog records. Handling the unit Notes on Remote Control When shipping the unit The original shipping carton and packing materials Remote Control Operation Range come in handy. -
Page 6: Front Panel/Rear Panel
Front Panel/Rear Panel OPTIONAL CD DOOR 10. • CLOCK button DISPLAY • TIMER button POWER indicator • REPEAT button POWER (STANDBY/ON) button • PROGRAM/MEMORY button Remote Control Sensor • ( )STOP/CLEAR button • CD PLAY/PAUSE (CD / ) button 11. VOLUME CONTROL KNOB 12. -
Page 7: Remote Control
Remote Control POWER button PRESET ( ) button EQUALIZER PATTERN (EQ PATT.) button CD FUNCTION buttons • CD PLAY/ PAUSE ( ) button • CD STOP( ) button • CD SKIP/SEARCH ( ) buttons • REPEAT button XDSS button PROGRAM button SLEEP button VOLUME CONTROL ( ) button... -
Page 8: Connections
Connections Speaker System Connection Connect the speaker cords to the speaker terminals. otes • Be sure to match the speaker cord to the appropriate terminal on the components: + to + and – to –. If the cords are reversed, the sound will be distorted and will lack base. •... -
Page 9: Setting The Clock
Setting the CLOCK Press CLOCK. Use TUNING ( ) buttons to set the (If the clock requires setting, press and hold correct hours on the front panel. CLOCK for more than 2 seconds.) - The hours begin to flash. Press SET. Select a 12 hour cycle or 24 hour cycle by pressing TUNING ( ) on the front panel. -
Page 10: Timer Function
Timer Function With the TIMER function you can have the radio reception and recording, CD play, auxiliary source play and record- ing turned ON and OFF at the time desired. 1 1 0 0 Press CLOCK to check the current time. Press SET to confirm the hour to switch OFF. -
Page 11: Presetting The Radio Stations
Presetting the radio stations You can preset 50 stations for FM and AM. Before Press PRESET ( ) (or PRESET ( tuning, make sure that you have turned down the on the remote control) to select the preset volume to the minimum. number you want. -
Page 12: Tape Playback
Tape Playback Basic Playback To Pause Play Press PAUSE ( ) during playback. Press FUNCTION repeatedly to appear TAPE Press this button again it to resume play. indicator. To Play Fast Rewind or Fast Forward Open cassette deck by pushing STOP/EJECT After pressing REWIND/FAST FORWARD ( ( / ) button. -
Page 13: Cd Playback
CD Playback Basic Playback To Program Play Press FUNCTION repeatedly to appear CD You can arrange the order of the tracks on the discs and indicator. create your own program. The program can contain up If no disc is loaded then “NO DISC” is displayed. to 20 tracks. -
Page 14: Troubleshooting
Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Symptom Cause Correction No power. • The power cord is disconnected. • Plug the power cord into the wall outlet securely. No sound. • The audio cables are not •... -
Page 15: Specifications
Specifications Power supply Refer to the back panel of the unit. Power consumption Mass 6.6 Ib External dimensions (WxHxD) 5.74 X 9.21 X 9.88 inch Frequency response 40 - 18000 Hz Signal-to-noise ratio 60 dB Dynamic range 60 dB Tuning Range 87.5 - 108.0 MHz Intermediate Frequency 10.7 MHz... -
Page 16: Limited Warranty
Return Authorization (RA). If the defect has occurred during the first 90 days of the Warranty Period, Zenith will send you a return-shipping label. After you obtain an RA for return, please box your unit with a legible copy of the sales receipt and enough packing material to ensure undamaged delivery of your product.
