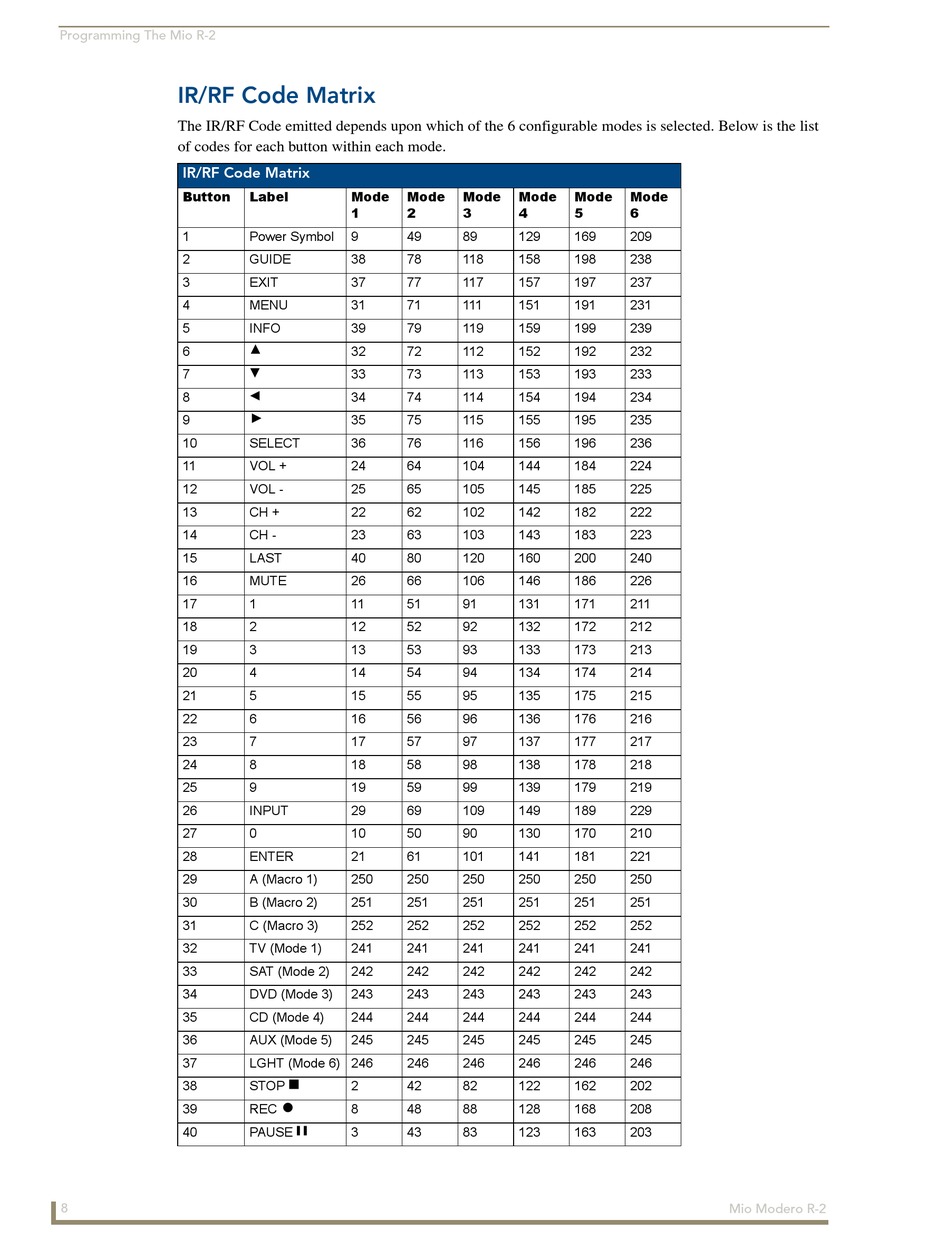

IR/RF Code Matrix

The IR/RF Code emitted depends upon which of the 6 configurable modes is selected. Below is the list
of codes for each button within each mode.
IR/RF Code Matrix
Button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
8
Label Mode Mode
1 2
Power Symbol 9 49
GUIDE 38 78
EXIT 37 77
MENU 31 71
INFO 39 79
L 32 72
M 33 73
K 34 74
A
35 75
SELECT 36 76
VOL + 24 64
VOL - 25 65
CH + 22 62
CH - 23 63
LAST 40 80
MUTE 26 66
1 11 51
2 12 52
3 13 53
4 14 54
5 15 55
6 16 56
7 17 57
8 18 58
9 19 59
INPUT 29 69
0 10 50
ENTER 21 61
A (Macro 1) 250 250
B (Macro 2) 251 251
C (Macro 3) 252 252
TV (Mode 1) 241 241
SAT (Mode 2) 242 242
DVD (Mode 3) 243 243
CD (Mode 4) 244 244
AUX (Mode 5) 245 245
LGHT (Mode 6) 246 246
STOP B 2 42
REC J 8 48
PAUSE C 3 43
Mode Mode Mode Mode
3 4 5 6
89 129 169 209
118 158 198 238
117 157 197 237
111 151 191 231
119 159 199 239
112 152 192 232
113 153 193 233
114 154 194 234
115 155 195 235
116 156 196 236
104 144 184 224
105 145 185 225
102 142 182 222
103 143 183 223
120 160 200 240
106 146 186 226
91 131 171 211
92 132 172 212
93 133 173 213
94 134 174 214
95 135 175 215
96 136 176 216
97 137 177 217
98 138 178 218
99 139 179 219
109 149 189 229
90 130 170 210
101 141 181 221
250 250 250 250
251 251 251 251
252 252 252 252
241 241 241 241
242 242 242 242
243 243 243 243
244 244 244 244
245 245 245 245
246 246 246 246
82 122 162 202
88 128 168 208
83 123 163 203
