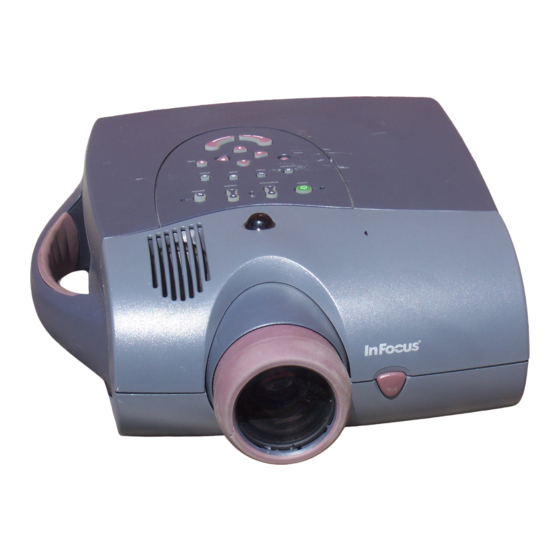

InFocus LP755 User Manual

Infocus projector user's guide lp755
Hide thumbs Also See for LP755:
Table of Contents

Advertisement

Quick Links

U S E R ' S
G U I D E

Advertisement

Table of Contents
loading

Related Manuals for InFocus LP755

Summary of Contents for InFocus LP755

  • Page 1 U S E R ’ S G U I D E...
  • Page 2 Copyright © 1999 by InFocus Wilsonville, Oregon. All rights reserved.
  • Page 3 FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA European Office: Olympia 1, NL-1213 NS Hilversum, The Netherlands We declare under our sole responsibility that the LP755 LCD projector conforms to the following directives and norms: Directive 89/336/EEC, Amended by 93/68/EEC...

  • Page 5: Table Of Contents

    If You Need Assistance Warranty Setting up the Projector Connecting the CableWizard™3 to the Projector Preparing to Connect Your Equipment to the Projector Connecting a Laptop Computer Connecting a Desktop Computer Connecting a Computer Using a VESA cable Connecting a Video Player...
  • Page 6 Maintenance & Troubleshooting Cleaning the Lens Cleaning the Fan Intake Filter Replacing the Projection Lamp Replacing the Batteries in the Remote Control Using the Security Lock Troubleshooting Solutions to Common Problems Appendix Specifications Accessories Portable and Laptop Activation Chart Using Video Mirroring with a PowerBook Computer Projected Image Size Index...

  • Page 7: Safety Instructions

    • damage your projector. Caution: Don’t place the projector on a hot surface or in direct • sunlight. Caution: Do not drop the projector. Transport the projector in • an InFocus-approved case; see page 52 for a list of cases.
  • Page 8 Laser radiation. Do not stare into laser beam. Warning: Customer Service If you need assistance, call InFocus Customer Service directly at . Support is free between 6 a.m. and 6 p.m. PST, 1-800-799-9911 Monday through Friday. Support is available in North America after hours and weekends for a fee at Or, send us an e-mail at techsupport@infocus.com...
  • Page 9 I N T R O D U C T I O N...

  • Page 10: Introduction

    If you are experienced in setting up presentation systems, use the LP755 Quick Start card that was included in the projector’s case. For complete details on connecting and operating the projector, refer to this User’s Guide. User’s Guides are also available for download from our web site at http://www.infocus.com...
  • Page 11 A registration card is included in the box. Register to receive product updates, announcements, and special offers from InFocus. Or, register online at www.infocus.com/service/register and you will be automatically entered to win free merchandise. IGURE Shipping box contents...

  • Page 12: Usage Guidelines

    Do not look directly into the projection lens when the projector • is turned on. The bright light may harm your eyes. Do not block the grills on the projector. Do not place the projec- • tor on cloth table coverings, as they may get sucked up to the vents.

  • Page 13: If You Need Assistance

    The first place to look for help is in this manual. Be sure to check the guidelines in “Troubleshooting” on page 42. If this manual doesn’t answer your question, call your InFocus dealer. You can also call InFocus Customer Service directly at .
  • Page 14 S E T T I N G U P T H E P R O J E C T O R...

  • Page 15: Setting Up The Projector

    If you are installing the projector on the ceiling, refer to the • LP755 Ceiling Mount Installation Guide that comes with the Ceiling Mount Kit for more information. To turn the image upside down, see “Ceiling Projection” on page 32. The Ceil- ing Mount Kit is sold separately;...

  • Page 16: Connecting The Cablewizard™3 To The Projector

    CAUTION: Turn off the computer, monitor and projector whenever you connect or disconnect cables. NOTE: The LP755 is optimized for use with newer CableWizards (2 and 3). If you have a CableWizard 1 from older models of InFocus projectors, we do not recommend using it as image quality is reduced.

  • Page 17: Preparing To Connect Your Equipment To The Projector

    Preparing to Connect Your Equipment to the Projector Now you’re ready to connect your equipment. Computers are either connected to the CableWizard or directly to the projector via the VESA connector. Video players and other equipment, such as external speakers, are connected directly to the projector.

  • Page 18: Connecting A Laptop Computer

    IGURE Connecting the CableWizard to a laptop computer Do you want to play your computer’s audio on the projector? 1 Plug either end of the CableWizard audio cable into the audio connector on your computer. 2 Plug the other end of the audio cable into the on the CableWizard.
  • Page 19 You must have the appropriate USB drivers installed on your computer to use the USB feature. Windows 98 ships with the appropriate drivers. Now you’re ready to power up the projector and your laptop. Skip to “Powering up the Projector and Adjusting the Image” on page 15.

  • Page 20: Connecting A Desktop Computer

    1 Plug your monitor’s cable into the CableWizard. Do you want to play your computer’s audio on the projector? 1 Unplug the audio cable, if present, from your computer. 2 Plug either end of the CableWizard audio cable into the audio connector on your computer.
  • Page 21 Do you want to control your computer’s mouse from the projector’s remote or keypad? If your computer has a PS/2 connector, use the PS/2 mouse cable 1 Unplug the mouse cable from your computer. 2 Plug the end of the CableWizard mouse cable into the mouse connector on your computer.

  • Page 22: Connecting A Computer Using A Vesa Cable

    3 Plug the other end of the VESA cable into the HD 15 connec- tor on the projector. Do you want to play your computer’s audio on the projector? 1 Unplug the audio cable, if present, from your computer. 2 Plug either end of the CableWizard audio cable into the audio connector on your computer.

  • Page 23: Connecting A Video Player

    If you’re using S-video, plug the other end of the cable into • the “S-video” connector on the projector (Figure 12). Connecting the projector to a video player using the standard A/V cable (with composite audio/video cable video connector) IGURE...
  • Page 24 A/V cable IGURE Connecting the projector to a video player using an S-video cable and the audio con- nectors on the standard A/V cable 4 Plug the A/V cable’s white connector into the left “audio out” port on your video player. Plug the cable’s red connector into the right “audio out”...

  • Page 25: Connecting An External Speaker

    Powering up the Projector and Adjusting the Image 1 Remove the lens cap. 2 Plug the power cord into the side of the projector, then plug it into your electrical outlet. A surge-protected power strip is recommended if power surges are common in your area.

  • Page 26: Turning Off The Projector

    Turning Off the Projector If you want to turn off the projector for a short period of time, press the button on the remote or keypad. The Standby standby LED on the keypad lights solid green. This blanks the screen for 15 minutes, but keeps the projector running.
  • Page 27 U S I N G T H E P R O J E C T O R...

  • Page 28: Using The Projector

    The range for optimum operation is about 25 feet. If you point the remote at the projection screen, the distance to the screen and back to the projector must be less than or equal to 25 feet. For best results, point the remote directly at the front or the rear of the projector.
  • Page 29 NOTE: To control the computer’s mouse from the projector’s remote or keypad, you must connect the mouse cable to the CableWizard. See page 7 for details. laser pointer disk mouse right mouse button left mouse button (on underside of remote)

  • Page 30: Adjusting The Projector

    The projector is equipped with a self-locking, quick-release eleva- tor foot and button (Figure 15) and a leveling knob (Figure 16). IGURE Focus ring, zoom ring, and elevator button...
  • Page 31 To raise the projector: 1 Press and hold the elevator button (Figure 15). 2 Raise the projector to the height you want (Figure 17), then release the button to lock the elevator foot into position. 3 If necessary, use the leveling knob (Figure 16) to adjust the angle of the projected image.

  • Page 32: Using The Keypad And Remote Buttons

    Using the Keypad and Remote Buttons This section provides an alphabetical reference to the keypad and remote buttons. power LED left mouse button lamp LED standby LED arrow buttons right mouse button IGURE Keypad IGURE Remote...
  • Page 33 Menu Press to open the on-screen menus. Press menu close the menus. When you close the menus, the projector saves any changes you made. For more information about the on- screen menus, see page 24. Mute (keypad only) Pressing the button silences the internal speaker.
  • Page 34 When you plug power the projector in, the fan runs on low speed and the Power LED lights after the projector has initialized. When the Power LED is lit, you can press the...

  • Page 35: Using The On-Screen Menus

    Using the On-Screen Menus The projector has six drop-down menus that allow you to make image adjustments and change a variety of settings. Most of these adjustments aren’t available directly from the keypad or remote. To open the on-screen menus, press the remote or keypad.

  • Page 36: Display Menu

    Display Menu Brightness Adjusting the brightness changes the intensity of the image. Press the left mouse button to darken the image. • Press the right mouse button to lighten the image. • Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture.
  • Page 37 Blank Screen Blank Screen determines what color is displayed when there is no active source and when the projector is in standby. Click either mouse button to toggle between the two options. Reset All Click either mouse button to reset all the options (except Lan- guage, Video Standard, Ceiling and Rear Projection, and Standby Time) in all the menus to their original settings.

  • Page 38: Audio Menu

    NOTE: Changing the volume from the menu is the same as changing it using the keypad or remote. NOTE: The Treble and Bass set- tings apply only to the projector’s internal speaker. External speakers typically have their own tone con- trols.
  • Page 39 Balance The balance setting controls the balance between the left and right external speakers. It appears gray and won’t highlight if you haven’t connected external speakers. Balance applies to all sources you have connected. Press the left mouse button to increase the amount of sound •...

  • Page 40: Image Menu

    It only affects computer images that are not 1024x768, the projector’s native resolution. When is on, the projector makes the best fit of the Auto Resize image to the screen. If you turn in the Image menu and clicking either mouse button to select “off”), the image may be either cropped or too small for the...
  • Page 41 It is not available for video sources. Manual Tracking The projector adjusts tracking automatically to match the video signal from your computer. However, if the display shows evenly spaced, fuzzy, vertical lines or if the projected image is too wide or too narrow for the screen, try turning on again.

  • Page 42: Controls Menu

    This option lets you select how long the lamp stays on and the blank screen is displayed when the projector enters standby mode before the projector turns off. Select among 1, 5, 10, and 15 minutes and 1 and 2 hours by clicking either mouse button and cycling through the options.
  • Page 43 LP755, then set the monitor resolution and refresh rate accordingly. You need to set the Plug and Play setting to Off for the LP755 to display prop- erly on some older computers. The Plug and Play setting does not affect video images.
  • Page 44 Display Startup Screen This setting toggles between On and Off. When this feature is On, the InFocus startup screen appears when the projector starts up and remains until an active source is detected. The startup screen contains information on contacting InFocus. Click either mouse button to turn this feature off and display a plain black or blue screen instead of the startup screen.

  • Page 45: Language Menu

    Language Menu IGURE Language menu You can display the on-screen menus in English, French, German, and Spanish. Move the cursor to the language you want, then click either • mouse button. The menus redraw immediately. Status Menu This is a read-only menu for informational purposes. To display the status window, select Show status from the menu, then click either mouse button.

  • Page 46: Help Menu

    When the counter reaches 3000 hours, the lamp monitor light on the projector’s keypad turns on. For optimum results, the lamp should be replaced at this time. See “Replacing the Projec- tion Lamp”...
  • Page 48 M A I N T E N A N C E A N D T R O U B L E S H O O T I N G...

  • Page 49: Maintenance & Troubleshooting

    Cleaning the Fan Intake Filter The fan intake filter on the bottom of the projector catches dust and particles in the air. If the filter becomes clogged, the projector does not cool properly and may malfunction. To prevent this, clean the filter after every 100 hours of use.
  • Page 50 & IGURE Removing the lamp and filter doors 3 Using a screwdriver or your hand, push the tab on the filter door forward and lift the door out. 4 Clean the filter. Use a vacuum cleaner set on low power to remove the dust •...

  • Page 51: Replacing The Projection Lamp

    For optimum results, the lamp should be replaced at this time. You can order new lamp modules from your InFocus dealer. See “Accessories” on page 51 for information. Follow these steps to replace the projection lamp: 1 Turn off the projector and unplug the power cord.
  • Page 52 9 Tighten the screws on the outside of the module. 10 Reposition the lamp door. 11 Tighten the lamp door screw. 12 Plug in the power cord and turn the projector back on. The lamp monitor light and lamp hour counter in the Status menu are automatically reset.

  • Page 53: Replacing The Batteries In The Remote Control

    5 Slide the battery cover back on the remote. Using the Security Lock The projector has a security connector for use with a PC Guardian Cable Lock System (Figure 31). Refer to the information that came with the lock for instructions on how to use it to secure the projector.

  • Page 54: Troubleshooting

    2 Verify that all power is switched on. 3 Verify that the projector is not in standby (the Standby LED on the keypad is lit when the projector is in standby). 4 If the projector still doesn’t display an image, restart the com- puter.

  • Page 55: Solutions To Common Problems

    AC electrical outlet. Make sure that the power cord is also properly connected to the projector and the green Power LED is lit. If the projector is plugged into a power strip, make sure the • power strip is turned on.
  • Page 56 22 or “Video” on page 23. You might need to turn everything off and power up the equip- • ment again. Make sure you power up in this order: projector, computer monitor, computer. It is especially important that you follow this sequence for Macintosh computers.
  • Page 57 Make sure the projection screen is at least 4 feet (1.2m) from the • projector. Make sure the projector is turned off, then check the projection • lens to see if it needs cleaning. Problem: Image and menus are reversed left to right Rear projection mode is probably turned on.
  • Page 58 See “Manual Sync” on page 29 and “Manual Tracking” on page 30. If you’re using an extension cable between the CableWizard • and the projector, make sure it’s InFocus-approved. The problem could be with your computer’s graphics board. If • possible, connect a different computer.
  • Page 59 Before calling your dealer or InFocus Technical Support for assis- tance, please have the following information available: the projector’s serial number (located on the bottom label) • the resolution of your computer. • Call InFocus Technical Support at between 6 a.m. and 6 p.m. PST, Monday through Friday. Support...
  • Page 61 A P P E N D I X...

  • Page 62: Appendix

    APPENDIX Specifications The LP755 must be operated and stored within the temperature and humidity ranges specified. Temperature Operating 50 F to 104 Non-operating -4 F to 158 Humidity Operating and non-oper. 5% to 95% relative humidity, non-condensing Dimensions 5.2 x 11.7 x 14.7 inches (13 x 29.5 x 36.7 cm)
  • Page 63 Video Audio Input Input Impedance 5K ohm DC coupled Maximum Input Voltage Sensitivity 100 mV at 1 KHz for 88 dB SPL at 1 meter Connector Type RCA jack CableWizard Audio Input Input Impedance 10K ohm nominal, AC coupled Maximum Input Voltage Sensitivity 100 mV at 1 KHz for 88 dB SPL at 1 meter Connector Type...

  • Page 64: Accessories

    Accessories Standard Accessories (ship with the projector) LP755 Quick Start card LP755 User’s Guide Carry Case Shipping Box CableWizard and Cables CableWizard Audio Cable (2 ft) CableWizard USB Cable (2 ft) CableWizard PS/2 Mouse Cable (1.5 ft) VESA Cable (HD 15 to HD15, 6 ft)
  • Page 65 Rhapsody II Speakers JBL Subwoofer 40” Portable Projection Screen 50” Portable Projection Screen 60” Portable Projection Screen Portable Projector Stand LP755 Tripod Mount Kit S-Video Cable LP755 Ceiling Mount-LiteMount 755 LiteMount False Ceiling Plate LiteMount Pipe Tubing Extension CableWizard Wall Plate...

  • Page 66: Portable And Laptop Activation Chart

    Portable and Laptop Activation Chart Many laptop computers do not automatically turn on their exter- nal video port when a secondary display device such as a projec- tor is connected. Activation commands for some laptop computers are listed in the following table. (If your computer is not listed or the given command does not work, refer to the com- puter’s documentation for the appropriate command.) On some laptops, the activation function key is labeled with an icon, for...
  • Page 67 Key command to Computer activate port Compaq* ** Ctrl-Alt-< FN-F4 automatic mode/? (for setup option) Compuadd* ** automatic Alt-F for screen setup option Data General Ctrl-Alt-Command Data General 2 CRT/X at DOS prompt Walkabout Datavue Ctrl-Shift-M Dell** Ctrl-Alt-< Ctrl-Alt-F10 FN-F8 (CRT/LCD) FN-D FN-F12 Digital*...
  • Page 68 Key command to Computer activate port IBM ThinkPad** reboot, enter setup menu FN-F7, select choice from setup menu FN-F1, select choice FN-F5, select choice PS/2 SC select choice (CRT, LCD, etc.) Kaypro boot up, monitor plugged Kris Tech FN-F8 Mac Portable no video port: not compatible Mac PowerBook 140, 145, 150,...
  • Page 69 Key command to Computer activate port Packard Bell** FN-F2 Ctrl-Alt-< Panasonic FN-F2 Samsung* setup screen option Sanyo setup screen option Sharp dip switch to CRT Sun SPARC- Ctrl-Shift-M Dataview Tandy** Ctrl-Alt-Insert setup screen option Texas Instru- setup screen option ments* Top-Link* ** setup screen option FN-F6...

  • Page 70: Using Video Mirroring With A Powerbook Computer

    If this happens, perform the following steps: 1 Turn off video mirroring. 2 Open the Monitors control panel. 3 Move the white menu bar to Monitor 2 to set the projector as the primary monitor. 4 Restart the PowerBook.

  • Page 71: Projected Image Size

    NOTE: You can access a Microsoft Excel Image Size Calculator at our web site at It is in http://www.infocus.com. the Technical Library under “Service and Support”. Projected Image Size Use the chart below and the tables on the next page to help you determine projected image sizes.
  • Page 72 Table 1: Image Size, Width and Height for Lens at Maximum Image Size Distance to Diagonal Screen (feet) (inches) Table 2: Image Size, Width and Height for Lens at Minimum Image Size Maximum Distance to Diagonal Screen (feet) (inches) Width Height (inches) (inches)
  • Page 73 I N D E X...

  • Page 74: Index

    22, 25 color 26 contrast 25 fade 28 tint 25 treble 27 volume 23, 27 adjusting the height of the projector 19 altitude limits 49 assistance. See Technical Support Audio menu 27 Audio menu options Balance 28 Bass 27...
  • Page 75 Help button 22 Horizontal refresh rate 35 IBM-compatible computers compatibility 1 connecting 8–11 icons on CableWizard 6 on the projector 3, 7, 21 image adjusting 15, 17 centering 17, 30 colors don’t match computer’s 46 focusing 19 fuzzy lines 17, 30...
  • Page 76 LEDs lamp 39 power 15 standby 23 lens cap 51 cleaning 37 leveling the projector 19 LP755 cases 52 ceiling mounted 5, 32 not working 42 project from behind the screen 32 setting up 5 specifications 49 turning off 16...
  • Page 77 25 treble, adjusting 27 troubleshooting 42 turning off projector 16 sound 22 turning on the projector 15 USB mouse 9 using the remote control 17 vertical lines displayed 30, 45 Vertical refresh rate 35 VESA cable 12, 51...
  • Page 78 (2) years from the date of such purchase. The standard limited warranty excludes the lamps in projectors after 90 days and the accessories after one year. InFocus does not warrant that the Product will meet the specific requirements of the first person or entity that purchases the Product for personal or business use.
  • Page 79 LIMITATION OF LIABILITY IT IS UNDERSTOOD AND AGREED THAT INFOCUS’ LIABILITY WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF THE AMOUNT OF THE PURCHASE PRICE PAID BY PURCHASER AND UNDER NO CIRCUMSTANCES SHALL INFOCUS BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS, LOST REVENUES OR LOST SAVINGS.
