Icom iF3002 Instruction Manual page 8

1
ACCESSORIES

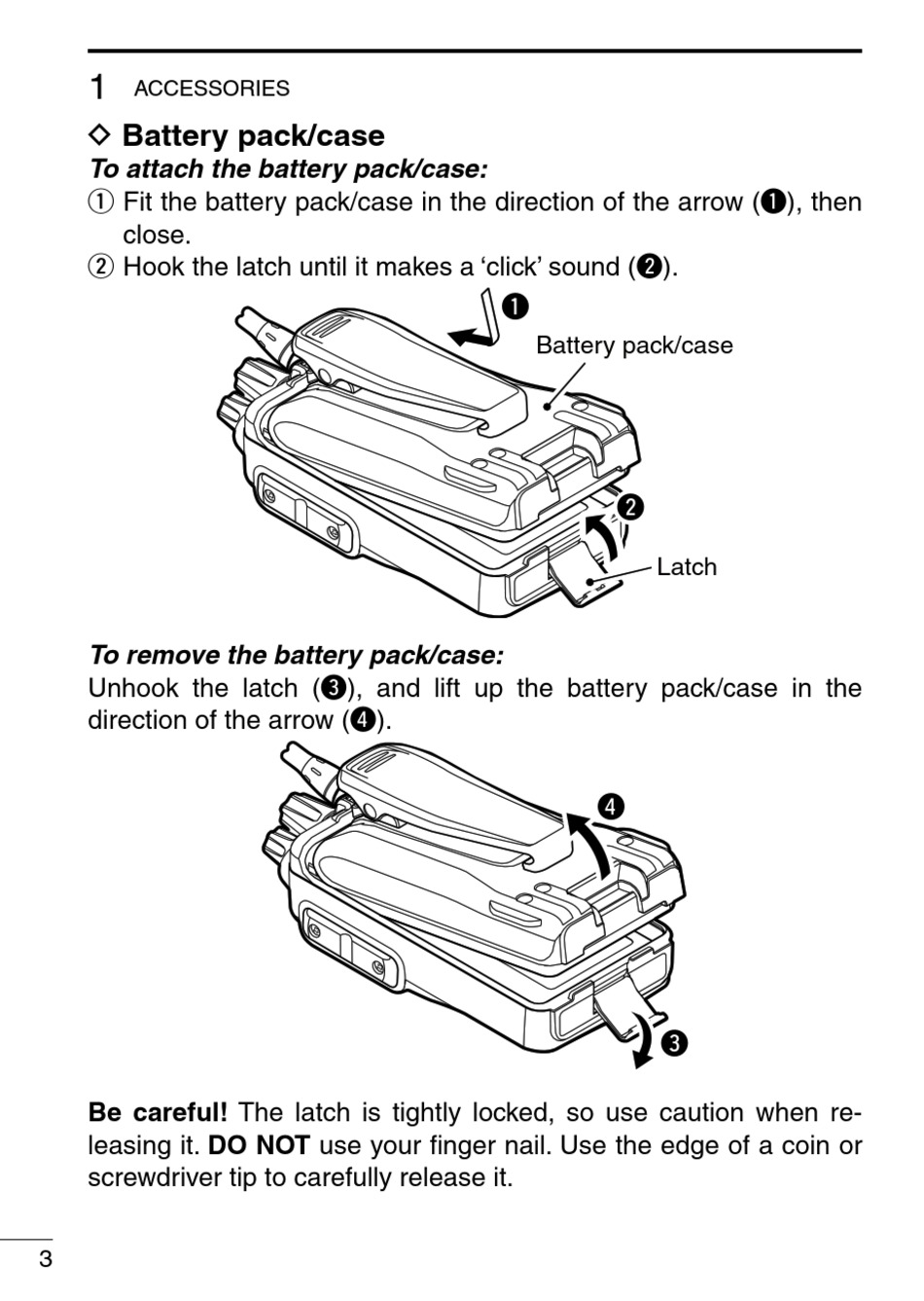

D Battery pack/case
To attach the battery pack/case:
q F it the battery pack/case in the direction of the arrow (q), then
close.
w Hook the latch until it makes a 'click' sound (w).
q
Battery pack/case
w
Latch
To remove the battery pack/case:
Unhook the latch (e), and lift up the battery pack/case in the
direction of the arrow (r).
r
e
Be careful! The latch is tightly locked, so use caution when re-
leasing it. DO NOT use your finger nail. Use the edge of a coin or
screwdriver tip to carefully release it.
3
