PANEL DESCRIPTION

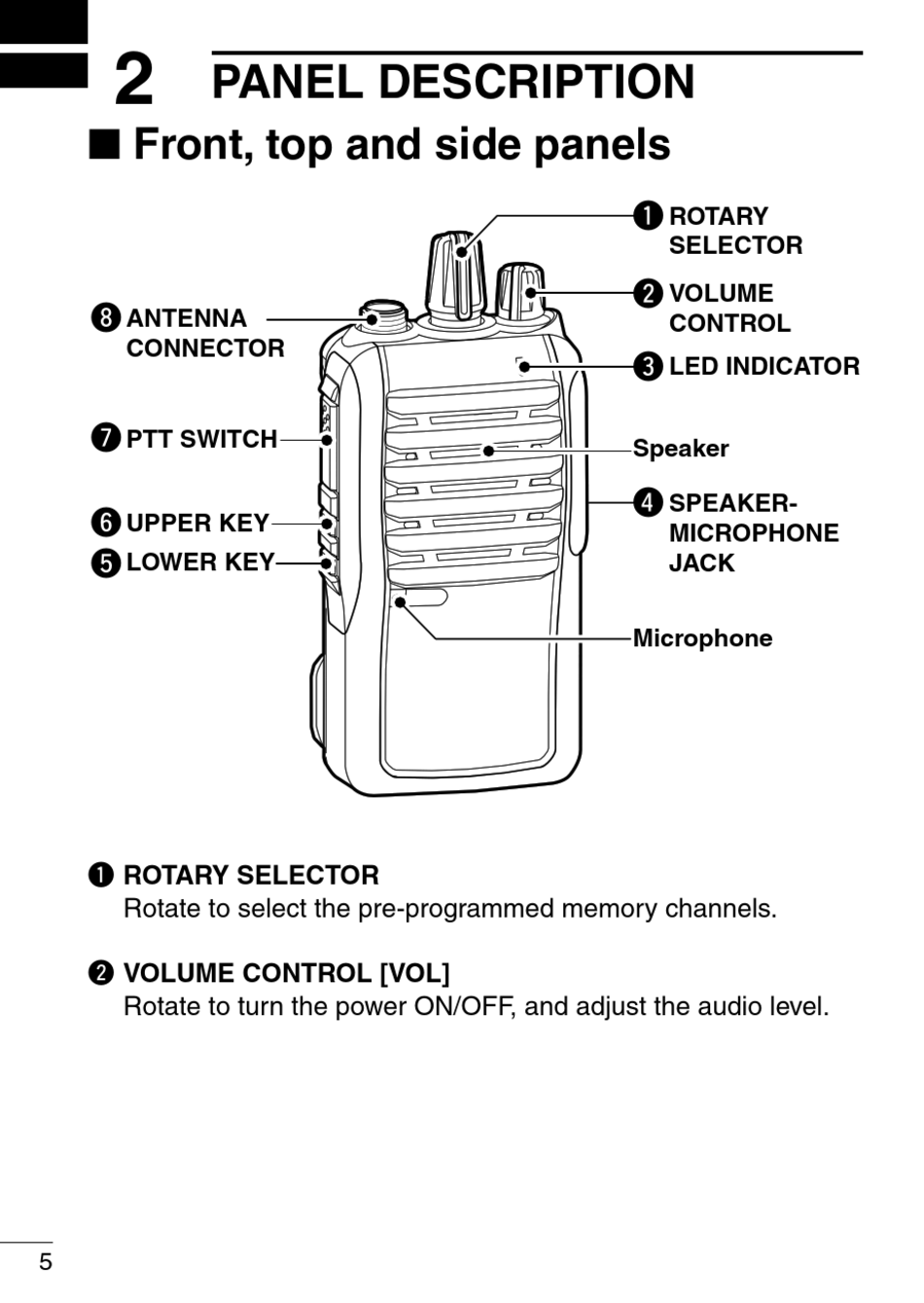

■ Front, top and side panels

i ANTENNA
CONNECTOR
u
PTT SWITCH
y UPPER KEY
LOWER KEY
t
q ROTARY SELECTOR
Rotate to select the pre-programmed memory channels.
w VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF, and adjust the audio level.
5
q ROTARY
SELECTOR
w VOLUME
CONTROL
e LED INDICATOR
Speaker
r SPEAKER-
MICROPHONE
JACK
Microphone
