Westward 4YD76B Operating Instructions And Parts Manual

Westward Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's
manual carefully before using product. Protect yourself and others by
observing all safety information, warnings, and cautions. Failure to
comply with instructions could result in personal injury and/or damage to
product or property. Please retain instructions for future reference.

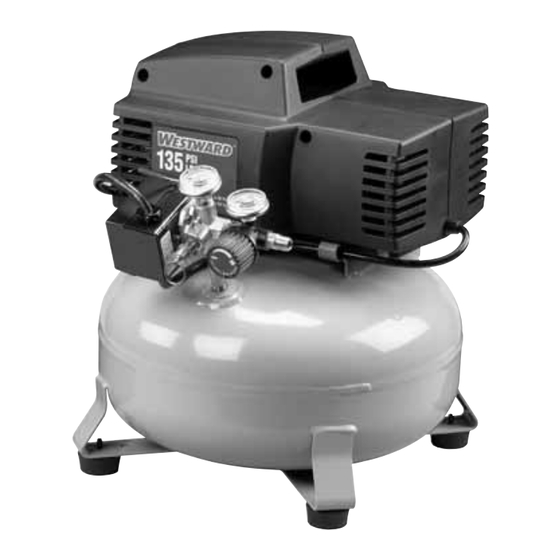

Portable Air Compressor
Description
Oil free air compressor for use in the home with a 50/50 duty cycle. The 4
gallon air compressor is designed for durability and low maintenance. Includes
check valve, pressure switch, safety valve, and gauges.
Unpacking
Grasp handle and lift the air
compressor out of the carton.
Remove all packaging from air
compressor and discard. Save
all literature.
After unpacking unit, inspect
carefully for any damage that
may have occurred during
transit. Check for loose,
missing, or damaged parts.
Shipping damage claim must
be filed with carrier.

Specifications

Max.
Pressure
Model
135
4YD76B
Dimensions
Length Width
17.56"
17.56"
DEV003
A02264
Printed in U.S.A.
7/04 r3
Tank Size Current
Required
(gallons)
4
10 AMP
Height
17.50"
Volts/Hertz/
Phase
120/60/1
Weight
34 lbs.
Model 4YD76B
SCFM@40
SCFM@90
PSIG
PSIG
3.7
2.6
