Page 1: High Pressure Washer

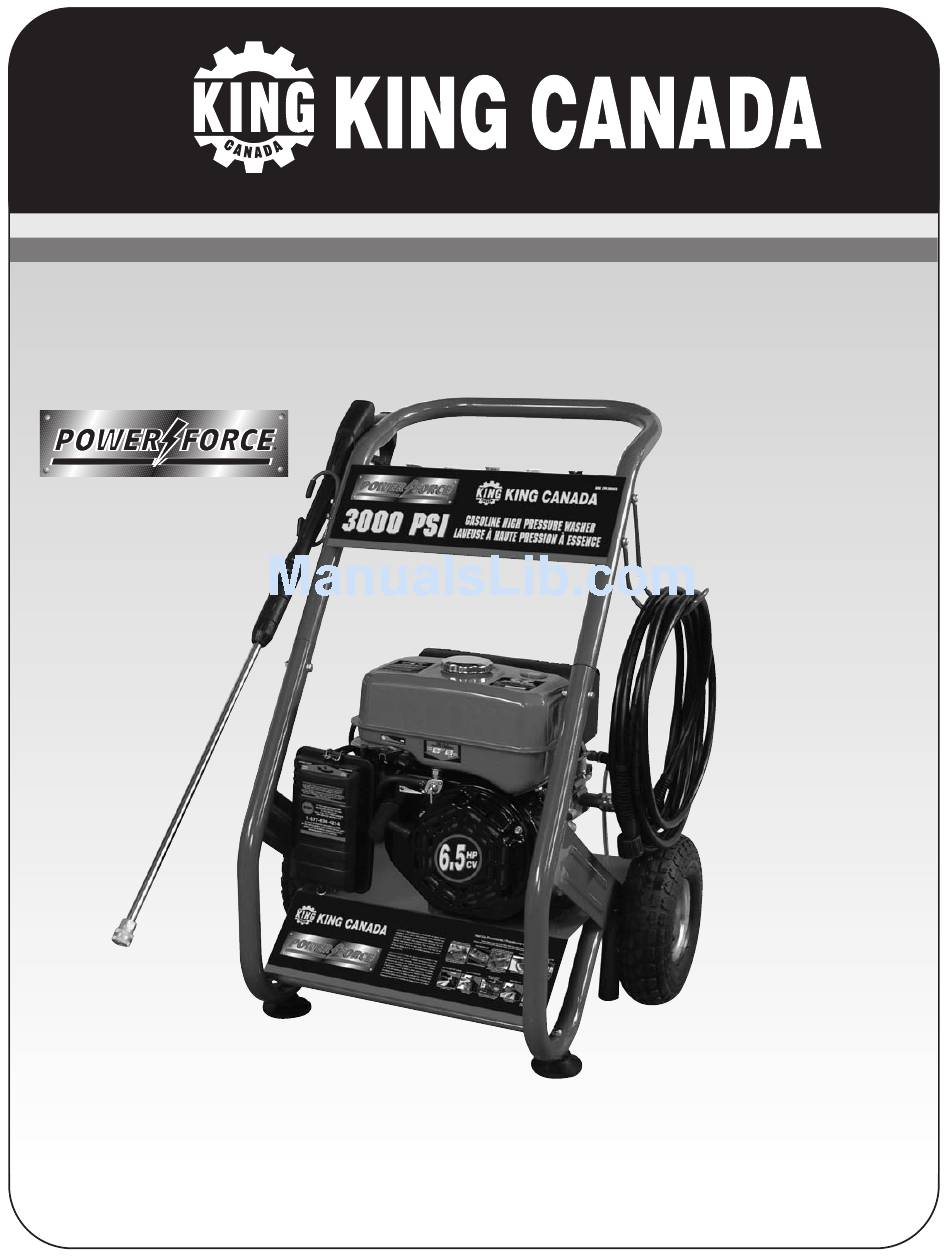

HIGH PRESSURE WASHER Read this manual. Do not attempt to operate this pressure washer until you have read and understood the safety, operation, and maintenance instructions MODEL: KPW-3000FM INSTRUCTION MANUAL COPYRIGHT © 2009 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC. -
Page 2: Warranty And Service Information
KING CANADA shall in no event be liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products. Shipping and handling charges may apply. If a defect is found, KING CANADA will either repair or replace the product. - Page 3 Care must be taken not to spray without pressing the wand trigger or damage to the pump may result. too close to the surface or damage could occur. King Canada is not Never let the machine run unless connected to the water supply and it responsible for damage caused during use.
-
Page 4: Getting To Know Your Pressure Washer
18. Garden hose inlet with quick connect coupling. 9. 30 ft. high pressure hose. 19. Oil gauge dipstick. 0.7 Litre engine oil capacity. 20. Engine On/Off switch. MODEL KPW-3000FM Maximum water pressure 3000 PSI Maximum water volume 2.7 GPM Maximum inlet pressure... -
Page 5: Assembly & Pre-Start Check
ASSEMBLY & PRE-START CHECK WARNING! Before turning on your pressure washer engine, you MUST check oil level, fuel level and air cleaner filter. ASSEMBLY Remove all the contents from the carton and proceed to the following assembly instructions; Top handle Install the top handle (A) to the frame (B) by sliding the top handle posts into the frame posts and secure them together using 2 pan head screws, 4 washers and 2 nylon hex. -
Page 6: Fuel Level
PRE-START CHECK & START-UP PROCEDURES PRE-START CHECK FUEL LEVEL WARNING! Make sure there is enough fuel in the fuel tank before operating. Check the fuel level indicator window (A) Fig.5, if the red float gauge is all the way up, it is not necessary to add fuel. -
Page 7: Operation
START-UP PROCEDURES & OPERATION START-UP PROCEDURES continued..Follow these instructions to safely start your high pressure washer. 5) Turn engine switch to the “On” position. Fig.8A. 6) Open fuel valve (“On” position). Fig.8B. 7) Close the Choke lever (A) by moving the lever towards the left. Also move the throttle lever (B) to its maximum setting (towards the left) Fig.8C. -
Page 8: Operation And Maintenance
OPERATION & MAINTENANCE DETERGENT INJECTOR (LOW PRESSURE) This high pressure washer is intended for use only with car wash or pressure washer detergents with mild soaps. Only use detergents that are compatible with the aluminum and brass parts of the pressure washer pump. Do not use powdered soaps, they may clog the injection system. -
Page 9: Maintenance And Storage
MAINTENANCE & STORAGE MAINTENANCE ENGINE MAINTENANCE Engine Oil Replacement Engine oil should be replaced after the first 20 hours of operation or after the first month of use, it should be replaced every 100 hours or 6 months after. To replace engine oil; Loosen the oil gauge dipstick (A) Fig.13. -
Page 10: Troubleshooting
High crankcase temperatures 2. Improper amount of oil in 2. Adjust oil level to proper amount crankcase PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
