Summary of Contents for King Canada KPW-3200

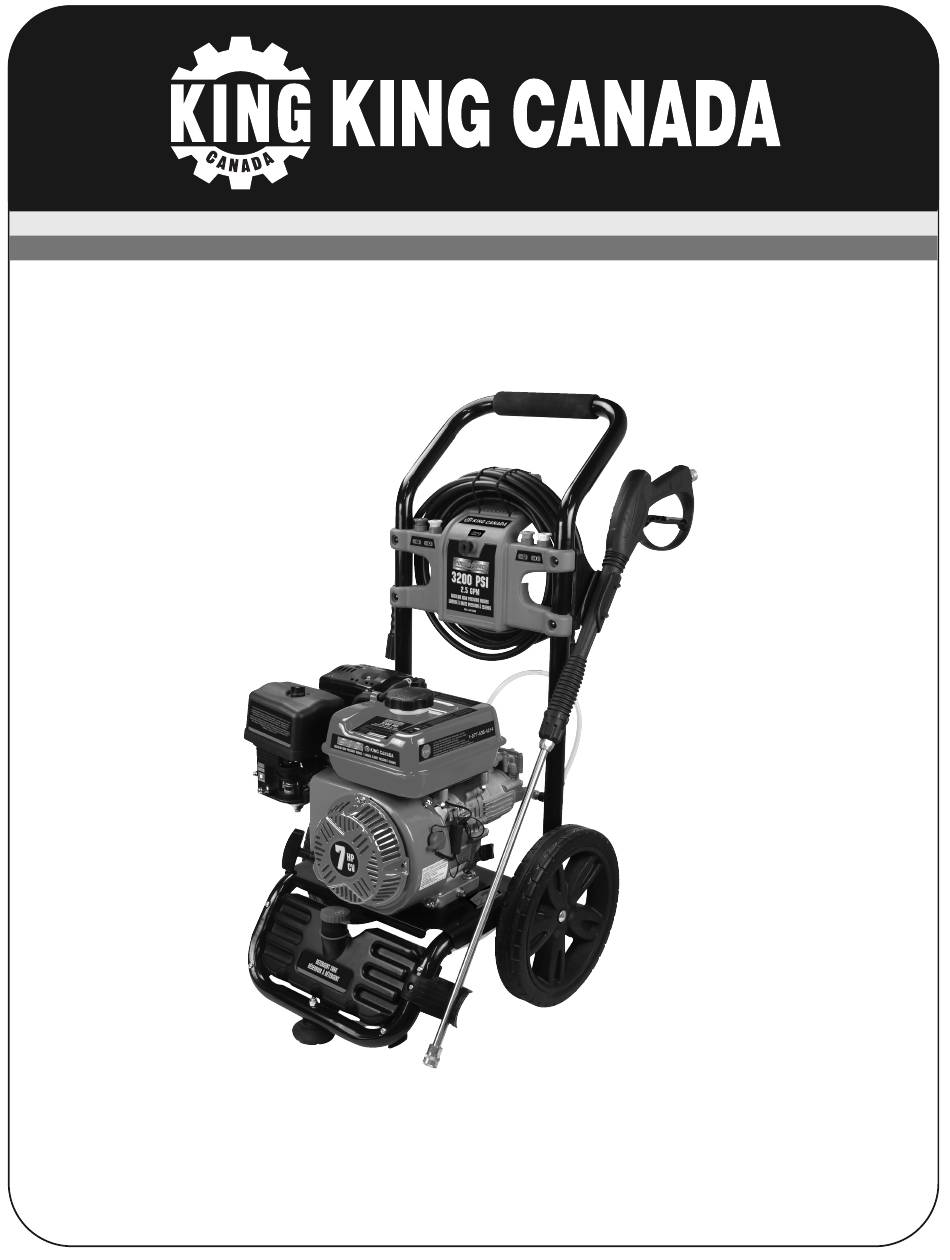

- Page 1 HIGH PRESSURE WASHER Read this manual. Do not attempt to operate this pressure washer until you have read and understood the safety, operation, and maintenance instructions MODEL: KPW-3200 INSTRUCTION MANUAL COPYRIGHT © 2024 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty And Service Information
LIMITED TOOL WARRANTY KING CANADA makes every effort to ensure that this product meets high quality and durability standards. KING CANADA warrants to the original retail consumer a 1-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials. -
Page 3: Safety Features
Care must be taken not to spray it is on. Never run caustic fluids or acid through this machine. too close to the surface or damage could occur. King Canada is not responsible for damage caused during use. - Page 4 21. Water outlet. Connect the high pressure hose to this outlet fitting. 12. Detergent tank. 22. Garden hose inlet. Connect your garden hose to this inlet fitting. 13. Detergent tank cap. MODEL KPW-3200 Maximum water pressure 3200 PSI Maximum water volume 2.5 GPM...
- Page 5 ASSEMBLY WARNING! Before turning on the pressure washer engine, you MUST check oil level, fuel level and air cleaner filter. ASSEMBLY Remove all the contents from the box and proceed to the following assembly instructions: Front foot Install front foot (A) Fig.1 to lower frame as shown. Insert foot bolt into frame from underneath and secure front foot using the nylon hex.
-
Page 6: Pre-Start Check
PRE-START CHECK PRE-START CHECK WARNING! To prevent permanent damage to engine, you MUST check oil level, fuel level and air cleaner filter before starting engine. OIL LEVEL WARNING! This pressure washer has been shipped from the factory without oil or very little oil in the crankcase. - Page 7 STARTING & STOPPING PROCEDURES STARTING PROCEDURES STARTING YOUR HIGH PRESSURE WASHER (FIG.9) WARNING! Do not adjust or attempt maintenance of engine without consulting an authorized service center. Never run engine indoors or in enclosed, poor ventilated areas, engine exhaust contains carbon monoxide, an odorless and deadly gas! 1) Check engine oil level, fill to recommended level if necessary.
-
Page 8: Operation And Maintenance
OPERATION & MAINTENANCE OPERATION SPRAYING WATER & NOZZLE USAGE This high pressure washer comes with a spray gun with stainless steel wand, its tip has a quick connect coupler (A) Fig.11 to fit different nozzles. The spray pattern is adjusted by installing the appropriate spray pattern nozzle to the quick connect coupler. -
Page 9: Maintenance
MAINTENANCE MAINTENANCE Engine Oil Replacement Engine oil should be replaced after the first 20 hours of operation or after the first month of use, it should be replaced every 50 hours or 6 months after. To replace engine oil; 1) Unscrew and pull out the oil gauge dipstick (A) Fig.15 and put it in a safe place. 2) Place an oil pan underneath drain hex. -
Page 10: Troubleshooting
TROUBLESHOOTING... -
Page 11: Parts Diagram & Parts Lists
To prevent FIRE, do not start the engine while the smell of fuel Order# Description hangs in the air. 73-32000900 High altitude parts kit PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
