Fujitsu ASBA09JGC Operatiing Manual

Fujitsu ASBA09JGC Operatiing Manual

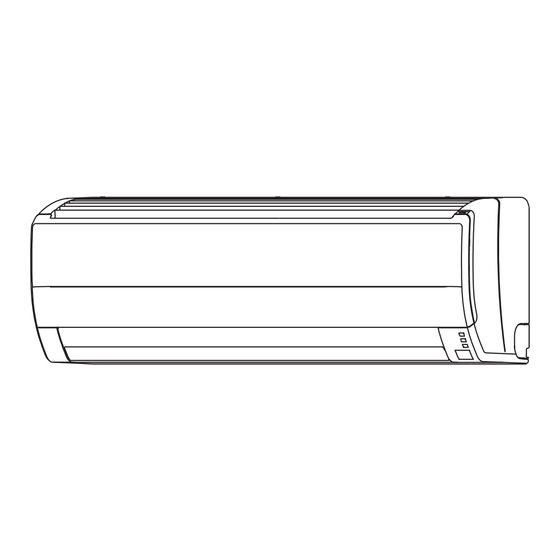

Cool model room air conditioner wall mounted type
Hide thumbs
Table of Contents

Advertisement

Quick Links

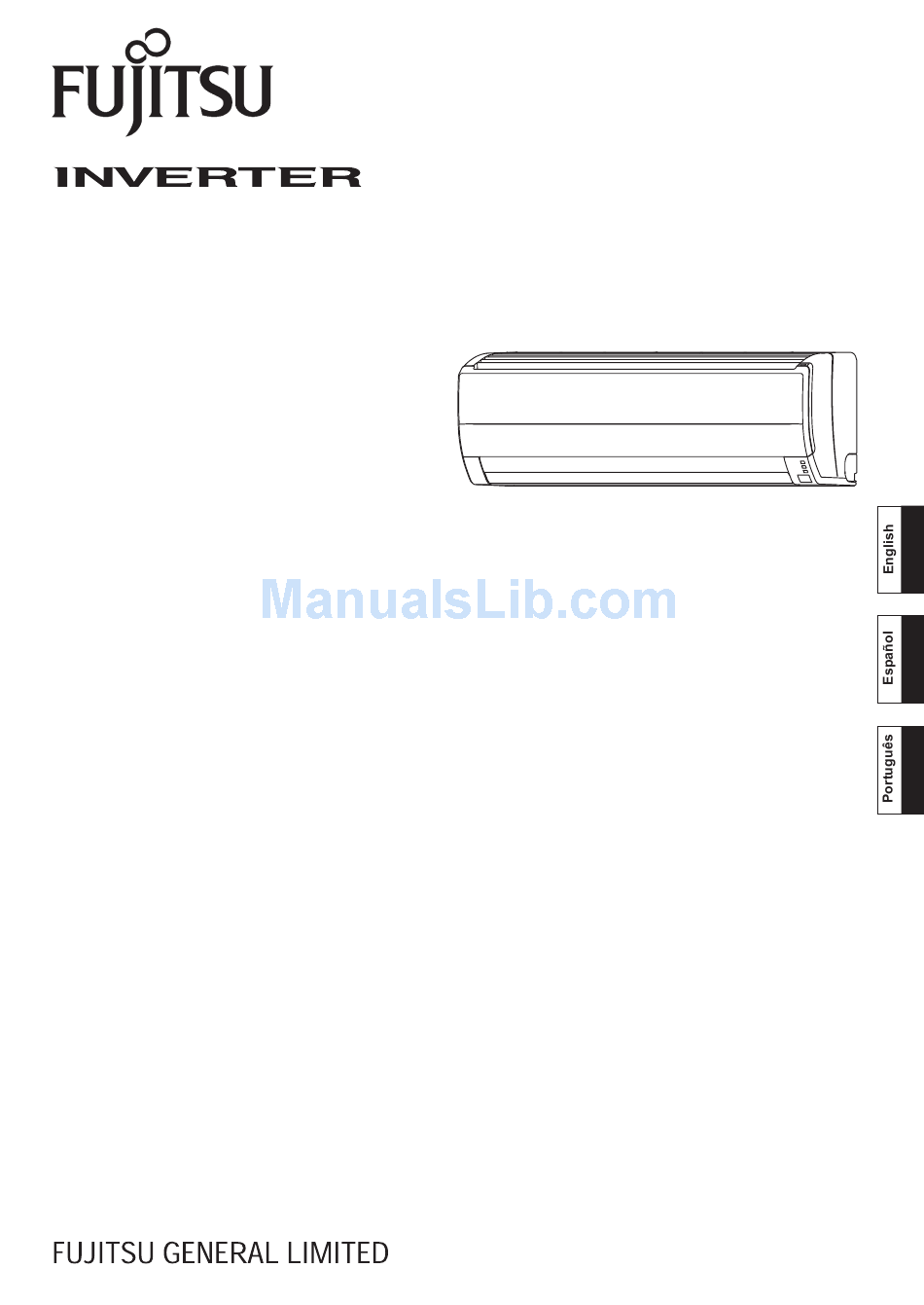

COOL MODEL
ROOM AIR CONDITIONER

WALL MOUNTED TYPE

Indoor Unit
ASBA09JGC
ASBA12JGC
Outdoor Unit
AOBR09JGC
AOBR12JGC
KEEP THIS OPERATION MANUAL
FOR FUTURE REFERENCE
GUARDE ESTE MANUAL DE USO PARA
FUTURAS CONSULTAS
GUARDE ESTE MMANUAL DE FUNCIONANENTO
PARA REFERÊNCIA FUTURA
OPERATIING MANUAL
MANUAL DE FUNCIONAMIENTO
MANUAL DE INSTRUÇÕES
P/N9317433037-03

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu ASBA09JGC

Summary of Contents for Fujitsu ASBA09JGC

  • Page 1: Wall Mounted Type

    OPERATIING MANUAL MANUAL DE FUNCIONAMIENTO MANUAL DE INSTRUÇÕES COOL MODEL ROOM AIR CONDITIONER WALL MOUNTED TYPE Indoor Unit ASBA09JGC ASBA12JGC Outdoor Unit AOBR09JGC AOBR12JGC KEEP THIS OPERATION MANUAL FOR FUTURE REFERENCE GUARDE ESTE MANUAL DE USO PARA FUTURAS CONSULTAS GUARDE ESTE MMANUAL DE FUNCIONANENTO PARA REFERÊNCIA FUTURA...
  • Page 2 Fig. 1 Fig.2 OPERATION TIMER SUPER QUIET Fig.3 Fig. 5 Fig.4 Fig. 6 Fig. 7 To facilitate explanation, the accompanying illustration has been drawn to show all possible indicators; in actral operation, however, the display will only show those indicators appropriate to the current operation.

  • Page 3: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ........En-1 MANUAL AUTO OPERATION .......En-8 FEATURES AND FUNCTIONS ......En-2 ADJUSTING THE DIRECTION OF NAME OF PARTS ..........En-3 AIR CIRCULATION ..........En-9 PREPARATION .............En-4 SWING OPERATION ..........En-10 OPERATION ............En-5 CLEANING AND CARE ........En-10 TIMER OPERATION ..........En-7 TROUBLESHOOTING ........En-13 SLEEP TIMER OPERATION .........En-8 OPERATING TIPS ..........En-14 SAFETY PRECAUTIONS ●...

  • Page 4: Features And Functions

    FEATURES AND FUNCTIONS INVERTER SWING OPERATION At the start of operation, a large power is used to bring the room The Air Flow Direction Louvers swings automatically up and down quickly to the desired temperature. Afterward, the air conditioner so that the air speeds to every nook and corner of your room. automatically switches to a low power setting for economic and comfortable operation.

  • Page 5: Name Of Parts

    NAME OF PARTS Fig. 1 Indoor Unit Fig. 6 Remote Control Unit 1 Operating Control Panel (Fig. 2) K Signal Transmitter 2 MANUAL AUTO button L MASTER CONTROL button ● M SLEEP button When kept on pressing the MANUAL AUTO button for more than 10 seconds, the forced N TIMER MODE button cooling operation will start.

  • Page 6: Preparation

    PREPARATION CAUTION! Turn on the Power ● Take care to prevent infants from acciden- tally swallowing batteries. Connect the Power Supply Plug (Fig. 1 D) to an electri- ● When not using the Remote Control Unit for cal outlet; in the case of a direct line connection, turn an extended period, remove the batteries to avoid possible leakage and damage to the on the circuit breaker.

  • Page 7: Operation

    OPERATION To Select Mode Operation Press the START/STOP button (Fig.6 P). The indoor unit’s OPERATION Indicator Lamp (green) (Fig. 3 5) will light. The air conditioner will start operating. Press the MASTER CONTROL button (Fig.6 L) to select the desired mode. Each time the button is pressed, the mode will change in the following order.
  • Page 8 To Stop Operation Press the START/STOP button (Fig. 6 P). The OPERATION Indicator Lamp (green) (Fig. 3 5) will go out. About AUTO CHANGEOVER Operation ● When AUTO CHANGEOVER operation fi rst selected, the fan will operate AUTO: at very low speed for about one minute, during which time the unit detects the room conditions and selects the proper operating mode.

  • Page 9: Timer Operation

    TIMER OPERATION Before using the timer function, be sure that the Remote Control Unit is set to the correct current time (☞ P. 4). To Use the ON timer or OFF timer Press the START/STOP button (Fig. 6 P) To Cancel the Timer (if the unit is already operating, proceed to step 2).

  • Page 10: Sleep Timer Operation

    SLEEP TIMER OPERATION Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped. To Use the SLEEP Timer To Cancel the Timer: While the air conditioner is operating or stopped, press the Use the TIMER MODE button to select “CAN- SLEEP button (Fig.

  • Page 11: Adjusting The Direction Of Air Circulation

    ADJUSTING THE DIRECTION OF AIR CIRCULATION Vertical (up-down) direction of airfl ow is adjusted by pressing the Remote Control Unit’s SET button. Horizontal (right-left) airfl ow direc- tion is adjusted manually, by moving the Air Flow Direction Louvers. Whenever making horizontal airfl ow adjustments, start air conditioner operation and be sure that the vertical air direction louvers are stopped.

  • Page 12: Swing Operation

    SWING OPERATION Begin air conditioner operation before performing this procedure. To select SWING Operation Press the SWING button (Fig. 6 S). The SWING Display (Fig. 7 ]) will light. In this mode, the Air Flow Direction Louvers will swing automatically to direct the air fl ow both up and down.

  • Page 13: Cleaning The Intake Grille

    CLEANING AND CARE Cleaning the Intake Grille Cleaning the Air Filter 1. Remove the Intake Grille. 1. Open the Intake Grille, and remove the air 1 Place your fi ngers at both lower ends of the grille panel, fi lter. and lift forward;...

  • Page 14: Air Cleaning Filter Installation

    CLEANING AND CARE Air Cleaning Filter Installation 2. Remove the air cleaning fi lters attached to the frames of the front panel. 1. Open the Intake Grille and remove the Air Air cleaning fi lter frame fi lters. 2. Attach the air cleaning fi lter to the frame of the front panel.

  • Page 15: Troubleshooting

    TROUBLESHOOTING In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical WARNING! breaker or disconnect the power supply plug, and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source. Always be sure to turn off the electrical breaker or disconnect the power supply plug to ensure that power is completely off.

  • Page 16: Operating Tips

    OPERATING TIPS AUTO Restart In Event of Power Interruption ● If a power interruption occurs during TIMER operation, the timer ● The power supply to the air conditioner is stopped by a power will be reset and the indoor unit will begin (or stop) operation at interruption.
