NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
PT 70
Retain this
manual for
reference
09-23-03

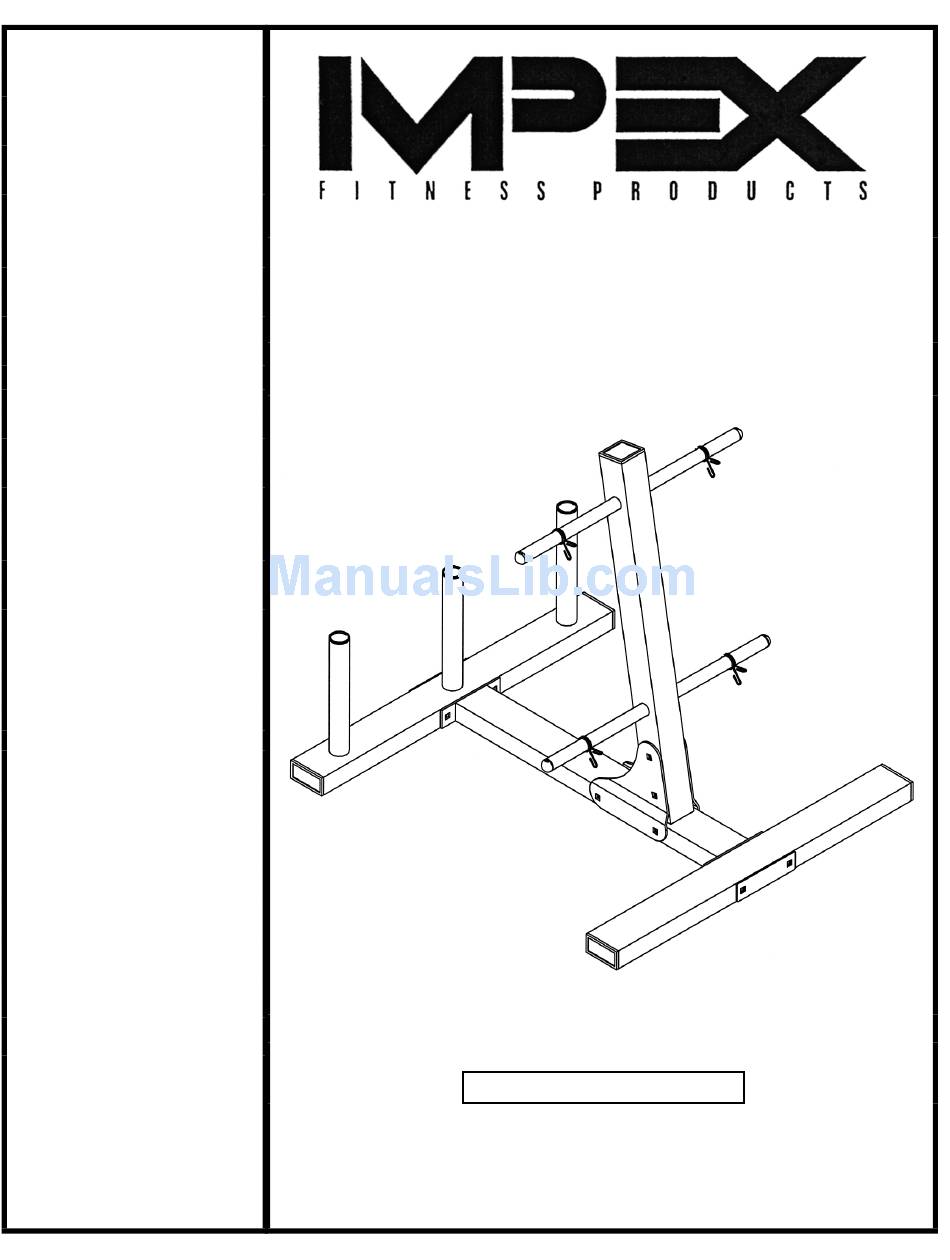

OWNER'S
MANUAL
PLATE STORAGE RACK
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MARCY
PT 70

Advertisement

Table of Contents
loading

Summary of Contents for Impex MARCY PT 70

  • Page 1 Please read all instructions carefully before using this product Table of Contents Safety Notice Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model PT 70 Retain this manual for reference 09-23-03 OWNER'S MANUAL MARCY PLATE STORAGE RACK PT 70 IMPEX FITNESS PRODUCTS 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746...
  • Page 2: Table Of Contents

    WARRANTY...…. ORDERING PARTS...… BEFORE YOU BEGIN Thank you for selecting the MARCY PT-70 by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the device. As a manufacturer, we are committed to providing you with complete customer satisfaction.
  • Page 3: Important Safety Notice

    OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS.
  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Tools required for assembling the machine: adjustable wrench NOTE: It is strongly recommended this device be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Attach the Main Base (#2) to the Front Base (#1). Secure it with two M10 x 4” Carriage Bolts (#15), one Base Bracket (#8), two Ø...
  • Page 6 STEP 2 (See Diagram 2) A.) Attach the Right & Left Bracket (#6 & 7) to the Main Base (#2). Align the holes and secure them with two M10 x 4” Carriage Bolts (#15), two Ø ¾” Washers (#14), and two M10 Aircraft Nuts (#13). B.) Attach the Vertical Frame (#3) in between the two Brackets.
  • Page 8: Parts List

    PARTS LIST KEY NO. DESCRIPTION Front Base Main Base Vertical Frame Rear Base M10 x 3 1/8” Carriage Bolt Right Bracket Left Bracket Base Bracket Base End Cap Ø 1” Cone-shaped End Cap Vertical Frame End Cap Sleeve M10 Aircraft Nut Ø...
  • Page 9: Impex Inc

    No other warranty beyond that specifically set forth above is authorized by IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature.
