Summary of Contents for Teac HTIB500

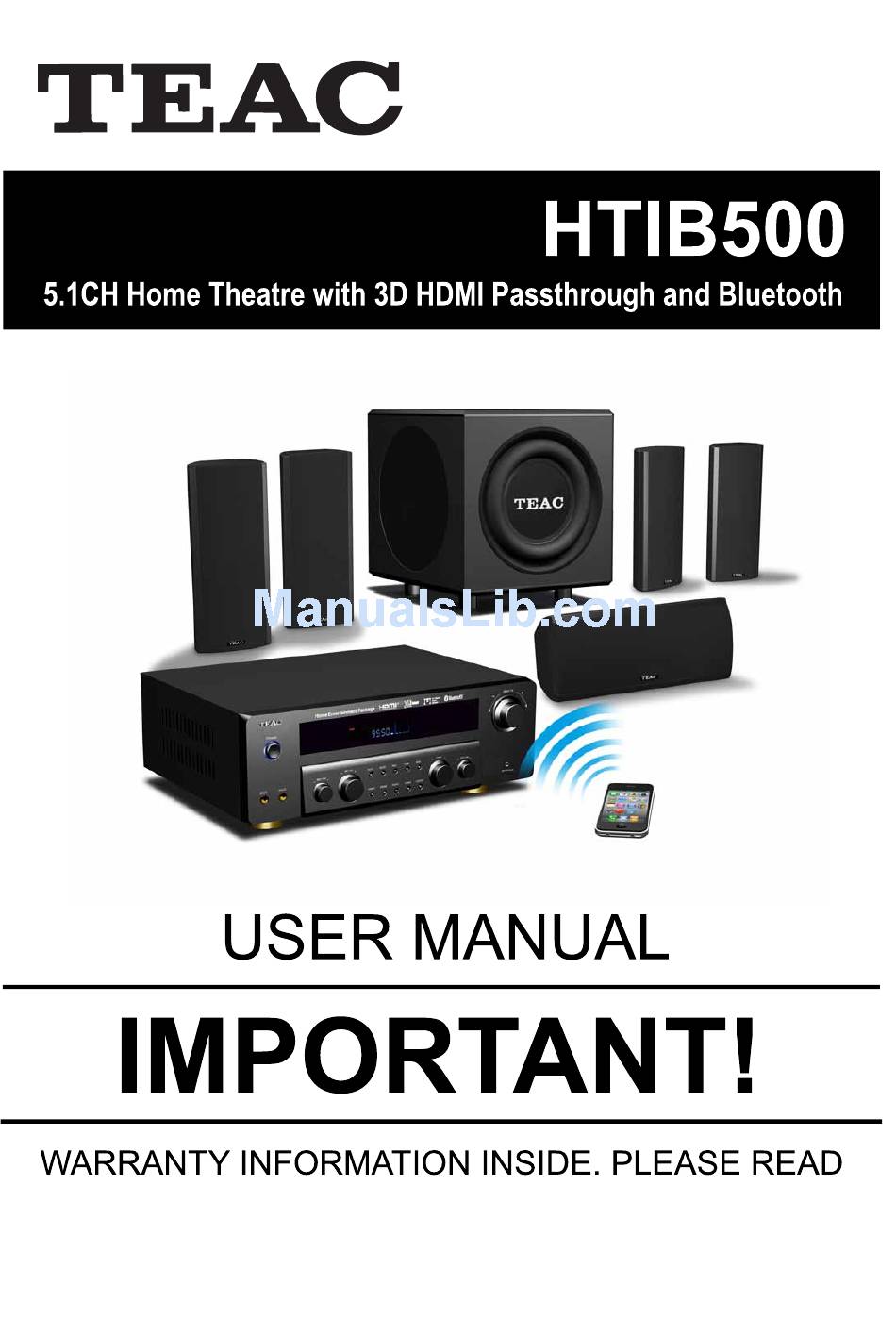

- Page 1 O WNE R S MANU AL Plea se R ea d The Manua l F irs t Before O peration www.tea c.com.au Trademark of T E AC C orporation J APAN...
- Page 2 Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty Service. If you require Warranty Service, please contact the TEAC Customer Support Hotline at 1300 553 315 for assistance. Please ensure that you have the model number, serial number and purchase receipt ready when you call.
- Page 3 Authorised Service Centre for repair. In this event, proof of purchase is required to support a warranty claim. After the repair, the product will be available for collection by or return to the purchaser at a fee upon request. TEAC in- home service can be made available at a fee upon request.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Safety Information Safety Precautions Some Do’s and Don’ts On The Safe Use Of Equipment Introduction Features Accessory List Panel and Remote Operation Front and Back Panel Remote Control Input Modes Switching Input Modes Reference Troubleshooting Specifications... -
Page 5: Safety Information
SAFETY INFORMATION Safety Precautions To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product, this will assure you years of trouble free performance and listening pleasure. Important Notes This safety and operating instruction should be retained for future reference. -
Page 6: Some Do's And Don'ts On The Safe Use Of Equipment
SAFETY INFORMATION Some Do’s and Don’ts on the Safe Use of Equipment This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. -
Page 7: Introduction
Full function remote control VFD Display Power Output: Max 300W Output: 6 Channel Speaker Output for L, R, Center, SL, SR, Subwoofer Accessory List CUSTOMER SUPPORT HOTLINE: 1300553315 www.teac.com.au teacservicesupport@awa.com.au Remote Control User Manual Contact Card AAA Battery x2 Speaker Cable x6... -
Page 8: Panel And Remote Operation
PANEL AND REMOTE OPERATION Front and Back Panel POWER: Turn the unit on or back to Standby VFD Display: Displays information about current mode, playback etc. Master Volume: Adjust master volume MIC1: Microphone jack (1) MIC2: Microphone jack (2) MIC1 Vol: Adjust MIC1 volume independently MIC Vol: Adjust master microphone volume AUX 1/2/3: Switch to AUX 1-3 HDMI 1/2/3/4: Switch to HDMI 1-4... - Page 9 PANEL AND REMOTE OPERATION F r ont Panel Display W indow Name F unction 1.STE R EO DV D/CD/PHONO/TUN E R /MP3/ L ight up when DVD ,CD ,PHONO FM/AM , Mp3/ iPhone INPUT iPhone input. 2.A C-3 PROL OGIC HDMI INPUT Li ght up when 5.1 channel or HDMI1/2/3/4...
-
Page 10: Remote Control
PANEL AND REMOTE OPERATION Remote Control POWER: Turn unit on or back to Standby. HDMI/TV SOUND: Toggle audio output between HDMI and TV. HDMI 1/2/3/4: Switch to HDMI input 1-4. AUX 1/2/3: Switch to AUX input 1-3. MP3/iPhone: Switch to MP3/iPhone (3.5mm aux in jack) input. - Page 11 PANEL AND REMOTE OPERATION Battery Installation CAUTION To prevent damage to the remote control, make sure to install batteries correctly. Do not mix old and new batteries. Dispose of batteries safely and appropriately. Contact your local authorities or dealer for advice on battery disposal. Keep batteries out of reach of children.
-
Page 12: Input Modes
INPUT MODES There are many input options available with this unit, enabling multiple connections set up at the same time and easy switching with the touch of a button. Ensure that all cable connections are fuly set up before turning the system on. Press the corresponding input source button on the remote control or main unit front panel to switch to the desired mode. - Page 13 INPUT MODES Make sure that the media play/ TV is turned on. Switch to AUX1 by pressing AUX1 on the remote control or main unit. Start playback on the connected media player/TV. Adjust the master and/or surround speaker volumes as desired. MP3/iPhone Use a 3.5mm auxiliary cable to connect an audio player to the unit and send audio signals to the home theatre speakers.
- Page 14 INPUT MODES Make sure that the iPhone is turned on and has music ready to play on the iPod app. On the iPhone, turn Bluetooth on and start scanning for available Bluetooth devices. Switch to Bluetooth input by pressing BT on the remote control. Press the Pairing button on the remote control.
-
Page 15: Reference
REFERENCE Troubleshooting: Problem Possible Reasons Solutions The plug is not connected properly Check power supply and plug The socket has no power Check socket and power supply power/display does not turn The POWER button was not pressed Press the POWER button The fuse is broken Replace the fuse If irregular current is output to the... -
Page 16: Specifications
Move closer and face the front of Operation is out of range the unit where the sensor is Batteries are weak or flat Replace with new batteries Error Contact TEAC’s customer The unit may be malfunctioning message support hotline Specifications GENERAL...
