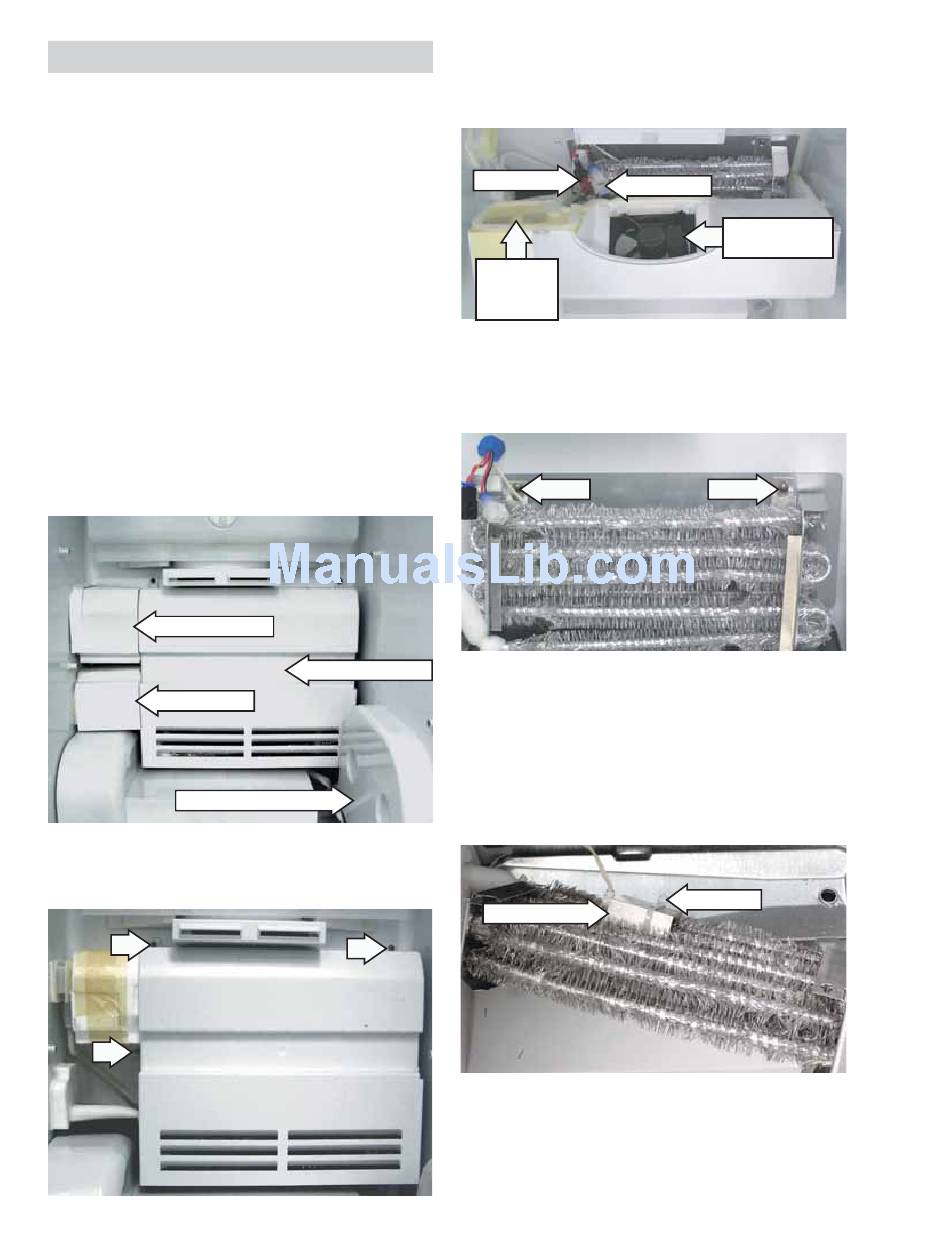

Fresh Food Evaporator

The following components must be removed in
the appropriate order to access the fresh food
evaporator:
1. Remove the CustomCool™ drawer, and
necessary drawers and covers above the
CustomCool drawer, to expose the evaporator
cover.
Note: The water line coil cover is slotted. To remove
it, slide the water line coil cover toward the door
opening.
2. Remove the water line coil cover and lay
the water line assembly down on top of the
CustomCool housing for better access to the
fresh food evaporator fan cover.
3. Pull out and remove the top insulation cover and
the bottom tubing cover and styrofoam block
inside.
Insulation Cover
Tubing Cover
Water Line Coil Cover
4. Remove the 3 Philips-head screws that hold the
fresh food evaporator fan cover in place.
5. Carefully pull the cover forward, then disconnect
the fresh food evaporator fan and beverage
center blower.
Disconnect
Beverage
6. Loosen the 2 Phillips-head screws that hold the
fresh food evaporator in place.
Evaporator Cover
7. Carefully lift and pull the fresh food evaporator
forward. Cut the tie strap that holds the
thermistor thermal block in place.
8. Remove the evaporator thermistor and block
from the evaporator.
Thermal Block
– 28 –
Disconnect
Center
Blower
Screw
Fresh Food
Evaporator Fan
Screw
Tie Strap
