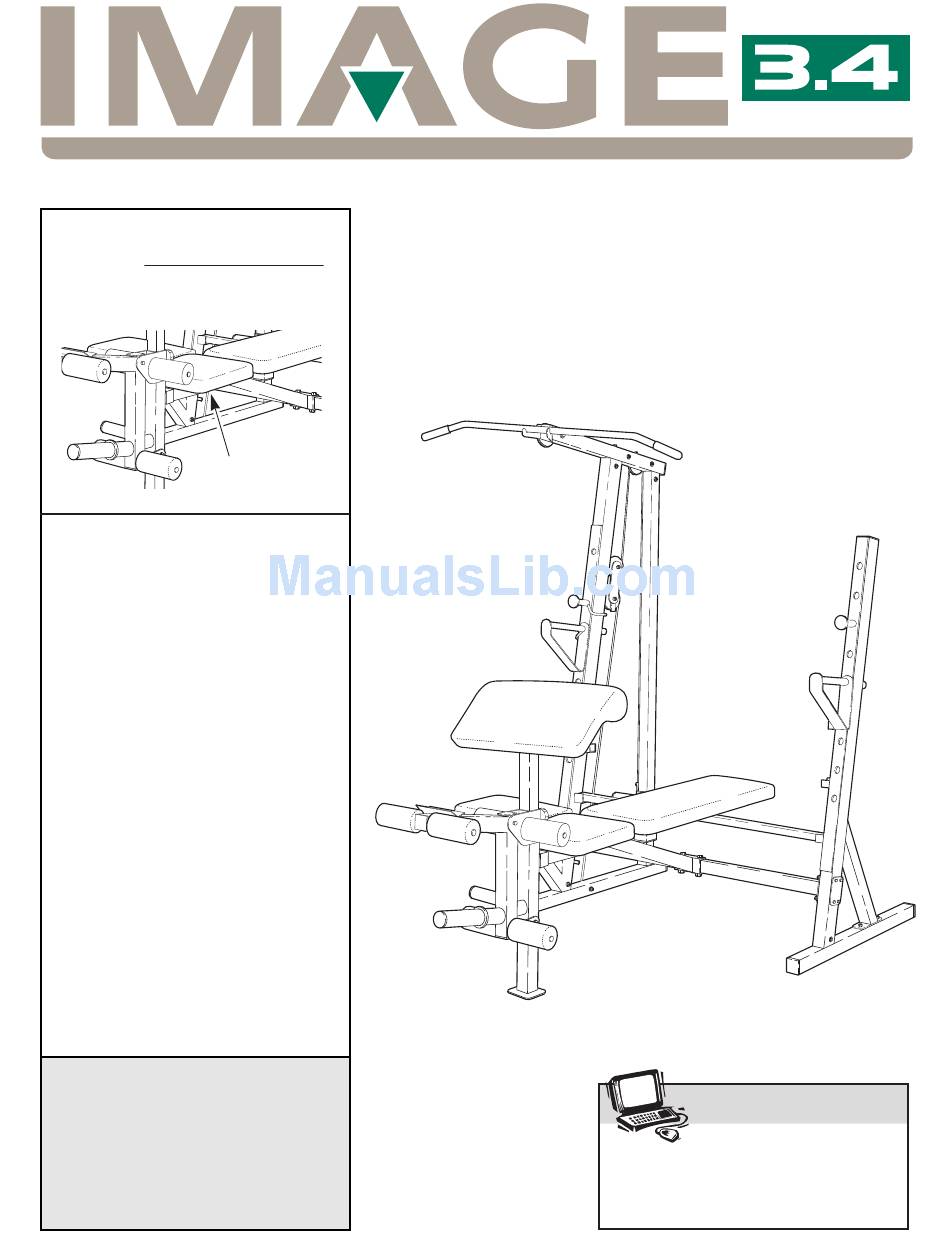

Model No. IMBE40890
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal (under seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or find that there
are missing or damaged parts,
we will guarantee you complete
satisfaction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
¨
USERÕS MANUAL
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!
Patent Pending
Advertisement
Related Manuals for Image IMBE40890
Summary of Contents for Image IMBE40890
- Page 1 Model No. IMBE40890 Serial No. Write the serial number in the space above for reference. Serial Number Decal (under seat) QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or find that there...
-
Page 2: Table Of Contents
Table of Contents Warning Decal Placement ..............2 Important Precautions . -
Page 3: Important Precautions
Important Precautions WARNING: To reduce the risk of serious injury, read the following important precautions before using the weight bench. 1. Read all instructions in this manual before using the weight bench. Use the weight bench only as described in this manual. 2. -
Page 4: Before You Begin
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is IMBE40890. The serial number can be found on a decal attached to the IMAGE ¨... -
Page 5: Part Identification Chart
Part Identification ChartÑModel No. IMBE40890 R0999A M10 x 19mm Bolt (57)Ð1 M6 Washer (30)Ð4 M8 Washer (23)Ð2 M10 Washer (6)Ð15 M10 x 48mm Bolt (55)Ð2 M8 Nylon Locknut (13)Ð2 M10 Nylon Locknut (11)Ð29 M10 x 62mm Carriage Bolt (59)Ð2 M8 x 64mm Bolt (43)Ð1 M10 x 65mm Bolt (67)Ð5... -
Page 6: Assembly
Assembly Before beginning assembly, carefully read the following information and instructions: Make Things Easier for Yourself! Everything in this manual is designed to ensure that our products can be assembled successfully by anyone. However, it is important to recognize that this is a sophisticated product with many small parts and, consequently, assembly will take time. - Page 7 2. Press a 2Ó Square Outer Cap (58) onto each end of the Left Stabilizer (25). Press a 51mm x 76mm Inner Cap (24) into the top of the Left Upright (1). Insert two M10 x 62mm Carriage Bolts (59) into the holes in the Left Stabilizer (25) from below.
- Page 8 4. Snap a Carriage Bushing (56) into the Weight Stop (53). Slide both parts onto the Rear Upright (9), mak- ing sure that the Carriage Bushing (56) is on top. Attach the parts to the indicated hole in the Rear Upright with an M8 x 68mm Bolt (60) and an M8 Nylon Locknut (13).
- Page 9 7. The Upper Cable (45) was attached to the Weight Carriage in step 5. Wrap the Upper Cable around a Pulley (35) in the direction shown. Attach the Pulley (35) and a Cable Trap (61) to the indicated hole in the Top Frame (7) with an M10 x 108mm Bolt (34), a 15.8mm Spacer (31), an M10 Washer (6) and an M10 Nylon Locknut (11).
- Page 10 11. Locate the Lower Cable (39) and note that it has a ball/loop on one end and a loop only on the other. See drawing 11a. Route the end of the Lower Cable with the loop through the cable guide on the outside of the Right Upright (2).
- Page 11 13. Insert two M10 x 68mm Bolts (33) into the 2-hole Support Plate (70), the Front Leg (19), and the brack- et on the Bench Frame (5) as shown. Tighten an M10 Nylon Locknut (11) onto each Bolt. 14. Align the bracket on the Bench Frame (5) with the holes in the center of the Crossbar (20).
- Page 12 17. Press a 3/4Ó Round Inner Cap (54) into each end of the three Pad Tubes (38). Press a Foam Pad (10) onto one end of a Pad Tube (38). Insert the Pad Tube into one set of holes in the bracket on the Front Leg (19).
-
Page 13: Adjusting The Weight Bench
21. Press 25.4mm Round Inner Caps (37) into the Weight Rests (21, 66) and the Safety Spotters (63, 69). Insert the Weight Rests (21, 66) into the Uprights (1, 2). Make sure that the Weight Rests are at the same height and that the locking clips are hooked around the Uprights. - Page 14 USING THE WEIGHT RESTS AND SAFETY SPOTTERS Before beginning an exercise, insert the Weight Rests (21, 66) and the Safety Spotters (63, 69) into the holes in the Uprights (1, 2) that are best suited for the exer- cise. The selected holes should be at the lowest point to which you want your barbell to go during the exercise.
- Page 15 ATTACHING WEIGHTS TO THE WEIGHT CARRIAGE To use the upper or lower pulley stations, slide the desired amount of weight (not included) onto the weight tube of the Weight Carriage (47). Secure the weights with Weight Clips (50). WARNING: Do not place more than 150 pounds on the Weight Carriage.
- Page 16 Part ListÐModel No. IMBE40890 Key No. Qty. Description Left Upright Right Upright M6 x 16mm Screw M6 x 38mm Screw Bench Frame M10 Washer Top Frame M10 x 75mm Bolt Rear Upright Foam Pad M10 Nylon Locknut 48mm Round Inner Cap...
- Page 17 Exploded DrawingÐModel No. IMBE40890 R0999A...
-
Page 18: Ordering Replacement Parts
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813 IMAGE is a registered trademark of ICON Health & Fitness, Inc. Part No. 157727 R0999A ¨...
