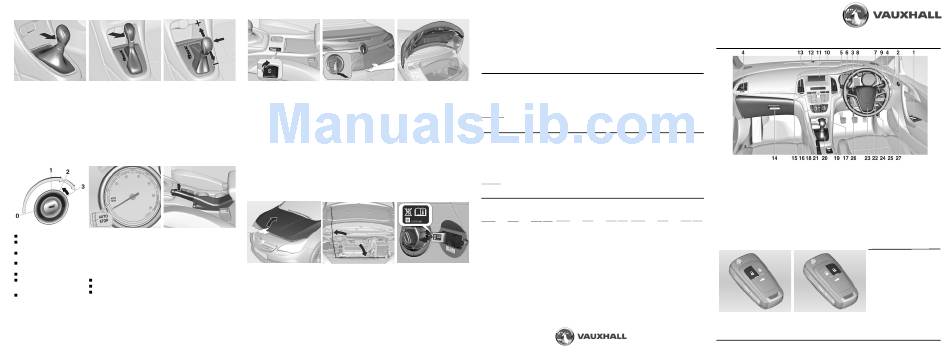

Vauxhall Cascada Quick Reference Manual

Vehicle features
Manual transmission: Automatic transmission: Automatic transmission,
Reverse: With vehicle stationary, P = Park Manual mode:
wait 3 seconds after depressing the R = Reverse Move selector lever from D to the
clutch pedal, then press release N = Neutral left then forwards or backwards.
button on selector lever and D = Automatic (drive) mode +
= Shift to a higher gear
engage gear. with all gears. -
= Shift to a lower gear
If the gear does not engage, set the The selector lever can only be
If a higher gear is selected when
lever to neutral, release the clutch moved out of P when the ignition is
vehicle speed is too low, or a lower
pedal and depress again; then on and the brake pedal is applied.
gear when vehicle speed is too
repeat gear selection.
To engage P or R, press the release high, the shift is not executed. This
Do not slip the clutch unnecessarily. button on the selector lever. can cause a message in the Driver
When operating, depress clutch Information Centre.
When position N is selected,
pedal fully. Do not use the pedal as
depress brake pedal or apply the
a foot rest.
parking brake before starting.
Starting the engine: Stop-start system: Manual parking brake:
Turn key to position 1 When conditions allow, the system Always apply firmly without
switches off the engine to save fuel operating release button and
Move steering wheel slightly to
release steering wheel lock and reduce emission levels if the apply as firmly as possible on uphill
Manual transmission in neutral vehicle is at a low speed or at a or downhill slopes.
with clutch depressed standstill, e.g. at traffic lights or in a
To release, pull lever up slightly,
traffic jam. It starts the engine as
Automatic transmission in P or N
press release button and lower
with brake pedal depressed soon as the clutch is depressed.
lever fully.
Do not accelerate
To activate an Autostop:
To reduce the operating forces,
Diesel engines: turn key to
Depress clutch pedal
depress the brake pedal at the
position 2 for preheating and
Shift selector lever to neutral
same time.
wait for ! to extinguish
Release the clutch pedal
Turn key to position 3 and
release The needle points to AUTO STOP in
the tachometer. To restart engine,
The key does not have to be held in
depress clutch again.
position 3 - the Automatic Starter
Control ensures that the system will Deactivate Stop-Start system
eco
manually by pressing the
go on starting automatically until
button on the instrument panel.
the engine is running. Because of
The LED in the button extinguishes
the checking procedure, the engine
starts running after a short delay. to confirm deactivation.
Vehicle features
Electrical parking brake:
Unlocking and opening the boot Closing the boot lid:
Pull switch J for approx. one
lid: Use the interior handle on the
second, parking brake operates Press button c on remote control to underside of the boot lid to close.
automatically with adequate force.
unlock boot lid (together with doors
Do not touch the brand emblem
For maximum force, e.g. when
and fuel filler flap).
whilst closing as this could unlock
parking with trailer attached or on
Then push the brand emblem at the boot lid again.
inclines, pull switch J twice.
the bottom half to open the boot
The parking brake can always be lid.
Blockage of boot lid
activated, even if the ignition is off.
The boot lid can only be opened
- or -
when the soft top is completely
Before leaving the vehicle, check
Press button x on remote control
parking brake status. opened or closed. The soft top lid
to open boot lid while the vehicle
must be closed.
To release, switch on ignition, keep
remains locked.
brake pedal depressed and push
switch J.
Drive away function
Depressing clutch pedal (manual
transmission) or engaging drive
gear (automatic transmission) and
then depressing the accelerator
pedal releases electrical parking
brake.
Opening the bonnet: Closing the bonnet: Refuelling:
Pull release lever located below Before closing, press the bonnet Before refuelling, switch off engine
instrument panel on driver's side
support into its holder. and any external heaters with
and return it to its original position. combustion chambers.
Lower the bonnet and allow it to
Push safety catch to the right and drop into the catch from a low Switch off any mobile phones.
open the bonnet. height (approx. 20-25 cm).
Fuel filler flap is located at right
Secure the bonnet support. Check that the bonnet is engaged. rear side of vehicle.
If the bonnet is opened during an The fuel filler flap can only be
Autostop, the engine will be opened if the vehicle is unlocked.
restarted automatically for safety
Release the fuel filler flap by
reasons.
pushing the flap.
To open, turn the fuel filler cap
slowly to the left.
Vehicle features
Refuelling (continued):
The fuel filler cap can be retained in the bracket on the fuel filler flap.
To refuel, fully insert the pump nozzle and switch it on. After the automatic cut-off, the tank can be topped
up with maximum two doses of fuel. Wipe off any overflowing fuel immediately.
To close, turn the fuel filler cap to the right until it clicks. Close the flap and ensure it engages.
Petrol engines - use unleaded fuel meeting specifications of EN 228 or E DIN 51626-1 or equivalent.
Diesel engines - use diesel fuel meeting specifications of EN 590.
Fuel tank capacity - 56 litres.
Engine oil:
Check engine oil level manually on a regular basis to prevent damage to engine.
Ensure that the correct specification of oil is used.
Check with vehicle on a level surface. Engine must be at operating temperature and switched off for at least
5 minutes. Pull out dipstick, wipe clean, insert to stop on the handle, pull out and read engine oil level.
Insert dipstick to stop on handle and make half a turn.
Important:
It is the owner's responsibility to maintain the correct level of an appropriate quality oil in the engine.
Do not allow the engine oil level to drop below the minimum level!
Tyre pressure:
Check tyre pressures, including the spare, every 14 days and prior to any long journey; tyres should be
checked when cold. This also applies to vehicles with tyre pressure monitoring system.
The tyre pressure data refers to cold tyres. It applies to summer and winter tyres.
Always inflate the spare tyre to the value specified for full load.
The ECO tyre pressure serves to achieve the smallest amount of fuel consumption possible.
Incorrect tyre pressures will impair safety, vehicle handling, comfort and fuel economy and increase tyre wear.
Warning:
If the pressure is too low, this can result in considerable tyre warm-up and internal damage, leading to tread
separation and even to tyre blow-out at high speeds.
Tyre pressure (psi) Tyre pressure (psi) Tyre pressure (psi)
Comfort setting for upto ECO setting for upto With full load
3 people 3 people
Engine Tyres Front Rear Engine Tyres Front Rear Engine Tyres
A14NEL, 225/55 R17 34 34 A14NEL, 225/55 R17 41 41 A14NEL, 225/55 R17
A14NET, 235/55 R17 34 34 A14NET, 235/55 R17 41 41 A14NET, 235/55 R17
A16XHT 235/50 R18 41 41 A16XHT 235/50 R18
A16XHT 235/50 R18 34 34
245/45 R18 41 41 245/45 R18
245/45 R18 34 34
235/45 R19 34 34 235/45 R19 41 41 235/45 R19
245/40 R20 34 34 245/40 R20 41 41 245/40 R20
A20DTH, 225/55 R17 41 41 A20 DTH, 225/55 R17
A20DTH, 225/55 R17 36 34
A20DTR 235/55 R17 36 34 A20DTR 235/55 R17 41 41 A20DTR 235/55 R17
235/50 R18 36 34 235/50 R18 41 41 235/50 R18
245/45 R18 36 34 245/45 R18 41 41 245/45 R18
235/45 R19 41 41 235/45 R19
235/45 R19 36 34
245/40 R20 36 34 245/40 R20 41 41 245/40 R20
1) 1)
All Temporary spare - - All Temporary spare
All Temporary spare 61 61
1)
Do not use ECO tyre pressure for this
tyre.
*KTA-2762-1*
Cascada
Quick Reference Guide
Refer to Owner's Manual for detailed information. Depending on the model variant, special equipment
Illustrations may depict left-hand drive vehicles. and accessories, the scope of equipment on your
Operation is similar for right-hand drive vehicles. vehicle may differ from the descriptions in this guide.
1. Power windows 10. Central locking system,
2. Exterior mirrors hazard warning flashers,
3. Cruise control, speed limiter, Sport mode, Tour mode,
forward collision alert LEDs for front passenger seat
4. Side air vents belt and airbag deactivation
5. Turn signals, headlight flash, 11. Info-Display
low beam, high beam, high 12. Anti-theft alarm system LED
beam assist, exit lighting, 13. Centre air vents
parking lights, buttons for 14. Glovebox, fusebox
Driver Information Centre 15. Traction Control system,
6. Instruments Electronic Stability Control,
Front Rear
7. Steering wheel controls parking assist,
35 41
8. Driver Information Centre lane departure warning,
35 41
9. Wiper and washer systems ECO button (stop-start system)
35 41
35 41
Vehicle security
35 41
35 41
38 44
38 44
38 44
38 44
38 44
38 44
61 61
Unlocking Locking
Press button c to unlock doors, Close doors, boot lid and fuel filler
boot lid and fuel flap. Press and flap. Press button e. Press and hold
hold button c to open the soft top button e to also close the soft top
and the windows. and the windows.
KTA-2762/1
16. Climate control system
17. AUX input, USB input
18. Power outlet
19. Soft top operation switch,
central window switch
20. Selector lever
21. Parking brake
22. Ignition switch with
steering wheel lock
23. Horn, driver airbag
24. Bonnet release lever
25. Storage compartment
26. Steering wheel adjustment
27. Light switch, fog lights,
headlight range adjustment,
instrument illumination
Press button e on the remote
control twice briefly within
15 seconds to deadlock all doors
and activate anti-theft alarm
system.
The vehicle can also be configured
to unlock only the driver's door,
boot lid and fuel filler flap when
pressing button c once on the
remote control. Pressing button c
twice will unlock the entire vehicle.
Electronic immobiliser:
Activated automatically when key
is removed from ignition switch.
August 2013
