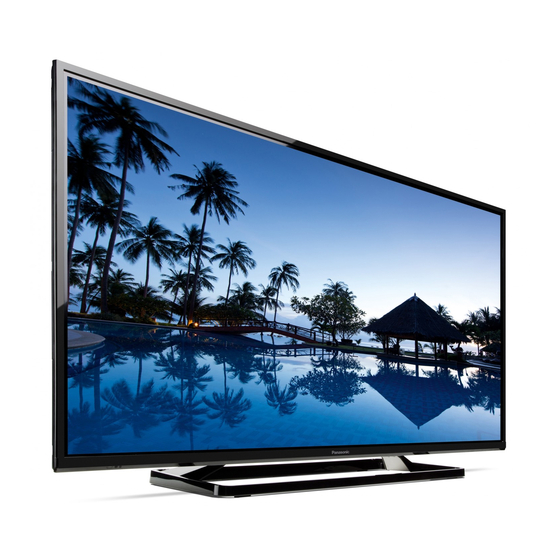

Page 1 TX-24ASW504 TX-32ASW504 TX-39ASW504 TX-42ASW504 TX-50ASW504 HELP English...
Page 2: Table Of Contents
my Home Screen my Home Screen • Information • How to use • Settings • OSD Colour APPS List • Information • How to use • Settings Watching Basic • Basic connection • DVB-via-IP connection • Selecting channel • Information banner • Option Menu • Subtitle • Last view • Off Timer • Energy saving functions • Adjusting time • Language External equipment...
Page 3 • Ambient Sensor • Aspect • Aspect Control Signal • Basic settings • Noise reduction settings • Advanced Settings • Option Settings • Screen Settings • Copy Adjustment For best audio • Sound mode • Basic settings • Volume settings • Voice Guidance Settings • Audio Description • Advanced settings TV Guide • Using TV Guide • Timer Programming Teletext • Viewing Teletext...
Page 4 • Selectable satellites Recording USB HDD setup • Preparations • Setting for USB HDD Recording current programme • One Touch Recording • REW LIVE TV Timer Programming • Setting Timer Programming • Editing Timer Programming • Note Technical information • USB HDD Media Player Using Media Player • Information • Selecting device / mode • Network device Photo mode • Selecting file...
Page 5 • Watching recorded TV • Grouping contents • Deleting content • Changing device • Chapter List • Audio output settings Music mode • Selecting file • Playing music • Music Setup Technical information • Device handling caution • USB devices • Photo format • Video format • Music format Network Internet content • Information • Selecting internet content • Note DLNA • Information...
Page 6: Audio Output Settings
• Custom - Wireless Access Point • Network Status • my Home Cloud Settings • VIERA Name • TV Remote App Settings • Network Link Settings • File Sharing Settings • Software Update • New Software Message Photos • Selecting file • Viewing photo • Using Slideshow Videos • Selecting file • Watching video • Video Setup • Audio output settings Music...
Page 7 • Easy playback • Power on Link • Power off Link • Standby Power Save • Intelligent Auto Standby • VIERA Link Control • Speaker Selection • Note Child Lock • Using Child Lock • PIN number • Parental Rating Data Service Application • Using Data Service Application • Cookie • Note Common Interface • Caution • Using Common Interface Shipping Condition...
Page 8 Settings Setting menu • How to use Picture • Viewing Mode • Basic settings • Ambient Sensor • Noise reduction settings • Advanced Settings • Option Settings • Screen Settings • Copy Adjustment • Reset to Defaults Sound • Mode • Basic settings • Volume settings • Voice Guidance Settings • Audio Description • Advanced settings • Reset to Defaults Network • Network Connection...
Page 9 • Time Zone • Auto Standby • No signal Power off Setup • Eco Navigation • USB Device Setup • Recording Setup • Child Lock • Tuning Menu • Language • Display Settings • Common Interface • VIERA Link Settings • Data Service Application • System Menu • Other Settings Support FAQs • Picture • Digital TV • Analogue TV • Sound • HDMI...
Page 10 Licence • Licence Letters enclosed in a box indicate remote control buttons. Menu Letters in cyan indicate on-screen display items. References in this eHELP The images shown in this eHELP are for illustrative purposes only. ● - 10 -...
Page 11: Information
my Home Screen my Home Screen Information “my Home Screen” is a gateway to the TV, applications, and more. It provides easy access to special features such as Media Player, videos, games, communication tools, etc. as shown below (example). HOME HOME Home Screen Selected content screen (TV, application, etc.)
Page 12: How To Use
How to use Home Screen provides access to special features such as Media Player, TV, internet content, data services, communication tools, etc. 1. Display Home Screen with HOME. (Example) The last viewed Home Screen is displayed when the TV is turned on. ●...
Page 13: Settings
Settings Select the setup menu from the tool guide on the top of the screen. (Example) ■ Home Screen Selection 1. Display Home Screen Selection with HOME. (Example) 2. Select the screen with and press to set. Full Screen Displays full-screen TV. TV Home Screen: To make your TV experience more convenient and comfortable...
Page 14: Osd Colour
■ Search You can search the content from various features. 1. Select Search from the tool guide. 2. Follow the on-screen instructions. = Note = To change the colour type of on-screen displays, set Colour. ● my Home Screen > my Home Screen > OSD Colour To use this function fully, you need a broadband network environment.
Page 15: Apps List
APPS List Information Various applications (internet contents, network contents, Media Player, etc.) can be accessed easily from APPS List. ■ APPS List (Example) = Note = APPS List is subject to change without notice. ● How to use You can access special features such as internet contents, network contents, Media Player, etc.
Page 16: Settings
VIERA Link Functions > VIERA Link “HDAVI Control™” Settings You can customise APPS List (screen settings, etc.). 1. Display APPS List with APPS. 2. Select the icon for settings on APPS List with and press to access. 3. Follow the on-screen instructions. = Note = Setup menu items may be changed without notice.
Page 17: Watching
Watching Basic Basic connection Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables. ■ Satellite dish Satellite terminal Satellite cable Satellite dish For DVB-S ● To ensure your satellite dish is correctly installed, please consult your local ●...
Page 18 ■ DVD Recorder / VCR Terrestrial / cable terminal RF cable DVD Recorder / VCR Terrestrial aerial / Cable AV1 (SCART) terminal SCART cable - 18 -...
Page 19 ■ DVD Recorder (VCR) / Set top box HDMI terminal HDMI cable Set top box Cable AV1 (SCART) terminal SCART cable Terrestrial / cable terminal RF cable DVD Recorder / VCR Terrestrial aerial = Note = For VIERA Link connections ●...
Page 20: Dvb-Via-Ip Connection
DVB-via-IP connection It is recommended to connect DVB-via-IP server with the LAN cable. ● ■ Wired connection ETHERNET terminal LAN cable (Shielded) Use the Shielded Twist Pair (STP) LAN cable. ● DVB-via-IP server Satellite dish / Terrestrial aerial ■ Wireless connection Built-in wireless LAN (Rear of the TV) Access point DVB-via-IP server...
Page 21: Selecting Channel
For details of the connections, read the manual of the DVB-via-IP server. ● Additional information for the servers may be found on the following ● website. http://panasonic.net/viera/support (English only) Selecting channel 1. Display TV Selection with TV. 2. Select the mode with and press to set.
Page 22 ■ To select a channel using TV Guide 1. Display TV Guide with GUIDE. 2. Select the current programme with and press access. – The current programme is displayed on the top left of the screen. 3. Select View with and press to watch.
Page 23: Information Banner
Information banner Display information banner with Also appears when changing a channel. ● (Example) Channel position and name Channel type (Radio, HDTV, etc.) / Encrypted channel ( ) / TV mode ( , Programme Start time / End time (except Analogue) Channel position, etc.
Page 24 Teletext service available Multiple audio available Multiple video available Multiple audio and video available Stereo, Mono: Audio mode Data service (Hybrid Broadcast Broadband TV application) available Functions > Data Service Application > Using Data Service Application – 90: Off Timer remaining time Watching >...
Page 25: Option Menu
To change the colour type of on-screen displays, set Colour. ● my Home Screen > my Home Screen > OSD Colour To display the introduction banner for the internet service ● 1) Display the menu with MENU. 2) Select Setup >...
Page 26 Multi Audio Selects between alternative language or Audio Description for sound tracks (if available). This setting is not memorised and it will return to the default setting once ● you exit the current programme. For DVB ● Dual Audio Selects stereo / monaural (if available). For DVB ●...
Page 27: Subtitle
Subtitle Display / hide subtitles (if available) with STTL. To select the preferred language for DVB subtitles (if available), set ● Preferred Subtitles. Watching > Basic > Language To select the preferred subtitle type ● 1) Display the menu with MENU. 2) Select Setup >...
Page 28: Off Timer
Off Timer Turn the TV Standby mode automatically after a fixed period with TIMER. Press repeatedly until desired time appears. ● (minutes) To cancel, set to or turn the TV off. ● The remaining time displays on the information banner. ●...
Page 29: Auto Standby
■ Auto Standby 1. Display the menu with MENU. 2. Select Timer > Auto Standby with and press to access. 3. Select with and press to set. Auto Standby / Off) Automatically turns the TV to Standby mode for energy saving when no operation is performed for 4 hours.
Page 30: Adjusting Time
■ Radio Mode Sets the timer for turning off the screen automatically when a radio channel is selected. 1. Display the menu with MENU. 2. Select Setup > Display Settings > Radio Mode with and press to access. 3. Select the time with and press to set.
Page 31 Preferred Subtitles 1 / 2 Selects the first and second preferred language for DVB subtitles (depending on the broadcaster). To display subtitles ● Watching > Basic > Subtitle Preferred Teletext Selects the preferred language for DVB teletext service (depending on the broadcaster).
Page 32: External Equipment
External equipment External connection These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment. For basic connection ● Watching > Basic > Basic connection Check the terminal type and cable plugs are correct when connecting.
Page 33 ■ AV devices AV2 (COMPONENT) terminals Component cables DVD Player AV2 (VIDEO) terminals Composite cables Camcorder / Game equipment - 33 -...
Page 34: Usb Devices
● You cannot connect any devices by using USB card reader. ● Additional information for the devices may be on the following website. ● http://panasonic.net/viera/support (English only) ■ To listen with speakers DIGITAL AUDIO Optical digital audio cable Amplifier with speaker system To enjoy multi-channel sound from external equipment (e.g.
Page 35: Watching External Input
■ Headphones Headphone jack M3 stereo mini plug Headphones To adjust volume, set Headphone Volume. ● Watching > For best audio > Advanced settings To select the sound output, set Speaker Setting. ● Watching > For best audio > Volume settings Watching external input Connect the external equipment (VCR, DVD, etc.) and you can watch through the input.
Page 36: Operating With Tv's Remote Control
= Note = If the external equipment has an aspect adjustment function, set it to 16:9. ● For details, read the manual of the equipment or ask your local dealer. ● ■ Input Labels Accesses the input labels list to select the label of each input mode or set to skip unconnected one for easier identification and selection in Selection, Input Selection...
Page 37 Recording > Recording current programme > One Touch Recording ■ How to change the code Each Panasonic product has its own remote control code. Change the code according to the product for operation. 1. Press and hold Standby On / Off switch during the following operations.
Page 38: Hdmi Features
HDMI features HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non-compression standard. HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment. HDMI-compatible equipment with an HDMI or DVI output terminal, such as a DVD player, a set top box or game equipment, can be connected to the HDMI terminal using a fully wired HDMI compliant cable.
Page 39: Terminal Information
These HDMI connectors are compatible with HDCP (High-Bandwidth ● Digital Content Protection) copyright protection. Equipment having no digital output terminal may be connected to the input ● terminal of component or video to receive analogue signals. This TV incorporates HDMI™ technology. ●...
Page 40: Valid Input Signals
■ HDMI terminal 1 : TMDS Data2+ 11 : TMDS Clock Shield 2 : TMDS Data2 Shield 12: TMDS Clock− 3 : TMDS Data2− 13: CEC 4 : TMDS Data1+ 14: Utility 5 : TMDS Data1 Shield 15: SCL 6 : TMDS Data1− 16: SDA 7 : TMDS Data0+ 17: DDC/CEC Ground...
Page 41: For Best Picture
For best picture Viewing Mode 1. Display the menu with MENU. 2. Select Picture > Viewing Mode with and press to access. 3. Select the mode with and press to set. Viewing Mode (Dynamic Normal Cinema True Cinema / Custom) Selects your favourite picture mode for each input.
Page 42: Ambient Sensor
Ambient Sensor 1. Display the menu with MENU. 2. Select Picture > Ambient Sensor with and press to access. 3. Select with and press to set. Ambient Sensor / Off) Automatic Brightness Control function ● Adjusts picture settings automatically depending on ambient lighting conditions.
Page 43: Aspect Control Signal
Full: Displays a 4:3 image enlarged horizontally to fit the screen. For HD (High definition) signals ● Sidecut Just: Displays a 16:9 letterbox (anamorphic) image full-screen. Stretching is only noticeable at the left and right edges. For HD (High definition) signals ●...
Page 44 ● Terrestrial / cable terminal (WSS only) Valid input signal format: DVB-C DVB-T PAL B, G, H, I, D, K SECAM B, G, L, L’, D, K Invalid input signal format: PAL 525/60 6.5 MHz PAL 525/60 6.0 MHz PAL 525/60 5.5 MHz M.NTSC 6.5 MHz M.NTSC 6.0 MHz M.NTSC 5.5 MHz...
Page 45: Basic Settings
● HDMI terminal Valid input signal format: 525 (480) / 60i, 60p 625 (576) / 50i, 50p 750 (720) / 60p, 50p 1 125 (1 080) / 60i, 50i 1 125 (1 080) / 60p, 50p, 24p HDMI terminal does not receive WSS signal. ●...
Page 46: Noise Reduction Settings
Noise reduction settings 1. Display the menu with MENU. 2. Select Picture > Noise Reduction MPEG Noise Reduction with and press to access. 3. Set with and press to store. Noise Reduction (Auto / Off) Reduces unwanted picture noise. Not valid when 1080p Pixel Direct is set to ●...
Page 47: Colour Management
■ Contrast Control Contrast Control (Auto Custom / Off) Automatically adjusts the detailed contrast settings. Select Custom to set Contrast Control Setting manually. Contrast Control Setting Adaptive Gamma Control: Adjusts the gamma curve to make the image brighter. Black Expander: Gradually adjusts the shades of black.
Page 48: Option Settings
B-Hue B-Saturation B-Luminance Adjusts the picture hue / saturation / luminance of blue areas. Reset to Defaults Resets Colour Management to the default settings. ■ Gamma Gamma Switches the gamma curve. Please note the numerical values are reference for the adjustment. ●...
Page 49 1080p Pixel Direct 39 / 42 / 50 inches model / Off) Reproduces the original image quality in detail for 1080p (HDMI) input signal. HDMI Content Type (Graphics Photos Auto / Off) Adjusts the picture settings of each HDMI input according to the selected content type.
Page 50: Screen Settings
Screen Settings 1. Display the menu with MENU. 2. Select Picture > Screen Settings with and press to access. 3. Select one of the following items with and press to access. 16:9 Overscan H-Size Zoom Adjustments Screen Display 4. Set with and press to store.
Page 51: Copy Adjustment
Copy Adjustment Copies the picture settings of True Cinema Custom to those of another input or another Viewing Mode. 1. Display the menu with MENU. 2. Select Picture > Copy Adjustment > Destination Viewing Mode Destination Input with and press to access.
Page 52: For Best Audio
For best audio Sound mode 1. Display the menu with MENU. 2. Select Sound > Mode with and press to access. 3. Select the mode with and press to set. Mode (Standard Music Speech / User) Selects your favourite sound mode for each input. Standard: Provides the suitable sound quality for all types of scenes.
Page 53: Basic Settings
Basic settings 1. Display the menu with MENU. 2. Select Sound with and press to access. 3. Select one of the following items with and press to access. Bass Treble Equaliser Balance Surround 4. Set with and press to store. Bass Adjusts level to enhance or minimise lower, deeper sound output.
Page 54: Volume Settings
Volume settings 1. Display the menu with MENU. 2. Select Sound with and press to access. 3. Select one of the following items with and press to access. Speaker Setting Headphone Volume Auto Gain Control Volume Correction Speaker Distance to Wall 4.
Page 55: Voice Guidance Settings
Voice Guidance Settings 1. Display the menu with MENU. 2. Select Sound > Voice Guidance Settings with and press access. 3. Select one of the following items with and press to access. Voice Guidance Speed Volume Language User Level Web Browser 4.
Page 56: Audio Description
Audio Description 1. Display the menu with MENU. 2. Select Sound > Audio Description with and press to access. 3. Select one of the following items with and press to access. Preferred Audio Type Volume Speakers Headphones 4. Set with and press to store.
Page 57: Advanced Settings
Advanced settings 1. Display the menu with MENU. 2. Select Sound with and press to access. 3. Select one of the following items with and press to access. Audio Preference SPDIF Selection SPDIF Delay HDMI Input 4. Set with and press to store.
Page 58 MPEG is an audio compression method that compresses audio to the ● smaller size without any considerable loss of audio quality. Dolby Digital Plus and HE-AAC are the technologies for HD (High ● definition) programmes. For DVB ● SPDIF Selection (Auto / PCM) Selects the initial setting for digital audio output signal from DIGITAL AUDIO...
Page 59: Tv Guide
TV Guide Using TV Guide TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters). 1. Display TV Selection with TV. 2.
Page 60 (Example) TV screen Date Time Programme (DVB-T) / (Analogue) Channel position and name To watch the programme ● 1) Select the current programme with and press access. – The current programme is displayed on the top left of the screen. 2) Select View with...
Page 61 3) Enter characters with and press to set. – You can set characters using Numeric buttons. Functions > Setting characters > Using Numeric buttons 4) Press (green) to start searching. – All the programme titles including the word you set will be listed. –...
Page 62: Timer Programming
System Information: Displays the system information of the GUIDE Plus+ system (only available in some countries). DVB-T and Analogue channels are displayed on the same TV Guide ● screen. may be displayed to distinguish DVB-T and Analogue channels. There will be no programme listings for Analogue channels. Timer Programming This function allows you to select programmes that you want to be reminded to watch or record to the USB HDD.
Page 63 ■ Signal Supported Recording Signal Supported Recording Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer event will follow the change. Note that Signal Supported Recording only works reliably if correct information is received from broadcasters.
Page 64: Teletext
Teletext Viewing Teletext 1. Switch to teletext with TEXT. Displays the index page (content varies depending on the broadcasters). ● Current / sub page numbers are displayed on the top left of the screen. ● Time / date is displayed on the top right of the screen. ●...
Page 65 ■ Watch TV and teletext in two windows at once 1. Press MENU twice. 2. Set Picture and text with Operations can be made only in teletext screen. ● ■ Store frequently viewed pages in the colour bar (List mode) 1.
Page 66: Teletext Mode
Teletext mode Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters. ● 1. Display the menu with MENU. 2. Select Setup > Display Settings > Teletext with and press access. 3. Select TOP (FLOF) List with...
Page 67: Teletext Character Set
Teletext Character Set Selects teletext language font. 1. Display the menu with MENU. 2. Select Setup > Display Settings > Teletext Character Set with press to access. 3. Select the font with and press to set. West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
Page 68: Tuning And Editing Channels
Tuning and editing channels Setting menu You can retune channels, create your favourite channel lists, skip unwanted channels, etc. 1. Display TV Selection with TV. 2. Select the mode with and press to set. DVB-S DVB-C DVB-T DVB-via-IP Analogue 3. Display the menu with MENU. 4.
Page 69 To change the category ● (blue) 3. Press to add it to favourites list. To add all channels to the list ● 1) Press (yellow). 2) Press (green) to add all. To add consecutive channels to the list at once ●...
Page 70: Channel List
Channel List ■ Skip unwanted DVB / Analogue channels You can hide (skip) unwanted channels. The hidden channels cannot be displayed except in this function. 1. Select Channel List with and press to access. 2. Select a channel with 3. Press to set Reveal Hide...
Page 71: Auto Setup
2) Enter characters (maximum 5 characters) with Numeric buttons, and press to set. 3) Press BACK/RETURN to store. To exchange channel list (DVB-S) ● 1) Display the menu with MENU. 2) Select Setup > Other Settings > Exchange Channel List with and press to access.
Page 72 Single Cable: When using the Single Cable router, up to 8 user bands are available. You can receive several satellites if you have DiSEqC control antenna ● system. This TV supports DiSEqC Version 1.0. ● 3. Select LNB Configuration with and press to access.
Page 73 ■ DVB-C, DVB-T, Analogue 1. Select Auto Setup with and press to access. 2. Set DVB-C Auto Setup Settings with and press to store. (DVB-C) Scan Mode ● Full: Scans the whole frequency range. Quick: Scans the suitable frequency in your country. Normally set Frequency, Symbol Rate Network ID...
Page 74: Manual Tuning
■ Auto Setup using the buttons on the TV 1. Press and hold INPUT/OK/HOLD for MENU button for 3 seconds to display the menu. 2. Set Auto Setup with following control panel buttons. Move the cursor / select from a range of options / select the menu item ●...
Page 75 ■ DVB-T 1. Select a channel with and adjust frequency with for each channel. Set where the level of Signal Quality becomes the maximum. ● 2. Press to search. ■ Analogue Set Analogue channel manually after Auto Setup. Sound System Colour System, and then perform this function.
Page 76: Update Channel List
■ DVB-via-IP (DVB-T) 1. Select Frequency Bandwidth Modulation Service ID with and set with Numeric buttons. 2. Select Start scan with and press to search. = Note = Not valid when Client Settings is set to Multicast Environment (DVB-via-IP) ● Update Channel List By updating the DVB channel list, you can add new channels, delete removed channels or change channel names and positions automatically.
Page 77: Signal Condition
Signal Condition Selects a channel and checks the signal condition. A good Signal Strength is not an indication of suitable signal for DVB reception. Use the Signal Quality indicator as follows. ● – Green bar: Good – Yellow bar: Poor –...
Page 78: Selectable Satellites
Selectable satellites ■ Selectable satellites and dish alignment to tune DVB-S channels To ensure your satellite dish is correctly installed, please consult your local dealer. Also please consult the received satellite broadcasting companies for details. Intelsat at 85.2° East Hot Bird at 13° East ●...
Page 79: Usb Hdd Setup
Recording USB HDD setup Preparations You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways. Prepare the USB HDD for the exclusive use of recording with this TV. ● Be sure to connect the USB HDD to the socket outlet. ●...
Page 80: Setting For Usb Hdd
Do not turn the TV off, pull out the mains plug or remove the USB HDD ● during operation (formatting, recording, etc.). Doing so may cause malfunction of the device or damage the recorded data. (An electric outage may also be a cause of malfunction.) = Note = Analogue TV programme cannot be recorded on the USB HDD.
Page 81 5. When the confirmation screen of USB HDD name is displayed, select with and press to set. The name for the USB HDD is created automatically. If you want to edit ● the name, select Yes. 1) Enter characters with Numeric buttons, and press to set.
Page 82: Recording Current Programme
Recording current programme One Touch Recording Records the current programme to the USB HDD immediately. Confirm the remote control code is “73”. ● Watching > External equipment > Operating with TV’s remote control 1. Display the menu with MENU. 2. Select Setup >...
Page 83: Rew Live Tv
REW LIVE TV Records the current programme to the USB HDD constantly within the maximum recordable time. Confirm the remote control code is “73”. ● Watching > External equipment > Operating with TV’s remote control 1. Display the menu with MENU. 2.
Page 84 ■ To stop REW LIVE TV 1. Display the menu with MENU. 2. Select Setup > Recording Setup > REW LIVE TV with and press to access. 3. Select with to stop REW LIVE If you stop REW LIVE TV, the recorded content for REW LIVE TV will be ●...
Page 85: Timer Programming
Timer Programming Setting Timer Programming This function allows you to select programmes that you want to be reminded to watch or record to the USB HDD. Not valid in Analogue ● 1. Display TV Selection with TV. 2. Select the mode with and press to set.
Page 86 (Example) !: Overlapped timer events Function (USB HDD Rec. / Reminder) TV mode : DVB-S : DVB-C : DVB-T : DVB-via-IP – You cannot change the mode within the menu. Channel position, channel name, etc. STTL: Displays subtitles (if available) –...
Page 87: Editing Timer Programming
Editing Timer Programming 1. Display the menu with MENU. 2. Select Timer > Timer Programming with and press to access. 3. Select the event with To change a timer event ● – Correct as necessary. Recording > Timer Programming > Setting Timer Programming To delete a timer event ●...
Page 88: Note
Note TV Guide may also be used to set timer event. ● Watching > TV Guide > Timer Programming Timer Programming can store up to 15 events. ● Timer Programming only works reliably if correct time information is ● received via the signal from the broadcaster or service provider. For recording using Timer Programming, the TV must be either on or in...
Page 89: Technical Information
Regarding performance, not all USB HDDs are guaranteed. Check the ● USB HDDs that have been tested for compatibility with this TV at the following website. http://panasonic.net/viera/support (English only) = Note = Data modified with a PC may not be displayed. ●...
Page 90: Media Player
Media Player Using Media Player Information Media Player allows you to enjoy photo, video or music recorded on the USB Flash Memory / network device and contents recorded with this TV to the formatted USB HDD. (Example) Photo mode: Still pictures recorded with digital cameras will be displayed. Video mode: Moving pictures recorded with digital video cameras and digital video data will be played back.
Page 91: Selecting Device / Mode
Folder and file names may be different from those on the digital camera or ● digital video camera used. ■ To insert or remove the USB Flash Memory Ensure alignment is straight and complete when inserting or removing. To remove the USB Flash Memory safely from the TV, perform Safely ●...
Page 92 4. Select the device with and press to access. If only one device is connected, this step will be skipped. ● The network device already connected to the TV is also displayed. ● : Enter User Password to access. User Password are already entered.
Page 93: Network Device
■ To change the device You can change the current device to another device directly in the same mode when two or more available devices are connected. 1. Display the device selection screen with (yellow) while the thumbnail is displayed. 2.
Page 94: Photo Mode
Windows 7 / Windows 8 / Windows 8.1 have been tested for compatibility with this TV (as of December, 2013). Additional information for the servers may be found on the following website. http://panasonic.net/viera/support (English only) Photo mode Selecting file Select the file in the thumbnail view with...
Page 95: Viewing Photo
Viewing photo ■ Playback To operate Single view ● : To the previous photo : To the next photo : Stop (return to thumbnail) : Slideshow To display / hide the operation guide ● To rotate 90° ● (blue) To return to thumbnail ●...
Page 96: Using Slideshow
Using Slideshow Slideshow ends when all photos within the current thumbnail are viewed. 1. Select the file from the thumbnail of photos for the first view with 2. Start Slideshow with (red) and OK. To display / hide the operation guide ●...
Page 97 Gallery (+ calendar) / Gallery: Various sizes of photos in the frames are displayed. You can select whether to display the calendar or not. The month of ● calendar is changed with Cinema: Photos are displayed as old films (sepia tone). Colour Effect (Off Sepia...
Page 98 Screen Mode (Normal / Zoom) Selects enlarged or normal viewing. Not valid when Frame is set to Collage, Drift, Gallery, Cinema or when ● Transition Effect is set to Motion Depending on the photo size, the photo may not be fully enlarged to fill the ●...
Page 99 User: Music files in the device registered by yourself will be played back. If no music files have been registered or the device which had ● registered music files is removed, no sound will be played back. ● To register music 1) Select the music file with and press to access.
Page 100: Video Mode
Video mode Selecting file 1. Select the title in the thumbnail view with : Error display : The file does not support thumbnail view. The preview will start when the title / scene is highlighted in the ● thumbnail view if it supports a preview. To turn off the preview, set Video Preview to Off.
Page 101: Watching Video
Watching video ■ Playback from the selected scene in the title Playback of the selected scene will start and continue until the end of the title. 1. Select the title with and press to access. 2. Select the scene with 3.
Page 102: Video Setup
To change aspect ● 1) Display Aspect Selection with ASPECT. 2) Select the mode with and press to set. Aspect1: Displays the content enlarged without distortion. Aspect2: Displays the content full-screen. Original: Displays the content original size. – You can also change the mode pressing ASPECT. (Press repeatedly until you reach the desired mode.) –...
Page 103: Audio Output Settings
Multi Audio, Dual Mono Audio Selects for selectable sound tracks (if available). It may take several seconds to change the sound. ● This function is available during playback. ● Subtitle Display / hide subtitles (if available). This function is available during playback. ●...
Page 104 PCM: Digital output signal is fixed to PCM. ARC (Audio Return Channel) is a function of digital audio output using ● HDMI cable. - 104 -...
Page 105: Recorded Tv Mode
Recorded TV mode Selecting content For exclusive USB HDD ● To play back contents in the USB HDD, ensure the connection and ● settings are completed. Recording > USB HDD setup 1. Contents list of the selected device is displayed in Recorded TV mode. Remaining capacity of the selected device is displayed on the top right.
Page 106: Watching Recorded Tv
Watching recorded TV ■ Playback To operate playback ● Manual skip – Press to skip forward approx. 30 seconds. – Press and hold to skip backward approx. 15 seconds. : Rewind : Fast forward : Stop : Pause (displays the time seek bar) / Playback To jump to the specified time point ●...
Page 107: Grouping Contents
To confirm or change the current status (if available) ● Watching > Basic > Option Menu To return to list ● BACK/RETURN Grouping contents 1. Select the content to edit with and press (blue) to tick in the contents list. 2.
Page 108: Changing Device
Changing device You can change the current device to another device directly in the same mode when two or more available devices are connected. 1. Display the option menu with OPTION. 2. Select Drive Select with and press to access. 3.
Page 109: Audio Output Settings
Audio output settings You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO or HDMI2 (ARC function) terminal. To confirm or change the current sound status ● Media Player > Video mode > Video Setup 1. Display the menu with MENU. 2.
Page 110: Playing Music
Music mode Selecting file 1. Select the folder in the thumbnail view with 2. Start playback with (red). For supported file formats ● Media Player > Technical information > Music format ■ Thumbnail view To display / hide information of the highlighted content ●...
Page 111: Music Setup
To jump to the specified time point ● 1) Display the time seek bar with OK. 2) While the time seek bar is displayed Press Search approx. 10 seconds Press and hold Search rapidly 3) Jump to the specified time point with OK. To display / hide the operation guide ●...
Page 112: Device Handling Caution
Back up the recorded data at regular intervals to prevent data ● deterioration, data damage or erratic operation of the TV. Panasonic is not liable for any deterioration or damage of recorded data. USB devices It is recommended to connect the device to the TV’s USB port directly.
Page 113: Photo Format
Regarding performance, not all USB HDDs are guaranteed. Check the ● USB HDDs that have been tested for compatibility with this TV at the following website. http://panasonic.net/viera/support (English only) Photo format ■ Supported Photo formats ● JPEG (.jpg, .jpeg) Sub-sampling:...
Page 114 Video codec: H.264 BP/MP/HP, MPEG1, MPEG2, MPEG4 SP/ASP Audio codec: AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, MPEG Audio, MP3 This TV supports this container recorded with Panasonic products. For ● details, read the manual of the products. ● MKV (.mkv) Video codec: H.264 BP/MP/HP, MPEG1, MPEG2, MPEG4 SP/ASP...
Page 115 ● PS (.mod, .mpg, .mpeg, .vob, .vro) Video codec: H.264 BP/MP/HP, MPEG1, MPEG2, VC-1 Audio codec: AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, LPCM, MPEG Audio, ● TS (.mts, .m2ts, .tp, .trp, .ts, .tts) Video codec: H.264 BP/MP/HP, MPEG1, MPEG2, VC-1 Audio codec: AAC, Dolby Digital, Dolby Digital Plus, DTS core, HE-AAC, MPEG Audio, MP3...
Page 116: Music Format
Music format ■ Supported Music formats ● MP3 (.mp3) ● AAC (.m4a) Copy-protected files cannot be played back. ● ● FLAC (.flac) ● WMA / WMA Pro (.wma) Copy-protected files cannot be played back. ● WMA Lossless is not supported. ●...
Page 117: Network
Network Internet content Information You can access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, communication tools, etc. from APPS List. (Example) To enable this function, you need a broadband network environment. ● Ensure the network connections and network settings are completed.
Page 118: Selecting Internet Content
Selecting internet content 1. Display APPS List with APPS. For details of APPS List ● my Home Screen > APPS List Depending on the usage conditions, it may take a while to read all the ● data. 2. Select the desired item with and press to access.
Page 119: Note
The services through APPS List are operated by their respective service ● providers and such service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the contents or the continuity of the services. Some contents may be inappropriate for some viewers.
Page 120: Dlna
DLNA Information This TV is a DLNA Certified™ product. DLNA (Digital Living Network Alliance) is a standard that makes DLNA ® Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org. To enable this function, connect this TV to your home network. ●...
Page 121 And you need to install the application for controlling VIERA on your smartphone. For information of the application: http://panasonic.net/viera/support (English only) For the operations, refer to the support information of the application. “Windows 7 / Windows 8” are the OS that have been tested for ●...
Page 122 : To use this function with your smartphone, you need to install the application for controlling VIERA in your smartphone. For information of the application: http://panasonic.net/viera/support (English only) For the operations, refer to the support information of the application. To use this function with another DLNA Certified VIERA, set Network Link ●...
Page 123: Using Dlna
Using DLNA To use DLNA features, ensure the preparations of the media server, network ® connections and network settings are completed. Network > DLNA > Information Network > Network connections Network > Network settings 1. Display APPS List with APPS. 2.
Page 124: Network Connections
Network connections Internet connection To use internet service, you need a broadband network environment. If you do not have any broadband network services, please consult your ● retailer for assistance. Dial-up internet connections cannot be used. ● Required speed (effective): at least 1.5 Mbps for SD (Standard Definition) ●...
Page 125: Dlna Connection
DLNA connection To use DLNA features, you need a home network environment and you can operate the features without a broadband network environment. To use internet service, you need a broadband network environment. ● Network > Network connections > Internet connection ■...
Page 126 ■ Wired connection (For DLNA and internet service) ETHERNET terminal LAN cable (Shielded) Use the Shielded Twist Pair (STP) LAN cable. ● Hub or Router Internet environment DLNA Certified media server (PC, etc.) ■ Wireless connection (For DLNA) To use the TV as a wireless access point ●...
Page 127: Note
Note Ensure to use a LAN straight cable. ● Set up and connect equipment required for the network environment. You ● cannot make such settings on this TV. Read the manual of the equipment. If your modem has no broadband router functions, use a broadband router. ●...
Page 128: Network Settings
Network settings Network Connection Ensure the connections are completed before starting network setup. Network > Network connections ■ Quick setup - Wireless 1. Display the menu with MENU. 2. Select Network > Network Connection with and press access. Confirm the encryption key, settings and position of your access point ●...
Page 129: Custom - Wireless
7. Select Exit with and press to set. To set manually ● Network > Network settings > Custom - Wireless ■ Quick setup - Wired 1. Display the menu with MENU. 2. Select Network > Network Connection with and press access.
Page 130 WPS(PIN) ● 1) Press (green). 2) Enter the PIN code to the access point. 3) Connect the TV with the access point with OK. Manual ● 1) Press (yellow). 2) You can set up SSID, security type, encryption type, and encryption key manually.
Page 131 Proxy Settings It is not required for normal household use. ● Some internet services may not be available depending on the proxy ● settings. Proxy: This is the address of the relay server which is connected between the browser and the target server to send data to the browser. 1) Select Proxy with...
Page 132: Custom - Wired
Custom - Wired Ensure the connections are completed before starting network setup. Network > Network connections 1. Display the menu with MENU. 2. Select Network > Network Connection > Custom > Wired with and press to access. IP/DNS Settings is displayed. Acquire IP Address Acquire DNS Address Auto...
Page 133: Custom - Wireless Access Point
4. Select Network Status with and press to access. Network > Network settings > Network Status 5. Select Exit with and press to set. Custom - Wireless Access Point You can use the TV as a wireless access point and connect the network equipment without an access point.
Page 134: Network Status
WPS: Wi-Fi Protected Setup™ ● Network Status Displays and checks the network status (MAC Address, current network settings, etc.). 1. Display the menu with MENU. 2. Select Network > Network Status with and press to access. 3. Automatically testing is done and Network Status is displayed.
Page 135: Viera Name
For the operations, refer to the support information of the application. Depending on the network condition, this function may not be available. ● Depending on the area, this function may not be available. For details, ● consult your local Panasonic dealer. - 135 -...
Page 136: Network Link Settings
To use this function with your smartphone, you need to install the ● application for controlling VIERA on your smartphone. For information of the application: http://panasonic.net/viera/support (English only) For the operations, refer to the support information of the application. Registration Type (Auto...
Page 137: File Sharing Settings
= Note = Depending on the area, this function may not be available. For details, ● consult your local Panasonic dealer. File Sharing Settings Network Device List Lists the accessible network devices to play back the contents in Media Player.
Page 138: Selecting File
Photos Selecting file Ensure the preparations of the media server, network connections and network settings are completed. Network > DLNA > Information Network > Network connections Network > Network settings 1. Display APPS List with APPS. 2. Select Media Server with and press to access.
Page 139: Viewing Photo
Viewing photo ■ Playback To operate Single view ● : To the previous photo : To the next photo : Stop (return to list) : Slideshow To display / hide the operation guide ● To rotate 90° ● (blue) To return to list ●...
Page 140 Transition Effect (Off Fade Dissolve Motion / Random) Selects the transition effect for switching photos during the slideshow. Fade: The next photo fades in gradually. Dissolve: Each photo is dissolved when switching to the next photo. Motion: Each photo is displayed with an effect of enlarging, reducing, moving up or moving down.
Page 141: Selecting File
Videos Selecting file Ensure the preparations of the media server, network connections and network settings are completed. Network > DLNA > Information Network > Network connections Network > Network settings 1. Display APPS List with APPS. 2. Select Media Server with and press to access.
Page 142 To jump to the specified time point ● 1) Display the time seek bar with OK. 2) While the time seek bar is displayed Press Search approx. 10 seconds Press and hold Search rapidly 3) Jump to the specified time point with OK. To play back slowly ●...
Page 143: Video Setup
Video Setup Set up the settings for video file operations on this TV. 1. Display the option menu with OPTION. 2. Select Video Setup with and press to access. 3. Select one of the following items with and press to access. Video Preview Multi Audio Dual Audio...
Page 144: Audio Output Settings
Audio output settings You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO or HDMI2 (ARC function) terminal. To confirm or change the current sound status ● Network > Videos > Video Setup 1. Display the menu with MENU. 2.
Page 145: Selecting File
Music Selecting file Ensure the preparations of the media server, network connections and network settings are completed. Network > DLNA > Information Network > Network connections Network > Network settings 1. Display APPS List with APPS. 2. Select Media Server with and press to access.
Page 146: Playing Music
Playing music ■ Playback To operate playback ● : Rewind : Fast forward : Stop : Pause (displays the time seek bar) / Playback To jump to the specified time point ● 1) Display the time seek bar with OK. 2) While the time seek bar is displayed Press Search approx.
Page 147: Controlling Diga Recorder
DIGA Recorder Controlling DIGA Recorder Ensure the preparations of the media server, network connections and network settings are completed. Network > DLNA > Information Network > Network connections Network > Network settings 1. Display APPS List with APPS. 2. Select Media Server with and press...
Page 148: Video Format
Technical information Photo format ■ Supported Photo formats ● JPEG (.jpg, .jpeg) Sub-sampling: 4:4:4, 4:2:2, 4:2:0 Image resolution (pixel): 8 × 8 to 30 719 × 17 279 DCF and EXIF standards ● Progressive JPEG is not supported. ● = Note = Some files may not be played back even if they fulfil these conditions.
Page 149 Video codec: H.264 BP/MP/HP, MPEG1, MPEG2, MPEG4 SP/ASP Audio codec: AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, MPEG Audio, MP3 This TV supports this container recorded with Panasonic products. For ● details, read the manual of the products. ● MKV (.mkv) Video codec: H.264 BP/MP/HP, MPEG1, MPEG2, MPEG4 SP/ASP...
Page 150: Music Format
● PS (.mod, .mpg, .mpeg, .vob, .vro) Video codec: MPEG1, MPEG2 Audio codec: Dolby Digital, LPCM, MPEG Audio ● TS (.mts, .m2ts, .tp, .trp, .ts, .tts) Video codec: H.264 BP/MP/HP, MPEG1, MPEG2 Audio codec: AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, MPEG Audio ■...
Page 151 ● FLAC (.flac) ● WMA / WMA Pro (.wma) Copy-protected files cannot be played back. ● WMA Lossless is not supported. ● ● LPCM (.wav) = Note = Some files may not be played back even if they fulfil these conditions. ●...
Page 152: Summary Of Viera Link
Functions VIERA Link “HDAVI Control™” Summary of VIERA Link Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control™” function. VIERA Link (HDAVI Control) connects the TV and the equipment with VIERA Link function, and enables easy control, playback, energy saving, creating home theatre, etc.
Page 153: Viera Link (Hdmi Connection)
● Connect the equipment supporting VIERA Link to the TV’s HDMI terminal ● via an HDMI cable. About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment. HDMI terminal HDMI cable Equipment with VIERA Link function (DIGA Recorder / DVD Player / Blu- ray Disc Player / HD Video Camera / LUMIX Camera) ■...
Page 154 ■ VIERA Link (HDMI and Audio out connections) Use a fully wired HDMI compliant cable. ● Connect the equipment supporting VIERA Link to the TV’s HDMI terminal ● via an HDMI cable. Use a fully wired SCART cable. ● Use the optical digital audio cable or SCART cable for audio output from ●...
Page 155 ■ Available features (HDMI and Audio out connections) Player theatre Easy playback ● Power on Link ● Power off Link ● Intelligent Auto Standby ● VIERA Link Control ● Speaker Selection ● Blu-ray Disc theatre Easy playback ● Power on Link ●...
Page 156: Easy Playback
■ VIERA Link Control of compatible equipment The following is the maximum number of compatible equipment that can be controlled by VIERA Link Control. This includes connections to equipment already connected to the TV. For example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.
Page 157: Power On Link
Power on Link Power on Link in the Setup Menu to use this function. When the connected equipment starts playback or direct navigator / function menu for the equipment is activated, the TV is automatically turned on. (Only when the TV is in Standby mode.) Power off Link Power off Link in the Setup Menu to use this function.
Page 158: Viera Link Control
VIERA Link Control You can control some functions of the connected equipment with this TV’s remote control by pointing at the TV’s signal receiver. 1. Display APPS List with APPS. 2. Select VIERA Link with and press to access. 3. Select VIERA Link Control with and press...
Page 159: Speaker Selection
■ If you access non-VIERA Link equipment The type of the connected equipment is displayed. Although you can access the connected equipment, you cannot operate it. Use the remote control of the connected equipment. = Note = If you cannot operate the equipment, check the settings and the ●...
Page 160: Note
■ Multi-channel sound If you want to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an Amplifier, connect it with an HDMI cable and Optical digital audio cable, and then select Home Cinema. If your Amplifier has the “HDAVI Control 5” function, you only need to connect it with an HDMI cable to the TV’s HDMI2 terminal.
Page 161: Using Child Lock
Child Lock Using Child Lock You can lock specific channels / AV input terminals to restrict access to them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch. 1. Display the menu with MENU. 2.
Page 162: Pin Number
PIN number You can change the PIN number. 1. Select Change PIN with and press to access. 2. Enter a new PIN number twice with Numeric buttons. = Note = Setting Shipping Condition erases the PIN number and all settings. ●...
Page 163: Using Data Service Application
Data Service Application Using Data Service Application You can enjoy Hybrid Broadcast Broadband TV application that is one of the interactive data services for digital broadcasting. 1. Display TV Selection with TV. 2. Select the mode with and press to set. DVB-S DVB-C DVB-T...
Page 164: Note
Note To use Hybrid Broadcast Broadband TV application fully, you need a ● broadband network environment. Ensure the network connections and network settings are completed. Network > Network connections Network > Network settings Not all the data services are available depending on the country, area and ●...
Page 165: Caution
Common Interface Caution If the encrypted message is displayed on the screen, the correct Common Interface (CI) Module and smart card that are required for this service are not inserted. ■ How to insert CI module and smart card Turn the TV off with Mains Power On / Off switch whenever inserting or ●...
Page 166: Using Common Interface
Using Common Interface The Common Interface Module menu provides access to software contained in Common Interface (CI) Modules. This function may not be available in some countries or regions. ● Not all the services are available in DVB-via-IP. ● Video and audio signals may not be output depending on broadcasts or ●...
Page 167: Shipping Condition
Shipping Condition Shipping Condition Resets the TV to its original condition (i.e. no channels tuned in). All settings other than USB Device Setup are reset (channels, picture, sound settings, etc.). 1. Display the menu with MENU. 2. Select Setup > System Menu >...
Page 168: Auto Update
Updating the TV Software Information A new version of software may be released for download to enhance the performance or operations of the TV. If there is an update available and the channel has the update information, a notification message is displayed. To install new software, select Standby with...
Page 169: Manual Update
= Note = Download may take a few hours. ● During software download and update, DO NOT switch off the TV. ● A notification message may be a reminder. In this case, schedule ● information (the date when the new version can be used) will appear. You can set the reservation for update.
Page 170: Using Numeric Buttons
Setting characters Using Numeric buttons You can enter characters for free input items using Numeric buttons. Press Numeric buttons repeatedly until you reach the desired character. : . @ / 1 ! : # + - * _ ( ) “ ‘ % & ? , ; = $ [ ] ~ < > { } | ` ^ \ : a b c 2 A B C : d e f 3 D E F : g h i 4 G H I...
Page 171: Keyboard
Keyboard Keyboard Keyboards requiring the drivers are not supported. ● To change the language type, set USB Keyboard Layout. ● 1) Display the menu with MENU. 2) Select Setup > System Menu > USB Keyboard Layout with press to access. 3) Select the language with and press to set.
Page 172: Picture
Settings Setting menu How to use Various menus allow you to make settings for the picture, sound, and other functions. 1. Display the menu with MENU. Displayed items vary depending on the input signal. ● 2. Select the menu with and press to access.
Page 173 To change menu pages ● To change the colour type of on-screen displays, set Colour. ● my Home Screen > my Home Screen > OSD Colour = Note = Menu items and selectable options vary depending on the mode (TV ●...
Page 174: Viewing Mode
Picture Viewing Mode Selects your favourite picture mode for each input. (Dynamic Normal Cinema True Cinema / Custom) Watching > For best picture > Viewing Mode Basic settings Backlight, Contrast, Brightness, Colour, Tint, Sharpness Adjusts the levels of these options according to your personal preference. Watching >...
Page 175: Noise Reduction Settings
Noise reduction settings Noise Reduction (Auto / Off) Reduces unwanted picture noise. Watching > For best picture > Noise reduction settings Not valid when 1080p Pixel Direct is set to ● 39 / 42 / 50 inches model MPEG Noise Reduction (Auto / Off) Reduces flicker noise in contoured parts of a picture and block noise.
Page 176 HDMI Content Type (Graphics Photos Auto / Off) Adjusts the picture settings of each HDMI input according to the selected content type. Watching > For best picture > Option Settings For HDMI input ● HDMI RGB Range (Auto Full / Normal) Adjusts the black level of the image for each HDMI input.
Page 177: Reset To Defaults
Screen Settings 16:9 Overscan / Off) Selects the screen area displaying the image for 16:9 aspect. Watching > For best picture > Screen Settings Not valid in Network services ● H-Size (H-Size1 / H-Size2) Switches the horizontal display range to reduce noise on the side edge of the image.
Page 178: Mode
Sound Mode Selects your favourite sound mode for each input. (Standard Music Speech / User) Watching > For best audio > Sound mode Basic settings Bass Adjusts level to enhance or minimise lower, deeper sound output. Watching > For best audio > Basic settings Treble Adjusts level to enhance or minimise sharper, higher sound output.
Page 179: Voice Guidance Settings
Headphone Volume Adjusts the volume of headphones. Watching > For best audio > Volume settings Auto Gain Control / Off) Automatically regulates large sound level differences between channels and inputs. Watching > For best audio > Volume settings Volume Correction Adjusts the volume of each individual channel or input mode.
Page 180: Audio Description
Language Changes language for the voice guidance. Watching > For best audio > Voice Guidance Settings User Level (Beginner / Expert) Selects the level of verbosity for the voice guidance. Watching > For best audio > Voice Guidance Settings Web Browser / Off) Set to to enable voice guidance of the network contents in web browser...
Page 181: Advanced Settings
Headphones (Mix / Standard) Set to to activate the description sound track from headphones. Watching > For best audio > Audio Description For DVB ● Advanced settings Selects multiplex sound mode (if available). Watching > For best audio > Advanced settings For Analogue ●...
Page 182: My Home Cloud Settings
Reset to Defaults Resets the current Sound Mode to the default settings. Network Network Connection Sets the network setting to use this TV in your network environment. Network > Network settings > Network Connection Network Status Displays and checks the network status (MAC Address, current network settings, etc.).
Page 183: Other Settings
Other settings Software Update Checks for available software updates from the Panasonic website. Network > Network settings > Software Update New Software Message / Off) Selects whether to give a notification message when new software is found via network or not.
Page 184: Time Zone
Timer Off Timer Sets the duration of time until the TV automatically goes into Standby mode. (minutes)) Watching > Basic > Off Timer Timer Programming Sets a timer to record or remind forthcoming programmes. Recording > Timer Programming > Setting Timer Programming For DVB ●...
Page 185: Eco Navigation
Setup Eco Navigation Automatically sets the TV to the most suitable energy-saving mode. Watching > Basic > Energy saving functions USB Device Setup Formats the USB HDD or safely removes USB device. Recording > USB HDD setup > Setting for USB HDD Recording Setup Settings for the recording feature of the USB HDD Recording >...
Page 186 Update Channel List Updates the channel list while keeping your settings. Watching > Tuning and editing channels > Update Channel List For DVB ● Favourite Network Selects your favourite network for each broadcasters (only available in some countries). Watching > Tuning and editing channels > Other settings For DVB-C, DVB-T ●...
Page 187: Language
LNB Configuration Selects the satellite for each LNB. Watching > Tuning and editing channels > Auto Setup For DVB-S ● Attenuator / Off) Automatically reduces the DVB-C signal to avoid the interference. Watching > Tuning and editing channels > Other settings Add TV Signal Adds the TV mode.
Page 188: Display Settings
Preferred Teletext Selects the preferred language for DVB teletext service (depending on the broadcaster). Watching > Basic > Language Display Settings OSD Colour (Jet black Pale grey Organic brown Sand beige) Selects the preferred colour type of on-screen displays. my Home Screen > my Home Screen > OSD Colour Preferred Subtitle Type (Standard Hard of...
Page 189: Common Interface
Input Labels Accesses the input labels list to select the label of each input mode or set to skip unconnected one for easier identification and selection in Selection, Input Selection or banner. Watching > External equipment > Watching external input Banner Display Timeout 0 (No display) (seconds))
Page 190: Data Service Application
Power off Link / Off) Sets to use Power off Link functions. Functions > VIERA Link “HDAVI Control™” > Power off Link Standby Power Save / Off) Controls the connected equipment to reduce power consumption in Standby. Functions > VIERA Link “HDAVI Control™” > Standby Power Save This function is available when VIERA Link is set to...
Page 191: System Menu
System Menu USB Keyboard Layout Selects the language that your USB Keyboard supports. Functions > Keyboard > Keyboard Shipping Condition Resets all settings to the original condition. Functions > Shipping Condition > Shipping Condition System Update Downloads new software to this TV. Functions >...
Page 192: Picture
Picture Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Auto aspect Auto aspect is designed to provide you with the best ratio to fill the screen.
Page 193: Digital Tv
Digital TV Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Block noise, frozen or disappearing image occurs / Some channels cannot be tuned Check the position, direction and connection of the aerial or dish.
Page 194 Weather conditions will affect signal reception (heavy rain, snow, etc.), ● in particular in poor reception areas. Even during good weather, the high pressure can cause poor reception of some channels. Due to the digital reception technologies involved, quality of the digital ●...
Page 195: Analogue Tv
Analogue TV Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. White spots or shadow image (ghosting) occurs / Some channels cannot be tuned Check the position, direction and connection of the aerial.
Page 196: Hdmi
HDMI Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Sound is unusual Set the sound setting of the connected equipment to “2ch L.PCM”.
Page 197: Network
Network Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Cannot connect to the network Check the LAN cable or wireless LAN is connected properly.
Page 198: Other
● Other Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. VIERA Link function does not work and an error message appears Check the connections.
Page 199 The LCD panel moves slightly and clattered sound is heard when it is pushed with a finger There is a little gap around the panel to prevent damage to the panel. This ● is not a malfunction. - 199 -...
Page 200: Care And Cleaning
Maintenance Care and Cleaning First, remove the mains plug from the socket outlet. ■ Display panel, Cabinet, Pedestal Regular care: Gently wipe the surfaces of the display panel, cabinet, or pedestal using a soft cloth to clean the dirt or fingerprints. For stubborn dirt: (1) First clean the dust on the surface.
Page 201: Using Help Menu
Information Using Help menu 1. Display the menu with MENU. 2. Select Help with and press to access. 3. Select TV Self Test System Information Device Information with and press to access. TV Self Test Makes a diagnosis of picture or sound problems. Follow the on-screen instructions.
Page 202: Communication Camera
– Depending on the area, this optional accessory may not be available. For details, consult your local Panasonic dealer. Wall-hanging bracket ■ Wall-hanging bracket Please contact your local Panasonic dealer to purchase the recommended ● wall-hanging bracket. = Warning = Using other wall-hanging brackets, or installing a wall-hanging bracket ●...
Page 203 HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. HDAVI Control™ is a trademark of Panasonic Corporation. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Page 204 This product incorporates the following software: (1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software licensed under the GNU LESSER GENERAL PUBLIC LICENSE Version 2.1 (LGPL V2.1),...
Page 205 PURPOSE. Please refer to the detailed terms and conditions thereof shown in the “Software License” menu on this product. At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below,...
Page 206 Ver.1.04...

This manual is also suitable for:

Tx-32asw504 Tx-50asw504 Tx-39asw504 Tx-42asw504

Panasonic TX-24ASW504 Ehelp

My Home Screen

Watching

Recording

Media Player

Network

Quick Links

Related Manuals for Panasonic TX-24ASW504

Summary of Contents for Panasonic TX-24ASW504
