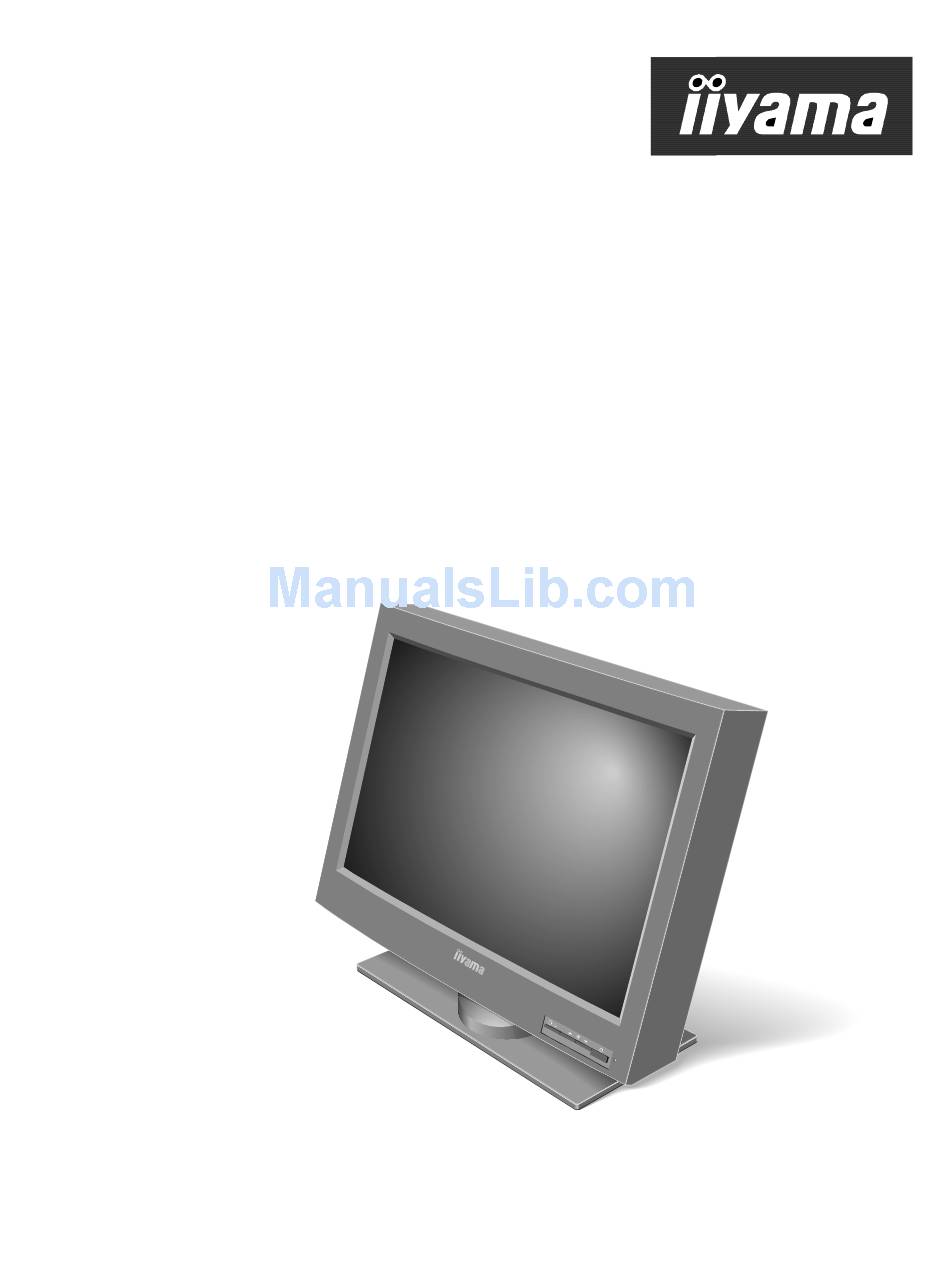

Page 1: User Manual
AQU5611D BK AQU5611DT BK 9.2 million pixels Color TFT LCD Monitor USER MANUAL P/N: 55P1003... - Page 2 First Edition (July 2002) © Copyright IIYAMA CORPORATION 2002. All rights reserved.
-
Page 3: Danger Statements
To isolate the monitor from the electrical supply, you must remove the plug from the power outlet. The power outlet should be easily accessible. Handling: Your color monitor is heavy, so handle it with care. iiyama recommends that this monitor is moved or lifted by two people. - Page 4 AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL...
-
Page 5: Notices
Notices Attention v Do not exert strong pressure to the surface of the monitor screen. You may break the LCD panel. v Do not place heavy objects on top of this product. They may damage the monitor. v Do not touch the monitor screen with your fingers. Fingerprints and oil stains may remain on the screen surface. -
Page 6: License Inquiries
References in this publication to iiyama products, programs, or services do not imply that iiyama intends to make these available in all countries in which iiyama operates. Any reference to an iiyama product, program, or service is not intended to state or imply that only iiyama product, program, or service may be used. -
Page 7: Table Of Contents
Contents Danger Statements ..... . . iii Notices ......v Attention . - Page 8 Hinweise ......37 viii AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL...
-
Page 9: Chapter 1. Before Setting Up
A Dual DVI output compliant video graphics card (hereafter simply called the DVI) Refer to http://www.iiyama.co.jp for the latest information. iiyama is not held responsible for any damages incurred by the installation of unsupported cards. Unpacking Attention: should not be bumped on an edge, or dropped. -
Page 10: Checking Parts
Digital signal cable P/N: 07N2227 Note: The digital signal cable is shipped with one end connected to the monitor. AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL h USER MANUAL (This book) h Connector tool... -
Page 11: Chapter 2. Hardware Setup
Chapter 2. Hardware setup This chapter describes the following: v The location of the controls, switches, and connectors. v The procedure for setting up the monitor. Locations Front view Monitor screen Serial number label Rear view Video connector Security keyhole Base stand DC-IN connector Cable hook... -
Page 12: Setup The Monitor
To store the connector tool, do the following: 1. Clear a work space, and turn the monitor face down. 2. Remove the stand rear cover. AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL Stand rear cover... - Page 13 3. Remove the connector cover. Connector cover 4. Unhook the digital signal cable from the cable hook and lift it up to store the connector tool to the rear compartment of the monitor. Cable hook Connector tool Chapter 2. Hardware setup...
-
Page 14: Connecting The Cables
Note: The video connectors A and B on the monitor are Safety Extra Low 2. Route the cables through the cable clamp and the cable hook. AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL Video connector Voltage (SELV) circuits. - Page 15 3. Reinstall the connector cover on the monitor. Connector cover 4. Reinstall the stand rear cover and turn the monitor to the upright position. Stand rear cover Note: Do not power on the monitor or the computer until instructed. Failing to do so may damage these units or the video graphics card.
- Page 16 With the ATI 2078 (or higher) for the best performance of the monitor. The device driver is available at the following Web site: http://support.ati.com AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL ® ™ FireGL...
-
Page 17: Connecting The Power Cord
Connecting the power cord Note: Read the respective ″Danger Statements″ on pages iii before continuing with this section. 1. Connect the power cord to the power adapter. 2. Connect the power plug to a properly grounded power outlet. Note: Make sure that all the cables are connected, otherwise the power-on light will not turn on. - Page 18 This completes the hardware setup. Supplementary Information When powering on the different units, power them on in the following sequence: 1. Monitor 2. Peripheral units 3. Computer AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL Power switch Power lighit...
-
Page 19: Chapter 3. Adjusting And Maintaining Your Monitor
Chapter 3. Adjusting and maintaining your monitor This chapter describes the following: v How to adjust the viewing angle. v How to set the controls. v The operating status of your monitor. v How to disconnect the cables. v How to use the security keylock. v How to maintain your monitor. -
Page 20: Setting The Monitor Control Buttons
Button/ Button Name Menu/Enter Left-Arrow Right-Arrow On/Off AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL Direct access functions Functions available from the OSD Displays the on-screen Enters highlighted menu mode. display (OSD) menu. Sets the screen to a dimmer Moves the cursor to the left for view. -
Page 21: Accessing The On-Screen Display (Osd) Menus
Accessing the on-screen display (OSD) menus You can access the on-screen display (OSD) menus by pressing the Menu/Enter button. The OSD menus enable you to set the various operating conditions of your monitor. The OSD menus consist of the following: v Main menu (for menu selection) v Submenus (for controls setting) –... - Page 22 1. Select the Video Input icon on the Main menu using the Left-Arrow or the Right-Arrow button. 2. Press the Menu/Enter button. The Video Input submenu appears. AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL submenu submenu...
- Page 23 1. Note: To find out more about the color management function, go to the following Web site: http://www.iiyama.co.jp 3. When you want to change the color management function setting or the smooth character display function setting when the input mode push the Left-Arrow button for several seconds.
-
Page 24: Knowing The Operating Status Of Your Monitor
(fast blinking 0.25-sec. intervals) Amber (slow blinking at 1-sec. intervals) AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL Mode Power Consumption Normal 150 W The monitor is operating normally and is receiving Operation (Maximum) the synchronous video signal from the computer. -
Page 25: Disconnecting The Cable
Do not use a digital signal cable other than the one shipped with the product. Using some other cable may damage the monitor or the video graphics card. The cable (P/N: 07N2227) is available at iiyama Customer Support Line (refer to page 21). -
Page 26: Using The Security Keylock
Gently wipe the monitor surface and the cover with a soft, clean cloth. v Do not use flammable chemicals such as alcohol, thinner, or petroleum-based solvents; they will cause a fire hazard and may also damage the screen coating. AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL... -
Page 27: Chapter 4. Troubleshooting
6. If you still have a problem, go to the symptom list below and find the symptom that most resembles yours. Symptom list Before calling your retailer or iiyama, find the symptom that most resembles yours, and try the suggested action. You may be able to solve the problem yourself. Symptom... - Page 28 A few dots are missing, discolored, or inappropriately lighted AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL The display mode of the v Reconfigure the computer to use a computer is outside the supported display mode.
-
Page 29: Warranty Information
4. Computer type and model 5. System configuration (hardware attached, etc.) 6. System BIOS version number 7. Operating system and version number 8. Display driver version number AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor One (1) Year Chapter 4. Troubleshooting... - Page 30 AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL...
-
Page 31: Appendix A. Specifications
Appendix A. Specifications The specifications of the monitor are as follows: Dimensions Weight Tilt Power Power consumption Video input User controls Regulatory compliance Image Formation Time Display area Temperature Relative humidity Width: 547 mm (21.5 in.) Height: 439 mm (17.3 in.) Depth: 196 mm (7.7 in.) Depth (without stand):... -
Page 32: Supported Display Modes
2. The type of resolutions supported depends on the video graphics card being used. AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL Horizontal Vertical DVI Input... -
Page 33: Updating The Settings For Your Monitor
Updating the settings for your monitor Unless you change the video graphics card that drives your monitor, there is usually no need to change the settings. In case the need does arise, a procedure for changing them is given in this appendix. This operation must be done carefully. - Page 34 Press the left or right switch to enter page 2 of the special OSD menu. b. In about five seconds, the current settings will be displayed, as in this example: AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL 1600 1200 3.2 5.0...
- Page 35 The settings cannot be reset to the factory default values by the procedure given in the user’s manual. To reset them to those values, check your model name and choose appropriate number, then update the settings. AQU5611D BK, AQU5611DT BK: Setting number 29 Appendix A. Specifications...
-
Page 36: Valid Settings
Settings are sometimes updated without notice. For the latest information, refer to http://www.iiyama.co.jp Even though a video graphics card is listed here, some of its functions may not be supported. Setting number AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL Applicable model – – – –... -
Page 37: Appendix B. Field-Replaceable Units (Frus)
Appendix B. Field–Replaceable Units (FRUs) Monitor (AQU5611D BK) Monitor (AQU5611DT BK) Power adapter Digital signal cable for DVI Base stand FRU part number Part number 55P4230 55P4233 55P4237 55P4238 07N2245 07N2277 55P0995 07N2227 07N2196 07N1183... - Page 38 AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL...
-
Page 39: Appendix C. Compliance
Appendix C. Compliance TCO’95 Congratulations! You have just purchased a TCO’95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. -
Page 40: Environmental Requirements
(parts per million) of cadmium. The colour-generating layers of display screens must not contain any cadmium. 1. Bio-accumulative is defined as substances which accumulate within living organisms. AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL processes. Flame retardants have been... -
Page 41: Federal Communications Commission (Fcc) Statement
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. iiyama is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. -
Page 42: European Union - Emc Directive
Avertissement: Ceci est un produit de Classe A. Dans un contexte résidentiel ce produit peut causer une interférence radio exigeant que l’utilisateur prenne des mesures adéquates. AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL... -
Page 43: Union Europea - Normativa Emc
Denna produkt överensstämmer med skyddskraven i EU Rådets Direktiv 89/366/ ECC om harmonisering av medlemsstaternas lagregler för elektromagnetisk kompatibilitet. iiyama tar inte ansvar för försummelser att uppfylla skyddskraven som resultat av en icke-rekommenderad modifiering av produkten, inklusive valfria kort som inte tillverkats av iiyama. -
Page 44: Statements For Other Countries
Statements for Other Countries Power Cord For your safety, iiyama provides a power cord with a grounded attachment plug to use with this iiyama product. To avoid electrical shock, always use the power cord and plug with a properly grounded power outlet. -
Page 45: Hinweise
Hinweise Gemäβ der Amtsblätter des BMPT Nm. 61/1991 und 6/1992 wird der Betreiber darauf aufmerksam gemächt, daβ die von ihm mit diesem Gerät zusammengestellte Anlage auch den technischen Bestimmungen dieser Amtsblätter genügen muβ. Aus ergonomischen Gründen wird empfohlen, die Grundfarbe Blau nicht auf dunklem Untergrund zu verwenden (schlechte Erkennbarkeit, Augenbelastung bei zu geringem Zeichenkontrast). - Page 46 AQU5611D BK/AQU5611DT BK 9.2 Million Pixels Color TFT LCD Monitor USER MANUAL...
