Scanner
Print Quality Label
4) Using the printer's front panel enter 'MENU MODE' and go to 'DIAGNOSTICS' 'OPTIONS
TESTING' 'TEST SCANNER' 'ALIGNMENT TEST' and then press the ENTER Key (see the
I-Class Operator's Manual for menu system details).

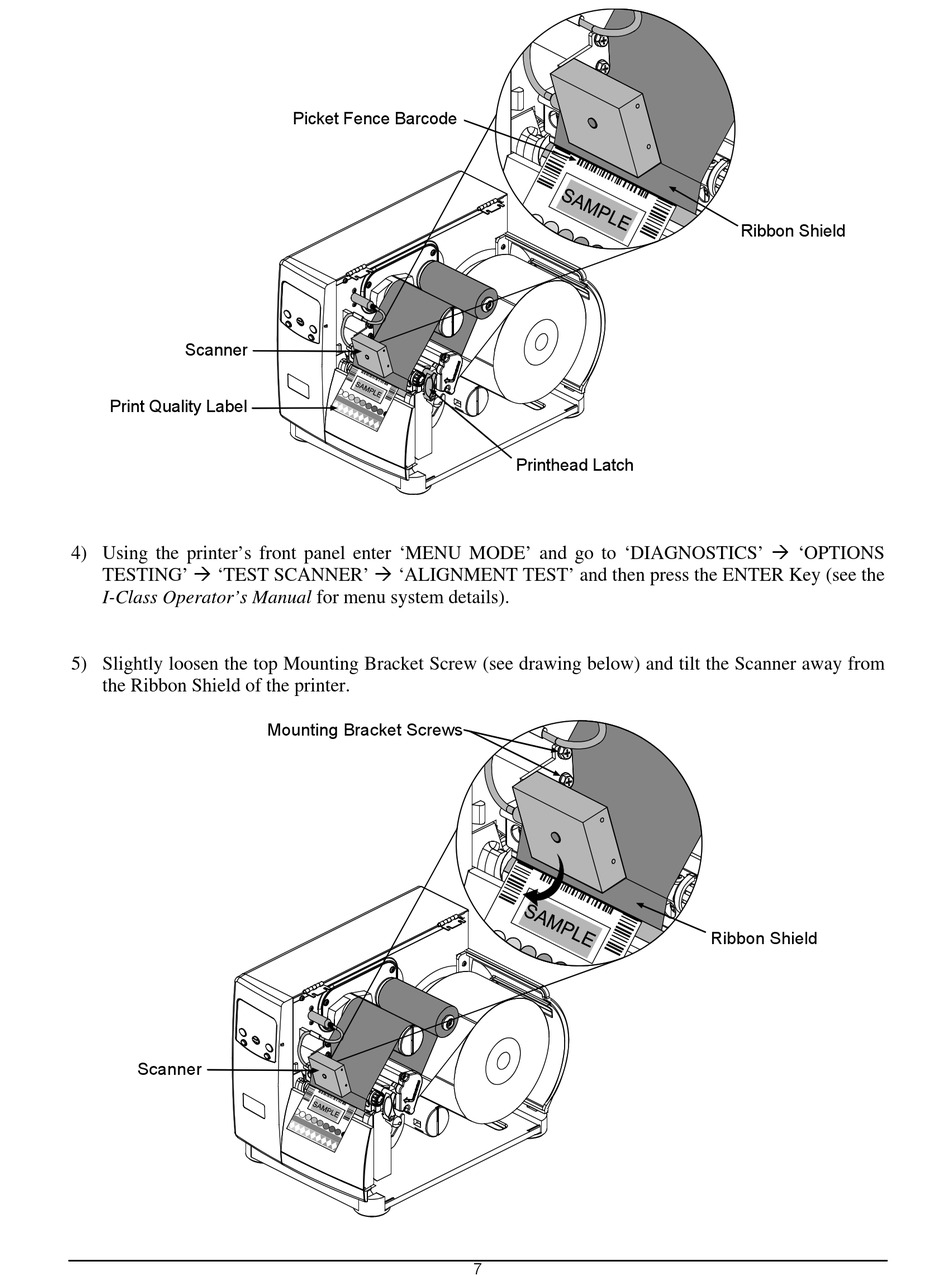

5) Slightly loosen the top Mounting Bracket Screw (see drawing below) and tilt the Scanner away from
the Ribbon Shield of the printer.
Scanner
Picket Fence Barcode
Mounting Bracket Screws
Printhead Latch
7
Ribbon Shield
Ribbon Shield
