DMC-FH2P
Model No.
DMC-FH2PC
DMC-FH2PR
DMC-FH2PU
DMC-FH2GA
DMC-FH2GC
DMC-FH2GD
DMC-FH2GF
DMC-FH2GH
DMC-FH2GK
DMC-FH2GN
DMC-FH2GT
DMC-FS16EB
DMC-FS16EE
DMC-FS16EF
DMC-FS16EG
DMC-FS16EP
DMC-FS14EB
DMC-FS14EE
DMC-FS14EG
DMC-FS14EP
Vol. 1
© Panasonic Corporation 2011 Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. DSC1102026CE
B26
Digital Camera
Advertisement
Chapters
Table of Contents
Related Manuals for Panasonic Lumix DMC-FH2P
Summary of Contents for Panasonic Lumix DMC-FH2P

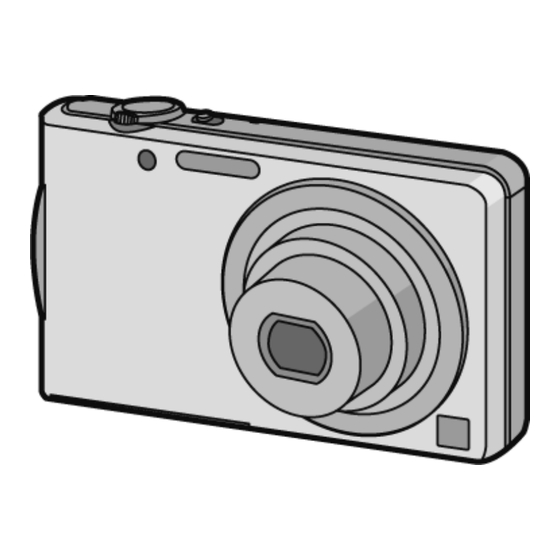

- Page 1 Digital Camera DMC-FH2P Model No. DMC-FH2PC DMC-FH2PR DMC-FH2PU DMC-FH2GA DMC-FH2GC DMC-FH2GD DMC-FH2GF DMC-FH2GH DMC-FH2GK DMC-FH2GN DMC-FH2GT DMC-FS16EB DMC-FS16EE DMC-FS16EF DMC-FS16EG DMC-FS16EP DMC-FS14EB DMC-FS14EE DMC-FS14EG DMC-FS14EP Vol. 1 © Panasonic Corporation 2011 Unauthorized copy- ing and distribution is a violation of law.
-
Page 2: Table Of Contents
Colour [DMC-FS16] (S)...Silver Type (except EF) [DMC-FH2] (K)...Black Type (S)...Silver Type (except P/GD) (P)...Pink Type (except EE) (K)...Black Type (R)...Red Type (P)...Pink Type (except PC/GT) (A)...Blue Type (R)...Red Type (except PR/GD/GT) [DMC-FS14] (A)...Blue Type (except PR/GT) (K)...Black Type (R)...Red Type (only EB) TABLE OF CONTENTS PAGE PAGE... -
Page 3: Safety Precautions
1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check 1. IMPORTANT SAFETY NOTICE (See Figure 1.) There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check. -
Page 4: How To Discharge The E.capacitor On Flash P.c
1.4. How to Discharge the E.Capacitor on Flash P.C.B. CAUTION: 1. Be sure to discharge the E.capacitor on FLASH P.C.B.. 2. Be careful of the high voltage circuit on FLASH P.C.B. when servicing. [Discharging Procedure] 1. Refer to the disassemble procedure and remove the necessary parts/unit. 2. -
Page 5: Warning
2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD). -
Page 6: Caution For Ac Cord(For Eb/Gc
A replacement fuse cover can be purchased from your local 2.3.2.3. How to Replace the Fuse Panasonic Dealer. 1. Remove the Fuse Cover with a screwdriver. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety. -
Page 7: How To Replace The Lithium Battery
NOTE: This Lithium battery is a critical component. (Type No.: ML421 Manufactured by Energy Company, Panasonic Corporation.) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in requirement designed specifically for its use. -
Page 8: Service Navigation
3 Service Navigation 3.1. Introduction This service manual contains technical information, which allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2. -
Page 9: General Description About Lead Free Solder (Pbf)
3.3. General Description About Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin (Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30°C (86°F) more than that of the normal solder. -
Page 10: How To Define The Model Suffix (Ntsc Or Pal Model)
3.5. How to Define the Model Suffix (NTSC or PAL model) There are eight kinds of DMC-FH2, DMC-FS16 and DMC-FS14, regardless of the colours. • a) DMC-FH2P/PC • b) DMC-FS16EB/EF/EG/EP, FS14EB/EG/EP • c) DMC-FS16EE, FS14EE • d) DMC-FH2GK • e) DMC-FH2GT •... -
Page 11: Initial Settings
3.5.2. INITIAL SETTINGS: After replacing the MAIN P.C.B., make sure to perform the initial settings after achieving the adjustment by ordering the following procedure in accordance with model suffix of the unit. 1. IMPORTANT NOTICE: Before proceeding Initial settings, make sure to read the following CAUTIONS. 2. - Page 12 [CASE 1. After replacing MAIN P.C.B.] When MAIN P.C.B. has just been replaced, all of the model suffix is displayed as follows. (Five pages in total) [CASE 2. Other than “After replacing MAIN P.C.B.”] • Step 5. Choose the model suffix in “INITIAL SETTINGS”: (Refer to “CAUTION 1”) [Caution: After replacing MAIN P.C.B.] The model suffix can been chosen, JUST ONE TIME.
- Page 13 • Step 6. Chose the model number in "INITIAL SETTINGS": (Only for "EG/EP/EB/EE" models.) This step is necessary only for "EG/EP/EB/EE". Only for model suffix with "EG/EP/EB/EE", there are two kind of model; (DMC-FS14 and DMC-FS16) ,due to difference of sales channel.Therefore, not only model suffix, but also model number (FS14 or FS16) has to be set up in the "INITIAL SETTINGS".
- Page 14 • Step 8. CONFIRMATION: Confirm the display of “PLEASE SET THE CLOCK” in concerned language when the unit is turned on again. When the unit is connected to PC with USB cable, it is detected as removable media. (When the “GT” or “GK” model suffix is selected, the display shows “PLEASE SET THE CLOCK” in Chinese.) 1) As for your reference, major default setting condition is as shown in the following table.
-
Page 15: Specifications
4 Specifications... -
Page 16: Location Of Controls And Components
Do not cover the speaker with your fingers. 17 Microphone 18 Shutter button 20 Tripod receptacle 21 Card/Battery door 22 DC coupler cover When using an AC adaptor, ensure that the Panasonic DC coupler (optional) and AC adaptor (optional) are used. 23 Release lever... - Page 17 Selecting the [Rec] Mode Slide the [Rec]/[Playback] selector switch to [ Press [MODE]. Press / / / to select the mode. Press [MENU/SET]. List of [Rec] Modes Intelligent Auto Mode The subjects are recorded using settings automatically selected by the camera. Normal Picture Mode The subjects are recorded using your own settings.
-
Page 18: Service Mode
6 Service Mode 6.1. Error Code Memory Function 1. General description This unit is equipped with history of error code memory function, and can be memorized 16 error codes in sequence from the latest. When the error is occurred more than 16, the oldest error is overwritten in sequence. The error code is not memorized when the power supply is shut down forcibly (i.e.,when the unit is powered on by the battery, the battery is pulled out) The error code is memorized to FLASH-ROM when the unit has just before powered off. - Page 19 • 3. Error Code List The error code consists of 8 bits data and it shows the following information.
-
Page 20: Ics (Indication Of Additional Camera Settings When Picture Was Taken) Function
Important notice about "Error Code List" 1) About "*" indication: The third digit from the left is different as follows. - In case of 0 (example: 18001000) When the third digit from the left shows "0", this error occurred under the condition of INITIAL SETTINGS has been completed. - Page 21 3. How to read 4. How to exit: Simply, turn the power off. (Since ICS function is executed under the condition of temporary cancellation of "INITIAL SETTINGS", it wake up with normal condition when turn off the power.)
-
Page 22: Service Fixture & Tools
7 Service Fixture & Tools 7.1. Service Fixture and Tools The following Service Fixture and tools are used for checking and servicing this unit. 7.2. When Replacing the Main P.C.B. After replacing the MAIN P.C.B., be sure to achieve adjustment. The service software is available at “TSN Website”. -
Page 23: Disassembly And Assembly Instructions
8 Disassembly and Assembly Instructions 8.1. Disassembly Flow Chart This is a disassembling chart. When assembling, perform this chart conversely. 8.2. P.C.B. Location... -
Page 24: Disassembly Procedure
8.3. Disassembly Procedure 8.3.1. Removal of the Rear Case Unit and Front Case Unit Item Removal Rear Case Unit (Fig. D1) Card Front Case Unit Battery 1 Screw (A) 4 Screws (B) 2 Screws (C) (Fig. D2) Side Ornament R 1 Screw (D) 1 Locking tab Rear Case Unit... - Page 25 8.3.2. Removal of the Sub Operation P.C.B. (Fig. D3) (Fig. D2)
- Page 26 8.3.3. Removal of the LCD Unit 8.3.4. Removal of the Top Case Unit (Fig. D4) (Fig. D5)
- Page 27 8.3.5. Removal of the Lens Unit 8.3.6. Removal of the Top P.C.B. (Fig. D6) (Fig. D7)
- Page 28 8.3.7. Removal of the Main P.C.B. 8.3.8. Removal of the Flash Unit and Speaker (Fig. D8) (Fig. D9)
- Page 29 8.3.9. Removal of the Battery Case (Fig. D11) (Fig. D10)
-
Page 30: Removal Of The Ccd Unit
8.3.10. Removal of the Battery Door Unit 8.4. Removal of the CCD Unit To prevent the CCD unit from catching the dust and dirt, do not remove the CCD unit except for replacing. (Fig. D12) NOTE: (When Installing) Make sure to confirm the following points when installing: •... -
Page 31: Measurements And Adjustments
9 Measurements and Adjustments 9.1. Introduction When servicing this unit, make sure to perform the adjustments necessary based on the part(s) replaced. Before disassembling the unit, it is recommended to back up the camera data stored in flash-rom as a data file. IMPORTANT NOTICE (After replacing the MAIN P.C.B.) After replacing the MAIN P.C.B., it is necessary to use the “DIAS”... - Page 32 9.2.2. Flash-Rom Data Backup When trouble occurs, it is recommended to backup the Flash-rom data before disassembling the unit. There are two kinds of Flash-rom data backup methods: [ ROM_BACKUP (Method of Non-PC backup) ] 1. Insert the SD-card into the camera. 2.
-
Page 33: Details Of Electrical Adjustment
9.3. Details of Electrical Adjustment 9.3.1. How to execute the Electrical Adjustment It is not necessary to connect the camera to a PC to perform adjustments. “Flag reset operation” and “Initial setting operation” are required when carrying out the alignment, follow the procedure below. 9.3.1.1. - Page 34 9.3.1.3. Execute Adjustment (In case of “OIS Adjustment”) 1. Perform step “9.3.1.1.” to “9.3.1.2.”, to reset the OIS flag status “F” (Set) to “0” (Reset) 2. Press “DISP” after Flag reset. OIS Adjustment screen is displayed on the LCD panel. (Refer to Fig.3-3) 3.
- Page 35 9.3.2. Adjustment Specifications The following matrix table shows the relation between the replaced part and the Necessary Adjustment. When a part is replaced, make sure to perform the necessary adjustment(s) in the order indicated. The table below shows all the information necessary to perform each adjustment.
-
Page 37: After Adjustment
9.4. After Adjustment 9.4.1. Initial Setting Since the initial setting has been released to execute the built-in adjustment software, it should be set up again before shipping the camera to the customer. Refer to the procedure described in “3.5.2. INITIAL SETTINGS” for details. [ IMPORTANT ] 1. -
Page 38: Maintenance
10 Maintenance 10.1. Cleaning Lens and LCD Panel Do not touch the surface of lens and LCD Panel with your hand. When cleaning the lens, use air-Blower to blow off the dust. When cleaning the LCD Panel, dampen the lens cleaning paper with lens cleaner, and the gently wipe the its surface. Note: The Lens Cleaning KIT ;... - Page 39 DSC1102026CE S1. About Indication of The Schematic Diagram Service Manual S1.1. Important Safety Notice COMPONENTS IDENTIFIED WITH THE MARK HAVE THE SPECIAL CHARACTERISTICS Diagrams and Replacement FOR SAFETY. WHEN REPLACING ANY OF THESE COMPONENTS USE ONLY THE SAME TYPE. 1.Although reference number of the parts is indicated on the P.C.B. drawing and/or Parts List schematic diagrams, it is NOT mounted on the P.C.B.
-
Page 40: S2. Voltage Chart
S2. Voltage Chart Note) Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester. S2.1. -
Page 41: S3. Block Diagram
S3. Block Diagram S3.1. Overall Block Diagram MAIN P.C.B. (28mm ~ 112mm) CCD SIGNAL PROCESSOR (24MHz) CDS, AGC, 1/2.33" 14 MEGA PIX A/D, TG, CCD DRIVER ZOOM OIS UNIT IRIS SHUTTER FOCUS CARD REGULATOR MICROPHONE SYSTEM IC MOTOR DRIVE, SYSTEM IC SPEAKER OIS DRIVE&... -
Page 42: S3.2. Flash/Top Block Diagram
S3.2. Flash/Top Block Diagram FLASH BLOCK DIAGRAM FLASH P.C.B. TL8003 CL8001 LAMP(+) T8001 F8001 FP8001 (UNREG+) SAFETY GND C8003 CL8031 TL8007 (For Flash FLASH PCB Charge) TRG FIRST PLATE FP8001 (D.GND) ET8005 CL8011 FLASH TL8001 RL8053 IC8100 TRG SECOND (IGBT DRIVER) FP8001 (A.GND) CL8010... -
Page 43: S4. Schematic Diagram
S4. Schematic Diagram S4.1. Interconnection Diagram M6301 MICROPHONE TOP P.C.B. (FOIL SIDE) : (COMPONENT SIDE) BATTERY UNIT LCD UNIT LENS UNIT SUB OPERATION P.C.B. MAIN P.C.B. (FOIL SIDE) (FOIL SIDE) PP9501 AGND A3R1V OIS GY DO OIS GY DI OIS GY SCK LEFT RIGHT MENU... -
Page 44: S4.2. Top Schematic Diagram
S4.2. Top Schematic Diagram RL6301 D_GND tokei RL6302 TELE_WIDE RL6303 RL6304 SHUTTER_1 S6301 D6301 K0F212A00003 R6337 R6338 SHUTTER_0 RL6305 RL6306 AF3R4V 22[18] 22[18] B3ADB0000170 CATHODE RL6307 RL6308 POWER_ON_L TELE WIDE M6301 R6339 LB6301 MIC_GND 5100 RL6309 J0JCC0000415 RL6310 MIC_IN RL6312 D_GND L0CBAY000093 K0D112B00145... -
Page 45: S4.3. Flash Schematic Diagram
S4.3. Flash Schematic Diagram CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE1.25A 32V FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES 1.25A 32V D' INCENDIE N' UTILISERQUE DES FUSIBLE DE MÉME TYPE 1.25A 32V. TL8002 TL8003 LAMP[-] LAMP[+]... -
Page 46: S4.4. Ccd Flex Schematic Diagram
S4.4. CCD Flex Schematic Diagram FT3101 CON_CHK CCD_GND 31 30 CCD_GND V11B MSUBSW CCD_GND φV11B φV10 CCD_OUT φH4 [37]φV12 [29]MSUBSW φV9A CCD_GND φH2 [38]φV11A φV9B CCD_GND φSUB R3107 CCD_GND φV8 IC3101 φH1 1300 MN34571PBHCV φH3 φV7 φV6 φHL [11]φV3A [20]SUBSW2 SUBSW1 φV5 SUBSW1... -
Page 47: S5. Print Circuit Board
S5. Print Circuit Board S5.1. Top P.C.B. VA6001 R6352 S6303 ET6305 S6301 S6302 C6314 (Component Side) B6301 R6337 TL6304 R6338 D6301 LB6301 (Foil Side) DMC-FH2/FS16/FS14 Top P.C.B. -
Page 48: S5.2. Flash P.c.b
S5.2. Flash P.C.B. C8003 8 7 6 5 Q8001 CL8004 CL8006 CL8005 CL8008 CL8010 (Component Side) RL8052 RL8051 TL8003 D8002 CL8001 TL8001 L8001 FP8001 TL8002 CL8032 ET8003 CL8031 IC8100 ET8005 R8006 CL8011 C8001 RL8053 R8021 TL8007 (Foil Side) DMC-FH2/FS16/FS14 Flash P.C.B. S-10... -
Page 49: S5.3. Ccd Flex P.c.b
S5.3. CCD Flex P.C.B. (Component Side) TH3101 C3101 R3108 Q3101 IC3101 (Foil Side) DMC-FH2/FS16/FS14 CCD Flex P.C.B. S-11... - Page 50 S-12...
-
Page 51: S6. Replacement Parts List
ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES section. Definition of Parts supplier: 1. Parts marked with [ENERGY] in the remarks column are supplied from Panasonic Corporation Energy Company. 2. Parts marked with [SPC] in the remarks column are supplied from AVC-CSC-SPC. - Page 52 DMC-FS16EG-S Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP56127B MAIN P.C.B. 1 E.S.D. VEP58151A TOP P.C.B. 1 (RTL) E.S.D. VEP58150A FLASH P.C.B. 1 (RTL) E.S.D. VEK0R38 CCD UNIT VEP56127B MAIN P.C.B. E.S.D.
- Page 53 DMC-FS16EG-S Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks 39-1 VGU0H64 CURSOR BUTTON B VEP50081A SUB OPERATION P.C.B. 1 (RTL) E.S.D. 39-2 VGU0H65 MENU SET BUTTON B VEP56127B MAIN P.C.B. 1 E.S.D. VYK4Q63 TOP CASE UNIT 1 (DMC-FS14)
- Page 54 DMC-FS16EG-S Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VPF1372-A CAMERA BAG DE-A91BA/SX BATTERY CHARGER 1 FH2P,PC,PU ----- BATTERY 1 FH2P,PC,PU K1HY08YY0015 USB CABLE W/PLUG 1 FH2P,PC,PU K1HY08YY0016 AV CABLE W/PLUG 1 FH2P,PC,PU VFC4297-B HAND STRAP 1 FH2P,PC,PU...
- Page 55 DMC-FS16EG-S Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VQT3D34 BASIC O/I 1 FS16EG, FS14EG VPF1372-A CAMERA BAG (ITALIAN/DUTCH) DE-A92CA/SX BATTERY CHARGER 1 FH2GT VQT3D38 BASIC O/I 1 FS16EP, FS14EP DE-A92DA/SX BATTERY CHARGER 1 FH2PR (POLISH/CZECH) DE-A92BA/SX...
-
Page 56: S7. Exploded View
S7. Exploded View S7.1. Frame and Casing Section 40-1 39-1 39-2 B101 B100 B102 29-1 29-2 S-18... -
Page 57: S7.2. Packing Parts And Accessories Section (1
S7.2. Packing Parts and Accessories Section (1) (PC only) Stick the UPC LABEL (Ref. No. 215) for [PC] model on the original UPC place. (PC only) S-19... -
Page 58: S7.3. Packing Parts And Accessories Section (2
S7.3. Packing Parts and Accessories Section (2) (GT only) (DMC-FH2PR) (DMC-FH2GA/GD/GF DMC-FS16EE/EF/EG/EP DMC-FS14EE/EG/EP) (DMC-FH2GC/GH DMC-FS16EB DMC-FS14EB) (DMC-FH2GK/GT) (DMC-FH2GN) (GD only) Stick the GD LABEL (Ref. No. 315) for [GD] model on the original printed place. S-20...
