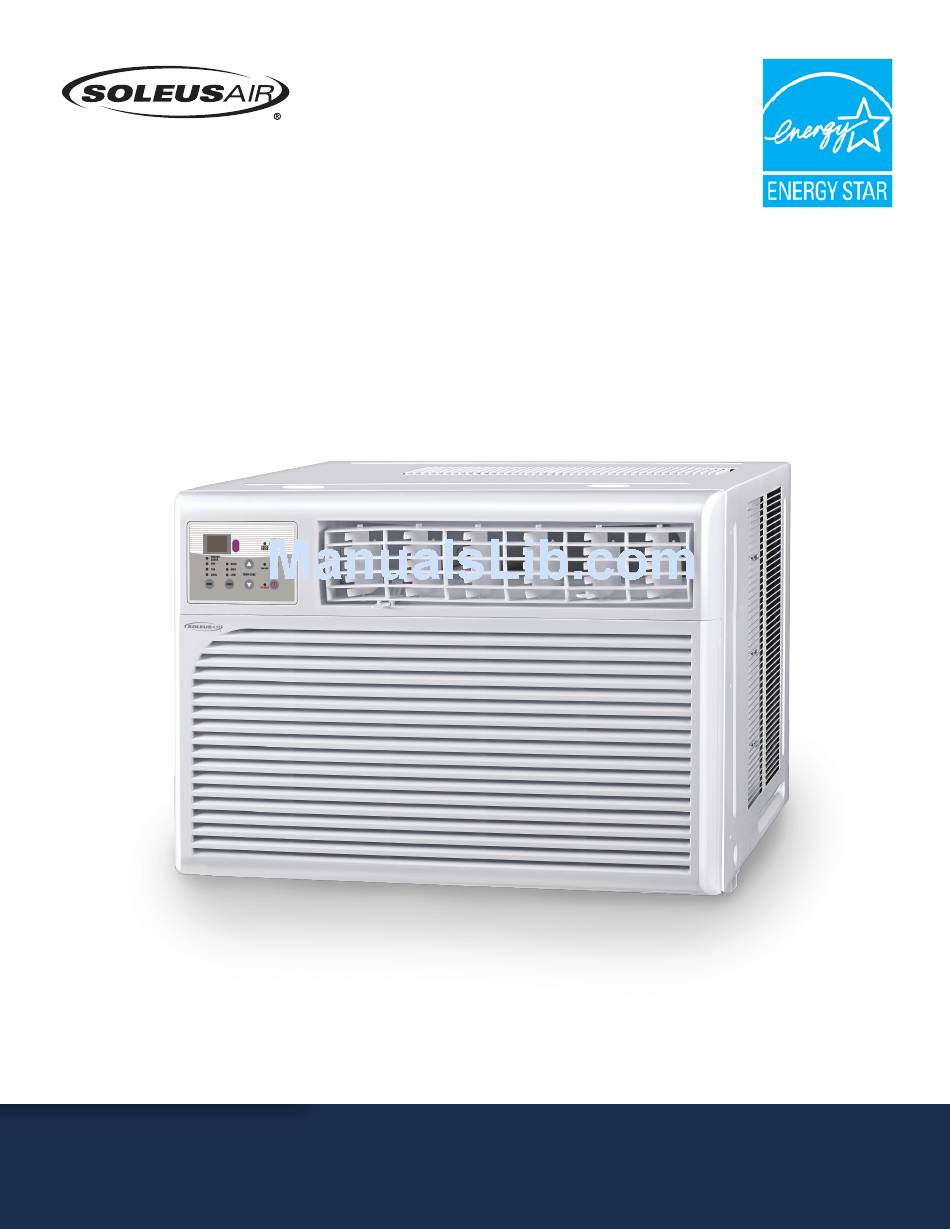

- Page 1 Models HCC-W12ES-A1 HCC-W15ES-A1 Electronic Window A/C Operating Instructions V.140424...
-
Page 2: Important Safety Instructions
Thank you for choosing a Soleus Air Air Conditioner. This owner’s manual will proide you with valu- able information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new air conditioner. -
Page 3: Lcdi Power Cord And Plug
If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations. -
Page 4: Parts List
PARTS LIST Hardware Qty. (in plastic bag) Sash Lock Screw and Locknut WINDOW SASH SEAL Flathead Bolt and Locknut SASH LOCK AND SHORT SCREW Sill Angle Bracket TOP MOUNTING Curtain Lock FOAM GASKET RAIL SHORT SCREW Long Screws CURTAIN Short Screws CURTAIN LOCK FRAME TOOLS NEEDED... -
Page 5: Specifications
Power consumption is measured when the fan runs at the highest speed setting. • These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. Model HCC-W12ES-A1 HCC-W15ES-A1 Power Supply (Ph/V/Hz) 1/115/60... -
Page 6: Window Preparation
Before installing the unit, check the dimensions of your window to make sure the air conditioner will fit. This unit is made to fit inside a standard double-hung window. Make sure the window is in good shape and able to firmly hold the needed screws. If not, make repairs prior to installing the unit. Model HCC-W12ES-A1 HCC-W15ES-A1 Unit Height 17 6/8”... -
Page 7: Remove Chassis
INSTALLATION & ASSEMBLY INSTRUCTIONS - WINDOW MOUNTING REMOVE CHASSIS 1. Pull down the front panel and remove the filter. (See Fig. 3) 2. Lift the front panel upwards to remove and place to the side. Fig. 3 Fig. 4 3. Locate the four faceplate screws and remove. These screws will need to be re-installed prior to mounting the air con- ditioner. - Page 8 ASSEMBLY & INSTALLATION (CONT.) Top Angle Rail and Side Bracket Installation Placing the Cabinet Inside the Window 1. Open the window and place the cabinet in the middle of the window sill. 1. Place the air conditioner on a hard flat surface. 2.
-
Page 9: Install Support Brackets
Install Support Brackets Install the Window Lock and Sash Seal 1. Hold each support bracket flush against the outside of 1. Trim the sash seal to fit the width of the window. Insert the window sill. Tighten each bracket to the bottom of the sash seal into space between the upper and lower the cabinet as shown below. - Page 10 ASSEMBLY & INSTALLATION (CONT.) Installing the Chassis into the Cabinet Extend the Curtain Panels 1. Carefully raise the window to expose the curtain panel 1. Team lift (two people) the air conditioner chassis and and panel frame. Extend the curtain panels to fill the carefully slide it into the cabinet.
-
Page 11: Using Your Air Conditioner
USING YOUR AIR CONDITIONER 3. Temperature Set: Use these buttons on the con- Electronic Control Panel & Remote Control trol panel and remote to increase or decrease the Set Temperature (the desired room temperature) in cooling,energy saver and dry mode. NOTE: This display always shows the room temperature in Fan Mode except when setting the Set temperature or the Timer To switch between Celsius/Fahrenheit display,... -
Page 12: Operating Your Air Conditioner
OPERATING YOUR AIR CONDITIONER REMOTE CONTROL COOL - Press the COOL button to turn cooling mode on or off. 8. DRY - Press the DRY button to turn dehu- midifying mode on or off. Fan speed can only be set to low in this mode. 9. - Page 13 USING YOUR AIR CONDITIONER Freezing Conditions: This is a cooling only air • Fan Only Mode: Use Fan Only mode at Low, • conditioner. It is not designed for freezing outdoor Med, or High fan speed to provide air circulation conditions.
-
Page 14: Care And Cleaning
CARE AND CLEANING Cabinet Cleaning To clean the air conditioner cabinet: Clean your air conditioner to keep it looking new and to minimize dust build up. Unplug the air conditioner to prevent shock or • a fire hazard. The cabinet and front panel of Air Filter Cleaning the air conditioner may be dusted with an oil- The air filter should be checked at least once... -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The Air Conditioner will not start The air conditioner is unplugged • Make sure the air conditioner is plug is pushed completely into the outlet • Check the house fuse/circuit The fuse is blown/circuit breaker is breaker box and replace the fuse tripped. - Page 16 TROUBLESHOOTING (CONT.) PROBLEM POSSIBLE CAUSES SOLUTIONS Water is dripping outside Hot and Humid weather. • This is normal Water is dripping inside the room The air conditioner is not correctly • For proper water drainage, make tilted outside. sure the air conditioner is slightly tilted downward from the front of the unit to the rear.
-
Page 17: Warranty
Warranty Soleus Home Comfort warrants the accompanying Soleus Air Air Conditioner to be free of defects in mate- rial and workmanship for the applications specified in its operation instruction for the period of parts specified below. 5 YEARS FOR COMPRESSOR 1 YEAR FOR OTHER COMPONENTS This warranty shall not apply to broken or marred cabinets, accessories, knobs, filters or routine maintenance.
