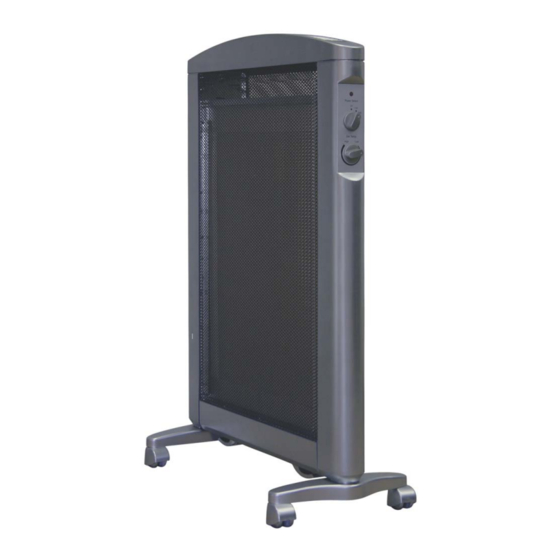

Soleus Air HM1-10-32 Owner's Manual

Ultra thin micathermic heater
Hide thumbs Also See for HM1-10-32:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Ultra Thin
Micathermic Heater
OWNER'S MANUAL
Model # HM1-10-32
PLEASE SAVE THESE INSTRUCTIONS
WARNING: READ THIS OWNER'S MANUAL CAREFULLY BEFORE USE.

Advertisement

Table of Contents
loading

Related Manuals for Soleus Air HM1-10-32

Summary of Contents for Soleus Air HM1-10-32

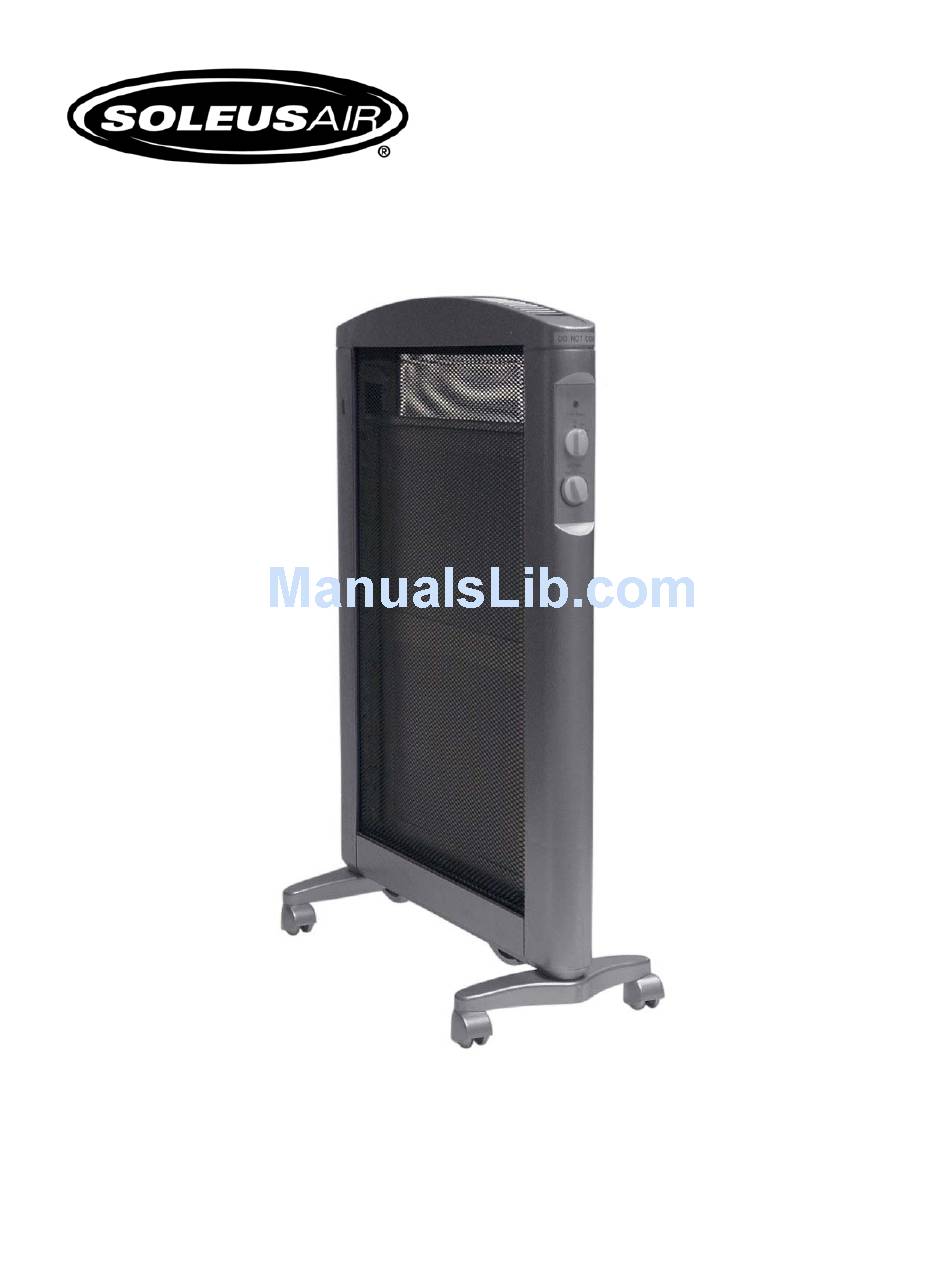

  • Page 1 Ultra Thin Micathermic Heater OWNER’S MANUAL Model # HM1-10-32 PLEASE SAVE THESE INSTRUCTIONS WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE.

  • Page 2: Important Instructions

    ULTRA THIN MICATHERMIC HEATER Thank you for choosing a Soleus Air heater. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater.
  • Page 3 NOT use on soft surfaces, like a bed, where openings may become blocked. 12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.

  • Page 4: Specifications

    SPECIFICATIONS Voltage Rating 120 V (60Hz) Power Consumption 500/1000W Unit Size 18 in. (W) x 8 in. (D) x 26 in. (H) Unit Weight 8.8 lbs PRODUCT DIAGRAM Handle Control Panel Wheel Base Wheel...
  • Page 5 ASSEMBLY 1. Remove the heater body, two wheelbases, wheels, screws, and washers from the box. Remove the packaging materials and keep for future storage. 2. Attach the wheels to each wheelbase with the supplied wheel screws, small black spring- washers, and small grey washers. Wheel Screw Wheel Small Black Spring-Washer...

  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet. Only operate heater in upright position with caster wheels attached. Two controls dials; one to select the power setting, and the other to select the desired temperature. Power Indicator Light Power Select Dial Set Temperature Dial...
  • Page 7 3. Leave the thermostat control at its maximum setting until the desired temperature is reached. Carefully lower the thermostat control by turning counter-clockwise until the heater stops operating. The indicator light will shut off. 4. Leave thermostat control at this position. The heater will automatically cycle on and off to maintain the chosen room temperature.

  • Page 8: Maintenance

    MAINTENANCE 1. Unplug the unit and let it cool completely. 2. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid enter the heater.
  • Page 9 WARRANTY One Year Limited Warranty Soleus International Inc. warrants the accompanying Soleus Air HM1-10-32 to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
