Invacare Mistral Plus User Manual

Electric wheelchair
Hide thumbs Also See for Mistral Plus:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Invacare® Mistral Plus
Electric wheelchair
User manual

Advertisement

Table of Contents
loading

Related Manuals for Invacare Mistral Plus

Summary of Contents for Invacare Mistral Plus

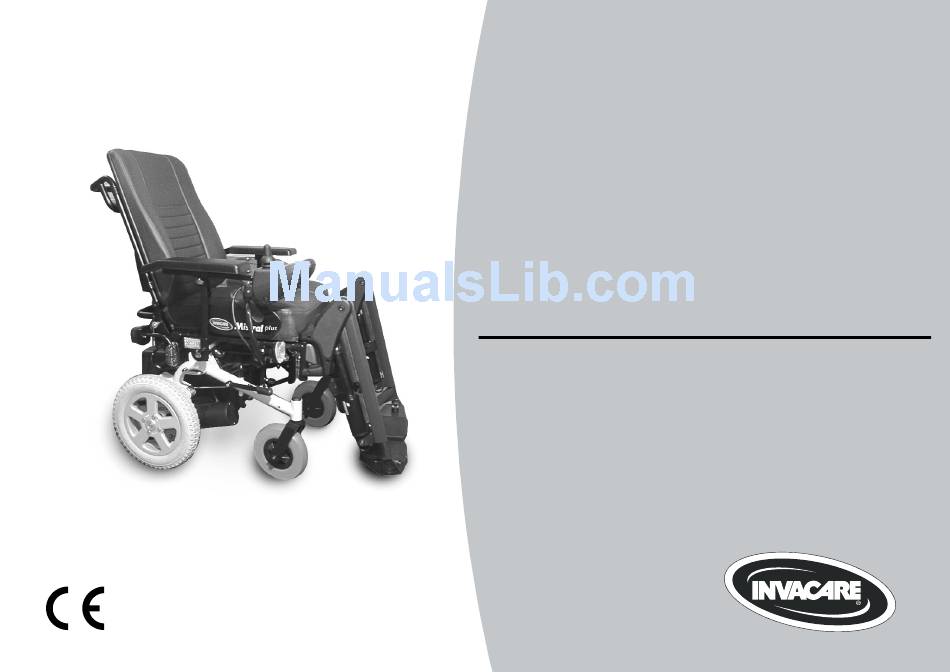

  • Page 1 Invacare® Mistral Plus Electric wheelchair User manual...
  • Page 2 How can you get in touch with Invacare®? If you have any questions or need support, please contact your authorised Invacare® Dealer, who has the necessary know-how and equipment plus the special knowledge concerning your Invacare® product, and can offer you all-round satisfactory service. Should you wish to contact Invacare® directly, you can reach us in Europe at the following addresses and phone numbers.
  • Page 3 +44 (0)1656 776 220 Pencoed uk@invacare.com Bridgend CF35 5HZ eire@invacare.com United Kingdom WWW: www.invacare.co.uk Invacare Mecc San s.r.l. +39 0445 38 00 59 Via Dei Pini, 62 Fax: +39 0445 38 00 34 I - 36016 Thiene (VI) italia@invacare.com ITALIA WWW: www.invacare.it...
  • Page 4 Invacare Portugal, Lda +351 225 1059 46 Rua Estrada Velha, 949  +351 225 1059 47 P-4465-784 Leça do Balio Fax: +351 225 1057 39 Portugal portugal@invacare.com WWW: www.invacare.pt Återförsäljare: (Kundtjänst): +46 (0)8 761 70 90 Invacare® AB Fax (Kundtjänst):...

  • Page 5: Table Of Contents

    Table of Contents Chapter Page Introduction Important symbols in this manual ..................11 Important symbols found on the vehicle ................12 Type classification and permissible use................14 Guarantee ..........................14 Indications..........................15 Life expectancy........................15 Safety Notes General Safety Notes ......................16 Safety information with regard to care and maintenance ...........19 Safety information on the anti tip wheels ................20 Safety Information on Electromagnetic Interference............21 Safety Information on Driving and Freewheel Mode............22...
  • Page 6 Pushing the wheelchair in freewheel mode Disengaging Motors ........................30 Remotes Adjustment Options Adjusting angle of the backrest .....................32 8.1.1 Adjusting the backrest using the metal plate with holes..........33 8.1.2 Adjusting the backrest using the gas pressure spring..........35 Adjusting the seat tilt ......................36 8.2.1 Adjusting the seat angle manually................36 Adjusting the armrests ......................38...
  • Page 7 9.2.3 Adjusting the length ......................49 9.2.4 Adjusting the angle of the footplate (option) ..............50 9.2.5 Removing the Footrest ....................50 Manual height adjustable legrest 90° - 0°................51 9.3.1 General Information ......................51 9.3.2 Adjusting the angle .......................52 9.3.3 Adjusting the length ......................53 9.3.4 Adjusting the Angle of the Footplate................53 9.3.5...
  • Page 8 10.2.3.3 How to handle damaged batteries correctly ............70 11 Care and maintenance 12 Repair Instructions 12.1 Repairing a flat tyre .........................74 12.1.1 Repairing a flat tyre (pneumatic tyres type 200 x 50)...........75 12.1.2 Repairing a flat tyre at the back (tyre type 3.00-8") ............77 13 Transport 13.1 Folding the backrest down .....................80...

  • Page 9: Introduction

    The decision whether the model is suitable for the user may only be taken by medical specialists with appropriate expertise. Invacare® or their statutory representatives can accept no liability in cases in which the wheelchair has not been adapted to suit the users’ handicaps.
  • Page 10 This manual contains copyrighted information. This manual may not be reproduced or reprinted either partly or completely without previous written consent from Invacare® or its statutory representatives. We reserve the right to make any necessary alterations on the grounds of...

  • Page 11: Important Symbols In This Manual

    Important symbols in this manual WARNING! This symbol warns you of danger! • Always follow these instructions to avoid injury to the user or damage to the product! EXPLOSION HAZARD! This symbol warns you of an explosion hazard, which, for example, can be caused by excessive tyre pressure in a pneumatic tyre! •...

  • Page 12: Important Symbols Found On The Vehicle

    This wheelchair may be used as a vehicle seat, but only if it is equipped with the headrest that has been approved by Invacare for this purpose! • Please always make sure that the wheelchair is equipped with the headrest available from Invacare before using it as a vehicle seat!
  • Page 13 This symbol indicates the maximum width to which an armrest may be adjusted. Pulling the armrest out further can cause it to fall out of it's fixation. For further information, see chapter "Fehler! Verweisquelle konnte nicht gefunden werden." on page Fehler! Textmarke nicht definiert.. If the electric wheelchair is fitted with a table, it is imperative that it is removed and safely stowed when transporting the wheelchair in a vehicle!

  • Page 14: Type Classification And Permissible Use

    Type classification and permissible use This vehicle was designed for persons whose ability to walk is impaired, but who are still physically and mentally able to operate an electric vehicle. It has been classified according to EN 12184 as a class B mobility product (for indoor and outdoor areas).

  • Page 15: Indications

    Indications The use of this mobility product is recommended for the following indications: The inability or a greatly restricted ability to walk within the scope of the basic requirement to be able to move within one’s own four walls. The need to leave the dwelling place in order to get some fresh air during a short walk or to reach those places generally to be found at close distance to the dwelling and where everyday business is carried out.

  • Page 16: Safety Notes

    Safety Notes READ WELL BEFORE OPERATION! General Safety Notes Danger of injury if mobility device is used in any other way than the purpose described in this manual! • Only ever use the mobility device in accordance with the instructions in this User's Manual (see chapter "Type classification and permissible use"...
  • Page 17 Danger of injury if the mobility device is switched off while driving, for example by pressing the On/Off Button or disconnecting a cable, due to it coming to an abrupt, sharp stop! • If you have to brake in an emergency, simply release the joystick which will bring you to a halt. (refer to the joystick operating manual for more information).
  • Page 18 Danger of fire or breaking down due to electric devices being connected! • Do not connect any electric devices to your mobility device that are not expressly certified by Invacare® for this purpose. Have all electrical installations done by your authorised Invacare® Dealer.

  • Page 19: Safety Information With Regard To Care And Maintenance

    Safety information with regard to care and maintenance Danger of accident and loss of guarantee if maintenance is insufficient! • For reasons of safety and in order to avoid accidents which result from unnoticed wear, it is important that this electric mobility product undergoes an inspection once every year under normal operating conditions (see inspection plan contained in service instructions).

  • Page 20: Safety Information On The Anti Tip Wheels

    Safety information on the anti tip wheels CAUTION: Danger of tipping over! The anti tip wheels have three settings. They can only have full effect in the longest setting and prevent the wheelchair tipping over. • The anti tip wheels must always be set in the longest (rear) position.

  • Page 21: Safety Information On Electromagnetic Interference

    Safety Information on Electromagnetic Interference This electric vehicle was successfully tested in accordance with International standards as to its compliance with Electromagnetic Interference (EMI) Regulations. However, electromagnetic fields, such as those generated by radio and television transmitters, and cellular phones, can influence the functions of electric vehicles.

  • Page 22: Safety Information On Driving And Freewheel Mode

    Safety Information on Driving and Freewheel Mode Danger of injury if the wheelchair tips over! • Inclines and declines can only be travelled up to the maximum safe slope (see chapter "Technical Specifications" from page 92). • Always return the backrest of your seat or the seat tilt to an upright position before ascending slopes.
  • Page 23 Danger of breaking down in adverse weather conditions, i.e. extreme cold, in an isolated area! • If you are a user with severely limited mobility, we advise that in the case of adverse weather conditions DO NOT attempt a journey without an accompanying attendant! Danger of injury if your foot slides off the footrest and gets caught underneath the wheelchair when it is in motion! •...

  • Page 24: The Most Important Components

    The most important components 1) Push Handle 2) Armrest 3) Battery box 4) Drive motor 5) Backrest 6) Joystick Box 7) Legrests 8) Declutching lever...

  • Page 25: Getting In And Out Of The Wheelchair

    Getting in and out of the wheelchair Danger of injury if legrests break due to use as a stepping board! • Do not use the legrests as a stepping board when getting in and out of the wheelchair! Removing / inserting armrest To get in and out from the side, the armrest must be removed.
  • Page 26 Getting into the wheelchair: • Position your wheelchair as close as possible to your seat. This might have to be done by an attendant. • Switch your wheelchair off. • Apply the manual wheel lock of your wheelchair (if existing). •...

  • Page 27: Driving

    Driving NOTE The maximum load capacity that is stated in the technical data only states that the system is designed for this mass in total. However, this does not mean that one can sit a person with this body weight in the wheelchair without restrictions. Attention must be paid to the body proportions, such as height, weight distribution, abdominal girth, leg and calf girth and seat depth.

  • Page 28: Taking Obstacles

    Taking Obstacles Your wheelchair can overcome obstacles and kerbs with the following heights. • Invacare® Mistral without kerbrider: 6 cm • Invacare® Mistral with kerbrider: 10 cm CAUTION: Danger of Tipping Over! • Never approach obstacles at an angle but at 90 degrees as shown below.

  • Page 29: Driving Up And Down Gradients

    Driving up and down gradients For information concerning the maximum safe slope, please see chapter "Technical Specifications" starting on page 92. WARNING: Danger of tipping over! • Only ever drive downhill at a maximum of 2/3 of the top speed. Avoid sudden changes of direction or abrupt braking when driving on slopes.

  • Page 30: Pushing The Wheelchair In Freewheel Mode

    Pushing the wheelchair in freewheel mode Disengaging Motors The motors of the wheelchair are equipped with automatic brakes, preventing that the wheelchair starts rolling out of control when the joystick box is switched off. When pushing the wheelchair manually whilst freewheeling, the magnetic brakes must be disengaged. Danger of the vehicle running away! •...

  • Page 31: Remotes

    Remotes Your wheelchair may be equipped with one of several different remotes. For information on the different functions and how to operate a particular remote, please see it's corresponding User Guide.

  • Page 32: Adjustment Options

    Adjustment Options This chapter will cover different ways to adapt the wheelchair to suit the user's sitting posture, for example: • Adjusting the angle of the backrest • Adjusting the seat tilt • Adjusting the height and the length of the Joystick Box Adjusting angle of the backrest Depending on the wheelchair configuration, the backrest of the Mistral can be adjusted in one of three different ways:...

  • Page 33: Adjusting The Backrest Using The Metal Plate With Holes

    8.1.1 Adjusting the backrest using the metal plate with holes Requirements: • Open-end spanner 10 mm • Allen key 5 mm The metal plate with screw-holes determines the Position of the metal plate angle of the backrest, which attaches the backrest to the frame.
  • Page 34 Adjusting angle of the backrest • Remove the screw using the 5 mm Allen key and the Metal plate with holes 10 mm open-end spanner. • Determine which holes are to be used to adjust the Backrest to the desired angle. •...

  • Page 35: Adjusting The Backrest Using The Gas Pressure Spring

    8.1.2 Adjusting the backrest using the gas pressure spring The lever for adjusting the backrest is located on the opposite side from the Joystick Box under the armrest. The angle can be adjusted continuously between 0° and 30°. Adjusting angle of the backrest •...

  • Page 36: Adjusting The Seat Tilt

    Adjusting the seat tilt Depending on the version, the seat angle on the Mistrial can be either adjusted manually or electrically using the remote. Please see the relevant separate instruction manual for your remote for information on electrical adjustment via the actuator. 8.2.1 Adjusting the seat angle manually The Mistral seat angle with manual adjustment has four different positions.
  • Page 37 WARNING: Danger of injury if support rods are not correctly secured! The seat tilt can be released unintentionally by abrupt braking and maneuvering! • When tightening the thumb screws, make sure they securely fit into the notches in the support rods! WARNING: Danger of injury! •...

  • Page 38: Adjusting The Armrests

    Adjusting the armrests 8.3.1 Adjusting the height • Loosen thumb screw (1). • Adjust the armrest to the desired height. • Tighten the thumb screw again. 8.3.2 Adjusting the width of the side parts • Release the clamping lever (2). •...

  • Page 39: Adjusting The Headrest

    Adjusting the headrest 8.4.1 Adjusting the angle of the headrest • Release the clamping lever (2). Adjusting the position • Adjust the headrest to the desired position. • Re-tighten the clamping lever. 8.4.2 Adjusting the height of the headrest Adjusting the height •...

  • Page 40: Postural Belts

    Postural belts A postural belt is an option which can either be fixed to the wheelchair ex-works or can be retrofitted by your specialist dealer. If your wheelchair is fitted with a postural belt, your specialist dealer will have informed you about fitting and usage. The postural belt is used to help the wheelchair user keep an optimum sitting position.

  • Page 41: Adjusting The Postural Belt Correctly

    If the belt is only fastened with a bolted connection, ensure that the connection has not loosened or undone. You can find more information about maintenance work on belts in the service manual, which is available from Invacare®.

  • Page 42: Adjusting And Removing The Tray

    Adjusting and removing the tray CAUTION: Injury hazard or material damage if an electric wheelchair which is fitted with a table is transported in a vehicle! • If a table is fitted, always remove it before transporting the wheelchair. 8.6.1 Laterally adjusting the tray •...

  • Page 43: Adjusting The Depth Of The Tray / Removing The Tray

    8.6.2 Adjusting the depth of the tray / removing the tray • Loosen the wing-screw (1). • Adjust the table to the desired depth (or remove it entirely). • Re-tighten the screw. 8.6.3 Swinging the tray away to the side The tray can be swivelled up and away to the side to allow the user to get in and out of the mobility device CAUTION! Risk of injury! When the tray is raised it does not lock in place in this position!
  • Page 44 The tray can be swivelled upwards and pushed to the side as illustrated to enable getting on and off.

  • Page 45: Adjusting The Footrests And The Legrests

    Adjusting the footrests and the legrests "Standard 80°" Footrest Removing the Footrest • Release the footrest by pressing or pulling the lever (1). • Swing footrest out approximately 90° (2). • Pull footrest up out of its holder.
  • Page 46 Adjust the length of the footrest Requirements: • 1x Spanner 10 mm • 1x Allen key 5 mm • Loosen and remove the screw (2) using the Allen key and the spanner. • Adjust the footrest to the desired height, making sure to align the holes in the tubes.

  • Page 47: Standard Footrest With Pre-Adjusted Angle

    This way the footrest can be individually adjusted to the angle of the seat the user's needs. Adjustment of the footrest can be done with corresponding tools. We recommend that this adjustment be done by a trained Invacare® Dealer.

  • Page 48: Adjusting The Angle

    9.2.2 Adjusting the angle WARNING: Danger of Injury if footrest or legrest is incorrectly adjusted! • Before and during each drive, always make sure there is sufficient clearance between the legrest (or footrest) and the ground, as well as the castors! Requirements: •...

  • Page 49: Adjusting The Length

    9.2.3 Adjusting the length Requirements: • 1x Allen key 5 mm • Loosen the screw which allows the length to be adjusted using the Allen Key. • Adjust to the desired length. • Tighten the screw again.

  • Page 50: Adjusting The Angle Of The Footplate (Option)

    9.2.4 Adjusting the angle of the footplate (option) Requirements: • 1x Allen key 5 mm • Loosen both of the screws that hold the footplate, using a 5 mm Allen Key. • Adjust to the desired angle. • Tighten the screws again. 9.2.5 Removing the Footrest Release the footrest by...

  • Page 51: Manual Height Adjustable Legrest 90° - 0

    Manual height adjustable legrest 90° - 0° 9.3.1 General Information The manual height-adjustable legrest can easily be adapted to the individual needs of the user. The angle of the footrest in relation to the seat and its length are adjustable. This way the footrest can be individually adjusted to the angle of the seat the user's needs.

  • Page 52: Adjusting The Angle

    9.3.2 Adjusting the angle WARNING: Danger of Injury if footrest or legrest is incorrectly adjusted! • Before and during each drive, always make sure there is sufficient clearance between the legrest (or footrest) and the ground, as well as the castors! •...

  • Page 53: Adjusting The Length

    9.3.3 Adjusting the length • Loosen the screw that allows the length to be adjusted. • Adjust to the desired length. • Tighten the screw again. 9.3.4 Adjusting the Angle of the Footplate Requirements: • 1x Allen key 5 mm •...

  • Page 54: Removing The Footrest

    9.3.5 Removing the Footrest Release footrest by pressing Swing footrest out Pull footrest up out of its button. approximately 90°. holder.

  • Page 55: Manual Height-Adjustable Legrest 80° - 0° With Ergonomic Length Compensation

    The manual height-adjustable legrest provides quick mechanical adjustment of the angle of the legrest. Adjustment of the length of the legrest and of the angle of the footplate can be done with corresponding tools. We recommend that this adjustment be done by a trained Invacare® Dealer.

  • Page 56: Adjusting The Angle

    9.4.2 Adjusting the angle WARNING: Danger of injury by moving parts! • Do not place fingers in the area between the upper and lower parts of the legrest! • Raising: Pull the legrest upwards until the desired angle is reached. •...

  • Page 57: Adjusting The Length

    9.4.3 Adjusting the length Requirements: • 1x Allen key 5 mm • Loosen the screw which allows the length to be adjusted using the Allen Key. • Adjust to the desired length. • Tighten the screw again.

  • Page 58: Adjusting The Angle Of The Footplate

    9.4.4 Adjusting the Angle of the Footplate Requirements: • 1x Allen key 5 mm • Loosen both of the screws that hold the footplate, using a 5 mm Allen Key. • Adjust to the desired angle. • Tighten the screws again. 9.4.5 Removing the Footrest Release footrest by pressing...

  • Page 59: Electrically Height-Adjustable Legrest 80° - 0° With Ergonomic Length Compensation

    The angle of the legrest can the adjusted electrically. Adjustment of the length of the legrest and of the angle of the footplate can be done with corresponding tools. We recommend that this adjustment be done by a trained Invacare® Dealer.

  • Page 60: Adjusting The Angle

    9.5.2 Adjusting the angle WARNING: Danger of injury by moving parts! • Do not place fingers in the area between the upper and lower parts of the legrest! • The angle of the legrest can be adjusted by means of the joystick box. Please refer to the appropriate separate instruction manual for the remote for information on electrical adjustment using the actuator.

  • Page 61: Adjusting The Angle Of The Footplate

    9.5.4 Adjusting the Angle of the Footplate Requirements: • 1x Allen key 5 mm • Loosen both of the screws which hold the footplate, using a 5 mm Allen Key. • Adjust to the desired angle. • Tighten the screws again. 9.5.5 Removing the Footrest Release footrest by pressing...

  • Page 62: Electrical System

    Electrical System 10.1 Electronics Protection System The vehicle's electronics are equipped with an overload-protection system. If the motors are put under considerable strain for a longer period of time (for example, when driving up a steep hill) and especially when the ambient temperature is high, then the electronic system could overheat.

  • Page 63: The Main Fuse

    NOTE A defective main fuse may be replaced only after checking the entire electric system. An Invacare® specialised dealer must perform the replacement. You can find information on the fuse type in chapter "Technical Specifications" starting on page 92. 10.2 Batteries 10.2.1 What you need to know about batteries...
  • Page 64 The batteries cannot be overcharged with the specified charger. Please use only charging devices in Class 2. This class of chargers may be left unattended during charging. All charging devices which are supplied by Invacare® comply with these requirements.

  • Page 65: Charging The Batteries

    • Only ever use the battery charger supplied with your vehicle, or a charger that has been approved by Invacare®. Danger of electric shock and damage to the battery charger if it is allowed to get wet! • Protect the battery charger from water.
  • Page 66 The charging socket is on the bottom of the Joystick Box. Connecting the charger Proceed in the following order: • Switch the electric wheelchair off at the Joystick Box. • Connect the battery charger to the Joystick Box. • Connect the battery charger to the mains power supply and switch on.

  • Page 67: Removing And Fitting Batteries

    10.2.3 Removing and fitting batteries WARNING: Danger of injury if the batteries are not handled correctly during assembly and maintenance work! • New batteries should be installed by authorised technicians! • Observe the warnings on the batteries! • Take into account the heavy weight of the batteries! •...

  • Page 68: Removing The Batteries

    10.2.3.1 Removing the batteries Requirements: • Wrench 10 mm • Wrench 13 mm • Wrench 19 mm NOTE The removal of the batteries from the battery box is described in detail in chapter "Removing the batteries." on page 83. • Open battery carrying strap (1). •...

  • Page 69: Connecting The New Batteries

    10.2.3.2 Connecting the New Batteries • Fasten battery clamp (2) of the red cable to the positive pole of the battery and tighten by means of a wrench. • Fasten battery clamp (2) of the blue cable to the negative pole of the battery and fasten by means of a wrench.

  • Page 70: How To Handle Damaged Batteries Correctly

    • Only ever transport damaged batteries in an appropriate acid-resistant receptacle. • Wash all objects that have come into contact with acid with lots of water. Disposing of dead or damaged batteries correctly Dead or damaged batteries can be given back to your dealer or directly to Invacare®.

  • Page 71: Care And Maintenance

    Care and maintenance NOTE: Have your vehicle checked once a year by an authorised Invacare® dealer in order to maintain it's driving safety and roadworthiness. Cleaning the vehicle When cleaning the vehicle, pay attention to the following points: • Only use a damp cloth and gentle detergent.
  • Page 72 Maintenance Jobs Seat and backrest padding: - Check for perfect condition. Side part and armrest: - Are all fastening elements installed? - Can armrests / side parts be removed and installed without too much physical effort? - Are armrests secured in their positions? Legrests: - Do legrests lock into place without any problem? (Only applies to detachable legrests)
  • Page 73 - Clean all parts carefully. When necessary Have your vehicle inspected and serviced once a year by your authorised dealer. A complete checklist of necessary maintenance work can be found in the Service Manual, which can be obtained from Invacare®.

  • Page 74: Repair Instructions

    "Technical Specifications" on page 92, or consult the Service Manual, available from Invacare® (in this connection please see the addresses and phone numbers in section "How can you get in touch with Invacare®?" on page 2). In case you require assistance, please contact your Invacare® Dealer.

  • Page 75: Repairing A Flat Tyre (Pneumatic Tyres Type 200 X 50)

    12.1.1 Repairing a flat tyre (pneumatic tyres type 200 x 50) Requirements: • Allen key 5 mm • 2 x Open-end spanners 13 mm • Repair kit for inner tubes or an new inner tube. • Talcum powder Remove the wheel •...
  • Page 76 Repair the flat tyre. • Remove the valve cap. • Let the air out of the tyre by pressing the pin in the centre of the valve in. • Remove the 5 Allen screws (3) • Take the tyre and the inner tube off of the rim halves. •...

  • Page 77: Repairing A Flat Tyre At The Back (Tyre Type 3.00-8")

    12.1.2 Repairing a flat tyre at the back (tyre type 3.00-8") Injury hazard! If the wheel has been insufficiently secured during assembly, it can become loosened during driving! • When refitting the drive wheels, tighten the Torx screw that secures the wheel to the hub to a torque of 30 Nm! •...
  • Page 78 Removing the wheel • Jack the vehicle up and place a block of wood underneath it to prop it up. • Remove the countersunk screw (1) using the Torx bit. • Remove the wheel from the axle. EXPLOSION HAZARD! The wheel will explode if the air pressure is not released from the tyre before disassembling the wheel rim! •...
  • Page 79 NOTE In case the old inner tube is to be repaired and used again, and it happens to get wet during repair, then it is easier to re-fit it if you powder it lightly with talcum powder. NOTE Re-assembly is done in reverse order. Make sure that the wheel is put back on the same side it was on, and that it runs in the same direction it did before it was removed.

  • Page 80: Transport

    Transport There are two ways to prepare the wheelchair for transport: • In case your Mistral is equipped with an electric or gas pressure spring adjustable backrest, then the backrest can simply be folded down forwards. • In addition, all Mistral models can be dismantled and folded for the transport. 13.1 Folding the backrest down The adjustable backrest is fitted with quick-release pins.

  • Page 81: Dismantling The Wheelchair For Transport

    13.2 Dismantling the wheelchair for transport To dismantle and fold the wheelchair for transport, proceed as follows: • Remove the legrests • Remove the kerbrider (available as an option and not always fitted). • Loosen the traverse bar of the backrest (or remove the adjustable back). •...

  • Page 82: Removing The Legrests

    13.2.1 Removing the legrests NOTE The way the legrests are removed depends on the type of legrest. For more information on this, please see chapter "Adjusting the footrests and the legrests" on page 45. 13.2.2 Removing the kerbrider The kerbrider is fitted with quick-release pins. The quick-release pins are equipped with spring loaded catches (1), which ensure that they don't fall out of their holes.

  • Page 83: Removing The Batteries

    13.2.3 Removing the batteries. WARNING: Danger of injury due to the heavy weight of the battery box! • The battery box should only ever be lifted by two persons together. • Do not reach under the battery box. • Disconnect the cables from the battery box lid. •...
  • Page 84 • Remove battery box lid by pulling it backwards out of the wheelchair. • Disconnect the cables from the batteries. • Remove the batteries from the battery box.

  • Page 85: Removing The Battery Box

    13.2.4 Removing the battery box • Undo the belt that holds the battery box. • Pull the battery box backward out of the support frame.

  • Page 86: Releasing The Traverse Bar Of The Backrest Frame

    13.2.5 Releasing the traverse bar of the backrest frame Release the traverse bar: • Loosen the knurled screws at both ends (1) the traverse bar. • Unhook the traverse bar from the right knurled screw (2).

  • Page 87: Removing The Backrest

    13.2.6 Removing the backrest NOTE The removal of the backrest is shown here, using the pneumatic adjustable back as an example. The standard backrest is removed for transport in the same manner. In case you have a wheelchair with a manually adjustable backrest: •...
  • Page 88 • Remove the quick-release pins (2) that hold the backrest. • Pull the backrest up out of its brackets.

  • Page 89: Folding The Wheelchair

    13.2.7 Folding the wheelchair Step 1 Step 2 Step 3 Remove the seat cushion Lean the wheelchair slightly Press the wheelchair to one side. together. Pull the seat up by the front and rear edges.

  • Page 90: Folding The Wheelchair Apart

    13.2.8 Folding the wheelchair apart WARNING: Danger of injury by moving parts! • Take care not to get your hands pinched between the two halves of the seat, when pushing them down! • To unfold the wheelchair, lift it slightly on one side, and open it by pushing the armrests or the push-handles of the backrest apart.

  • Page 91: Re-Assembling The Wheelchair

    13.2.9 Re-assembling the wheelchair NOTE Re-assembly of the wheelchair is done in reverse order to the disassembly process. WARNING: Danger of injury if battery box does not latch securely into place! • After re-assembling the wheelchair, make sure that the buckle of the belt that holds the battery box is securely locked into place! To check this, rattle and tug at the battery box!

  • Page 92: Technical Specifications

    2.5 bar (40 psi) pneumatic tyres The actual kerb weight depends on the fittings your mobility aid has been supplied with. Every Invacare® mobility aid is weighed when leaving the works. Please refer to the nameplate for the kerb weight (including batteries) measured.

  • Page 93: Inspections Performed

    It is confirmed by stamp and signature that all jobs listed in the inspection schedule of the Service and Repair Instructions have been properly performed. The list of the inspection jobs to be performed can be found in the Service Manual which is available through Invacare®. Delivery Inspection...
