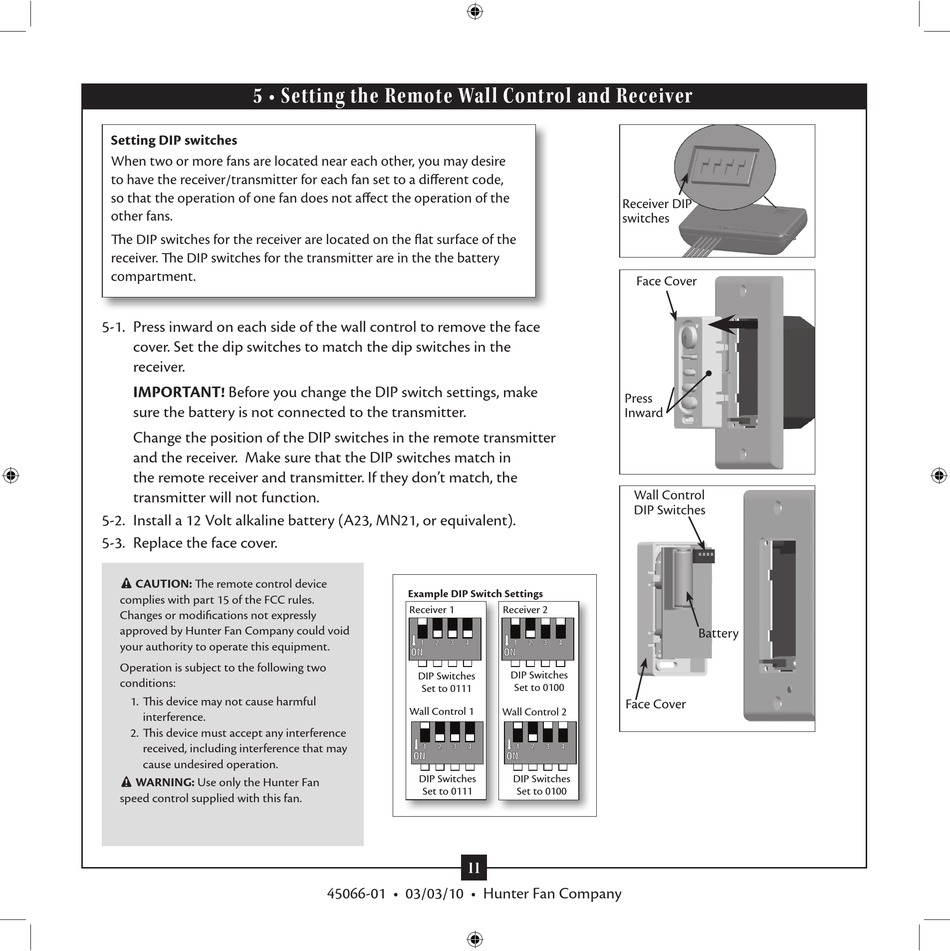

5 • Setting the Remote Wall Control and Receiver
Setting DIP switches
When two or more fans are located near each other, you may desire
to have the receiver/transmitter for each fan set to a different code,
so that the operation of one fan does not affect the operation of the
other fans.
The DIP switches for the receiver are located on the flat surface of the
receiver. The DIP switches for the transmitter are in the the battery
compartment.
5-1. Press inward on each side of the wall control to remove the face
cover. Set the dip switches to match the dip switches in the
receiver.
IMPORTANT! Before you change the DIP switch settings, make
sure the battery is not connected to the transmitter.
Change the position of the DIP switches in the remote transmitter
and the receiver. Make sure that the DIP switches match in
the remote receiver and transmitter. If they don't match, the
transmitter will not function.
5-2. Install a 12 Volt alkaline battery (A23, MN21, or equivalent).
5-3. Replace the face cover.
CAUTION: The remote control device
complies with part 15 of the FCC rules.
Changes or modifications not expressly
approved by Hunter Fan Company could void
your authority to operate this equipment.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
WARNING: Use only the Hunter Fan
speed control supplied with this fan.
Example DIP Switch Settings
Receiver 1 Receiver 2
DIP Switches
Dip Switches
Set to 01110
Set to 0111
Wall Control 1
Wall Control 2
DIP Switches
Dip Switches
Set to 01110
Set to 0111
11
45066-01 • 03/03/10 • Hunter Fan Company
Receiver DIP
switches
Face Cover
Press
Inward
Wall Control
DIP Switches
DIP Switches
Dip Switches
Set to 01001
Set to 0100
Face Cover
DIP Switches
Dip Switches
Set to 01001
Set to 0100
Battery
