Carrier TP-PAC Product Data

TP---PAC, TP---PHP , TP---PRH
TP---NAC, TP---NHP , TP---NRH
Performancet Series Edget Thermostat

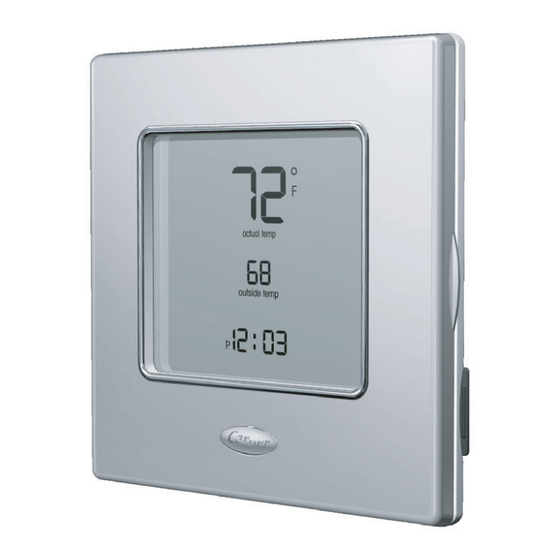

Fig. 1 - - Performance Series Programmable Thermostat
Fig. 2 - - Performance Series Non- -programmable Thermostat
US patents: US7287709 B2, US20080147242 A1, USD582800 SI, US20060165149 A1,
US6956463 B2.
Product Data
A07049
A07048
Designed and Assembled
in the USA.
The Carrier Performancet Series Edget thermostats consists of
programmable and non- -programmable air conditioner, heat pump
and Thermidistatt controls. These units feature non- -mercury,
non- -lead based electronic controls built into a subtle, slim plastic
enclosure.
FEATURES/BENEFITS
Edge Programmable & Non- -Programmable
S Outdoor Air Temperature (OAT) sensor option
S Auto changeover available
S Battery free
S Non- -volatile memory to retain settings during a power outage
S Keypad lockout
S English/Metric units selection
S Filter/UV light/Humidifier pad replacement indicators
S Continuous display back- -lighting configurable
S Hybrid Heat compatible
S RC/RH power compatible
S 2- -wire communicating installation option
Edge Programmable models
S ExPt expansion port* for use with future enhancements and/ or
features
S Programmable with personal computer**
S 7, 5- -2, All Days programmable
S 4 or 2 periods per day programmability
S Programmable fan by period
S Vacation mode controls temperature and humidity
S Remote room sensor option
S Adjusts automatically for Daylight Savings Time
Edge Non- -Programmable models
t programmability
S
Air Conditioner Control
S 1- -stage heat / 1- -stage cool
Heat Pump Control
S 3- -stage heat / 2- -stage cool
Thermidistat Control
S Heat pump 2- -stage or Hybrid Heat 3- -stage heat / 2- -stage
cooling with humidity control
S Humidity display
S Humidify output for direct control of humidifier
S Dehumidify output for variable- -speed blowers
S Hybrid Heat compatible
* ExP accessory (expansion port and memory card) sold separately
** Requires ExP accessory
