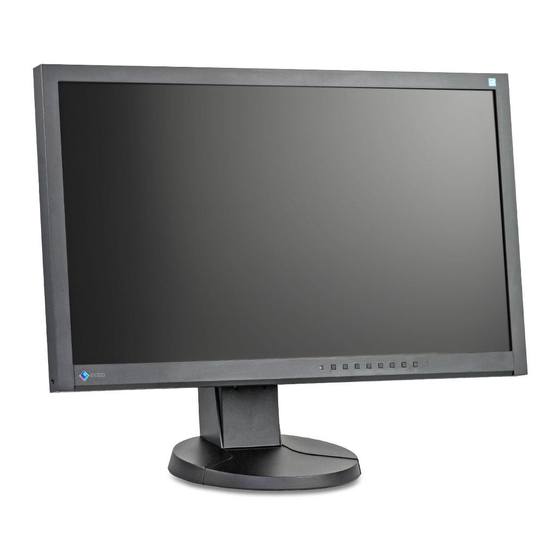

Chapter 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features • 23.0″ wide format LCD • Applicable to the resolution of 1920 × 1080. • IPS panel with 89° horizontal and vertical viewing angles (EV2335W only) •...
Page 8
When transmitting an audio signal using the DisplayPort cable, the graphics board must be compatible with audio output (see “6-4. Specifications” (page 42)). Reference values: EV2315W Maximum power consumption: 31 W (Brightness Max., speaker working, at default settings) Standard power consumption: 16 W (Brightness 120 cd/m , speaker not working, at default settings) EV2335W Maximum power consumption: 35 W (Brightness Max., speaker working, at default settings)
1-3. EIZO LCD Utility Disk An “EIZO LCD Utility Disk” (CD-ROM) is supplied with this product. The following table shows the disk contents and the overview of the software programs. ● Disk contents and software overview The disk includes software programs for adjustment, and User’s Manual. Refer to Readme.txt file on the disk for software startup procedures or file access procedures.
Page 11
Adjusting / Setting 1. Choose a menu to adjust / set with , , and then press . The Sub menu appears. 2. Choose an item to adjust / set with , , and then press . The adjustment / setting menu appears. 3.
Chapter 2 Adjusting Screens 2-1. Compatible Resolutions The monitor supports the following resolutions. ● EV2315W Analog Input (D-Sub) Vertical Scan Resolution Applicable Signals Dot Clock Frequency 640×480 60Hz 800×600 VESA 60Hz 1024×768 VESA 60Hz 1280×960 VESA 60Hz 148.5MHz 1280×1024 VESA 60Hz (Max.) 1280×720...
2-2. Setting the Resolution When you connect the monitor to the PC and find that the resolution is improper, or when you want to change the resolution, follow the procedure below. ● Windows 7 1. Right-click the mouse anywhere on the desktop except for icons. 2.
2-3. Adjusting Color ● To select the display mode (Color Mode) This function allows easy selection of a desired mode according to monitor application. Display Modes Mode Purpose User1 Selectoneoftheseusermodestodefineadesiredsetofparametersettings. User2 sRGB SuitableforcolormatchingwithsRGBcompatibleperipherals. Paper Producesaprintedpapereffectbydecreasingcontrastandcolortemperature. Movie Suitableforplayingbackanimatedimages. Themodemenu appears. Procedure 1.
● To perform advanced adjustments The “Color” menu of the Setting menu allows you to set and save the independent color adjustment for each mode. Attention • The monitor will take about 30 minutes before its internal electric components stabilize. Wait 30 minutes or more after turning the monitor power on before starting adjustment.
● To adjust brightness The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel). Adjustable range 0 to 100 Procedure 1. Choose “Color” in the Setting menu, and press 2. Choose “Brightness” in the “Color” menu, and press The “Brightness”...
● To adjust color temperature Color temperature can be adjusted. The color temperature is normally used to express the hue of “White” and / or “Black” by a numerical value. The value is expressed in degrees “K” (Kelvin). The screen becomes reddish at a low color temperature, and bluish at a high color temperature, like the flame temperature.
● To adjust the color saturation This function allows you to adjust color saturation. Adjustable range -50 to 50 Procedure 1. Choose “Color” in the Setting menu, and press 2. Choose “Advanced Settings” in the “Color” menu, and press 3. Choose “Saturation” in the “Advanced Settings” menu, and press The “Saturation”...
● To set overdrive intensity (EV2335W only) This function allows you to set overdrive intensity based on the use of the monitor. You can reduce Image lags by setting it to “Enhanced” when displaying animated images. Adjustable range Enhanced, Standard, Off Procedure 1.
2-4. Screen Adjustment ● Digital Signal Input When digital signals are input, images are displayed correctly based on the preset data of the monitor, but if characters and / or lines appear blurred, go to “To modify blurred characters / lines” (page 25).
Page 23
Prepare to use analog screen adjustment patterns. Load the “EIZO LCD Utility Disk” to your PC, and then open the “Screen adjustment pattern files”. Note • For details and instructions on opening the “Screen adjustment pattern files”, refer to the Readme.txt file.
● To remove flickering or blurring Procedure 1. Choose “Analog Adjustment” in the “Screen” menu, and press 2. Choose “Phase” in the “Analog Adjustment” menu, and press The “Phase” menu appears. 3. Adjust the phase with to minimize flickering or blurring. 4.
Adjusting color gradation. ● To adjust color gradation automatically Every color gradation (0 to 255) can be displayed by adjusting the signal output level. Procedure 1. Display Pattern 2 in full screen on the monitor using the “Screen adjustment pattern files”. 2.
2-5. Screen Size Changing ● Screen Size Changing The image with the resolution other than the recommended resolution is displayed in full screen automatically. You can change the screen size by using the “Screen Size” function. Setting Function FullScreen Displaysanimageinfullscreen.Imagesaredistortedinsomecasesbecausethe verticalrateisnotequaltothehorizontalrate.
Chapter 3 Setting Monitor 3-1. Adjusting Volume This function allows you to adjust the volume. Adjustable range 0 to 30 Procedure 1. Presss 2. Use for adjustment. 3. Press to exit. Note • The volume for the speakers and the headphone can be set individually. 3-2.
3-3. Switching Viewing Angle (EV2315W only) The viewing angle is adjusted so that the screen looks like a front view when the screen is looked up. ° -20 ° -40 Adjustable range , -20 , Off ° ° Procedure 1. Choose “Monitor Settings” in the Setting menu, and press 2.
“Portrait” position, settings of your graphics board need to be changed. Refer to the User’s Manual of the graphics board for details. 3-7. Setting the EIZO Logo Display When the monitor is turned on, the EIZO logo appears on the screen. You can choose to display or not to display the EIZO logo. Procedure 1.
3-9. Setting Language This function allows you to select a language for the Setting menu or displaying message. Selectable languages English / German / French / Spanish / Italian / Swedish / Japanese / Simplified Chinese / Traditional Chinese Procedure 1.
Chapter 4 Power Saving Functions 4-1. Setting Power Saving ● Monitor This function allows you to set the monitor into the power saving mode according to the PC status. When the monitor has shifted to the power saving mode, the images on the screen are not displayed. Attention •...
● To have further reduced power consumption When all the conditions below are met and the monitor shifts to the power saving mode, the power consumption is reduced to approx. 0.1 W. • The analog signal (D-Sub) is displayed. • “PowerManager” - “Off Timer”: Off •...
4-3. Enabling / Disabling Automatic Brightness Adjustment The ambient light sensor on the front side of the monitor detects the environmental brightness to adjust the screen brightness automatically and comfortably by using the Auto EcoView function. Attention • Be careful not to block the ambient light sensor on the lower side of the monitor when using the Auto EcoView function. Procedure 1.
4-5. Checking the power saving level The EcoView menu allows you to check Power Reduction, CO2 Reduction, and Eco Performance Level. The more indicators light up representing the Eco Performance Level, the higher the power saving level attained. Example: EV2335W Indicator Procedure 1.
Chapter 5 Troubleshooting If a problem still remains after applying the suggested remedies, contact your local dealer. 5-1. No picture Problem Possible cause and remedy 1. No picture • Checkwhetherthepowercordisconnectedproperly. • Powerindicatordoesnotlight. • Turnthemainpowerswitchon. • Press . • Turnoffthemainpower,andthenturnitonagaina fewminuteslater. •...
5-2. Imaging problems (for both digital and analog) Problem Possible cause and remedy 1. The screen is too bright or too dark. • Use“Brightness”or“Contrast”intheSettingmenuto adjustit.(TheLCDmonitorbacklighthasalimitedlife span.Whenthescreenbecomesdarkorbeginsto flicker,contactyourlocaldealer.) • Ifthescreenistoobright,turnonAutoEcoView andEcoViewOptimizer.Themonitordetectsthe environmentalbrightnesstoadjustthescreen brightnessautomatically. 2. Characters are blurred. • CheckwhetherthePCisconfiguredtomeetthe resolutionandverticalscanfrequencyrequirements ofthemonitor(see“2-1.CompatibleResolutions” (page13)).
5-3. Imaging problems (for digital only) Problem Possible cause and remedy 1. The monitor configuration is changed to • WhentwomonitorsareconnectedtoonePCusing single under the multiple monitor configu- DisplayPort,andthepowertooneofthemonitorsis ration (when DisplayPort is connected) turnedoffwiththepowerbutton,thescreensetting (EV2335W only) maybechangedtothesinglemonitorconfiguration. Insuchacase,enablethe“DPHotPlug”functionwith thefollowingprocedures.Enablingthisfunctionmay increasethepowerconsumption. 1.Press to turn off the monitor.
5-5. Other problems Problem Possible cause and remedy 1. The Setting menu does not appear. • Checkwhethertheoperationlockfunctionworks(see “3-5.LockingButtons”(page28)). 2. The “Smoothing” on the Setting menu • Youcannotchoose“smoothing”whenthescreenis “Screen” cannot be selected. displayedinthefollowingresolutionsorsettings. - Theresolutionis1920×1080 - ScreenSizeis“Normal” 3. The auto adjustment function does not •...
An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the corresponding optional arm (or optional stand). http://www.eizo.com Attention • When attaching an arm or stand, follow the instructions of their User’s Manual.
6-2. Connecting Multiple PCs The product has multiple connections to PCs and allows you to switch to one of the connections for display. Connection examples DisplayPort connector D-Sub DVI-Dconnector *EV2335Wonly connector Digital Digital(DVI) Analog(D-Sub) (DisplayPort) Signalcable Signalcable Signalcable (suppliedPP200) (suppliedFD-C39) (EV2315W:suppliedMD-C87...
● To set input signal selection Setting Function Auto ThemonitorrecognizestheconnectorthroughwhichPCsignalsareinput. WhenaPCisturnedofforentersthepowersavingmode,themonitorautomatically displaysanothersignal. Manual ThemonitordetectsonlythePC’ssignalscurrentlydisplayingautomatically.Selectan activeinputsignalwith Procedure 1. Choose “Monitor Settings” from the Adjustment menu, and press 2. Choose “Input Signal” from “Monitor Settings”, and press 3. Select “Auto” or “Manual” with or .
Page 46
Accessories Signalcable MD-C87(EV2335Wonly) CleaningKit EIZO“ScreenCleaner” For the latest information about the accessories, refer to our web site. http://www.eizo.com Chapter6Reference...
6-5. Glossary Clock The analog signal input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in use, when the analog signal is converted to a digital signal for image display. This is called clock adjustment.
Overdrive This technology enhances response speed by increasing the potential difference at the time of motion of liquid-crystal pixels, and it is used for liquid-crystal TV sets and others in general. It provides clear-cut three-dimensional display with little afterimage, by improving response speed of the intermediate graduation range that frequently appears in moving images.
