Summary of Contents for Eizo FlexScan EV2333WH
-

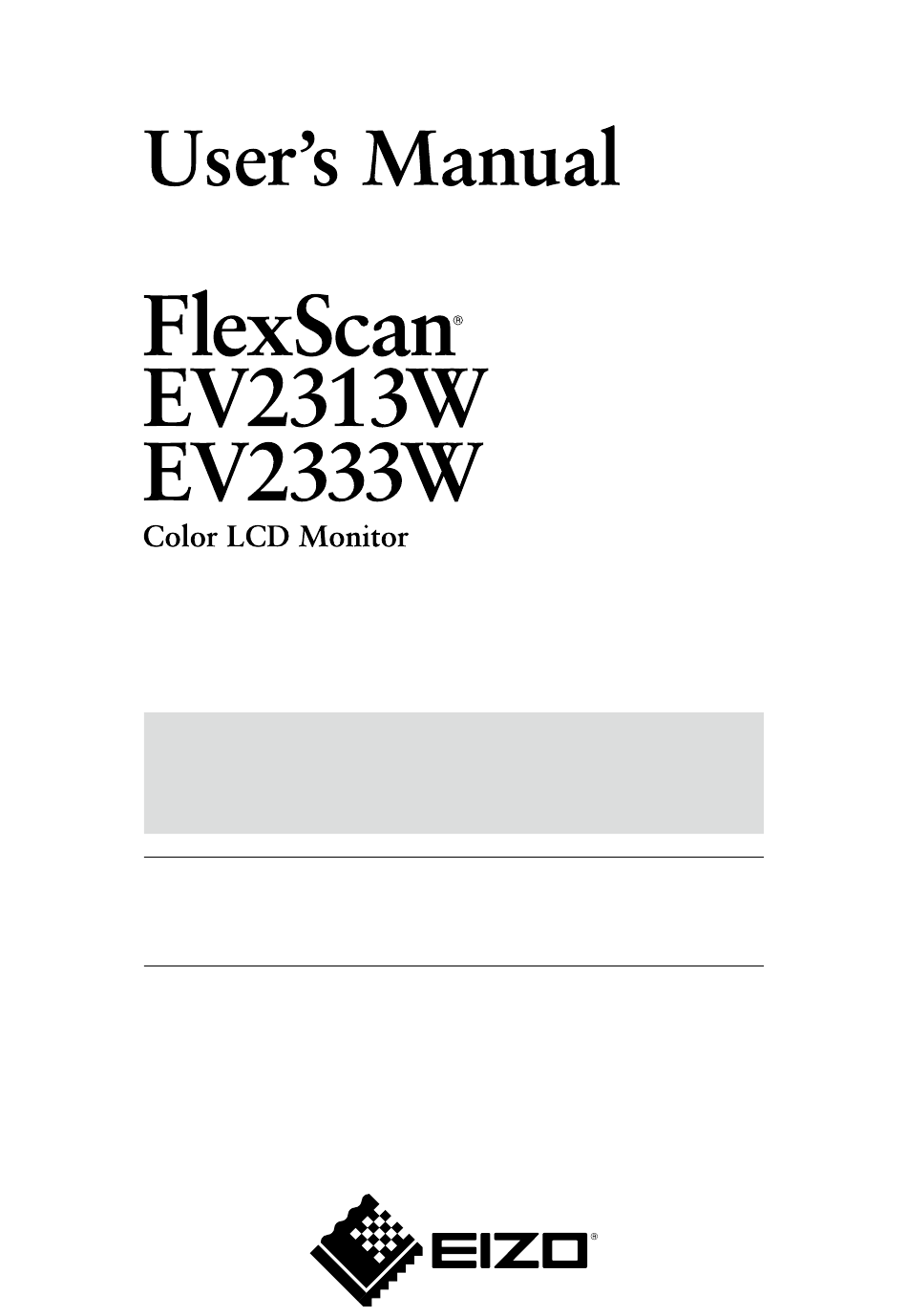

Page 1: Cover
Please read PRECAUTIONS, this User’s Manual and Setup Guide (separate volumes) carefully to familiarize yourself with safe and effective usage. • Please read the Setup Guide (separate volume). • The latest User’s Manual is available for download from our site: http://www.eizo.com... - Page 2 EIZO NANAO CORPORATION’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.
-
Page 3: Notice For This Monitor
Notice for this monitor This product is suited to creating documents, viewing multimedia content, and other general purposes. This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications. This product may not be covered by warranty for uses other than those described in this manual. - Page 4 Cleaning Attention • Never use any solvents or chemicals, such as thinner, benzene, wax, alcohol, and abrasive cleaner, which may damage the cabinet or LCD panel. NOTE • Optional ScreenCleaner is recommended for cleaning the panel surface. [LCD Panel] • Clean the LCD panel with a soft cloth such as cotton cloth or lens cleaning paper. •...
-
Page 5: Table Of Contents
To adjust the contrast [Contrast] ....... 21 -19 Setting Language [Language] ...... 9 ● To adjust the color temperature [Temperature] . 21 ● -0 Setting EIZO logo display ON/OFF ....0 To adjust the gamma value [Gamma] ....21 ● To adjust the color saturation [Saturation] ..22 -1 Resuming the Default Setting [Reset] ..0 ●... - Page 6 CONTENTS Chapter Reference ......... 6 -1 Attaching an Arm ........... 6 - Attaching the FlexStand ........ 8 - Attaching the TriStand ........9 - Folding the TriStand ........0 5-5 Specifications .......... -6 Glossary ............8 -7 Preset Timing ..........0 FCC Declaration of Conformity ......1 Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor ...... Hinweis zur Ergonomie ........ CONTENTS...
-
Page 7: Chapter 1 Features And Overview
Chapter 1 Features and Overview Thank you very much for choosing an EIZO color LCD monitor. 1-1 Features • 23” wide format LCD • Applicable to the resolution of 1920 × 1080 • Power saving function Suppressing the power consumption* reduces the carbon dioxide emissions. - Page 8 Reference values: – EV2313W Maximum power consumption: 30W (Luminance Max., at default settings) Standard power consumption: 16W (100VAC, Luminance 120cd/m , at default settings) Standard power consumption: 16W (200VAC, Luminance 120cd/m , at default settings) – EV2333W Maximum power consumption: 42W (Luminance Max., at default settings) Standard power consumption: 25W (100VAC, Luminance 120cd/m , at default settings) Standard power consumption: 24W (200VAC, Luminance 120cd/m...
-
Page 9: Controls And Functions
Used to adjust the height and angle of the monitor screen. Cable holder Covers the monitor cables. Speaker Outputs audio source. Headphone jack Connects the headphones. * ScreenManager is an EIZO’s nickname of the Adjustment menu. See page 11 for how to use. ® Chapter 1 Features and Overview... -
Page 10: Compatible Resolutions/Frequencies
1- Compatible Resolutions/Frequencies The monitor supports the following resolutions. Analog Input (D-Sub) Dot Clock Resolution Frequency 640 × 480 (VGA, VESA) ~75 Hz 720 × 400 (VGA TEXT) 70 Hz 800 × 600 (VESA) ~75 Hz 1024 × 768 (VESA) ~75 Hz 1152 × 864 (VESA) 75 Hz 148.5 MHz (Max.) 1280 ×... -
Page 11: Functions And Basic Operation
1- Functions and Basic Operation To adjust the screen and color Main menu (Refer to page 1 for operation) Analog input only [At analog signal input] Screen Adjustment Page 16 (Automatic Adjustment) ● To adjust flickering and position [Screen] ……………………………… see page 16 [At digital signal input] ● To adjust color gradation automatically [Range] ……………………………… see page 18 Screen Adjustment Page 17 (Advanced Adjustment) [At analog signal input] [At digital signal input] • The Adjustment menu and the FineContrast mode name cannot be displayed at the same time. - Page 12 To use the monitor with low power consumption Main menu (Refer to page 1 for operation) [At analog signal input] Power-save Settings ● Setting On/Off for Power Saving mode [Power Save] ………………………see page 23 ● Turning off the monitor automatically [At digital signal input] [Off Timer] …………………………see page 24 ● Shifting to the power saving mode when a person leaves the monitor [EcoView Sense] ……………………see page 25 •...
- Page 13 An item marked with * can be adjusted with DisplayPort input. ● Setting Language [Language] ● Locking Buttons ……………………… see page 28 ● Enabling/Disabling DDC/CI communication ………………………………………… see page 29 ● Setting EIZO logo display ON/OFF … see page 30 Chapter 1 Features and Overview...
- Page 14 Basic operation of Adjustment menu [Displaying Adjustment menu and selecting function] (1) Press . The Main menu appears. (2) Select a function with . The Sub menu appears. , and press (3) Select a function with . The adjustment/setting menu appears. , and press (4) Adjust the selected item with .
-
Page 15: Chapter Settings And Adjustments
Chapter Settings and Adjustments -1 Utility Disk An “EIZO LCD Utility Disk” (CD-ROM) is supplied with the monitor. The following table shows the disk contents and the overview of the software programs. ● Disk contents and software overview The disk includes software programs for adjustment, and User's Manual. Refer to “Readme.txt” file on the disk for software startup procedures or file access procedures. -
Page 16: Screen Adjustment
1 above, perform the adjustments according to the procedures on the following pages. When the screen is displayed correctly, go to step 5 “To adjust color gradation automatically [Range]”. Prepare the display pattern for the analog display adjustment. Load the “EIZO LCD Utility Disk” to your PC, and then open the “Screen NOTE NOTE adjustment pattern files”. -
Page 17: To Eliminate Vertical Bars [Clock]
Perform the auto adjustment again with the analog screen adjustment pattern displayed. ● To adjust flickering, screen position, and screen size automatically [Screen] (1) Display Pattern 1 of the “Screen adjustment pattern files” in full screen on the monitor. (2) Choose <Screen> from the <Auto Adjustment> menu, and press The <Auto Adjustment> menu appears. (3) Choose <Execute> with , and press Flickering, screen position, and screen size are corrected by the auto- adjustment function. -
Page 18: To Correct Screen Position [Position]
● To correct screen position [Position] NOTE NOTE • Since the number of pixels and the • Since the number of pixels and the (1) Choose <Position> from the <Screen> menu, and press pixel positions are fixed on the LCD pixel positions are fixed on the LCD The <Position>... -
Page 19: Color Adjustment
- Color Adjustment ● To select the display mode (FineContrast mode) FineContrast allows you to select the best display mode easily according to the monitor’s application. FineContrast mode Mode Purpose Custom Available to change all setting values. Suitable for color matching with sRGB compatible sRGB peripherals. Suitable for displaying texts for word processing or Text spreadsheets. -
Page 20: To Perform Advanced Adjustments
● Attention Attention To perform advanced adjustments • Wait 30 minutes or more from • Wait 30 minutes or more from Independent setting and saving of color adjustment are available for each monitor power on before starting monitor power on before starting FineContrast mode. adjustments. -
Page 21: To Adjust The Contrast [Contrast]
● To adjust the contrast [Contrast] NOTE NOTE • In the contrast of 50%, every color • In the contrast of 50%, every color The luminance of the screen is adjusted by varying the video signal level. gradation is displayed. gradation is displayed. Adjustable range: 0 to 100% •... -
Page 22: To Adjust The Color Saturation [Saturation]
● To adjust the color saturation [Saturation] Attention Attention • This function does not enable to • This function does not enable to This function allows you to adjust the saturation of the color on the monitor. display every color gradation. display every color gradation. Adjustable range: -128 to 127 NOTE NOTE... -
Page 23: Adjusting Volume [Volume]
- Adjusting Volume [Volume] NOTE NOTE • You can also adjust the brightness by • You can also adjust the brightness by This function allows you to adjust volume up or down. using the direct menu (Refer to “1-4 using the direct menu (Refer to “1-4 Adjustable range: 0 to 30 Functions and Basic Operation”... -
Page 24: Turning Off The Monitor Automatically [Off Timer]
■ Analog input Attention Attention This monitor complies with the VESA DPMS standard. • Turning off the main power switch • Turning off the main power switch or unplugging the power cord or unplugging the power cord completely shuts off power supply to completely shuts off power supply to [Power Saving System] the monitor. -
Page 25: Shifting To The Power Saving Mode When A Person Leaves The Monitor [Ecoview Sense]
NOTE NOTE -10 Shifting to the power saving mode when • At the time of shifting to Power • At the time of shifting to Power a person leaves the monitor [EcoView Saving mode, the icon that indicates Saving mode, the icon that indicates Sense] shifting is displayed. shifting is displayed. The sensor on the front side of the monitor detects the movement of a person by using the EcoView Sense function. -
Page 26: Setting On/Off For The Power Saving Level Indicator [Ecoview Index]
-11 Setting On/Off for the power saving level indicator [EcoView Index] By using the EcoView Index function, the indicator that shows the level of power saving appears at the time of turning on the monitor, adjusting the brightness or switching the FineContrast mode. The power saving ratio comes to high as the indicator level meter lights towards right. -
Page 27: To Adjust Brightness Of Non-Display Area [Border Intensity]
● To adjust brightness of non-display area [Border Intensity] A border (black area with no image) around the image appears in the “Normal” or “Enlarged” mode. Border (1) Choose <Others> from the Adjustment menu, and press (2) Choose <Border Intensity> from the <Others> menu, and press The <Border Intensity> menu appears. (3) Adjust border intensity with , and press The border intensity adjustment is completed. -
Page 28: Setting Orientation
Menu Off Timer NOTE NOTE • The display time of the FineContrast • The display time of the FineContrast Set the menu display time using the following procedure. mode, EcoView menu and EcoView mode, EcoView menu and EcoView Adjustment range: Disable, Enable (15, 30, 45, 60s) Index remains unchanged. -
Page 29: Displaying Monitor Information [Information]
-16 Displaying Monitor Information NOTE NOTE • The usage time is not always “0” • The usage time is not always “0” [Information] when you purchase the monitor due when you purchase the monitor due This function allows you to display the input signal status, current resolution to factory inspection. -
Page 30: Setting Eizo Logo Display On/Off
(1) Press to turn off the monitor. (2) Press down to turn on the monitor. holding The EIZO logo display setting is toggled by performing the operation in step 2. -1 Resuming the Default Setting [Reset] Attention Attention • After resetting, you cannot undo the •... -
Page 31: Chapter Connecting Cables
Chapter Connecting Cables -1 Connecting More than Two PCs to the Monitor More than two PCs can be connected to the monitor through the D-Sub mini 15 pin, the DVI-D and the DisplayPort connector on the back of the monitor. Connection examples DisplayPort D-Sub mini DVI-D connector connector 15-pin Connector To PC 1 D-Sub mini... -
Page 32: To Switch The Input Signal
● To switch the input signal The input signal switches each time is pressed. When the signal is switched, the active input port name appears at the top right corner of the screen. ● To set input signal selection [Input Signal] NOTE NOTE • When “Auto” is selected for • When “Auto” is selected for Setting Function <InputSignal>, the monitor's power-... -
Page 33: Chapter Troubleshooting
Chapter Troubleshooting If a problem still remains after applying the suggested remedies, contact your local dealer. • No-picture problems → See No.1 - No.2. • Imaging problems (digital input) → See No.3 - No.8. • Imaging problems (analog input) → See No.3 - No.11. •... - Page 34 Problems Possible cause and remedy . Afterimages appear. • Afterimages are particular to LCD monitors. Avoid displaying the same image for a long time. • Use the screen saver or power save function to avoid displaying the same image for extended periods of time. 6. Green/red/blue/white dots or defective dots remain •...
- Page 35 Problems Possible cause and remedy 17. (When using EcoView Sense) • Check the setting environment of the monitor. The images remains to be displayed when you EcoView Sense may not work correctly in the following move away from the monitor. The images does not environments. • There is something that reflects the light such as mirror reappear when you come near it. or glass in front of the sensor. •...
-
Page 36: Chapter Reference
The stand can be removed and replaced with an arm (or another stand) to be Attention attached to the monitor. Use an arm or stand of EIZO option. • When attaching an arm or stand, follow the instructions of their user’s manual. - Page 37 Remove the stand. ● FlexStand Remove the stand from the monitor while releasing the lock. ● TriStand Prepare a screwdriver. Loosen the screw securing the unit and the stand with the screwdriver. Attach the monitor to the arm or stand. Secure the monitor to the arm or stand using the screws specified in the user’s manual of the arm or stand.
-
Page 38: Attaching The Flexstand
- Attaching the FlexStand The once removed the FlexStand can be attached to the monitor again with the following procedures. Put the insertion part of the stand in the slot of the monitor. At the time, use as a guide that the marks (1) on the stand match to the screw holes (2) of the monitor. Screw holes Marks Attach the stand moving the monitor toward the stand. -
Page 39: Attaching The Tristand
- Attaching the TriStand The once removed the TriStand can be attached to the monitor again with the following procedures. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down. Put the insertion part of the stand in the slot of the monitor. Prepare a screwdriver. Press the upper part of the stand against the unit and tighten the screw with the screwdriver to fix the stand to the unit. Chapter 5 Reference... -
Page 40: Folding The Tristand
- Folding the TriStand Perform the following procedures to remove the stand base and fold the stand when re-packing a monitor with a TriStand. Open the cable holder. Adjust the monitor to its lowest position, and insert a pin into the stand. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down. Open the cover of stand base. Chapter 5 Reference... - Page 41 Rotate the stand base in a counterclockwise direction while holding down the protrusion, and then remove the stand base. Chapter 5 Reference...
-
Page 42: Specifications
5-5 Specifications EV1W LCD Panel 23.0-inch (580 mm) TFT color LCD with anti-glare hard coating Viewing angle: Horizontal 170°, Vertical 160° (CR:10 or more) Dot Pitch 0.2655mm Horizontal Scan Frequency Analog: 31-81kHz Digital (DVI-D/DisplayPort): 31-68kHz Vertical Scan Frequency Analog: 55-76Hz (Non-interlace) Digital (DVI-D/DisplayPort): 59-61Hz (Non-interlace) (VGA TEXT: 69-71Hz) Resolution... - Page 43 Mass Main unit Approx. 6.2 kg (13.7 lbs.) (including FlexStand) Main unit Approx. 4.6 kg (10.1 Ibs.) (including TriStand) Main unit (without stand) Approx. 3.4 kg (7.5 lbs.) Movable range FlexStand Tilt: 30° Up, 0° Down Swivel: 172° Right, 172° Left Adjustable height: 225 mm (8.9 inch) (171.3 mm (6.7 inch) when Tilt is 0°) Rotation: 90°...
- Page 44 Video Signal Memory Analog signal: 45 (preset: 19) Digital signal (DVI-D/DisplayPort): 10 Speaker output: 0.35W (8Ω, THD: 10% or less) Audio Output Headphone output: 2mW + 2mW Input impedance : 48 kΩ (typ.) Line input Input level :1.0 Vrms (Max.) Plug &...
- Page 45 Outside Dimensions EV1W • FlexStand unit : mm (inch) 465(18.3) SWIVEL 547(21.5) 263(10.4) 17.6(0.69) 511.8(20.1) 17.6(0.69) 179.9(7.1) TILT 195.5(7.7) PIVOT 12.4(0.49) 56.1(2.21) 200(7.9) 221(8.7) 216(8.5) 236(9.3) • TriStand 465(18.3) unit : mm (inch) 190(7.5) SWIVEL 142.5(5.6) 547(21.5) 17.6(0.69) 511.8(20.1) TILT 12.4(0.49) 57.6(2.27) φ200 (7.9) Chapter 5 Reference...
- Page 46 EVW • FlexStand 465(18.3) unit : mm (inch) SWIVEL 547(21.5) 266(10.5) 17.6(0.69) 183.4(7.2) 511.8(20.1) 17.6(0.69) TILT 199(7.8) PIVOT 12.4(0.49) 52.6(2.07) 200(7.9) 216(8.5) 221(8.7) 236(9.3) • TriStand 465(18.3) unit : mm (inch) 193(7.6) SWIVEL 146(5.7) 547(21.5) 17.6(0.69) 511.8(20.1) TILT 12.4(0.49) 54.1(2.13) φ200 (7.9) Chapter 5 Reference...
- Page 47 Hot Plug Detect Ground ML Lane0+ Return ML Lane2+ CONFIG1 DP PWR ML Lane1- CONFIG2 Accessories List Cleaning Kit EIZO ScreenCleaner Signal Cable (DisplayPort) PP200 For the latest information about the accessories, refer to our web site. http://www.eizo.com Chapter 5 Reference...
-
Page 48: Glossary
-6 Glossary Clock The analog input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in use, when the analog input signal is converted to a digital signal for image display. This is called clock adjustment. - Page 49 Range Adjustment Range adjustment controls the signal output levels to display every color gradation. It is recommended that range adjustment be made before color adjustment. Resolution The LCD panel consists of numerous pixels of specified size, which are illuminated to form images. This monitor consists of 1920 horizontal pixels and 1080 vertical pixels.
-
Page 50: Preset Timing
-7 Preset Timing The following table shows factory preset video timing (for analog signal only). Attention • Display position may be deviated Frequency depending on the PC connected, which may require screen adjustment Mode Dot clock Horizontal: kHz Polarity using Adjustment menu. Vertical: Hz Horizontal 31.47 Negative... -
Page 51: Fcc Declaration Of Conformity
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord... -
