Directed Electronics 4400 Installation Manual page 10

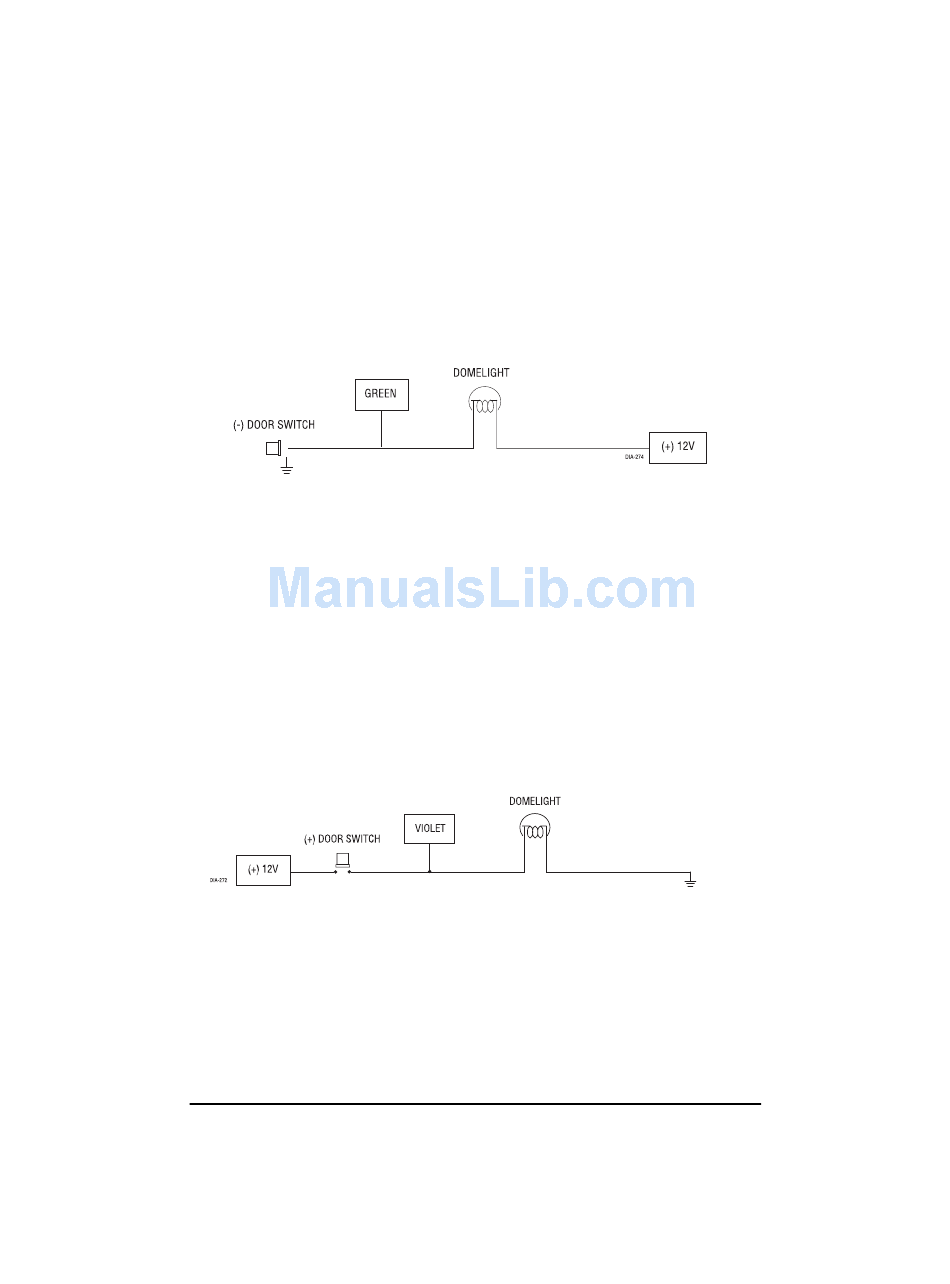

H1/5 GREEN (-) door trigger input, zone 3
Most vehicles use negative door trigger circuits. Connect the GREEN wire to a wire showing
ground when any door is opened. When connecting to newer model vehicles there is generally a
need to use individual door triggers. See DirectFax document 1076 for wiring instructions. This
wire will report Zone 3.
NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T
Bitwriter can be used to turn Bypass Notification off.
H1/6 BLUE (-) multiplex input, zone 4
Inputs shorter than 0.8 seconds will trigger the Warn Away response, while inputs longer than 0.8
seconds will trigger the full alarm sequence. If installing an optional Directed dual-stage sensor,
connect both the blue and the green wires of the optional sensor to this input. This wire will report
Zone 4.
H1/7 VIOLET (+) door trigger input, zone 3
This type of dome circuit is used in many Ford products. Connect the VIOLET wire to a wire that
shows (+)12V when any door is opened. This wire will report Zone 3.
NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T
Bitwriter can be used to turn Bypass Notification off.
