Summary of Contents for Husqvarna YTH2042TD

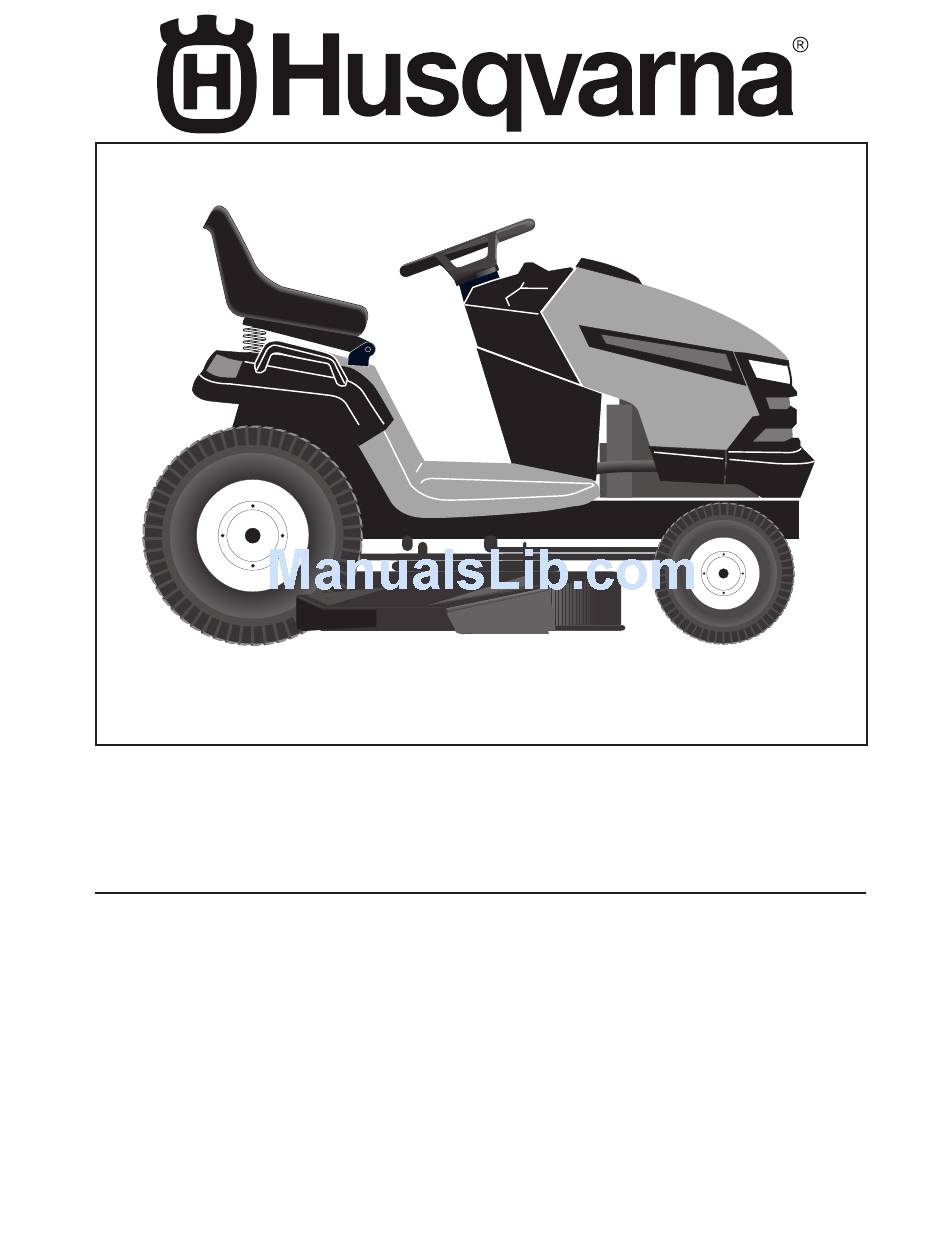

- Page 1 03002 YTH2042TD Operator's Manual / 96041005403 / 2010-02 532 43 50-43...
-
Page 2: Safety Rules
Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING: In order to prevent ac ci den tal starting when setting up, trans port ing, ad just ing or making repairs, al ways dis con nect spark plug wire and place... - Page 3 Safe Operation Practices for Ride-On Mowers III. CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the ma chine and the mowing activity. Never assume that children will remain where you last saw them. •...
-
Page 4: Table Of Contents
Gasoline Capacity 4 Gallons and type: Unleaded Regular Oil Type (API-SG-SL): SAE 30 (above 32°F) SAE 5W-30 (below 32°F) Oil Capacity: w/Filter: Spark Plug: Champion RC12YC (Gap: .030") Ground Speed (MPH): Forward: Reverse: Charging System: 15 AMPS @ 3600 RPM Battery: AMP/HR: MIN. -
Page 5: Assembly
UNASSEMBLED PARTS (2) Keys Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. When right or left hand is mentioned in this man ual, it means when you are in the operating po si tion (seated be hind the steer ing wheel). - Page 6 CHECK TIRE PRESSURE The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance. • Reduce tire pressure to PSI shown on tires. CHECK DECK LEVELNESS For best cutting results, mower housing should be prop- erly leveled.
-
Page 7: Operation
These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. REVERSE NEUTRAL REVERSE ENGINE OFF OPERATION SYSTEM (ROS) LIGHTS ON BATTERY FUEL ATTACHMENT ATTACHMENT CLUTCH DISENGAGED CLUTCH ENGAGED FREE WHEEL (Automatic Models only) Failure to follow instructions could result in serious injury or death. - Page 8 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Our tractors conform to the applicable safety standards of the American National Standards Institute. (A) ATTACHMENT LIFT LEVER - Used to raise and lower the mower or other attachments mounted to your trac tor.
- Page 9 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide vision safety mask worn over spectacles.
- Page 10 Fig. 7 SYSTEM CHARACTERISTICS The cruise control should only be used while mowing or transporting on relatively smooth, straight surfaces. Other con di tions such as trimming at slow speeds may cause the cruise control to dis en gage. Do not use the cruise control on slopes, rough terrian or while trimmimg or turning.
-
Page 11: Before Starting The Engine
REVERSE OPERATION SYSTEM (ROS) Your tractor is equipped with a Reverse Operation System (ROS). Any attempt by the operator to travel in the reverse direction with the attachment clutch engaged will shut off the engine unless ignition key is placed in the ROS "ON" position. WARNING: Backing up with the attachment clutch en- gaged while mowing is strongly discouraged. - Page 12 ADD GASOLINE • Fill fuel tank to bottom of filler neck. Do not overfill. Use fresh, clean, regular un lead ed gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline.
-
Page 13: Operation
• Shut- off engine and set parking brake. • Engage transmission by placing freewheel control in engaged position (See “TO TRANSPORT” in this sec - tion of manual). • Sitting in the tractor seat, start engine. After the engine is running, move throttle control to half (1/2) speed. Disengage parking brake. -
Page 14: Maintenance Schedule
MAINTENANCE SCHEDULE Check Brake Operation Check Tire Pressure Check Operator Presence & ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Clean Debris Off Steering Plate Check Mower Levelness ck V-Belts Check Engine Oil Level Change Engine Oil (with oil filter) Change Engine Oil (without oil filter) -
Page 15: Maintenance
TRACTOR Always observe safety rules when per form ing any main- te nance. BRAKE OPERATION If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved sur- face, then brake must be serviced. -
Page 16: To Change Engine Oil
TRANSAXLE MAINTENANCE The transmission fan and cooling fins should be kept clean to ensure proper cooling. Do not attempt to clean fan or transmission while engine is running or while the transmission is hot. To prevent pos- si ble damage to seals, do not use high pressure water or steam to clean transmission. -
Page 17: Clean Air Screen
AIR FILTER Your engine will not run properly using a dirty air filter. Ser- vice air cleaner more often under dusty conditions. CLEAN AIR SCREEN Air screen must be kept free of dirt and chaff to prevent engine dam age from overheating. Clean with a wire brush or compressed air to re move dirt and stubborn dried gum fibers. -
Page 18: Service And Adjustments
SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST MENTS: • Depress brake pedal fully and set parking brake. • Place attachment clutch in “DISENGAGED” position. • Turn ignition key to “STOP” and remove key. •... -
Page 19: Service And Adjustments
SERVICE AND ADJUSTMENTS • ATTACH MOWER SIDE SUSPENSION ARMS (A) TO CHASSIS - Position hole in arm over pin (B) on outside of tractor chassis and secure with washer and retainer spring. • Repeat on opposite side of tractor. Fig. 19 •... - Page 20 SERVICE AND ADJUSTMENTS TO LEVEL MOWER Make sure tires are properly inflated to the PSI shown on tires. If tires are over or under inflated, it may affect the appearance of your lawn and lead you to think the mower is not adjusted properly.
-
Page 21: To Check Brake
SERVICE AND ADJUSTMENTS TO REPLACE MOWER BLADE DRIVE BELT (See Fig. 28) MOWER DRIVE BELT REMOVAL • Park tractor on a level surface. En gage parking brake. • Lower attachment lift lever to its lowest position. • Remove any dirt or grass clippings which may have accumulated around mandrels and entire upper deck surface. - Page 22 SERVICE AND ADJUSTMENTS FRONT WHEEL TOE-IN/CAM BER Your new tractor front wheel toe-in and camber is set at the factory and is normal. The front wheel toe-in and camber are not adjustable. If damage has occurred to affect the factory set front wheel toe-in or camber, contact a qualified service center.
-
Page 23: Service And Ad Just Ments
SERVICE AND ADJUSTMENTS TO REPLACE HEADLIGHT BULB • Raise hood. • Pull bulb holder out of the hole in the backside of the grill. • Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill. •... -
Page 24: Storage
Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open flame or spark. -
Page 25: Trou Ble Shoot Ing
TROUBLESHOOTING POINTS PROBLEM CAUSE 1. Out of fuel. Will not start 2. Engine not “CHOKED” properly. 3. Engine flooded. 4. Bad spark plug. 5. Dirty air filter. 6. Dirty fuel filter. 7. Water in fuel. 8. Loose or damaged wiring. 9. - Page 26 TROUBLESHOOTING POINTS PROBLEM CAUSE Engine continues 1. Faulty operator-safety presence control system. to run when oper- ator leaves seat with attachment clutch engaged 1. Worn, bent or loose blade. Poor cut - uneven 2. Mower deck not level. 3. Buildup of grass, leaves, trash under mower. 4.
- Page 27 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control.
- Page 28 02.24.10 CL Printed in the U.S.A.
