More detailed instructions on the operation of this camera are contained in “Owner’s Manual for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it. For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or send e-mail to: lumixconcierge@ca.panasonic.com VQT3D30...
Page 2
Dear Customer, Thank you for choosing Panasonic! You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take time to fill in the information on the below.
Information for Your Safety WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, • DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. •...
Page 4
∫ About the battery pack CAUTION Battery pack (Lithium ion battery pack) • Use the specified unit to recharge the battery pack. • Do not use the battery pack with equipment other than the specified unit. • Do not get dirt, sand, liquids, or other foreign matter on the terminals. •...
Battery charger This battery charger operates on AC between 110 V and 240 V. • In the U.S.A. and Canada, the battery charger must be connected to a 120 V AC power supply only. • When connecting to an AC supply outside of the U.S.A. or Canada, use a plug adaptor to suit the AC outlet configuration.
Page 6
-If you see this symbol- Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
Contents Information for Your Safety ................3 Standard Accessories ................... 8 Names of the Components ................9 Charging the Battery ................... 12 • Charging ....................12 • Approximate operating time and number of recordable pictures ..14 About the Built-in Memory/the Card ............15 Inserting and Removing the Card (optional)/the Battery ......
Standard Accessories Check that all the accessories are supplied before using the camera. Product numbers correct as of January 2011. These may be subject to change. ¢ Battery Pack (Indicated as battery pack or battery in the text) Charge the battery before use. Battery Charger (Indicated as battery charger or NCA-YN101G...

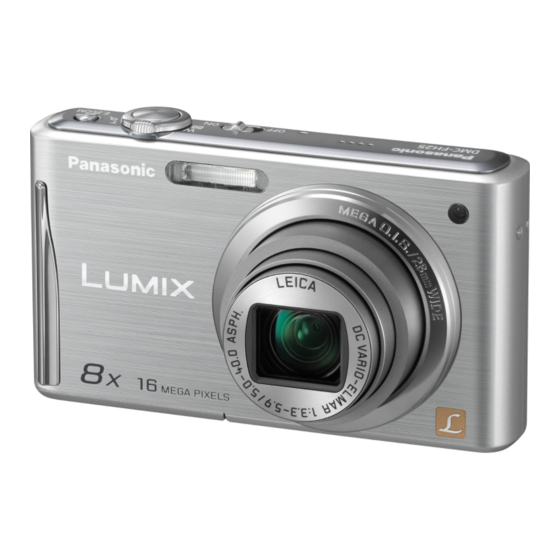

Names of the Components Flash (DMC-FH25) Lens Self-timer indicator AF Assist Lamp (DMC-FH5) (DMC-FH2) LCD monitor [MENU/SET] button [DISP.] button [Q.MENU]/Delete/Cancel button [MODE] button [Rec]/[Playback] selector switch (ENG) VQT3D30...
Page 10
10 Cursor buttons A: 3/Exposure compensation B: 4/Macro Mode AF Tracking C: 2/Self-timer D: 1/Flash setting In this owner’s manual, the cursor buttons are described as shown in the figure below or described with 3/4/2/1. e.g.: When you press the 4 (down) button Press 4 Strap eyelet •...
Page 11
18 19 [E.ZOOM] button 20 Tripod receptacle 21 Card/Battery door 22 DC coupler cover • When using an AC adaptor, ensure that the Panasonic DC coupler (DMW-DCC10; optional) (DMC-FH5) (DMC-FH2) and AC adaptor (DMW-AC5PP; optional) are used. 14 15 •...
Please be advised that we are not liable for any accident or failure occurring as a result of use of a counterfeit battery pack. To ensure that safe products are used we would recommend that a genuine Panasonic battery pack is used. • Use the dedicated charger and battery.
∫ About the [CHARGE] indicator The [CHARGE] indicator turns on: The [CHARGE] indicator A is turned on during charging. The [CHARGE] indicator turns off: The [CHARGE] indicator A will turn off once the charging has completed without any problem. • When the [CHARGE] indicator flashes –...
• Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on. • Using a Panasonic SD Memory Card (32 MB). • Starting recording 30 seconds after the camera is turned on. (When the Optical Image Stabilizer function is set to [ON].) •...
Memory Card compatible equipment. • Check that the PC and other equipment are compatible when using the SDXC Memory Cards. SDXC Memory Card http://panasonic.net/avc/sdcard/information/ (48 GB, 64 GB) SDXC.html • Only the cards with capacity listed left can be used.
Inserting and Removing the Card (optional)/the Battery • Check that this unit is turned off. • We recommend using a Panasonic card. (DMC-FH25) Slide the card/battery door to open it. • Always use genuine Panasonic batteries (NCA-YN101G; supplied or DMW-BCK7PP; optional).
Page 17
(DMC-FH5) (DMC-FH2) Slide the release lever in the direction of the arrow and open the card/battery door. • Always use genuine Panasonic batteries (NCA-YN101G; supplied or DMW-BCK7PP; optional). • If you use other batteries, we cannot guarantee the quality of this product.
Setting Date/Time (Clock Set) • The clock is not set when the camera is shipped. Slide the [Rec]/[Playback] selector switch to [ ] and then turn the camera on. Press [MENU/SET]. Press 2/1 to select the items (year, month, day, hour, minute, display sequence or time display format), and press 3/4 to set.
Selecting the [Rec] Mode Slide the [Rec]/[Playback] selector switch to [!]. Press [MODE]. Press 3/4/2/1 to select the mode. Press [MENU/SET]. ∫ List of [Rec] Modes Intelligent Auto Mode ¦ The subjects are recorded using settings automatically selected by the camera. Normal Picture Mode The subjects are recorded using your own settings.
ñ [Rec] Mode: Taking pictures using the automatic function : Intelligent Auto Mode) ñ The camera will set the most appropriate settings to match the subject and the recording conditions so we recommend this mode for beginners or those who want to leave the settings to the camera and take pictures easily.
Scene Detection When the camera identifies the optimum scene, the icon of the scene concerned is displayed in blue for 2 seconds, after which its color changes to the usual red. > [i-Portrait] ¦ [i-Scenery] [i-Macro] • [i-Night Portrait] Only when [ ] is selected [i-Night Scenery] [i-Sunset]...
[Rec] Mode: Motion Picture Mode Slide the [Rec]/[Playback] selector switch to [!], and then press [MODE]. Press 3/4/2/1 to select [Motion Picture], and then press [MENU/SET]. Press the shutter button halfway to focus and then press it fully to start recording.
¸ [Playback] Mode: Playing Back Pictures ([Normal Play]) Slide the [Rec]/[Playback] selector switch to [(]. Press 2 or 1. • After selecting the motion picture, press 3 to start playback. ¸ [Playback] Mode: Deleting Pictures Once deleted, pictures cannot be recovered. •...
Setting the Menu Press [MENU/SET]. Press 2/1 to select menu and then press [MENU/SET]. Press 3/4 to select the menu item and then press [MENU/SET]. • Screen at right is an example of selecting [AF Mode] in [Rec] mode Menu. Press 3/4 to select the setting and then press [MENU/SET].
Reading the Owner’s Manual (PDF format) More detailed instructions on the operation of this camera are contained in “Owner’s Manual for Advanced Features (PDF format)” in the supplied CD-ROM. Install it to your PC to read it. ∫ For Windows Turn the PC on and insert the CD-ROM containing the Owner’s Manual (supplied).
Page 26
OS from the following Web Site. http://get.adobe.com/reader/otherversions ∫ To uninstall the Owner’s Manual (PDF format) Delete the PDF file from the “Program Files\Panasonic\Lumix\” folder. • When the contents in the Program Files folder cannot be displayed, click the [Show the contents of this folder] to display them.
Specifications Digital Camera: Information for your safety Power Source: DC 5.1 V Power Consumption: 1.1 W (When recording) 0.7 W (When playing back) Camera effective (DMC-FH25) (DMC-FH5) pixels 16,100,000 pixels (DMC-FH2) 14,100,000 pixels Image sensor (DMC-FH25) (DMC-FH5) 1/2.33q CCD, total pixel number 16,600,000 pixels, Primary color filter (DMC-FH2) 1/2.33q CCD, total pixel number 14,500,000 pixels,...
Page 28
Focus range Normal (DMC-FH25) 50 cm (1.64 feet) (Wide)/2 m (6.56 feet) (Tele) to ¶ (DMC-FH5) (DMC-FH2) 50 cm (1.64 feet) (Wide)/1 m (3.28 feet) (Tele) to ¶ Macro/ 5 cm (0.17 feet) (Wide)/1 m (3.28 feet) Intelligent auto/ (Tele) to ¶ Motion picture Scene Mode There may be differences in the above...
Page 29
LCD monitor 2.7q TFT LCD (4:3) (Approx. 230,000 dots) (field of view ratio about 100%) Flash range (DMC-FH25) Approx. 60 cm (1.97 feet) to 5.8 m (19.0 feet) (Wide, ] is set) (DMC-FH5) (DMC-FH2) Approx. 40 cm (1.32 feet) to 3.3 m (10.8 feet) (Wide, ] is set) Microphone Monaural...
Page 30
Battery Charger (Panasonic DE-A91B): Information for your safety Input: 110 V to 240 V, 50/60 Hz, 0.2 A Output: 4.2 V, 0.43 A Equipment mobility: Movable Battery Pack (lithium-ion) (Panasonic NCA-YN101G): Information for your safety Voltage/capacity: 3.6 V/660 mAh VQT3D30 (ENG)
Class 2 2 GB SD Memory Card Product numbers correct as of January 2011. These may be subject to change. ¢ The AC Adaptor (optional) can only be used with the designated Panasonic DC Coupler (optional). The AC adaptor (optional) cannot be used by itself.
Page 32
Corporation. DynaFont is a registered trademark of DynaComware Taiwan Inc. • Other names, company names, and product names printed in these instructions are trademarks or registered trademarks of the companies concerned. Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010 www.panasonic.ca...
