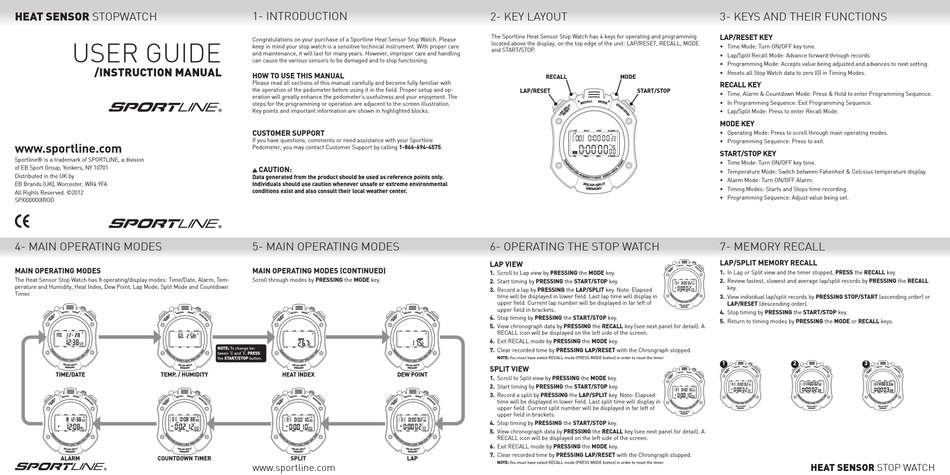

Sportline HEAT SENSOR User Manual

HEAT SENSOR STOPWATCH

USER GUIDE

/INSTRUCTION MANUAL
www.sportline.com
Sportline® is a trademark of SPORTLINE, a division
of EB Sport Group, Yonkers, NY 10701
Distributed in the UK by
EB Brands (UK), Worcester, WR4 9FA
All Rights Reserved. ©2012
SPXXXXXXXROD
4- MAIN OPERATING MODES
MAIN OPERATING MODES
The Heat Sensor Stop Watch has 8 operating/display modes: Time/Date, Alarm, Tem-
perature and Humidity, Heat Index, Dew Point, Lap Mode, Split Mode and Countdown
Timer.
TIME/DATE TEMP. / HUMIDITY
ALARM COUNTDOWN TIMER
1- INTRODUCTION
Congratulations on your purchase of a Sportline Heat Sensor Stop Watch. Please
keep in mind your stop watch is a sensitive technical instrument. With proper care
and maintenance, it will last for many years. However, improper care and handling
can cause the various sensors to be damaged and to stop functioning.
HOW TO USE THIS MANUAL
Please read all sections of this manual carefully and become fully familiar with
the operation of the pedometer before using it in the field. Proper setup and op-
eration will greatly enhance the pedometer's usefulness and your enjoyment. The
steps for the programming or operation are adjacent to the screen illustration.
Key points and important information are shown in highlighted blocks.
CUSTOMER SUPPORT
If you have questions, comments or need assistance with your Sportline
Pedometer, you may contact Customer Support by calling 1-866-694-4575.
CAUTION:
Data generated from the product should be used as reference points only.
Individuals should use caution whenever unsafe or extreme environmental
conditions exist and also consult their local weather center.
5- MAIN OPERATING MODES
MAIN OPERATING MODES (CONTINUED)
Scroll through modes by PRESSING the MODE key.
NOTE: To change be-
tween 'C and 'F, PRESS
the START/STOP button.
HEAT INDEX
SPLIT
www.sportline.com
2- KEY LAYOUT
The Sportline Heat Sensor Stop Watch has 4 keys for operating and programming
located above the display, on the top edge of the unit: LAP/RESET, RECALL, MODE
and START/STOP.
RECALL
LAP/RESET
6- OPERATING THE STOP WATCH
LAP VIEW
1. Scroll to Lap view by PRESSING the MODE key.
2. Start timing by PRESSING the START/STOP key.
3. Record a lap by PRESSING the LAP/SPLIT key. Note: Elapsed
time will be displayed in lower field. Last lap time will display in
upper field. Current lap number will be displayed in far left of
upper field in brackets.
4. Stop timing by PRESSING the START/STOP key.
5. View chronograph data by PRESSING the RECALL key (see next panel for detail). A
RECALL icon will be displayed on the left side of the screen.
6. Exit RECALL mode by PRESSING the MODE key.
7. Clear recorded time by PRESSING LAP/RESET with the Chrongraph stopped.
NOTE: You must have exited RECALL mode (PRESS MODE button) in order to reset the timer.
SPLIT VIEW
DEW POINT
1. Scroll to Split view by PRESSING the MODE key.
2. Start timing by PRESSING the START/STOP key.
3. Record a split by PRESSING the LAP/SPLIT key. Note: Elapsed
time will be displayed in lower field. Last split time will display in
upper field. Current split number will be displayed in far left of
upper field in brackets.
4. Stop timing by PRESSING the START/STOP key.
5. View chronograph data by PRESSING the RECALL key (see next panel for detail). A
RECALL icon will be displayed on the left side of the screen.
6. Exit RECALL mode by PRESSING the MODE key.
7. Clear recorded time by PRESSING LAP/RESET with the Chrongraph stopped.
LAP
NOTE: You must have exited RECALL mode (PRESS MODE button) in order to reset the timer.
3- KEYS AND THEIR FUNCTIONS BUTTONS AND THEIR FUNCTIONS
LAP/RESET KEY
• Time Mode: Turn ON/OFF key tone.
• Lap/Split Recall Mode: Advance forward through records
• Programming Mode: Accepts value being adjusted and advances to next setting.
• Resets all Stop Watch data to zero (0) in Timing Modes.
MODE
RECALL KEY
START/STOP
• Time, Alarm & Countdown Mode: Press & Hold to enter Programming Sequence.
• In Programming Sequence: Exit Programming Sequence.
• Lap/Split Mode: Press to enter Recall Mode.
MODE KEY
• Operating Mode: Press to scroll through main operating modes.
• Programming Sequence: Press to exit.
START/STOP KEY
• Time Mode: Turn ON/OFF key tone.
• Temperature Mode: Switch between Fahenheit & Celcsius temperature display.
• Alarm Mode: Turn ON/OFF Alarm.
• Timing Modes: Starts and Stops time recording.
• Programming Sequence: Adjust value being set.
7- MEMORY RECALL
LAP/SPLIT MEMORY RECALL
1. In Lap or Split view and the timer stopped, PRESS the RECALL key.
2. Review fastest, slowest and average lap/split records by PRESSING the RECALL
key.
3. View individual lap/split records by PRESSING STOP/START (ascending order) or
LAP/RESET (descending order).
4. Stop timing by PRESSING the START/STOP key.
5. Return to timing modes by PRESSING the MODE or RECALL keys.
1 2 3
HEAT SENSOR STOP WATCH
