Summary of Contents for NewAir AI-215 Series

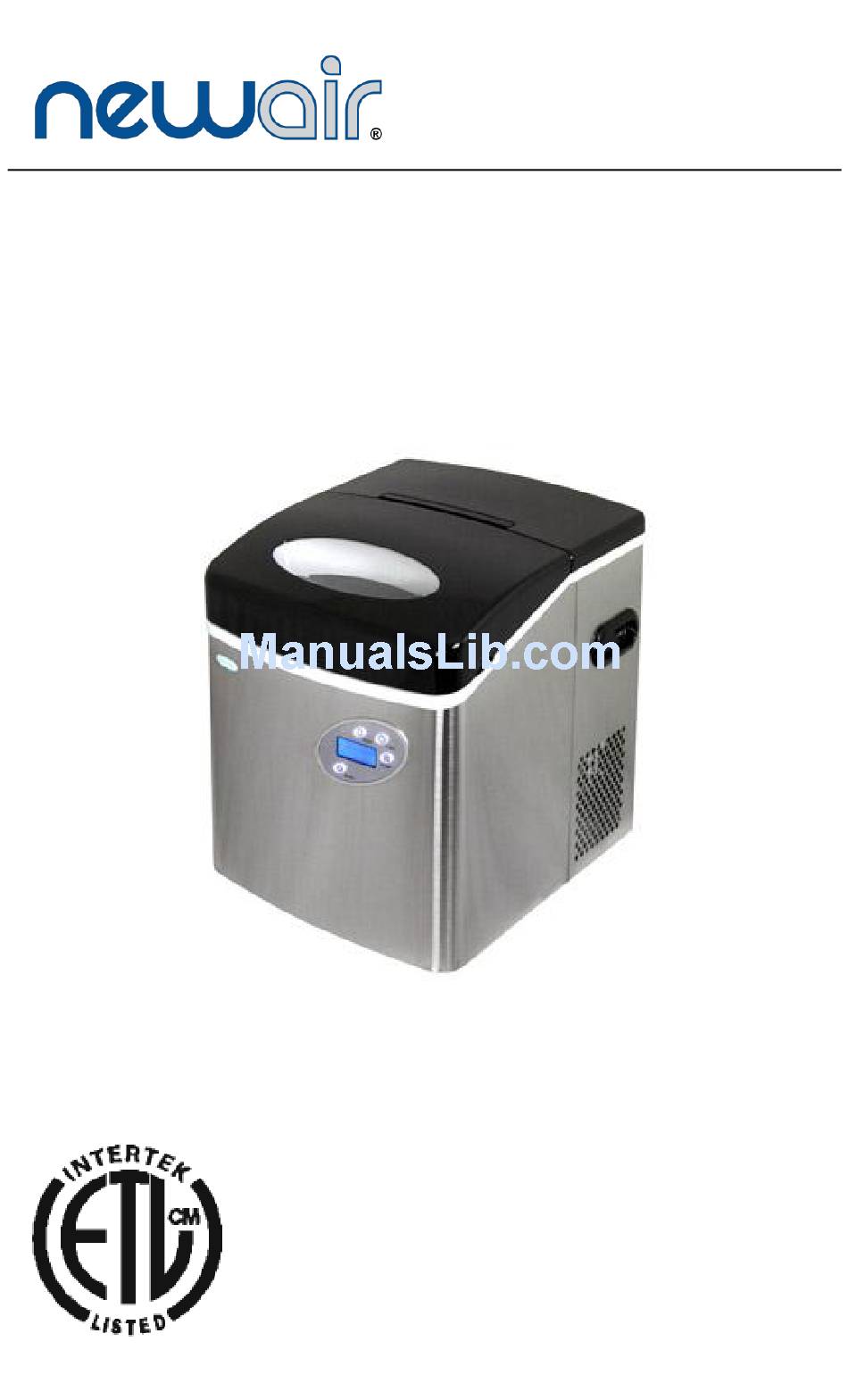

- Page 1 AI-215 Series Portable Ice Maker OWNERS MANUAL Read and save these instructions.
-
Page 2: Table Of Contents
If necessary, use an extension cord with a minimum size of No. 14 AWG and rated for no less than 1875 watts. Do not place hands or objects on or near the ice maker’s evaporator when it is in operation. NEWAIR AI-215 SERIES PORTABLE ICE MAKER... -
Page 3: Specifications
Do not touch the evaporator while the unit is in use or during the ice making process. It may cause severe burning. Evaporator Rods SPECIFICATIONS AI-215 ODEL 115V / 60Hz ATED OLTAGE 2.1/3.2 amps URRENT 170 watts OWER ONSUMPTION 50 pounds APACITY AILY NEWAIR AI-215 SERIES PORTABLE ICE MAKER... -
Page 4: Parts List
PARTS LIST BASIC PARTS DIAGRAM 1. Cover 2. Control Panel 3. Water Drain Cap 4. Ice Basket 5. Ice Scoop 6. Ice Shovel 7. Handle NEWAIR AI-215 SERIES PORTABLE ICE MAKER... -
Page 5: Control Panel Diagram
LCD DISPLAY SYMBOLS: Power indicator Ice Bucket Full Indicator Ice size selected Add Water Indicator (small, medium (flashes when water or large) needs to be added) Timer display Warning Indicator – problem with unit Self-Cleaning Indicator NEWAIR AI-215 SERIES PORTABLE ICE MAKER... -
Page 6: Assembly & Installation
Open the unit’s cover, remove the ice basket, and pour water into the water reservoir. Keep the water level below the “MAX” line marked inside the reservoir. Plug in the unit to the grounded power supply outlet. NEWAIR AI-215 SERIES PORTABLE ICE MAKER... -
Page 7: Timer Setting Procedure
2. Press the SELECT button to set the Timer delay to a time between 1.0 and 18.0 hours, in half hour increments. 3. After the desired time is set, the display will show the time remaining and will decrease in 0.1 hour increments. When the timer reaches NEWAIR AI-215 SERIES PORTABLE ICE MAKER... -
Page 8: Cleaning & Maintenance
During this process the “Add Water Indicator” and the “Self Cleaning Indicator” will light in the LCD display window, and the fan blades in the self-clean symbol will always rotate. This process will rinse the inside parts of the ice maker thoroughly. NEWAIR AI-215 SERIES PORTABLE ICE MAKER... -
Page 9: Storage
Possible Cause Solution The “ADD WATER” There is not enough Press “POWER” to turn indicator light is on. water in the tank. off the unit. Fill the reservoir with water. Press “POWER” to restart. NEWAIR AI-215 SERIES PORTABLE ICE MAKER... - Page 10 The compressor may If this is the first time the need to warm up. unit is being used, allow the ice maker to cycle a few times. This should result in larger cubes. NEWAIR AI-215 SERIES PORTABLE ICE MAKER...
- Page 11 As ice produced too quickly. develops on the surface of water, certain gases can no longer remain dissolved and begin to surface as microscopic bubbles. This cloudiness is normal. NEWAIR AI-215 SERIES PORTABLE ICE MAKER...
-
Page 12: Limited Manufacturer's Warranty
When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs.
