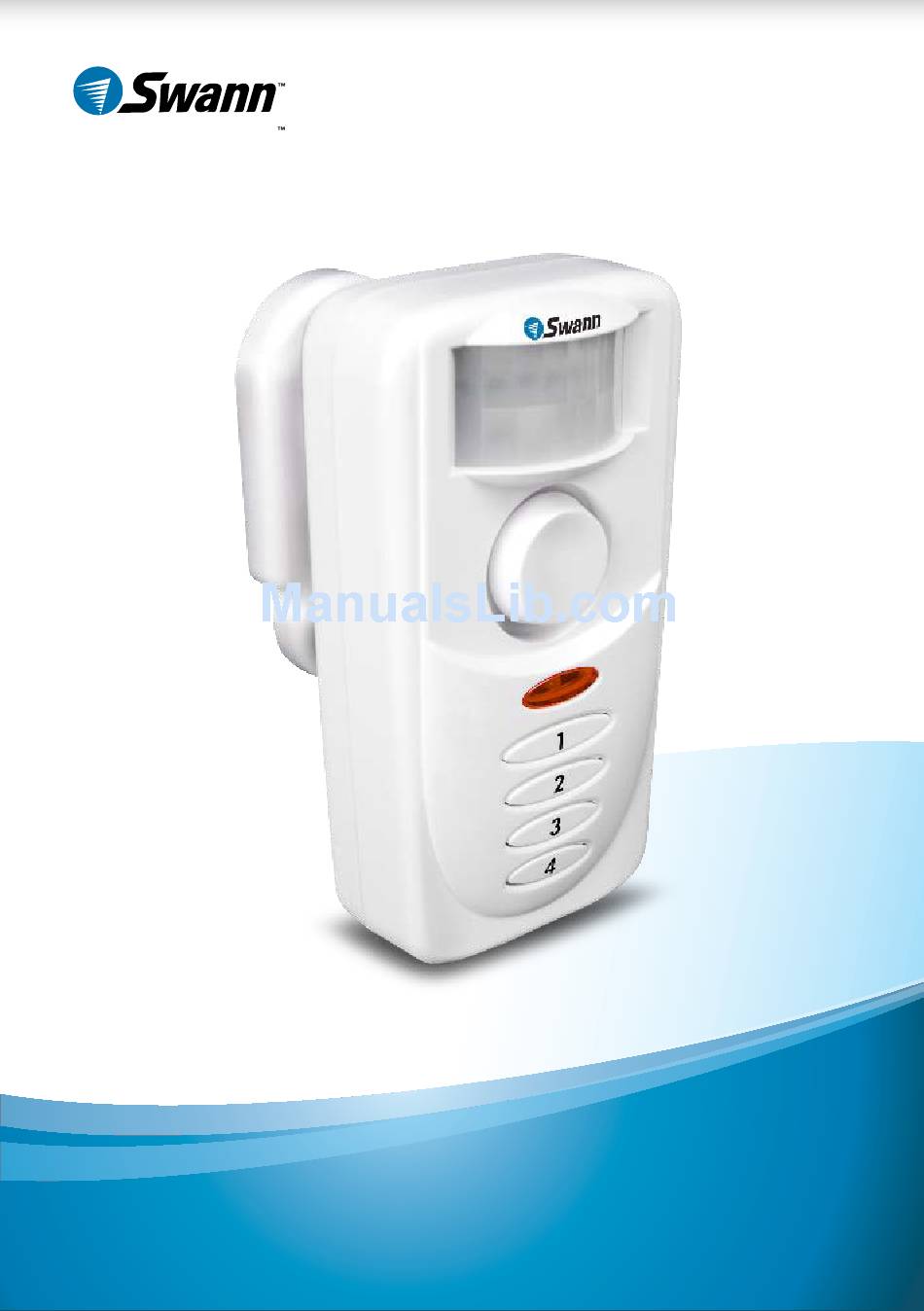

Page 1: Operating Instructions
Advanced security made easy Keypad PIR Alarm SW351-KCH Operating Instructions SW351-KCH www.swannsecurity.com MKCH170510E... -
Page 2: Table Of Contents
Table of Contents Package Contents / IMPORTANT - Read Before Installing Overview Mounting the PIR Alarm Unit Detection Area Operating the Alarm Unit Maintenance and Technical Specifications Technical Support / Warranty Information Rear Cover Package Contents PIR Alarm Unit Mounting Hardware Mounting bracket IMPORTANT - Read Before Installing •... -
Page 3: Overview
Overview Congratulations on your purchase on this passive infrared motion alarm unit from Swann! This stand-alone alarm unit will help you protect and safeguard almost any indoor location you want. It’s easy to install and totally wireless. Passive infrared technology is a popular in the security industry, and can detect a person in motion at more than a dozen feet away. -
Page 4: Mounting The Pir Alarm Unit
Mounting the PIR Alarm Unit Mounting To mount the PIR alarm unit, you’ll need the following tools: • A screwdriver • A drill (for hardwood or masonry) The alarm unit should be mounted between 5ft/1.8m and 7ft/2.6m high, and be angled a few degrees towards the ground (see the coverage diagram, below). -
Page 5: Detection Area
Detection Area Detection Area: The PIR sensor has a range of approximately 110 degrees horizontally, and approximately 70 degrees vertically (see diagram). You can test the functionality of the motion sensor as well as the detection area by setting up the sensor, setting it to chime mode and then moving about in the area you want to protect. -
Page 6: Operating The Alarm Unit
Operating the Alarm Unit Alarm / Chime Mode The switch to select the mode the sensor operates in can be found in the battery compartment. You can access it by removing the sensor from its mounted position, and opening the battery compartment. Alarm Mode: When the sensor detects movement whilst the unit is in alarm mode, it will not activate immediately. -
Page 7: Maintenance And Technical Specifications
Maintenance and Technical Specifications Passcode Your passcode must be four digits long, and should be something that you will remember. Try to avoid obvious combinations (such as 1234 or similar). To set your passcode: • If you’ve already mounted the alarm unit, remove it from its mounting bracket. - Page 8 Swann. The end user is responsible for all freight charges incurred to send the product to Swann’s repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.
