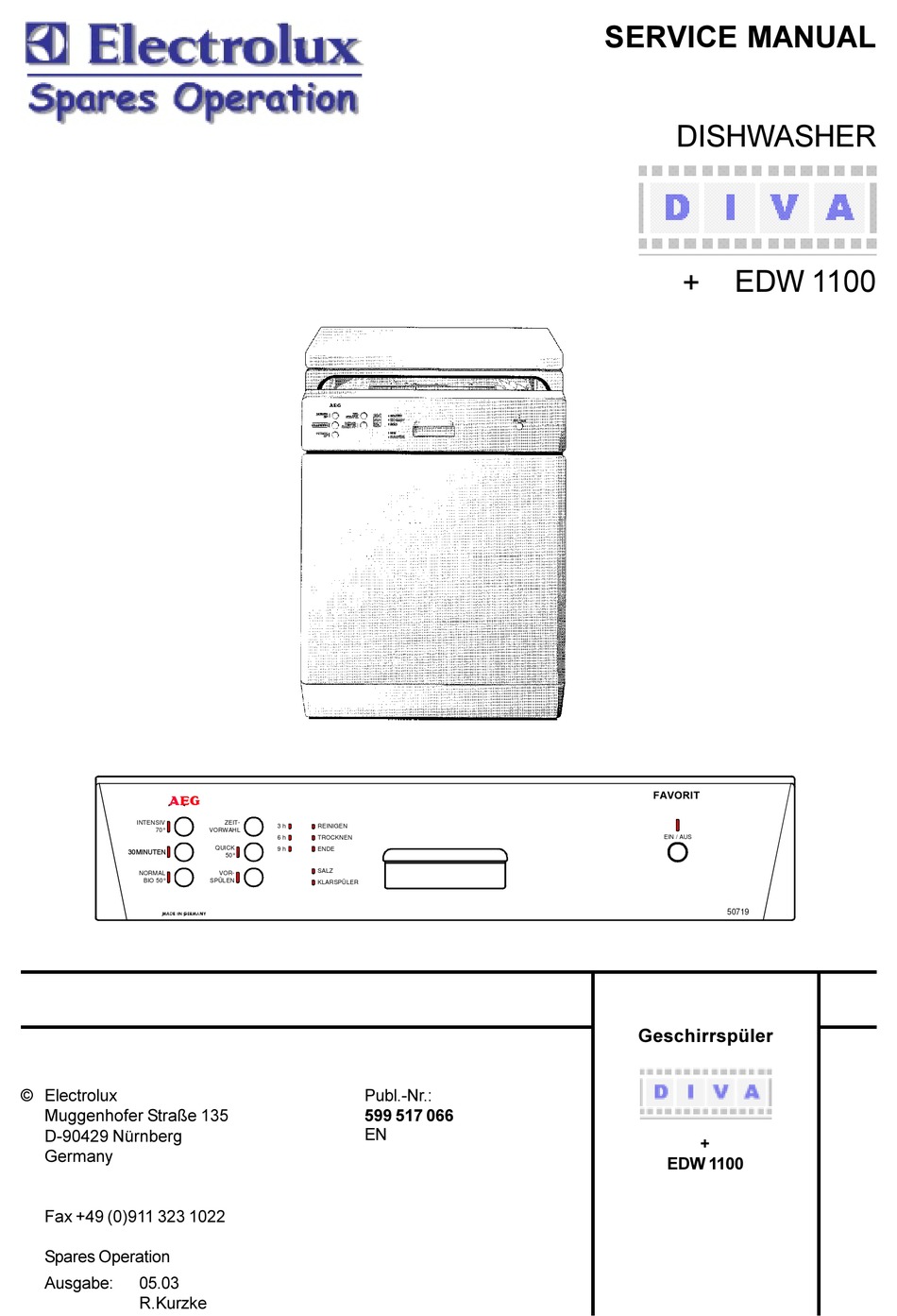

SERVICE MANUAL
DISHWASHER
EDW 1100
+
FAVORIT
EIN / AUS
50719
Geschirrspüler
+
EDW 1100
Advertisement
Table of Contents
Related Manuals for Electrolux Diva
Summary of Contents for Electrolux Diva
- Page 1 NORMAL QUICK ENDE 30 MINUTEN 65° 50° SALZ NORMAL VOR- BIO 50° SPÜLEN KLARSPÜLER 50719 Geschirrspüler © Electrolux Publ.-Nr.: Muggenhofer Straße 135 599 517 066 D-90429 Nürnberg Germany EDW 1100 Fax +49 (0)911 323 1022 Spares Operation Ausgabe: 05.03 R.Kurzke...
-
Page 2: Table Of Contents
Index Control panel ..................... 3 Dimensions ....................3 Components ....................4 Electronic ....................4 3.2. Circulation pump ..................4 Drain pump....................4 Flow heater ....................4 Detergent dispenser .................. 5 NTC-thermal sensor .................. 6 Pressure switch ..................6 Interference filter ..................6 Spray arms .................... -
Page 3: Control Panel
Control panel Delay start Indicator lamps Control lamps Function buttons button delayed start Progamme buttons On/Off button Control lamps Door handle Dimensions Build-in dimensions for Built-Under Build-in dimensions for Integrated Dishwashers Dishwashers ÖKO-FAVORIT ÖKO-FAVORIT * Appliances with height-adjustable feet Plinth height for appliances 820 mm high 100 - 175 mm Plinth height for appliances 870 mm high 150 - 230 mm... -
Page 4: Components
3. Components 3.1 Electronic On electronic models, a micro processor controls all components, this is done using triacs. The electronic also memorizes all programme data. The heating is switched by a relay on the electronic board. 3.2 Circulation Pump The circulation pump is driven by an asynchronous motor with an auxiliary winding. - Page 5 display „lack of rinse aid“ dosing of rinse-aid maximum filling level outlet of rinse-aid detergent tray detergent tray for pre wash Spule Zeit Zeit Zeit Zeit Zeit Zeit - 5 -...
- Page 6 Temp. Resistor 10°C 9653 Ohm 25°C 4843 Ohm 60°C 1204 Ohm 90°C 445 Ohm - 6 -...
- Page 7 drain tub - 7 -...
- Page 8 - 8 -...
- Page 9 4. Service tips Torx - 9 -...
- Page 10 - 10 -...
- Page 11 - 11 -...
- Page 12 - 12 -...
-
Page 13: Pressure Switch
5. Water Course Scheme Inlet valve Flow heater Non-return valve salt container Drain pump Air break Regeneration valve Regeneration water dosage Non-return valve Safety inlet hose Overflow safety level Spray arms Base tray Safety overflow Roof-mounted shower Float switch Tub vent Inlet to sump from regeneration dosage chamber Pressure switch Regeneration dosage chamber... -
Page 14: All-Around Water Protection
5.1 All-Around Water Protection Aqua-Control Inlet Hose The inlet hose has a double-wall construction. The inner hose is equipped with a flow restrictor built into the tap connection, and has a flow rate of 4 litres per minute. The inlet valve (1) is located in the base of the dishwasher. - Page 15 5.2 Water Inlet The water flows into the regeneration dosage chamber (7) via inlet valve (1), over air break (2), into regeneration dosage chambers (3) into softener (8). At this point the water divides. 1/4 of the water enters the tub through the vent (23). 3/4 of the water enters the sump (24) through hose (6). The level control chamber built into the sump operates the pressure switch (15).
- Page 16 s tatic water dynamic water max. 4 load load r epetitions to level with level contr ol T imeout 1 T imeout 2 speed target- s peed ˜ 10 S ek. 5 S ek. 5 S ek. 20 S ek. 1600 time in S ek.
- Page 17 speed 2800 var iable s peed 1600 20 S ec. high,r high,r high,r s tar t-r outine time in s ec. -function = time (high s peed) + r andom time high,r water in L dynamic pulse was h level pr ess ur e s witch point water level...
-
Page 18: Draining
5.3 Draining During the wash cycle the water is pumped out at various stages. First the draining water cleans the filters (16). The filters are open at the bottom which allows any soilage to be rinsed off sufficiently. There is a non-return valve (20) at the inlet connection to the drain pump (19). This valve prevents the water Inlet valve Flow heater... -
Page 19: Draining
dr ain pump 1 dr aining s equence with var iable timing level check! (var iable) (var iable) (var iable) 'UDLQ &\FOH )LUVW GUDLQLQJ EHIRUH HYHU\ ZDVK F\FOH VHF VHF VHF 'UDLQLQJ DIWHU WKH ZDVK F\FOHV VHF VHF VHF - 19 -... - Page 20 Arrangement and designation L D1 L D2 L D3 L D4 L D5 L D8 L D9 L D1 L D4 L D8 L D9 L D7 L D10 L D7 L D10 L D6 L D11 L D6 L D11 L D2 L D5 L D12...
- Page 21 • Equipment in panel area:: Possible Equipment: Absolutely necessary minimum equipment: • Available on certain models: • Functions which can be adjusted by the customer via the control panel: • Miscellaneous:: Available program options for selection: - 21 -...
- Page 22 L D0 Selection of start time possible S tar tz eitvor wahl möglich blinkt L D0 P AA P AA L D2 S tar tz eitvor wahl S ekunden möglich L D0 P AA L D2 Program starts only when the door has been closed! Pr ogr amm läuft ab - 22 -...
- Page 23 6.4.1 Variant A time preselection after program selection L D0 blinkt L D0 L D2 blinkt S 4 = S Z V L D0 L D4 L D2 S 4 = S Z V Pr o T as tendr uck + 1 S tufe blinkt L D0...
- Page 24 6.4.2 Variant B time preselection after program selection L D0 S 4 = S Z V L D0 S 4 = S Z V Pr o T as tendr uck + 1 S tufe L D0 L D4 S tar tz eit wir d er s t aktiv wenn Pr ogr amm gewählt wir d blinkt L D0...
- Page 25 • Cycle start Program starts only when the door has been closed! • Cycle run • Cycle end - 25 -...
- Page 26 • Delete program (using the reset function) Reset function always with they key S2 and S3. L D0 P AA L D2 2 S ekunden betätigen L D0 L D2 blinkt L D0 - 26 - 066EN...
- Page 27 6.7.1 • Alter program during the prestart phase Program starts running only when the door has been closed. - Special feature when also a start time was selected before! blinkt L D0 P AA P AA P AA L D2 T as te kur z betätigen blinkt L D0...
- Page 28 6.7.2 • Alter program after successful cycle start If a program is altered after an already started cycle the new cycle starts generally from the beginning. Options already selected before will be deleted. L D0 L D2 3 S ekunden betätigen L D0 L D2 blinkt...
- Page 29 • Interrupting the program • What happens when opening and closing the door? Attention: • What happens in case of resp. after a power failure? - 29 -...
- Page 30 • Program selection and option displays • Display for preset start time (SZV) • Run time display (RLA) • Information displays These LEDs are permanently lit from switching the machine on by use of ON/OFF key until the moment of actual program start. These LEDs will also be lit after reaching program stop until the machine is switched off.
-
Page 31: Summary Of Service And Customer Support Functions
6.10. Summary of Service and Customer Support Functions Confirmation Call of Which Selection of special mode customer Detailled Who ? of the special special or service Function ? description mode function Press S2 and ... LED's of switch on Water press key see page keys S1 - S3... -
Page 32: General Information
6.11 General Information 6“r vtr @v† ‡ryyˆtÃqr…à X h † †r…ul…‡r 7r€r …xˆt @qr G@9 Cl…‡r†‡ˆsr Anzahl blinken elektronisch mechanisch in dH in mmol/L Bereich akus tis ch 1 mal kein Regenerieren 2 mal I / II L D0 3 mal 4 mal E NDE 5 mal... - Page 33 6.12 General information L D0 E NDE blinken L D0 L D1 E NDE L D2 L D3 blinkt L D0 E NDE L D2 blinkt L D0 E NDE L D2 blinkt L D0 E NDE L D2 L D0 ...
- Page 34 6.13 General information L D0 L D1 L D2 L D3 (A temporary flashing up of T as ten S 1/ S 3 für ca. 4 S ek. halten bis LD1-L D3 blinken! blinken LEDs is possible and is no fault!) L D0 L D1 L D2...
- Page 35 6.14 General Information L D0 L D1 L D2 L D3 T as ten S 1/S 3 für ca. 4 S ek. halten bis LD1-L D3 blinken! blinken L D0 L D1 L D2 L D3 alle L E D’s blinken (A temporary flashing up of LEDs is possible and is no fault!) L D0 L D1...
- Page 36 6.15 General information L D0 L D1 L D2 L D3 T as ten S 1/S 3 für ca. 4 S ek. halten bis LD1-L D3 blinken! blinken L D0 L D1 L D2 L D3 (A temporary flashing up of LEDs is possible and is no fault!) L ED’s blinken L D0 P AA...
- Page 37 6.16 General information L D0 L D1 L D2 L D3 T as ten S 1/S 3 für ca. 4 S ek. halten bis LD1-L D3 blinken! blinken L D0 L D1 L D2 (Short-time illumination of LEDs is possible and does L D3 not constitute any fault) blinkt...
- Page 38 6.17 General information L D0 L D1 L D2 L D3 T as ten S 1/S 3 für ca. 4 S ek. halten bis LD1-L D3 blinken! blinken L D0 L D1 (Short-time illumination of LEDs is possible and does not constitute any L D2 fault) L D3...
- Page 39 6.18 • Selection by using option key " 3 in 1 " • Selection by using option key - „Satinize“ - 39 -...
-
Page 40: Overview Error Displays
Overview Errors Displayed Applicable for EDW1500 / 1503 (VGA) -- EDW1100 / 1003 (VGA) -- EDW2000 Display Display Error Display Call Acoustic Error Output via Short Explanation What happens? visible for Error Memory Indication Name Indicator Lamp Screen END LED Customer** (Service) No.of Beeps... - Page 41 List of Possible Error Causes Code Possible error causes Water tap is closed or faulty No water pressure, pressure too low or changing Screen in front of inlet valve clogged Flow governor at inlet valve faulty No or not enough water let in Inlet valve faulty Inlet valve deenergized (faulty wiring or no activation by electronics) Inlet hose bent...
-
Page 42: Wirings
7. Wirings 7.1 Electric circuit diagramm (example) - 1 - 05.2003 R.K. 599 517066... -
Page 43: Wiring Diagramn
7.2 Wiring diagram (example) - 2 - 05.2003 R.K. 599 517066...
