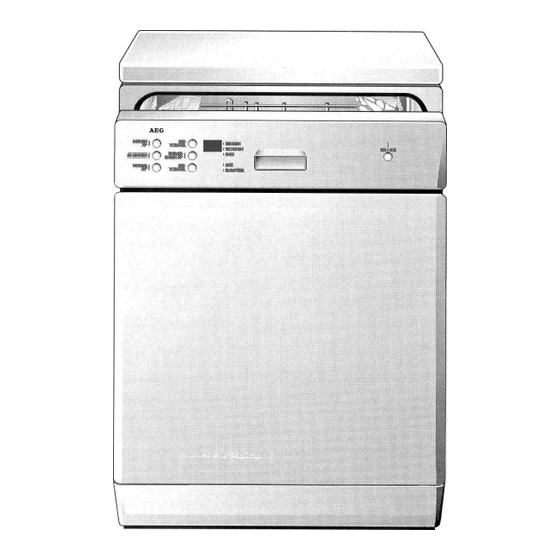

Electrolux Diva Service Manual

Electrolux diva + edw 1500 dishwasher service manual
Hide thumbs Also See for Diva:

Advertisement

Quick Links

See also: Service Manual
SERVICE MANUAL
DISHWASHER
EDW 1500
+
599 515 015
+
EDW 1500

Advertisement

loading

Related Manuals for Electrolux Diva

Summary of Contents for Electrolux Diva

  • Page 1 SERVICE MANUAL DISHWASHER EDW 1500 599 515 015 EDW 1500...
  • Page 2 Index - 2 -...
  • Page 3 Display Door handle Control lamps Progamme buttons On/Off button * Appliances with height-adjustable feet Plinth height for appliances 820 mm high 100 - 175 mm Plinth height for appliances 870 mm high 150 - 230 mm - 3 -...
  • Page 4 3. Components - 4 -...
  • Page 5 display „lack of rinse aid“ dosing of rinse-aid maximum filling level outlet of rinse-aid detergent tray detergent tray for pre wash Spule Zeit Zeit Zeit Zeit Zeit Zeit - 5 -...
  • Page 6 Temp. Widerstand 10°C 9653 Ohm 25°C 4843 Ohm 60°C 1204 Ohm 90°C 445 Ohm - 6 -...
  • Page 7 - 7 -...
  • Page 8 - 8 -...

  • Page 9: Service Tips

    4. Service tips Torx - 9 -...
  • Page 10 - 10 -...
  • Page 11 - 11 -...
  • Page 12 - 12 -...

  • Page 13: Water Course Scheme

    5. Water Course Scheme Inlet valve Flow heater Non-return valve salt container Drain pump Air break Regeneration valve Regeneration water dosage Non-return valve Safety inlet hose Overflow safety level Spray arms Base tray Safety overflow Roof-mounted shower Float switch Tub vent Inlet to sump from regeneration dosage chamber Pressure switch Regeneration dosage chamber...
  • Page 14 5.1 All-Around Water Protection Aqua-Control Inlet Hose The inlet hose has a double-wall construction. The inner hose is equipped with a flow restrictor built into the tap connection, and has a flow rate of 4 litres per minute. The inlet valve (1) is located in the base of the dishwasher.

  • Page 15: Water Inlet

    5.2 Water Inlet The water flows into the regeneration dosage chamber (7) via inlet valve (1), over air break (2), into regeneration dosage chambers (3) into softener (8). At this point the water divides. 1/4 of the water enters the tub through the vent (23). 3/4 of the water enters the sump (24) through hose (6). The level control chamber built into the sump operates the pressure switch (15).
  • Page 16 s tatic water dynamic water max. 4 load load r epetitions to level with level contr ol T imeout 1 T imeout 2 speed target- s peed ˜ 10 S ek. 5 S ek. 5 S ek. 20 S ek. 1600 time in S ek.
  • Page 17 speed 2800 var iable s peed 1600 20 S ec. high,r high,r high,r s tar t-r outine time in s ec. -function = time (high s peed) + r andom time high,r water in L dynamic pulse was h level pr ess ur e s witch point water level...
  • Page 18 5.3 Draining During the wash cycle the water is pumped out at various stages. First the draining water cleans the filters (16). The filters are open at the bottom which allows any soilage to be rinsed off sufficiently. There is a non-return valve (20) at the inlet connection to the drain pump (19). This valve prevents the water Inlet valve Flow heater...
  • Page 19 dr ain pump 1 dr aining s equence with var iable timing level check! (var iable) (var iable) (var iable) 'UDLQ &\FOH )LUVW GUDLQLQJ EHIRUH HYHU\ ZDVK F\FOH  VHF  VHF  VHF 'UDLQLQJ DIWHU WKH ZDVK F\FOHV  VHF  VHF  VHF - 19 -...
  • Page 20 6.1 Inputs and outputs: keys, LEDs and lamps Arrangement and designation with vertical key arrangement Display LD13 - 28 ON/OFF switch LD29 LD10 LD11 lamp on/off LD12 S.No. 111 59 32-... among others for DGN appliances with AEG design with horizontal key arrangement Display LD13 - 28 ON/OFF switch LD10...

  • Page 21: General Information

    6.2 General information Equipment in the panel area (see description page B 1) Possible equipment w Separate ON/OFF switch S0 without optical confirmation w 6 keys S1 to S6 to select programs or options with the corresponding LEDs All keys are free and can be programmed without any restriction by the programming of the appliance variant.
  • Page 22 6.3 Input philosophy: program selection Tastenanordnung Tastenanordnung senkrecht waagrecht 1 99 1 99 S2 S3 S4 S5 S6 1. Appliance in switched-off condition 2. Switch on appliance with ON/OFF key S0 Ä Display LD0 with ON/OFF key is lit. Ä Appliance is in the prestart mode. Ä...
  • Page 23 Tastenanordnung Tastenanordnung senkrecht waagrecht 1 99 1 99 6.4 Input philosophy: select start time S2 S3 S4 S5 S6 Variant A Variant B time preselection after program selection time preselection before program selection ç variant A 1. Appliance in switched-off condition. 2.

  • Page 24: Cycle Start

    6.5 Input philosophy: program run Cycle start 3 seconds after actuating any key last resp. after the adjusted start time has run down, the selected washing cycle will start automatically. A time preselection resp. a program option cannot be selected any more additionally from that moment.
  • Page 25 Tastenanordnung Tastenanordnung 6.6 Input philosophy: delete program senkrecht waagrecht 1 99 1 99 S2 S3 S4 S5 S6 A selected or already started washing cycle can be deleted at any time during normal operation. Delete program (using the reset function) Reset function always with the key S2 and S3.
  • Page 26 Tastenanordnung Tastenanordnung 6.7.1 Input philosophy: alter program senkrecht waagrecht 1 99 1 99 Alter program during the prestart phase S2 S3 S4 S5 S6 Display blinkt 1. Program has been selected but did not yet start Laufzeit Ä Display LD0 with ON/OFF key, program LED and run time LED are lit. Ä...
  • Page 27 6.7.2 Input philosophy: alter program Tastenanordnung Tastenanordnung senkrecht waagrecht 1 99 1 99 Alter program after successful cycle start S2 S3 S4 S5 S6 1. Cycle running Laufzeit Ä Display LD0 with ON/OFF key, corresponding program LED and run time LED are lit. Ä...
  • Page 28 6.8 Input philosophy- interrupt program Interrupt program By using the ON/OFF key S0 it is possible to interrupt the program as long as one wants. The same is valid for an interruption by opening the door. There is no deleting function integrated in the ON/OFF key S0! If the cycle is interrupted by using the ON/OFF key, all displays go out.
  • Page 29 6.9 Input philosophy - displays All displays are designed as LED displays and are available depending on the appliance variant. Start-time preselection and run time are indicated via a display. Displays for program selection and option Ä Above resp. next to a program or option key there is generally a corresponding LED to confirm the selected function.
  • Page 30 6.10 Short survey of all customer, service and aftersales service functions Tastenanordnung senkrecht Tastenanordnung waagrecht 1 99 1 99 S2 S3 S4 S5 S6 Confirmation Call Detailed Who? Which function? Selection of special mode customer or service of the special mode of special function description simultaneously...
  • Page 31 When calling the customer functions, generally no 6.11 Customer function / setting of water hardness washing cycle must be selected! General information Calling / changing / saving the "electronic" hardness area value w Setting and changing the water hardness area is executed in Calling the function "set water hardness"...
  • Page 32 When calling the customer functions no washing cycle 6.12 Customer function / deactivation of rinse-aid addition must be selected generally! General information Calling / changing / saving the rinse-aid addition deactivation Calling the function "deactivate rinse-aid addition" The function rinse-aid deactivation does not exist generally and must be programmed in the software variant.
  • Page 33 When calling the customer functions a washing cycle 6.13 Customer function / deactivation of signal sound: must not be selected generally! General information Calling / changing / saving the signal sound deactivation Calling the function "deactivate signal sound" The function deactivation of the signal sound does not exist generally and must be programmed in the software Switch on appliance with ON/OFF key S0 variant.
  • Page 34 7.1 Service function / readout of fault memory and single actuator selection: General information Calling above-mentioned service function w Calling the service functions is executed in all designs Calling the functions resp. key arrangements analogously. "readout of fault memory" and "single actuator selection" w For that you always have to use keys S0, S1, S2 and S3 Press keys S1 and S3 simultaneously and ...
  • Page 35 7.2 Service function / LED test with integrated deletion of the fault memory: General information Calling above-mentioned service function w Calling the service functions is executed in all designs Calling the functions resp. key arrangements analogously. "LED test with integrated deletion of the fault memory" w For that you always have to use keys S0, S1, S2 and S3 independent of their variant-depending program load.
  • Page 36 7.3 Service function / manufacturing test routine: General information Calling above-mentioned service function w Calling the service functions is executed in all designs Calling the function "manufacturing test routine" resp. key arrangements analogously. w For that you always have to use keys S0, S1, S2 and S3 Press keys S1 and S3 simultaneously and ...
  • Page 37 Overview Errors Displayed Applicable for EDW1500 / 1503 (VGA) -- EDW1100 / 1003 (VGA) -- EDW2000 Display Display Error Display Call Acoustic Error Output via Short Explanation What happens? visible for Error Memory Indication Name Indicator Lamp Screen END LED Customer** (Service) No.of Beeps...

  • Page 38: List Of Possible Error Causes

    List of Possible Error Causes Code Possible error causes Water tap is closed or faulty No water pressure, pressure too low or changing Screen in front of inlet valve clogged Flow governor at inlet valve faulty No or not enough water let in Inlet valve faulty Inlet valve deenergized (faulty wiring or no activation by electronics) Inlet hose bent...
  • Page 39 9. Wirings - 21 -...
  • Page 40 - 22 -...
