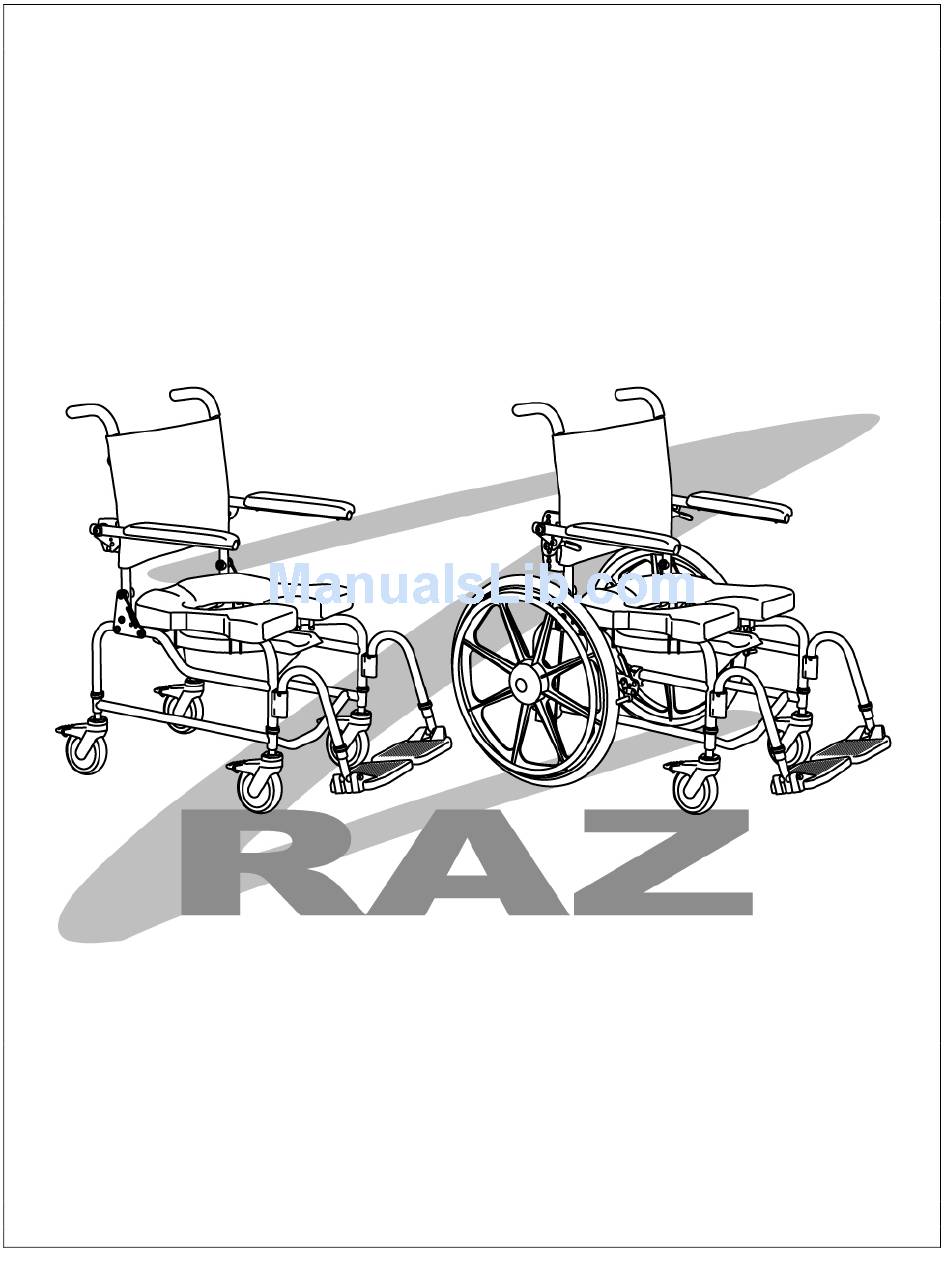

- Page 1 Raz Rehab Shower Chairs AP / SP Models User’s Manual A guide to help users and caregivers in the safe usage and maintenance of Raz Rehab Shower Chairs 20090122...
- Page 2 Up-to-date manuals are available online at www.razdesigninc.com. For clarification of any section of this manual, call the dealer that provided your Raz Rehab Shower Chair. If the dealer is unable to address certain concerns or questions, contact the Canadian distributor or the manufacturer.
- Page 3 A qualified healthcare professional should be consulted to assist with this process. DO NOT push or pull the Raz AP up or down an incline or ramp that exceeds a 1:12 grade (5° slope). If unsure of the ramp grade, contact your authorized Raz dealer for assistance.
- Page 4 Transferring onto a Raz AP Shower Chair – ALWAYS lock all four casters in their outward position (front casters positioned in the forward position/rear casters positioned to the rear) for maximum chair stability. Transferring onto a Raz SP Shower Chair – ALWAYS lock both...
-
Page 5: Table Of Contents
USER'S MANUAL TABLE OF CONTENTS Page GENERAL INFORMATION Raz Rehab Shower Chair Models AP and SP Overview ..........6 Raz Rehab Shower Chair Models AP and SP Specifications ........6 USE AND OPERATION Fixed Back Backrest....................7 Adjusta-Back Backrest ....................7 Adjustable Tension Back Upholstery................ -
Page 6: General Information Raz Rehab Shower Chair Models Ap And Sp Overview
GENERAL INFORMATION Raz Rehab Shower Chair Models AP and SP Overview Raz Rehab Shower Chair Models AP and SP Specifications SPECIFICATION RAZ AP RAZ SP SEAT WIDTH 18” 18” SEAT DEPTH 16” or 19” 16” or 19” SEAT ADJUSTMENT Up to 2” (fore/aft) Up to 2”... -
Page 7: Use And Operation
The upholsteries are available in both heights to fit the Fixed or Adjusta-Backs on Raz AP and SP Shower Chairs. In all cases the upholstery is removable for machine washing. -
Page 8: Molded Seat
Optional spacers for anterior or posterior seat angle adjustment are also available with the Raz Shower Chair. The seat-to-floor height achievable on the Raz AP and SP Shower Chairs is between 19½” and 23½” and the chair fits over most standard toilet bowls when the commode pan is not in place. -
Page 9: Casters
DEALER. ADJUSTED SEAT POSITIONS WILL REDUCE THE CHAIR’S STABILITY AND MAY RESULT IN TIPPING AND INJURY. Casters Each Raz Rehab Shower Chair caster is equipped with a dual-lock feature, which stops the caster from swivelling and rolling simultaneously. To engage the dual-lock, step on the end of the caster lock lever until it latches in the on position. -
Page 10: Directional Caster Lock
Directional Caster Lock A Directional Caster Lock can be added to one caster on the Raz AP and SP Shower Chairs to facilitate linear movement of the commode and manipulation in confined environments. The flip-down directional lock keeps one rear caster aligned in a forward direction. This feature is provided to facilitate the pushing of the chair by reducing unwanted sideways movement. -
Page 11: Anti-Tippers - Sp Model Only
To rotate the Adjustable Footrests: 1. Lift the footrest hanger tube up to disengage the pins. 2. Rotate the footrests outward or inward. To remove the Adjustable Footrests, lift the footrests out of the receiving sleeves on the frame. Raz AP/SP User’s Manual 20090122... -
Page 12: Lateral Supports
2.11 Leg Adductors Leg Adductors are available as an option on AP and SP Raz Shower Chairs. Leg Adductors are recommended for users who need assistance with leg positioning. For transfers, the adductor pads can be removed entirely. Leg Adductors have a comfortable 6”x5” molded foam pad and are multi-axis adjustable to meet users’... -
Page 13: Molded Headrest
IMPORTANT ! ARMRESTS ON RAZ AP AND SP MODELS ARE NOT INTENDED TO SUPPORT THE ENTIRE BODY WEIGHT OF AN INDIVIDUAL. TOO MUCH WEIGHT MAY CAUSE DAMAGE TO THE ARMRESTS OR MAY CAUSE THE CHAIR TO TIP. -
Page 14: Chest Positioning Strap
1. Disconnect the Velcro from the back of the H-strap and adjust to sling or tighten the H-strap to suit the users’ needs. 2. Press firmly on the Velcro to secure the H-strap prior to use. Raz AP/SP User’s Manual 20090122... -
Page 15: Heel Loops
IMPORTANT ! A QUALIFIED RAZ DEALER SHOULD BE CONTACTED TO CHECK ALL FASTENERS, CASTER AND WHEEL LOCKS, HARDWARE, AND ALL OTHER MOVING COMPONENTS AT LEAST ONCE PER YEAR. Raz AP/SP User’s Manual 20090122... -
Page 16: Cleaning And Maintenance Cleaning After Each Use
To minimize the risk of mildew buildup the entire chair should be wiped down with a soft dry cloth after the final rinse and before storage or use. Raz AP/SP User’s Manual 20090122... -
Page 17: Suggested Cleaning Products
DO NOT SUBMERGE THE RAZ SHOWER CHAIR IN WATER. RINSE THOUROUGHLY AFTER CLEANING TO ENSURE THAT ANY SOAP OR DETERGENT RESIDUE IS REMOVED. DO NOT USE CLEANING PRODUCTS WITHOUT CONSULTING THE PRODUCTS’ INSTRUCTIONS AND TAKING APPROPRIATE PRECAUTIONS FOR HUMAN EXPOSURE TO CHEMICALS. Raz AP/SP User’s Manual 20090122... -
Page 18: Limited Warranty
(2) years from the date of purchase. All other components on the Raz Rehab Shower Chair are covered for a period of one (1) year and are subject to normal wear and tear exclusions. If within such warranty period any such product shall be proven to be defective, the part will be repaired or replaced, at Raz Design’s... -
Page 19: Contacts
CONTACTS It is important that the Raz Rehab Shower Chair be properly assembled and all adjustments be made carefully. Up-to-date manuals can be downloaded from www.razdesigninc.com, or ordered by mail. For clarification of any section of this manual, contact a local Raz dealer, the Canadian distributor, or the manufacturer.
