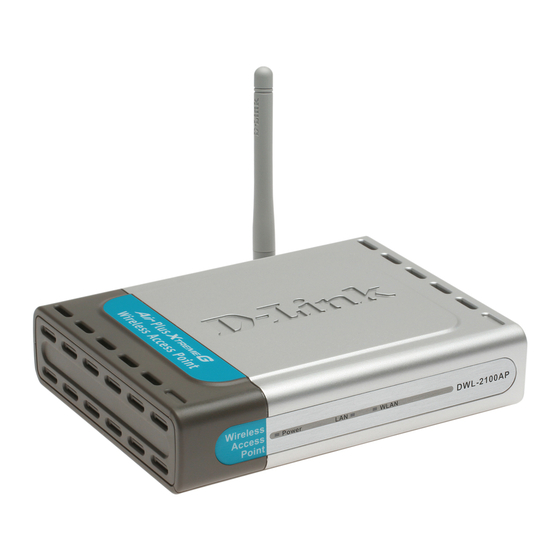

D-Link DWL-2100AP Command Line Interface Reference Manual
  1. Manuals
  2. Brands
  3. D-Link Manuals
  4. Wireless Access Point
  5. DWL-2100AP - AirPlus Xtreme G
  6. Command line interface reference manual
D-Link DWL-2100AP Command Line Interface Reference Manual

D-Link DWL-2100AP Command Line Interface Reference Manual

802.11b/g access point
Hide thumbs Also See for DWL-2100AP:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
DWL-2100AP
802.11b/g Access Point
Command Line Interface Reference Manual
First Edition (January 2006)
RECYCLABLE

Advertisement

Table of Contents
loading

Related Manuals for D-Link DWL-2100AP

Summary of Contents for D-Link DWL-2100AP

  • Page 1 DWL-2100AP 802.11b/g Access Point Command Line Interface Reference Manual First Edition (January 2006) RECYCLABLE...

  • Page 2: Table Of Contents

    Table of Contents Using the CLI ....................................................1 Command Syntax....................................................5 Utility Commands..................................................... 7 Ethernet Commands..................................................8 Wireless Commands ..................................................9 Multi-SSID and VLAN Commands..............................................14 Access Control List Commands ..............................................16 Radius Server Commands ................................................17 DHCP Server Commands ................................................18 Snmp Commands....................................................

  • Page 3: Using The Cli

    The DWL-2100AP can be accessed by Telnet. Using Microsoft Windows Operation system as example, open the Command Prompt on the computer that will be used for configuring and managing the AP and enter telnet and IP address of DWL-2100AP in the first line. Using the default IP address as example, enter telnet 192.168.0.50 to cause the following screen to open: Press Enter in the screen above.
  • Page 4 802.11 b/g Access Point Command Line Interface Manual Press Enter as there is no initial password. The following screen opens to indicates you have successfully logged into the DWL-2100AP. Commands are entered at the command prompt, D-Link Access Point wlan1 ¡ >...
  • Page 5 802.11 b/g Access Point Command Line Interface Manual There are a number of helpful features included in the CLI. Entering the ¡ ?¡ command and then pressing Enter will display a list of all of the top-level commands. The same information can also be displayed by entering ¡...
  • Page 6 802.11 b/g Access Point Command Line Interface Manual This screen displays all the possible command completions for ¡tftp¡ When you enter a command without a variable or value that needs to be specified, the CLI will prompt you with further information about what is needed to complete the command. For example, if ¡snmp authtrap¡...

  • Page 7: Command Syntax

    802.11 b/g Access Point Command Line Interface Manual OMMAND YNTAX The following symbols are used to describe how command entries are made and values and arguments are specified in this manual. The online help contained in the CLI and available through the console interface uses the same syntax.
  • Page 8 802.11 b/g Access Point Command Line Interface Manual : colon Purpose Separates two or more mutually exclusive items in a list, one of which must be entered. Syntax set antenna <1:2:best> Description In the above syntax example, you must specify either 1, 2 or best.

  • Page 9: Utility Commands

    802.11 b/g Access Point Command Line Interface Manual TILITY OMMANDS Help Command: Function Syntax help Display CLI Command List help or ? Ping Command: Function Syntax ping Ping ping <xxx.xxx.xxx.xxx> Restart and Exit Commands: Function Syntax set factorydefault Restore to Default Factory Settings set factorydefault Reboot Access Point.

  • Page 10: Ethernet Commands

    802.11 b/g Access Point Command Line Interface Manual THERNET OMMANDS Get Command: Function Syntax get hostipaddr Display Host IP Address get hostipaddr get ipaddr Display IP Address get ipaddr get ipmask Display IP Network/Subnet Mask get ipmask get gateway Display Gateway IP Address get gateway get lcp Display Link Integrate state...

  • Page 11: Wireless Commands

    IRELESS OMMANDS Fundamental Config Commands: Function Syntax Select WLAN Adapter to configure. DWL-2100AP only WLAN 1 is config wlan config wlan [0:1] available for configuration. This command is not necessary. Find Commands: find bss Perform Site Survey, Wireless service will be disrupted...
  • Page 12 802.11 b/g Access Point Command Line Interface Manual get swPower Display Software Power Setting get swPower get SuperG Display SuperG Feature Status of enabled or disabled get SuperG get wlanstate Display Wireless LAN state status (enabled or disabled) get wlanstate get shortpreamble Display Short Preamble Usage state: enabled or disabled get shortpreamble...
  • Page 13 802.11 b/g Access Point Command Line Interface Manual set remoteAP Set Remote AP's Mac Address set remoteAP <xx:xx:xx:xx:xx:xx> set autochannelselect Set Auto Channel Selection to enable or disable set autochannelselect [disable:enable] set rate Set Data Rate set rate [best:1:2:5.5:6:9:11:12:18:24:36:48:54] set beaconinterval Modify Beacon Interval 20-1000 set beaconinterval [20-1000] set dtim...
  • Page 14 802.11 b/g Access Point Command Line Interface Manual set MulticastPacketControl [0:1] set MulticastPacketControl Enable or Disable Multicast Packet Control Explanation: 0=disable:1=enable set MaxMulticastPacketNumber Set Max Multicast Packet Number set MaxMulticastPacketNumber [0-256] Security Del Command: Function Syntax del key Delete Encryption key del key [1-4] Get Command: Function...
  • Page 15 802.11 b/g Access Point Command Line Interface Manual Get Command: Function Syntax get wmm Display WMM mode status (enabled or disabled) get wmm get wmmParamBss Display WMM EDCA parameters used by STA in this BSS get wmmParamBss get wmmParam Display WMM EDCA parameters used by this AP get wmmParam Set Command: Function...

  • Page 16: Multi-Ssid And Vlan Commands

    802.11 b/g Access Point Command Line Interface Manual -SSID VLAN C ULTI OMMANDS Get Command: Function Syntax get vlanstate Display Vlan State status (enabled or disabled) get vlanstate get nativevlan Display Native Vlan tag get nativevlan get Vlantag Display Vlan tag get Vlantag get multi-state Display Multi-SSID Mode (enabled or disabled)
  • Page 17 802.11 b/g Access Point Command Line Interface Manual set multi-authentication set multi-authentication Set Authentication Type for Multi-SSID [open-system:shared-key:wpa:wpa-psk:wpa2:wpa2-psk:wpa-auto:w pa-auto-psk] [index] set multi-wmm Set WMM Mode set multi-wmm [disable:enable] set multi-cipher Set Cipher for Multi-SSID set multi-cipher [wep:aes:tkip:auto] [index] set multi-encryption Set Encryption Mode for Multi-SSID set multi-encryption [disable:enable] [index] set multi-keyentrymethod...

  • Page 18: Access Control List Commands

    802.11 b/g Access Point Command Line Interface Manual CCESS ONTROL OMMANDS Del Command: Function Syntax del acl Delete specified Access Control List entry del acl [1-16] del wdsacl Delete specified WDS ACL entry: 1-8 del wdsacl [1-8] Get Command: Function Syntax get acl Display Access Control Setting of Enabled or disabled...

  • Page 19: Radius Server Commands

    802.11 b/g Access Point Command Line Interface Manual ADIUS ERVER OMMANDS Get Command: Function Syntax get radiusname Display RADIUS server name or IP address get radiusname get radiusport Display RADIUS port number get radiusport get radius2ndstate Display the second RADIUS Mode get radius2ndstate get radiusname2nd Display the second RADIUS server name or IP address...

  • Page 20: Dhcp Server Commands

    802.11 b/g Access Point Command Line Interface Manual DHCP S ERVER OMMANDS Command: Function Syntax dhcps help Display DHCP Server Command Help dhcps help dhcps state get DHCP Server state dhcps state dhcps state <on:off> turn on or turn off DHCP Server dhcps state [on:off] dhcps dynamic info get current settings...

  • Page 21: Snmp Commands

    802.11 b/g Access Point Command Line Interface Manual OMMANDS Command Function Syntax get snmp Display SNMP Agent Status get snmp set snmp Set SNMP Agent State set snmp [disable:enable] snmp adduser <Username> <GroupName> [AuthProtocol] [Authkey] [PrivProtocol] [PrivKey] Explanation: snmp adduser Add User To SNMP Agent AuthProtocol: 1 Non, 2 MD5, 3 SHA Autheky: Key string or none...
  • Page 22 802.11 b/g Access Point Command Line Interface Manual snmp editprivatecomm Edit private communication String snmp editprivatecomm <privateCommunityString> snmp addcomm <CommunityString> <ViewName> [Type] Explanation: snmp addcomm Add Communication String CommunityString: <string> ViewName:<string> Type:1: Read-Only, 2: Read-Write snmp delcomm Delete Community String snmp delcomm <CommunityString>...

  • Page 23: Time Display & Sntp Commands

    802.11 b/g Access Point Command Line Interface Manual & SNTP C ISPLAY OMMANDS Command: Function Syntax timeofday timeofday Displays the Current Time of Day Note: Need to set up SNTP/NTP server firstly Get Command Function Syntax get sntpserver Display SNTP/NTP Server IP Address get sntpserver get tzonelist Display Time Zone...

  • Page 24: Telnet & Ssh Commands

    802.11 b/g Access Point Command Line Interface Manual & SSH C ELNET OMMANDS TFTP Commands: Command: Function Syntax tftp get Get a file from TFTP Server. tftp get Filename<string> tftp uploadtxt Upload the configuration of the device to TFTP Server. tftp uploadtxt Filename<string>...
  • Page 25 802.11 b/g Access Point Command Line Interface Manual ssh setalgorithm [0 -12] [enable/disable] Explanation: Algorithm: 0:3DES 1:AES128 2:AES192 3:AES256 4:Arcfour 5:Blowfish 6:Cast128 ssh setalgorithm Set SSH Algorithm 7:Twofish128 8:Twofish192 9:Twofish256 10:MD5 11:SHA1 12:Password) Example: 1. Disable 3DES algorithm support ssh setalgorithm 0 disable Igmp Command Function Syntax...

  • Page 26: System Log Command

    802.11 b/g Access Point Command Line Interface Manual YSTEM OMMAND Get Command Function Syntax get syslog Display Syslog Information get syslog Set Command Function Syntax set syslog remoteip <xxx.xxx.xxx.xxx> set syslog remotestate [0:1] set syslog localstate [0:1] set syslog sysstate [0:1] set syslog Set sysLog setting set syslog wirelessstate [0:1]...

  • Page 27: First-Time Configuration Examples

    The following AP configuration examples are provided to help first-time users get started. The user commands are in bold for easy reference. Many users will want to set a new IP address for the DWL-2100AP. This will also require setting an IP mask and a Gateway IP address. The following is an example in which the AP¡s default IP address of 192.168.0.50 is changed to 192.168.0.55.
  • Page 28 802.11 b/g Access Point Command Line Interface Manual D-Link Access Point wlan1 -> set authentication shared-key Authentication Type: Shared-Key D-Link Access Point wlan1 -> set key 1 40 1234567890 Shared Key 1, size 40: 1234567890 D-Link Acc ess Point wlan1 -> set key 1 default Default Key: 1 D-Link Access Point wlan1 ->...
  • Page 29 802.11 b/g Access Point Command Line Interface Manual D-Link Access Point wlan1 -> set authentication wpa Authentication Type: WPA D-Link Access Point wlan1 -> set encryption enable Encryption: Enabled D-Link Access Point wlan1 -> set cipher auto Cipher selection: AUTO D-Link Access Point wlan1 ->...
