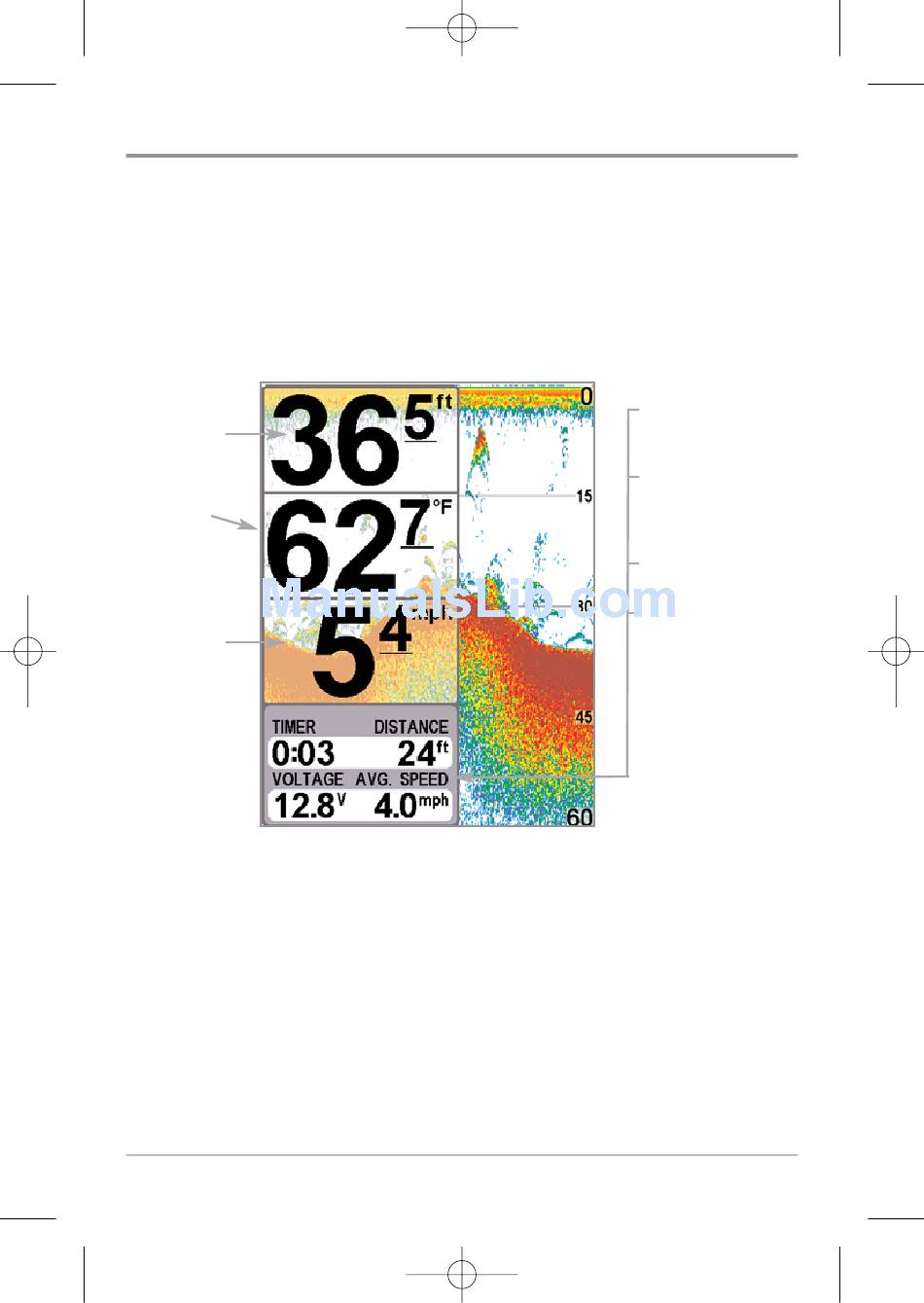

Big Digits View

Big Digits View provides digital data in a large, easy-to-see format. Depth is
always displayed. Readouts for temperature, speed and Triplog information are
displayed automatically if the appropriate accessory is connected to the
system. The Triplog shows distance traveled, average speed, and time elapsed
since the Triplog was last reset. The digital readouts in the Big Digits View
cannot be customized.
Depth
Temperature
Speed
10/2/2006
Big Digits View
17
1:41 AM Page 22
Timer shows the time
elapsed since Triplog
was last reset
Distance is the
distance traveled since
the Triplog was last
reset
Voltage displays the
battery voltage.
Average Speed shows
the speed since the
Triplog was last reset
