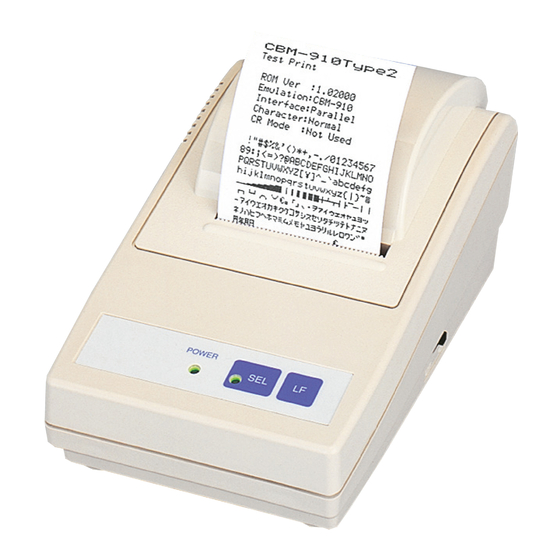

Citizen CBM-910 Service Manual

Citizen cbm-910 printer service manual
Hide thumbs Also See for CBM-910:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Service Manual

Model : CBM-910
Rev.
Issued
Japan CBM Corporation
Information Systems Div.

Advertisement

Table of Contents
loading

Related Manuals for Citizen CBM-910

Summary of Contents for Citizen CBM-910

  • Page 1: Service Manual

    Service Manual Model : CBM-910 Rev. Issued Japan CBM Corporation Information Systems Div.

  • Page 2: Table Of Contents

    6. How to remove the Paper Hook ..........................5 7. Parts List : Exploded View CBM-910........................6 8. Exploded View : CBM-910 ............................7 9. OP Panel Parts Position : CBM-910-PF/RF ......................9 10. OP Assy Schematic Diagram : CBM-910-PF/RF....................10 11. Parts List : Control Board Assy CBM-910-RF....................11 12.

  • Page 3: How To Remove The Upper Cover

    CBM-910 Service Manual 1. How to remove the Upper Cover (1) Unfasten 2 screws M3x8 on the Bottom Cover. (2) Lift the Upper Cover in the arrow direction removal. (3) Unfasten 2 screw, The Printer Mechanism mounting screw, Then remove the Shield Plate from the Printer Mechanism.

  • Page 4: How To Remove The Control Board

    CBM-910 Service Manual 3. How to remove the Control Board (1) Remove the Upper Cover. (2) Unfasten 2 screws M3x8 as shown below. (3) Shift the Control Board in the arrow direction (1). (4) Shift the Control Board in the arrow direction (2). and remove the Power Switch from the Bottom Cover.

  • Page 5: How To Remove The Operation Panel

    CBM-910 Service Manual 5. How to remove the Operation Panel (1) Remove the upper Cover. (2) Unfasten 2 screws M2.6x6 as shown below. 6. How to remove the Paper Hook (1) Remove the Printer Cover. (2) Release a Lock Hook as shown below and lift the Paper Hook to the upside.

  • Page 6: Parts List : Exploded View Cbm-910

    CBM-910 Service Manual 7. Parts List : Exploded View CBM-910 PARTS LIST CBM910-PF / -RF EXPLODED VIEW Ref. No. Parts No. Description Q'ty E 62010670 Top Case E 5200-220 OP Sheet MD910 Printer MD910 <1> MD911 Printer MD911 <1> E 4000-850...

  • Page 7: Exploded View : Cbm-910

    CBM-910 Service Manual 8. Exploded View : CBM-910 CITIZEN...
  • Page 8 CBM-910 Service Manual PARTS LIST CBM-910-PF / -RF OP ASSY Ref. No. Parts No. Description Q'ty LED 1, 2 E 480-290 SEL2310E SW 1, 2 E 5102-430 SWITCH SKHHAN CITIZEN...

  • Page 9: Op Panel Parts Position : Cbm-910-Pf/Rf

    CBM-910 Service Manual 9. OP Panel Parts Position : CBM-910-PF/RF CITIZEN...

  • Page 10: Op Assy Schematic Diagram : Cbm-910-Pf/Rf

    CBM-910 Service Manual 10. OP Assy Schematic Diagram : CBM-910-PF/RF CITIZEN...

  • Page 11: Parts List : Control Board Assy Cbm-910-Rf

    CBM-910 Service Manual 11. Parts List : Control Board Assy CBM-910-RF PARTS LIST CBM-910-RF CONTROL BOARD ASSY (910-01) Ref. No. Parts No. Description Q'ty E 107-250 UPD78C10AGF-3BE E 107-260 EP-ROM M27C256-15F1 E 107-210 S-RAM LC3664L-10 / 12 E 201-930 C-MOS...
  • Page 12 CBM-910 Service Manual PARTS LIST CBM-910-RF CONTROL BOARD ASSY (910-01) Ref. No. Parts No. Description Q'ty R 9, 17 E 3102-041 1 / 4W 10, 27, 30 E 3332-041 1 / 4W 3.3K 15, 16, 29 E 3473-041 1 / 4W...
  • Page 13 CBM-910 Service Manual PARTS LIST CBM-910-RF CONTROL BOARD ASSY (910-01) Ref. No. Parts No. Description Q'ty E 5105-330 Slide SW. SN-20202-1218 76G42141 Screw M3x8 (B-567) (for Tr. Heat sink) 76G30113 Screw M3x8 (B-506) (for Connector) E 4010-410 Heat sink 50-0079...

  • Page 14: Parts Position : Cbm-910-Rf

    CBM-910 Service Manual 12. Parts Position : CBM-910-RF CITIZEN...

  • Page 15: Parts List : Control Board Assy Cbm-910-Pf

    CBM-910 Service Manual 13. Parts List : Control Board Assy CBM-910-PF PARTS LIST CBM-910-PF CONTROL BOARD ASSY (910-02) Ref. No. Parts No. Description Q'ty E 107-250 UPD78C10AGF-3BE E 107-260 EP-ROM M27C256B-15F1 E 107-210 S-RAM LC3664L-10 / 12 4, 11 E 201-930...
  • Page 16 CBM-910 Service Manual PARTS LIST CBM-910-PF CONTROL BOARD ASSY (910-02) Ref. No. Parts No. Description Q'ty R15,16,29 E 3473-041 1 / 4W E 3472-041 1 / 4W 4.7K E 3152-041 1 / 4W 1.5K E 2010-150 El. Cap. 50JS-1uF 11, 13, 15 E 2010-605 El.
  • Page 17 CBM-910 Service Manual PARTS LIST CBM-910-PF CONTROL BOARD ASSY (910-02) Ref. No. Parts No. Description Q'ty 76G42141 Screw M3x8 (B-567) (for Tr. Heat sink) 76G30113 Screw M3x8 (B-506) (for Connector) E 4010-410 Heat sink PARTS LIST CBM-910-PF CONTROL BOARD ASSY, Paper Winder (Option) Ref.

  • Page 18: Parts Position : Cbm-910-Pf

    CBM-910 Service Manual 14. Parts Position : CBM-910-PF CITIZEN...

  • Page 19: Schematic Diagram Cbm-910-Rf

    CBM-910 Service Manual 15. Schematic Diagram CBM-910-RF CITIZEN...

  • Page 20: Schematic Diagram Cbm-910-Pf

    CBM-910 Service Manual 16. Schematic Diagram CBM-910-PF CITIZEN...

This manual is also suitable for:

Cbm-910-pfCbm-910-rf
