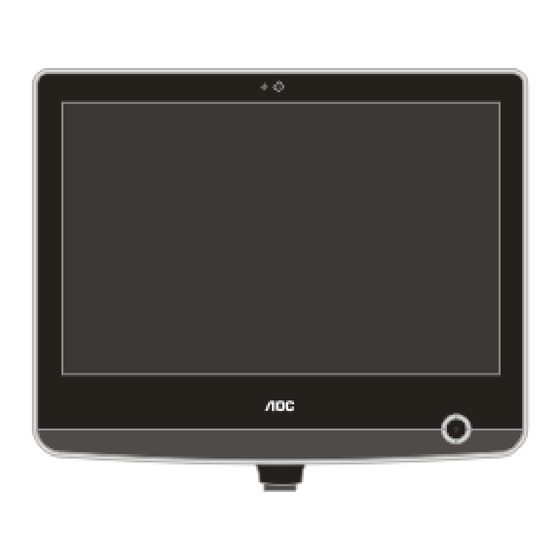

AOC MONITOR
USER`S GUIDE
V19+
SAFETY INTRODUCTION......................................................................2
SETUP.................................................................................................4
ADJUSTING...........................................................................................7
DRIVER INSTALLATION GUIDE.............................................................12
PRODUCT INFORMATION.....................................................................18
TROUBLESHOOT...................................................................................19
|
P a g e
١
Advertisement
Related Manuals for AOC V19
Summary of Contents for AOC V19
-
Page 1: Table Of Contents
AOC MONITOR USER`S GUIDE V19+ SAFETY INTRODUCTION…………………………………………………………….2 SETUP…………………………………………………………………………………….4 ADJUSTING…………….…………………………………………………...……………7 DRIVER INSTALLATION GUIDE…………………….….…………………………..12 PRODUCT INFORMATION…………………………………………………………...18 TROUBLESHOOT……...………………………………………………………….…….19 P a g e ١... -
Page 2: Safety Introduction
SAFETY INTRODUCTION The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. - Page 3 Clean the cabinet regularly with the cloth provided. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.
-
Page 4: Setup
Not all signal cables (Analog, DVI, and HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. Please setup or remove the base following the steps as below. - Page 5 Setup: Remove: For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. ...
- Page 6 NOTE: Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen. Cable Connections On Back of Monitor and Computer 1. Power 2. USB 3. Audio 4. Analog (DB-15 VGA cable) 5.HDMI To protect equipment, always turn off the PC and LCD monitor before connecting.
-
Page 7: Adjusting
Adjusting The recommended resolution for this monitor is 1680 by 1050. To setup the monitor to this resolution, follow the steps below. For Windows Vista: 1 Click START. 2 Click CONTROL PANEL. 3 Click Appearance and Personalization. 4 Click Personalization P a g e ٧... - Page 8 5 Click Display Settings. 6 Set the resolution SLIDE-BAR to 1680 by 1050. For Windows XP: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. P a g e ٨...
- Page 9 4 Click Appearance and Themes. 5 Double click DISPLAY. 6 Click SETTINGS. 7 Set the resolution SLIDE-BAR to 1680 by 1050. For Windows ME/2000: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Double click DISPLAY. 5 Click SETTINGS. 6 Set the resolution SLIDE-BAR to 1680 by 1050.
- Page 10 Contrast Brightness Eco mode Gamma Luminance Clock Phase H.Position V.Position Image Setup Color Temp. User-R User-G User-B Color Temp. Full Enhance Nature Skin Green Field Sky-blue AutoDetect Demo Color Boost Bright Frame Size Brightness Contrast H. position V.position Picture Boost Frame H.Position V.Position...
- Page 11 Status LED Color Full Power Mode Blue Active-off Mode Orange P a g e ١١...
-
Page 12: Driver Installation Guide
DRIVER INSTALLATION GUIDE Windows 2000 1. Start Windows® 2000 2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. 3. Double click on the 'Display' Icon. 4. Select the 'Settings' tab then click on 'Advanced...'. 5. - Page 13 3. Select and click on the category ‘Appearance and Themes’ 4. Click on the 'Display' Item. 5. Select the 'Settings' tab then click on the 'Advanced' button. 6. Select 'Monitor' tab - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
- Page 14 7. Click on the 'Driver' tab and then click on 'Update Driver...' button. 8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button. P a g e ١۴...
- Page 15 9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button. 10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive). 11.
-
Page 16: Windows Vista
Windows Vista 1. Click "Start " and "Control Panel". Then, double-click on "Appearance and Personalization". 2. Click "Personalization" and then "Display Settings". 3. Click "Advanced Settings...". P a g e ١۶... - Page 17 4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". 5.
-
Page 18: Product Information
8. Select your monitor model and click on the 'Next' button. 9. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence. PRODUCT INFORMATION Model number V19+ Driving system TFT Color LCD Viewable Image 481mm diagonal... -
Page 19: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed (AOC Monitor Drivers are available at : here) Adjust the Contrast and Brightness Controls. - Page 20 does not look white) Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and Horizontal or FOCUS. vertical Press to auto-adjust. disturbances on the screen P a g e ٢٠...
