Model 8263 Installation and Operation Manual
5/2 Day Programmable Thermostat
Failure to follow and read all instructions carefully before installing or operating this control could cause personal
injury and/or property damage. If you have any questions, please call Research Products Corporation at (800) 334-6011.
PREPARATIONS
Assemble tools required as shown below.
Wire cutter/stripper
Flat blade
screwdriver
Electric or cordless
drill with 3/16 inch
drill bit, if needed.
Level
THERMOSTAT DETAILS
FIGURE 1 – Thermostat Base
Mounting
hole
Programmable Thermostat
Electric/Gas Switch
Mounting hole
Advertisement
Table of Contents
Related Manuals for Aprilaire 8263
Summary of Contents for Aprilaire 8263
-
Page 1: Programmable Thermostat

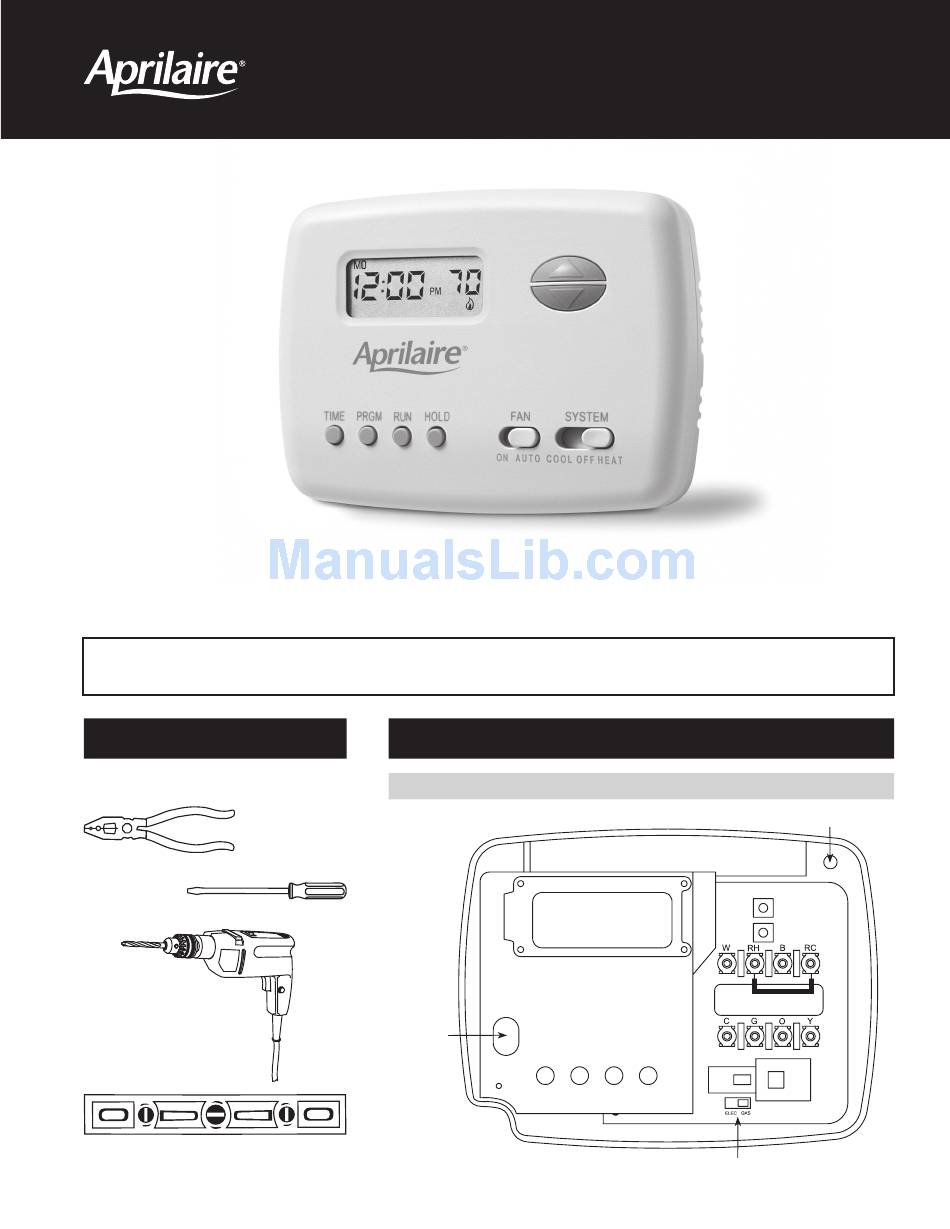

Programmable Thermostat Model 8263 Installation and Operation Manual 5/2 Day Programmable Thermostat Failure to follow and read all instructions carefully before installing or operating this control could cause personal injury and/or property damage. If you have any questions, please call Research Products Corporation at (800) 334-6011. -
