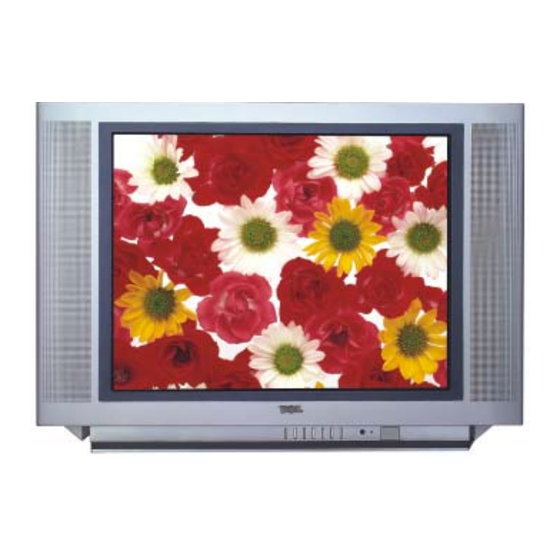

SERVICE MANUAL TF 2920 1. Caution……………………………………………………………2 2. Specification………………………………………………………6 3. BOM List ……………………… …………………………………9 4. Alignment Procedure………………………………………….….43 5. Block Diagram…………………………………………………….47 6. Schematic Diagram……………………………………………….48 7. PCB Layout………….…………………………………………….49 8. Explode View Diagram……………………………………………51 This manual is the latest at the time of printing, and does not include the modification which may be made after the printing, by the constant improvement of product.
Page 2
CAUTION: Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure. CA UTION: TO REDUCE THE RISK OF CAUTION ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE RISK RISK OF OF ELECTRI ELECTRIC C PARTS INSIDE.
IMPORTANT SAFETY INSTRUCTIONS CAUTION: Read all of these instructions. Save these instructions for later use. Follow all Warnings and Instructions marked on the audio equipment. 1. Read Instructions- All the safety and operating instructions should be read before the product is operated. 2.
Page 4
PROTECTION AND LOCATION OF YOUR SET Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall outlet and refer servicing to qualified service personnel.
OPERATION OF YOUR SET 18. This television set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply at your home, consult your television dealer or local power company. For television sets designed to operate from battery power, refer to the operating instructions.
Page 6
PFS2 FORMAT-1 Report Date: 2004-5-19 14:06 ProductView..: Product:@ Report by....: TF 2920 Specs / Products SRF NO./ODF NO. ON44019803 MasterData RADIO VICTORIA Customer Id Version Status WG Archived Brand Reception +Tuning - presets/channels +Tuning - technology +Tuning - Indication +Freq Bands...
Page 7
Date: 2004-5-19 14:06 ProductView..: Product:@ Report by....: TF 2920 Specs / Products +Tuning/Install Features Auto Store, Factory Mode, Language Selection, Service Mode +Clock/Timer Functions Sleep timer +Local Controls Front +Local Controls Top +Indicators - screen +Indicators - front +Numb of Loc Cont (incl Mains) +Number of Ind.
Page 8
Date: 2004-5-19 14:06 ProductView..: Product:@ Report by....: TF 2920 Specs / Products +Power in "ON" for +Power in Standby for +Power in "OFF" for Weight (P)TV (incl. Packaging) Weight (P)TV (excl. Package) Weight AVUnit excl Packaging +INDICATION on BACKCOVER +Channel...
Page 37
1 R952 41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 R953 46-38610H-07X HS 7P 600 TJC3-7Y/SCN-7Y P902 FOR M.BD P911 47-RCA041-XX0 JACK RCA 3PH H=8MM YL WH RD/SW 1 P961 47-SVI002-XX0 Y/C SOCKET VERTICAL TYPE 1 P951 08-B386S6-AG0 ASS'Y - AG PACKING 75-2980LL-CA1 POLYFOAM "LL"...
Page 38
FRONT CABINET 56-2980FB-0HA PUSH BOTTON 56-2980PK-0HA POWER KNOB 56-384400-0HC TRANSPARENCE LED 57-10654X-00F cable ties¡ ¡ (2.5mmX95mm) 58-2980SI-0UI SIDE AV INLAY (RCA & Y/C) 59-312950-000 RUBBER PAD 62-216340-0UN HOLDER POWER CORD HIPS-KINGFA 113(VO) 62-321780-0HG CRT COIL MTG 25"/29" 62-321790-0HN SPEAKER BRACKET 63-B30100-BT4 S/T SCREW B 3 X 10 BT MTG FUCTION KNOB TO MIDDLE CAB.
Page 39
Item No. Description Quantity Req. Designator Remarks 63-B30100-BT4 S/T SCREW B 3 X 10 BT MTG LENS TO F.CAB. 63-B30100-BT4 S/T SCREW B 3 X 10 BT MTG SIDE AV PCB & MIDDLE CAB. 63-B40150-AB4 S/T SCREW B 4 X 15 AB MTG CRT &...
Page 41
PIN BASE *7 TJC3-7A P911 FOR SIDE AV BD 46-35184W-03X PIN BASE *3 TJC1-3A P801 FOR F. CTL BD 47-RCA023-XX1 RCA JACK 3PV YEL WHI RED/SW 1 P905 47-RCA023-XX1 RCA JACK 3PV YEL WHI RED/SW 1 P903 50-03150D-1GS1 FUSE 3.15AT 250VAC 5mmX20mm...
Page 44
IN60 OUTPUT 输入 输出 INPUT 3. Sound Amplifier Adjustment: 1) Apply 45.75 IF signal which is >60dB from P1101 2) Adjusting T1101 to make the voltage of Pin 15 in IC1101 is 2.5+0.05V. 4. Screen & Focus voltage adjustment: 1) Apply pattern signal in normal status, enter D-mode, press “TV/AV” button to turn off the vertical output.
Page 45
Please see the User’s Manual to check V-CHIP. FAC 01 FAC 02 FAC 02 FAC 03 Item Data Item Data Item Data Item Data HIGH5 HIGH6 HPOS5 VP50 VP60 PARA5 VLIN5 VLIN6 TRAP5 VSC5 VSC6 HSIZE5* VBLK5 VBLK6 CNRT5 VCEN5 VCEN6 CNRB5 VEHT5...
Page 46
FAC 11 FAC 12 FAC 13 FAC 14 Item Data Item Data Item Data Item Data MPB-STR 43 CLTM HAFC MPB-HMC 0D SVM1 CLVO AGCC MPB-HP OSD2 CLVS NOIS MPB-LP OSDF2 ONTM MPB-LIM 00 PYNX DCBS NSHP SUB-FRE 28 PYNN FLG0 PVLVL SUB-HP...
