TEC G-SPORT FR Owner's Manual

Infrared gas grill
Hide thumbs Also See for G-SPORT FR:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
G-SPORT FR
INFRARED GAS GRILL
OWNER'S MANUAL
T
E
C
HERMAL
NGINEERING
ORPORATION
P.O. Box 868 Columbia, SC. 29202
2741 The Boulevard Columbia, SC. 29209
Telephone: (803) 783-0750 Toll-Free (800) 331-0097
Fax: (803) 783-0756 Toll-Free Fax: (888) 581-0286

Advertisement

Table of Contents
loading

Related Manuals for TEC G-SPORT FR

Summary of Contents for TEC G-SPORT FR

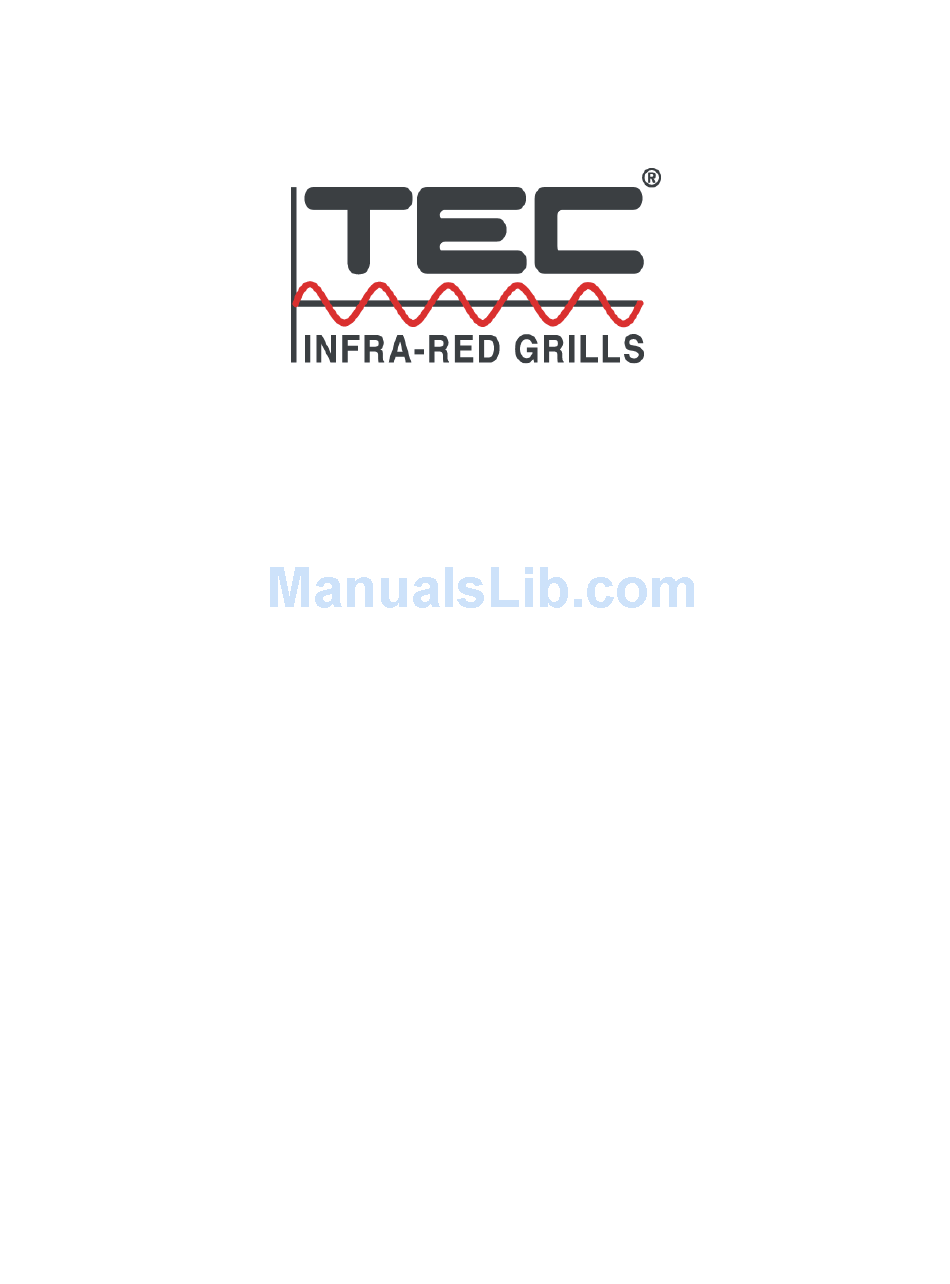

  • Page 1 G-SPORT FR INFRARED GAS GRILL OWNER’S MANUAL HERMAL NGINEERING ORPORATION P.O. Box 868 Columbia, SC. 29202 2741 The Boulevard Columbia, SC. 29209 Telephone: (803) 783-0750 Toll-Free (800) 331-0097 Fax: (803) 783-0756 Toll-Free Fax: (888) 581-0286...

  • Page 3: Warnings

    Warnings Notice to Customer THIS UNIT HAS BEEN CAREFULLY INSPECTED DANGER AND PACKAGED AT THE FACTORY PRIOR TO SHIPMENT. UPON ARRIVAL, INSPECT THE If you smell gas: APPLIANCE CAREFULLY FOR ANY CONCEALED 1. Shut off gas to the appliance. DAMAGE. IMMEDIATELY REPORT ANY Extinguish any open flame.

  • Page 4: Residential Outdoor Grill Warranty

    If the part is deemed by TEC to have a defect in material and/or workmanship, TEC will reimburse the owner for the cost of the part. TEC reserves the right to determine the warranty status of a part and shall have the option to repair or replace the product or any component part deemed by TEC to be defective.

  • Page 5: Table Of Contents

    Use insulated oven mitts or gloves for Appendix B: Radiant Glass Care ........17 protection from hot surfaces or splatter from Appendix C: Replacement Parts for the G-Sport FR ..18 cooking liquids while using this appliance. Appendix D:Trouble Shooting The G-Sport FR…….. 19 When considering locations for your appliance, keep these important factors in mind.

  • Page 6: Assembly

    Knob Install the battery, + end first. (See Figure 1) Thread the Push Button Spark Igniter Knob onto the Figure 1 TEC G-Sport FR Components Spark Igniter Bezel as shown. (See Figure 1) Regulator The G-Sport can be made for use with either Natural Gas or LP Gas.

  • Page 7: Optional Base

    Optional Base Pedestal Base Instructions The G-Sport can be attached to an optional Pedestal Base sold separately. Assemble the G-Sport as described in the assembly directions on page 4. Then attach the G-Sport to the pedestal base as shown below. The grill legs slide easily into the grill retaining legs on each corner of the pedestal’s top surface.

  • Page 8: Gas Connection

    Gas regulators specified by escape. Therefore, do not store gas tanks TEC should be used at all times. Refer to Table B.1 near or under an open flame or source of below for gas supply specifications, or see rating heat.

  • Page 9: Connecting Your Lp Gas Tank

    If a leak Check tank valve to insure it has proper external is found, turn tank valve off by turning the Hand mating threads; must be TYPE 1 to match TEC Wheel clockwise and do not use grill until repairs supplied regulator.

  • Page 10: Quick Disconnect Instructions

    Figure 5 LP Gas Tank Placement Figure 7 Quick Disconnect Removing Your 20 lb. LP Gas Tank Procedure: Close the Tank Valve by turning the Hand Wheel clockwise until it stops. Remove the Coupling Nut by turning it counterclockwise. Figure 6 LP Gas Tank Placement For Optional Base WARNING: WARNING: WARNING:...

  • Page 11: Gas Leak Test

    WARNING: TEST FOR LEAKS AFTER INITIAL GAS CONNECTION AND EVERY TIME GAS IS NOTICE: TEC RECOMMENDS THAT A FIRE RECONNECTED. DO NOT USE AN OPEN FLAME EXTINGUISHER FOR CLASS A, B, C AND D FIRES TO PERFORM LEAK TEST! DO NOT ATTEMPT TO USE THE GRILL WHEN YOU SMELL GAS OR FAIL BE READILY AVAILABLE AT ALL TIMES.

  • Page 12: Burner Ignition With Match

    Push the Spark Igniter Button. (See Figure 8, page While pushing the Spark Igniter Button depress and rotate the Burner Control Knob while checking for flame. Flame may be visually seen by looking into the Flame Observation Viewpoint on the side of the grill (See Figure 10, page 11).

  • Page 13: Low Heat Adjustment

    Place the flame of the lighted match in the space ADJUSTMENT SCREW IS NOT IN PLACE. (See between the glass panel and the interior trim on the Figure 13, page 11) left side of the grill. The match flame should be The Low Heat Adjustment Screw only applies to the below the level of the glass panel.

  • Page 14: Infrared Cooking

    TEC’s original ceramic technology affected by variations in altitude, and ambient that cooks with 50% hot air, but TEC’s new FR Series temperatures at the time of cooking, the fat content, grills employ a patented 100% infrared cooking system thickness and temperature of the food or other factors.
  • Page 15 As a benchmark, foods which generally cook in 20 minutes or less on conventional grills cook in about one-half to two-thirds the conventional time on a TEC Infrared grill. Please refer to the chart entitled SAMPLE COOKING METHODS on page 14.

  • Page 16: Sample Cooking Methods And Times

    Sample Cooking Methods and Times Actual cooking times may be affected by variations in altitude, ambient temperatures at the time of cooking, fat content, thickness and temperature of the food, or other factors. Use this chart to develop your own cooking approaches. MEAT, POULTRY, CONTROL SETTING TOTAL...

  • Page 17: Maintenance And Cleaning

    Maintenance and Cleaning General Overview Proper care, maintenance and cleaning will help insure long life of your grill. Always allow the grill to cool before cleaning. Interior trim is removable for cleaning (see figure 15, page 14) as well as the drip tray and cooking grids.

  • Page 18: Appendix A: Expanded Parts

    Appendix A: Expanded Parts...

  • Page 19: Appendix B: Radiant Glass Care

    This can be done without removing the PANEL cooking grids as they will also benefit from the TEC® grills are easy to clean, primarily because the burn-off procedure. The most important way to radiant glass panels, located below the cooking...

  • Page 20: Appendix C: Replacement Parts For The G-Sport Fr

    Appendix C: Replacement Parts for the G-Sport FR PART NUMBER ..DESCRIPTION HW0808.......... Bezel FM4115 .......... Burner Assembly FM4114 .......... Burner Plenum Assembly STBK ..........Burner Control Knob HW2802.......... Burner Control Valve FM4107 .......... Cooking Grid (one grid) GSCKLP-NT……………………...Conversion Kit, LP to NT FM4112 ..........

  • Page 21: Appendix D:trouble Shooting The G-Sport Fr

    Appendix D: Trouble Shooting The G-Sport FR NOTE: USE ONLY TEC SPECIFIED REPLACEMENT PARTS NOTE: REFER TO THE OWNER’S MANUAL FOR DIAGRAMS PROBLEM: BURNER WILL NOT IGNITE There are two potential reasons why a grill will not light: there is either a problem with the ignition system or an improper gas supply.
  • Page 22 INSUFFICENT GAS SUPPLY NOTE: REFER TO THE OWNER’S MANUAL FOR MORE INFORMATION AND DIAGRAMS LP UNITS 1. Check to see that the valve of the gas tank is completely open. To open a tank valve completely, the valve wheel must be turned counterclockwise until it stops. Also, check to see if the gas tank is empty and needs to be replaced.
  • Page 23 PROBLEM: BURNER OUTPUT AT HIGH FIRE SETTING IS TOO LOW NOTE: Please check Sample Cooking Methods in the Owner’s Manual for total cooking time to determine if the grill is not performing according to these suggested times. Now let’s troubleshoot the problem starting with: INSUFFICENT GAS SUPPLY 1.
