Viking “T” SERIES Use & Installation Instructions

USE/INSTALLATION
INSTRUCTIONS
" " T T " " S S E E R R I I E E S S O O U U T T D D O O O O R R G G R R I I L L L L L L I I G G H H T T
R R e e t t a a i i n n f f o o r r F F u u t t u u r r e e R R e e f f e e r r e e n n c c e e
I I M M P P O O R R T T A A N N T T - - P P L L E E A A S S E E R R E E A A D D A A N N D D F F O O L L L L O O W W
•Before beginning, please read these instructions completely and carefully.
•Do not remove permanently affixed labels, warnings, or plates from product. This may void the warranty.
•The installer should leave instructions with the consumer who should retain for future reference
P P A A R R T T S S I I N N C C L L U U D D E E D D : :

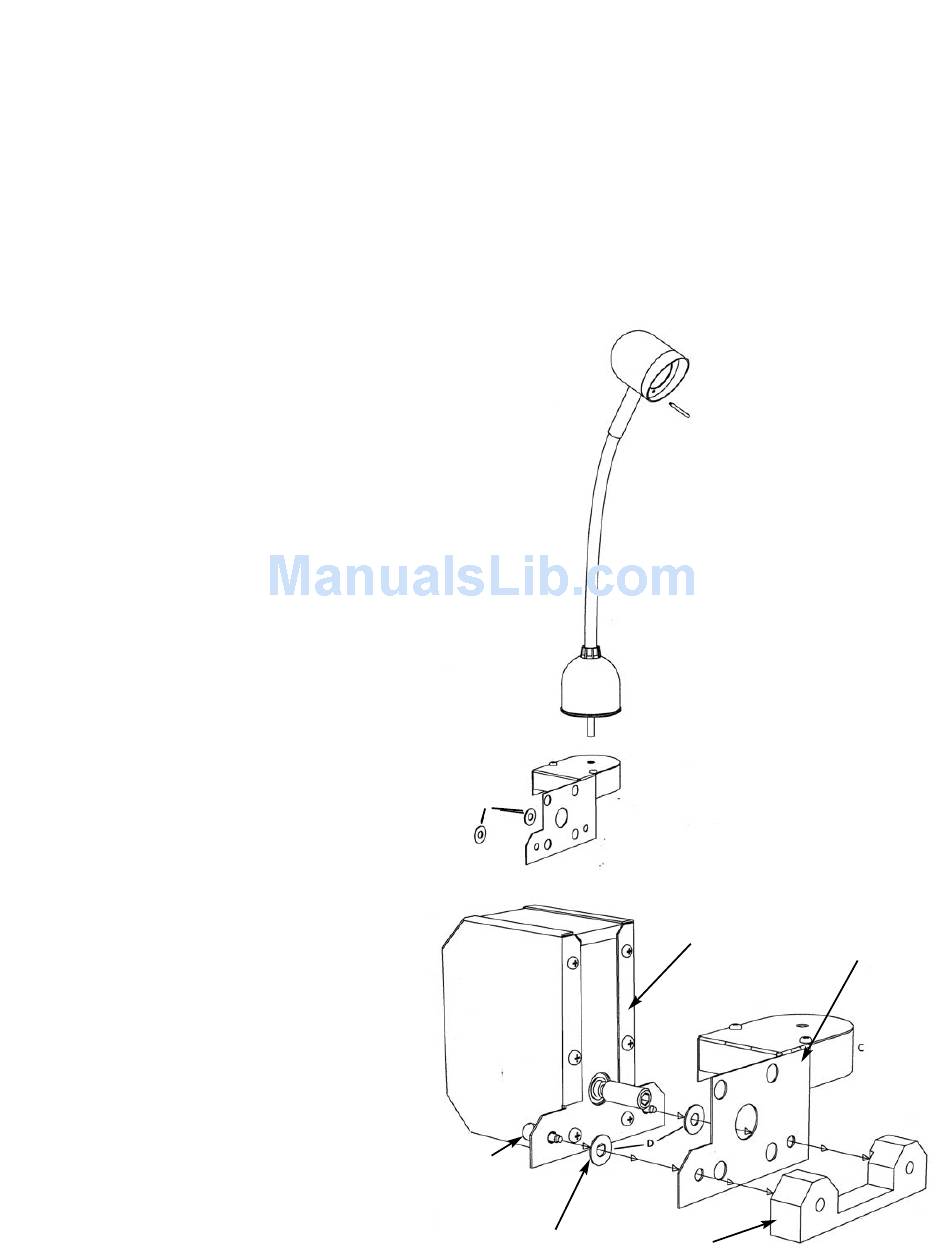

(Refer to illustration #1)
A. Visor Post
B. Grill Light
C. Grill Light Mounting Bracket
D. Stainless Steel Washers
A A s s s s e e m m b b l l y y I I n n s s t t r r u u c c t t i i o o n n s s
1. If the rotisserie motor is installed, the thumb
screws and rotisserie motor mounting
bracket on the motor will need to be
removed to install the grill light.
2. Install the grill light mounting bracket
between the rotisserie motor and the
rotisserie motor mounting bracket. Make
sure the stainless steel washers are placed
between the rotisserie motor and the grill
light mounting bracket. Use the rotisserie
thumb screws to secure the grill light
mounting bracket between the rotisserie
motor and rotisserie mounting bracket.
(See illustration #2.)
NOTE: If the rotisserie motor is not being
used, the grill light can be mounted without
the rotisserie motor. Simply screw the grill light
mounting bracket into the rotisserie mounting
bracket using the two thumb screws.
I I l l l l u u s s t t r r a a t t i i o o n n # # 1 1
B B
D D
I I l l l l u u s s t t r r a a t t i i o o n n # # 2 2
Thumb Screws
(located on both
sides of bracket)
Stainless Steel Washers
VIKING RANGE CORPORATION
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
A A
C C
Rotisserie
Motor
Rotisserie Motor
Mounting Bracket
Grill Light
Mounting Bracket
