GEM DG-101 Operation User's Manual

Digital keyless entry system

Advertisement

Quick Links

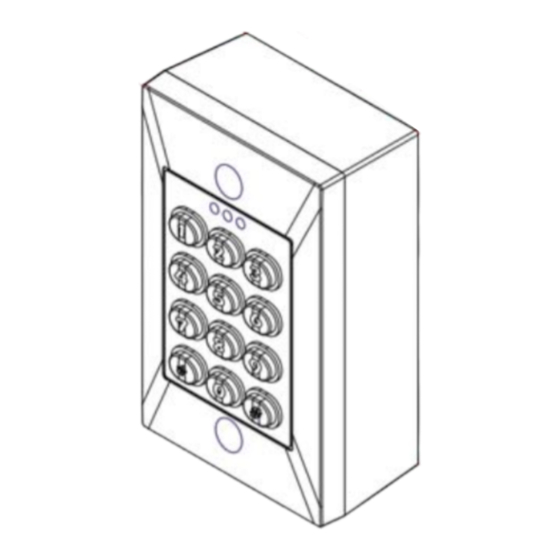

The DG-101 Digital Keyless Entry system
This series of request to exit can be
mounted directly in ANSI electrical box
(Flush mount)
1. Product Characteristic:
Allows up to 49+50 PIN codes
Dual relays programmable On/Off or pulsed or latched mode
Fully Programmable via keypad and master code
Door Reed Switch Input for Anti-Trailing
3 LED display with audible indication
Non-Volatile Memory
Invalid PIN Lock-out
ABS housing
With vandal resistant screws
ABS or optional luminous keypads

2. Specifications:

Operating Voltage: 12~24 Vdc
Current Draw: Average 15mA, Peak 60mA @ 12Vdc
Input: request-to-exit、Door Reed
Output: Dual relays, N.O./N.C./Com. Output (free voltage contact)
Relays Electric Current: 2A MAX @30Vdc ;0.4A @ 120Vac
Relay Activation Time: (*100、*200)
Strike Time: 1~99 seconds(adjustable)
Strike mode: Access Timer or Latch
Memory Volume: 49+50 PIN codes
Relay 1 is controlled by 001~049 user slots
Relay 2 is controlled by 050~099 user slots
PIN codes: 5 digit codes only
Operating Temperature: -20~+70℃
Ambient Humidity: 5~95% relative humidity non-condensing
Factory Master Code: 12345
Invalid PIN Lock-out: The system will shut down for 60 seconds while 32 codes of
incorrectly Master Codes enrolled or PIN codes attempted.
EPROM: Non-volatile memory, System will retain all programs and codes after a total
loss of power.
Copyright Gianni Industries, Inc. All Rights Reserved.
P-MU-DG101 Ver. B Publish:2008.10.23
Operation User's Manual
Surface mounting Installation:
SMB-750 housing is optional for
surface mount.
Page: 1/ 3
