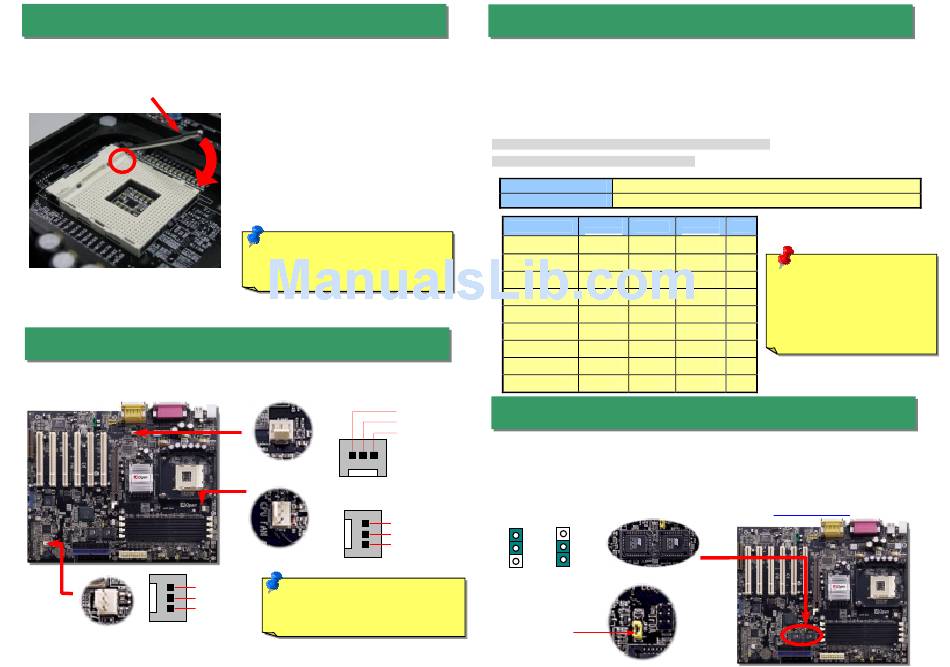

3. Installing Processor

This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package
developed by Intel. Other forms of CPU package are impossible to be fitted in.
CPU socket lever
CPU Pin 1 and cut edge
4. Installing CPU & System Fan
Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan, you
can also plug it in FAN2 or FAN3 connector.
GND
+12V
SENSOR
FAN3 Connector
1.
Pull up the CPU socket lever and up to
90-degree angle.
2.
Locate Pin 1 in the socket and look for
a (golden) cut edge on the CPU upper
interface. Match Pin 1 and cut edge.
Then insert the CPU into the socket.
3.
Press down the CPU socket lever and
finish CPU installation.
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well,
you may damage the CPU.
GND
+12V
SENSOR
FAN2 Connector
GND
+12V
SENSOR
CPU Fan Connector
Note: Some CPU fans do not have
sensor pin so they cannot support fan
monitoring.
5. Setting CPU Voltage & Frequency
Setting CPU Core Voltage
This motherboard supports CPU VID function. The CPU core voltage will be automatically
detected and the range is from 1.10V to 1.85V. It is not necessary to set CPU core
voltage.
Setting CPU Frequency
This motherboard is CPU jumper-less design, you can set CPU frequency through the
BIOS setup, and no jumpers or switches are needed.
BIOS Setup > Frequency / Voltage Control > CPU Speed Setting
Core Frequency = CPU FSB Clock * CPU Ratio
CPU Ratio 8x, 9x, 10x... 21x, 22x, 23x, 24x
CPU FSB 100~248MHz by 1MHz stepping
CPU Core
CPU FSB Clock
Frequency
Pentium 4 1.4G 1400MHz 100MHz
Pentium 4 1.5G 1500MHz 100MHz
Pentium 4 1.6G 1600MHz 100MHz
Pentium 4 1.7G 1700MHz 100MHz
Pentium 4 1.8G 1800MHz 100MHz
Pentium 4 1.9G 1900MHz 100MHz
Pentium 4 2G 2000MHz 100MHz
Pentium 4 2.2G 2200MHz 100MHz
Pentium 4 2.4G 2400MHz 100MHz
6. Die-Hard BIOS (1 default, 1 optional)
Many viruses have been found that may destroy bios code and data area lately. This
motherboard implements a very effective hardware protection method without any software
or BIOS coding involved, therefore it is 100% virus free. You may restore the originally
nd
mounted BIOS with 2 BIOS ROM by setting JP30 to pin 2-3 if it fails to act normally. This
motherboard comes with one BIOS ROM, you may contact our local distributors or resellers
for purchasing an extra BIOS ROM. Please visit our website:
1
1
normal
rescue
Pin1
System
Ratio
Bus
400MHz 14x
400MHz 15x
®
Warning: Intel
400MHz 16x
supports maximum 400MHz
400MHz 17x (100MHz*4) system bus and
66MHz AGP clock; higher
400MHz 18x
clock setting
400MHz 19x
serious system damage.
400MHz 20x
400MHz 22x
400MHz 24x
www.aopen.com for details.
845 chipset
may cause
